1. ആമുഖവും ഉൽപ്പന്നവും കഴിഞ്ഞുview
This manual provides essential information for the safe and effective installation, operation, and maintenance of the ABB SACE EMAX2 E2.2 H 1600 Ekip Touch LSIG 3p WMP Air Circuit Breaker. Please read this manual thoroughly before any operation.
The ABB SACE EMAX2 E2.2H 1600 is a fixed three-pole air circuit breaker equipped with rear horizontal terminals and a solid-state release in AC EKIP/DIP-LI R 1600. It includes four auxiliary contacts and a circuit breaker in the open-closed position.
പ്രധാന സവിശേഷതകൾ:
- Mounting type: Plug-In Mount
- വാല്യംtage: 600.0 volts of alternating current
- Circuit breaker type: Standard
- നിലവിലെ റേറ്റിംഗ്: 1600.0 amps
- പോളുകളുടെ എണ്ണം: 3
ചിത്രം 1: മുൻഭാഗം view of the ABB SACE EMAX2 E2.2 H 1600 Air Circuit Breaker, showing the Ekip Touch display, operating buttons (OPEN, Push OFF, Push ON), and the reset mechanism.
2. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
The ABB SACE EMAX2 E2.2 H 1600 is designed for plug-in mounting. Proper installation by qualified personnel is crucial for safety and optimal performance.
2.1 അൺപാക്കിംഗും പരിശോധനയും
Carefully unpack the circuit breaker and all accessories. Inspect for any signs of shipping damage. Ensure all components listed in the packing slip are present.
Figure 2: The circuit breaker securely packed within its wooden shipping crate, indicating careful handling during transport.
Figure 3: Various accessories, such as mounting brackets and additional components, packaged separately for the circuit breaker.
2.2 മൗണ്ടിംഗ്
This unit features a plug-in mount design. Refer to the detailed installation diagrams and instructions provided with the product for specific mounting procedures. Ensure the mounting surface is stable and capable of supporting the unit's weight (approximately 105.82 pounds).
2.3 ഇലക്ട്രിക്കൽ കണക്ഷനുകൾ
Connect the main power lines to the designated terminals. The unit is a three-pole breaker. Ensure all connections are secure and comply with local electrical codes and standards.

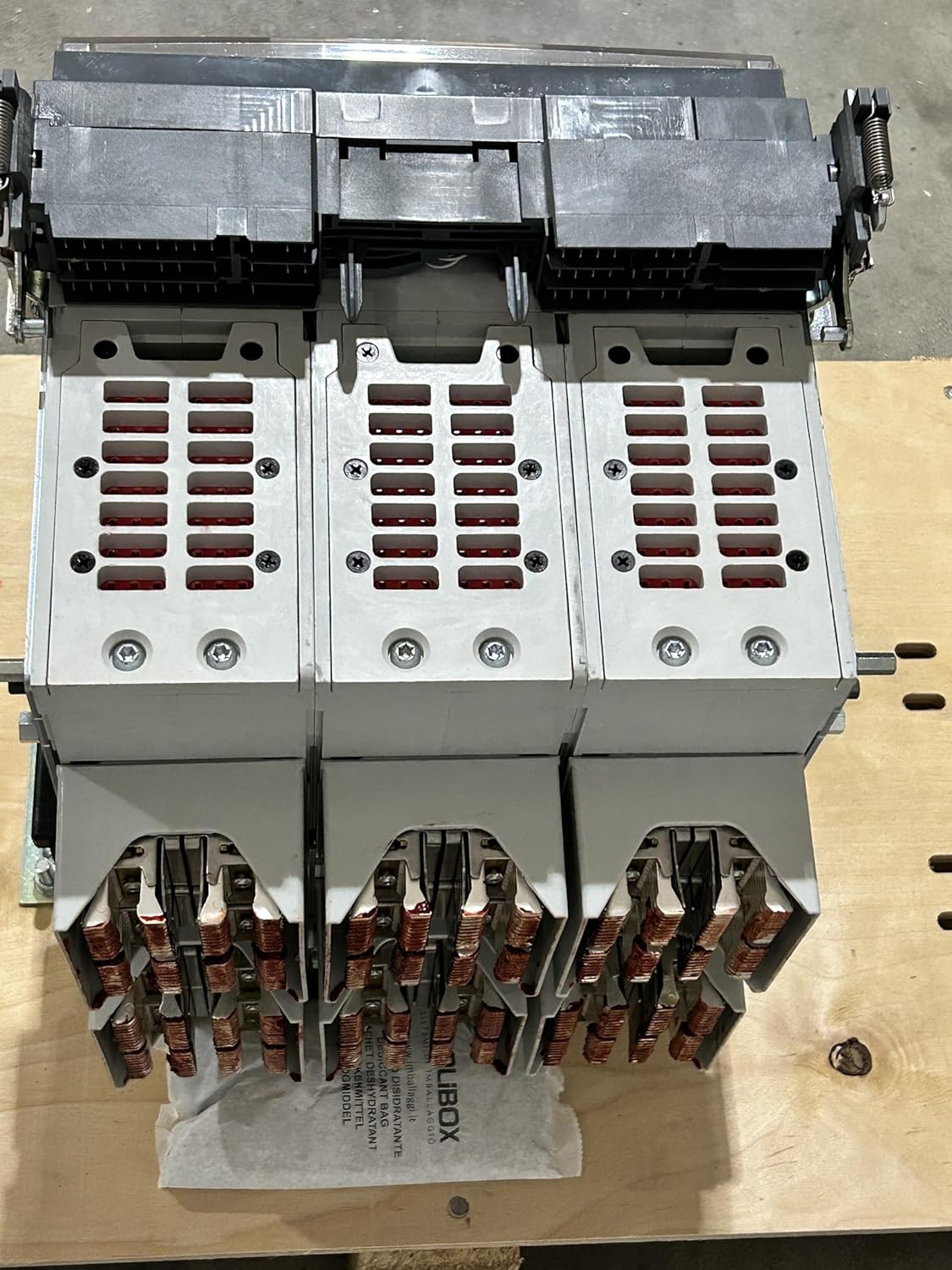

ചിത്രം 4: മുകളിൽ view illustrating the three main connection points for electrical wiring, designed for robust and secure connections.
Warning: All electrical work must be performed by a qualified electrician. Disconnect all power before installation or maintenance.
3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The ABB SACE EMAX2 E2.2 H 1600 features an Ekip Touch interface and mechanical push buttons for operation.
3.1 അടിസ്ഥാന പ്രവർത്തനം
- To Close (Turn On): Press the "Push ON" button (green). The breaker will close, allowing current flow.
- To Open (Turn Off): Press the "Push OFF" button (red). The breaker will open, interrupting current flow.
- അടിയന്തര തുറക്കൽ: Use the "OPEN" lever for immediate manual opening.
- പുന et സജ്ജമാക്കുക: After a trip event, identify and resolve the cause. Then, press the "Reset" button to reset the tripping mechanism before attempting to close the breaker again.
ചിത്രം 5: വിശദമായി view of the operational controls, including the Ekip Touch display and the mechanical buttons for opening, closing, and resetting the breaker.
3.2 Ekip Touch Interface
The Ekip Touch display provides real-time data, settings, and diagnostic information. Refer to the separate Ekip Touch user guide for detailed navigation and configuration instructions.
4. പരിപാലനം
Regular maintenance ensures the longevity and reliable operation of your ABB SACE EMAX2 circuit breaker. Always disconnect power before performing any maintenance.
4.1 പതിവ് പരിശോധനകൾ
- Visually inspect the breaker for any signs of damage, loose connections, or excessive dust accumulation.
- വെന്റിലേഷൻ ഓപ്പണിംഗുകൾ വ്യക്തവും തടസ്സമില്ലാത്തതുമാണെന്ന് ഉറപ്പാക്കുക.
- Check the integrity of all wiring and terminal connections.
4.2 വൃത്തിയാക്കൽ
Use a dry, lint-free cloth to clean the exterior surfaces. Do not use abrasive cleaners or solvents. For internal cleaning, consult a qualified service technician.
ചിത്രം 6: വശം view revealing the intricate mechanical components and gear assembly responsible for the breaker's operation, highlighting areas that may require professional inspection.
4.3 പ്രൊഫഷണൽ സർവീസിംഗ്
Periodic professional servicing by ABB-certified technicians is recommended to ensure optimal performance and compliance with safety standards. This includes checking internal mechanisms and calibration of the Ekip Touch unit.
5. പ്രശ്നപരിഹാരം
This section provides general guidance for common issues. For complex problems, contact ABB technical support or a qualified electrician.
5.1 ഇടയ്ക്കിടെ ബ്രേക്കർ യാത്രകൾ
- ഓവർലോഡ്: Check the connected load. Reduce the load if it exceeds the breaker's rated current (1600 A).
- ഷോർട്ട് സർക്യൂട്ട്: Inspect wiring for short circuits. This requires immediate attention and professional diagnosis.
- ഗ്രൗണ്ട് ഫോൾട്ട്: If applicable, check for ground faults in the system.
- തകരാറുള്ള ഉപകരണങ്ങൾ: Disconnect individual equipment to identify a faulty device causing the trip.
5.2 Breaker Does Not Close
- വഴിതെറ്റിയ അവസ്ഥ: Ensure the breaker is fully reset after a trip. The "DISCHARGED SPRING" indicator might be visible if not reset.
- ശക്തിയില്ല: Verify incoming power supply.
- Mechanical Obstruction: Check for any physical obstructions preventing the mechanism from closing.

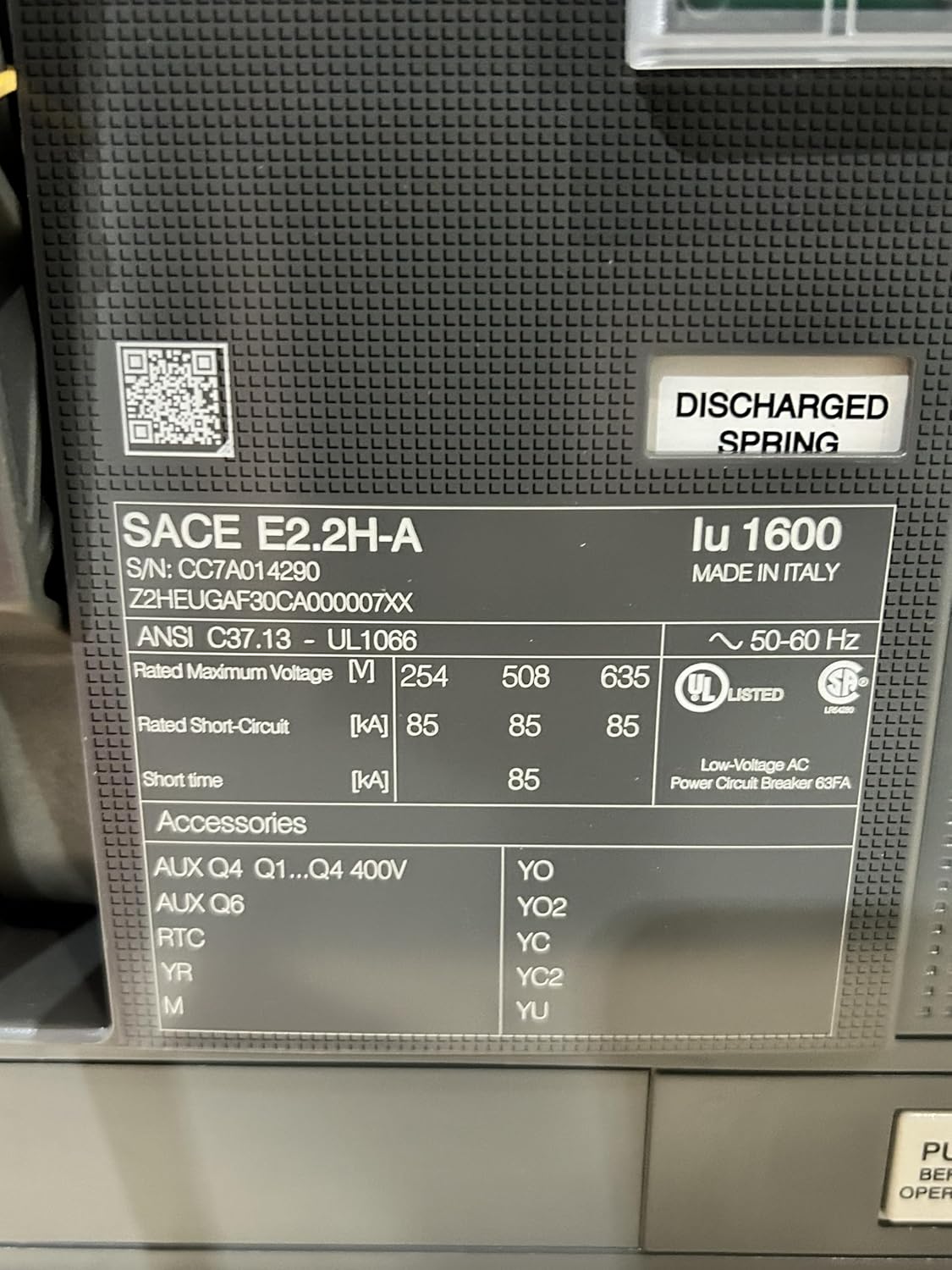

Figure 7: Product label providing critical specifications such as model number (SACE E2.2H-A), serial number, rated maximum voltage, rated short-circuit current, and UL/CSA certifications.
6 സ്പെസിഫിക്കേഷനുകൾ
Detailed technical specifications for the ABB SACE EMAX2 E2.2 H 1600 Ekip Touch LSIG 3p WMP Air Circuit Breaker:
| സ്പെസിഫിക്കേഷൻ | മൂല്യം |
|---|---|
| Product Main Type | SACE Emax 2 |
| മോഡൽ നമ്പർ | SACE E2.2H-A |
| റേറ്റുചെയ്ത നിലവിലെ (ഇൻ) | 1600 എ |
| ധ്രുവങ്ങളുടെ എണ്ണം | 3 |
| നിലവിലെ തരം | AC |
| റേറ്റുചെയ്ത വോളിയംtagയൂറോ) | 690 വി |
| റേറ്റുചെയ്ത പ്രവർത്തന വോളിയംtage | 690 V എസി |
| റേറ്റുചെയ്ത ഇൻസുലേഷൻ വോളിയംtagഇ (യുഐ) | എസി 1000 വി |
| റേറ്റുചെയ്ത ഇംപൾസ് വിത്ത്സ്റ്റാൻഡ് വോളിയംtagഇ (Uimp) | 12 kV (acc. to IEC 60947-2) |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 100 kA, (415 V AC) 100 kA, (440 V AC) 100 kA, (500 V AC) 85 kA, (525 V AC) 85 kA, (690 V AC) 85 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA, (230 V AC) 100 kA, (380 V AC) 100 kA, (400 V AC) 100 kA, (415 V AC) 100 kA, (440 V AC) 100 kA, (500 V AC) 85 kA, (660 V AC) 85 kA, (690 V AC) 85 kA |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| റേറ്റുചെയ്ത ഹ്രസ്വകാല പ്രതിരോധം നിലവിലെ കുറഞ്ഞ വോളിയംtagഇ (ഐസിഡബ്ല്യു) | for 1 s 85 kA, for 3 s 66 kA |
| Rated Uninterrupted Current (Iu) | 1600 എ |
| ഇലക്ട്രിക്കൽ ഡ്യൂറബിലിറ്റി | Ue =<440 V 12000 cycle, Ue = 500 ... 690 V 10000 cycle (30 cycles per hour) |
| മെക്കാനിക്കൽ ഡ്യൂറബിലിറ്റി | 25000 cycle (60 cycles per hour) |
| പവർ ലോസ് | 288 W |
| ഉൽപ്പന്ന അളവുകൾ | 15.08 x 12.48 x 16.73 ഇഞ്ച് |
| ഭാരം | 105.82 പൗണ്ട് |
| മാതൃരാജ്യം | ഇറ്റലി |
Note: Specifications are subject to change without notice. Always refer to the product label and official ABB documentation for the most accurate and up-to-date information.
Figure 8: Product identification label, including the EAN/UPC code 8057558336022, which can be used for product verification and lookup.
7. വാറൻ്റിയും പിന്തുണയും
For warranty information and technical support, please refer to the official ABB documentation included with your product or visit the official ABB webസൈറ്റ്.
- റിട്ടേണുകൾ: This product is eligible for 30-day easy returns. Please check the retailer's return policy for details.
- ഉപഭോക്തൃ പിന്തുണ: For assistance, contact customer support through your purchase platform or directly via ABB's official channels.
- ABB Store: You can find more information and products from ABB by visiting the official ABB Store.
