Core Innovations PocketTunes Dozy The Dancing Alarm Bot

ആമുഖം

The Core Innovations PocketTunes Dozy is an animated LCD digital alarm clock designed to make waking up an engaging experience. It features simple controls for setting and managing alarms, expressive animated eyes, and the ability to switch between various display modes. With its built-in rechargeable battery, Dozy offers portability for use in different locations.

Figure 1: Core Innovations PocketTunes Dozy The Dancing Alarm Bot.

ഉൽപ്പന്ന സവിശേഷതകൾ

• Easy-to-Use Alarm Clock: Simple buttons facilitate setting, canceling, and updating alarms.
• Fun Animation: Dozy's eyes animate to display various expressive states, enhancing user interaction.
• Different Clock Faces and Mode Changes: Tap Dozy's headband to cycle through expression and clock face display modes.
• പോർട്ടബിൾ: Equipped with a rechargeable battery for convenient use on the go.
• ബ്ലൂടൂത്ത് കണക്റ്റിവിറ്റി: Allows for wireless audio streaming.
• എഫ്എം റേഡിയോ ട്യൂണർ: Integrated FM radio functionality for listening to broadcasts.

സജ്ജമാക്കുക

1 ഉപകരണം ചാർജ് ചെയ്യുന്നു

Before initial use, fully charge Dozy using the provided USB-C charging cable. Connect the cable to the charging port on Dozy and plug the other end into a compatible USB power adapter (not included). The device's display may indicate charging status.

2. പവർ ഓൺ/ഓഫ്

To power on Dozy, locate the power button (refer to the device diagram in the operating section for exact location) and press and hold it until the LCD screen illuminates. To power off, press and hold the same button until the screen turns off.

3. പ്രാരംഭ സമയ ക്രമീകരണം

Upon first power-on or after a full discharge, you may need to set the current time. Use the navigation buttons (typically labeled with arrows or +/-) and the clock/alarm button to adjust the hour and minute. Consult the 'Operating Instructions' section for detailed button functions.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

നിയന്ത്രണ ബട്ടണുകൾ കഴിഞ്ഞുview

Figure 2: Dozy's front control buttons for navigation and alarm settings.

• മുകളിലേക്കും താഴേക്കുമുള്ള അമ്പടയാളങ്ങൾ (▲ / ▼): Used for navigating menus, adjusting time, volume, or radio frequencies.
• Clock/Alarm Button (⏰): Used to enter time setting mode, alarm setting mode, or confirm selections.
• Headband Tap Sensor: Tapping Dozy's headband switches between different display modes (e.g., clock face, expressive eyes).

Setting and Managing Alarms

1. Press the Clock/Alarm button (⏰) to enter alarm setting mode.
2. Use the Up/Down arrow buttons (▲ / ▼) to adjust the desired alarm time.
3. Press the Clock/Alarm button (⏰) again to confirm the hour and then the minute.
4. To activate or deactivate an alarm, navigate to the alarm setting and use the appropriate button (often the Clock/Alarm button or a dedicated toggle) to switch it on or off.
5. When an alarm sounds, press the Clock/Alarm button (⏰) or tap Dozy's headband to snooze or cancel the alarm.

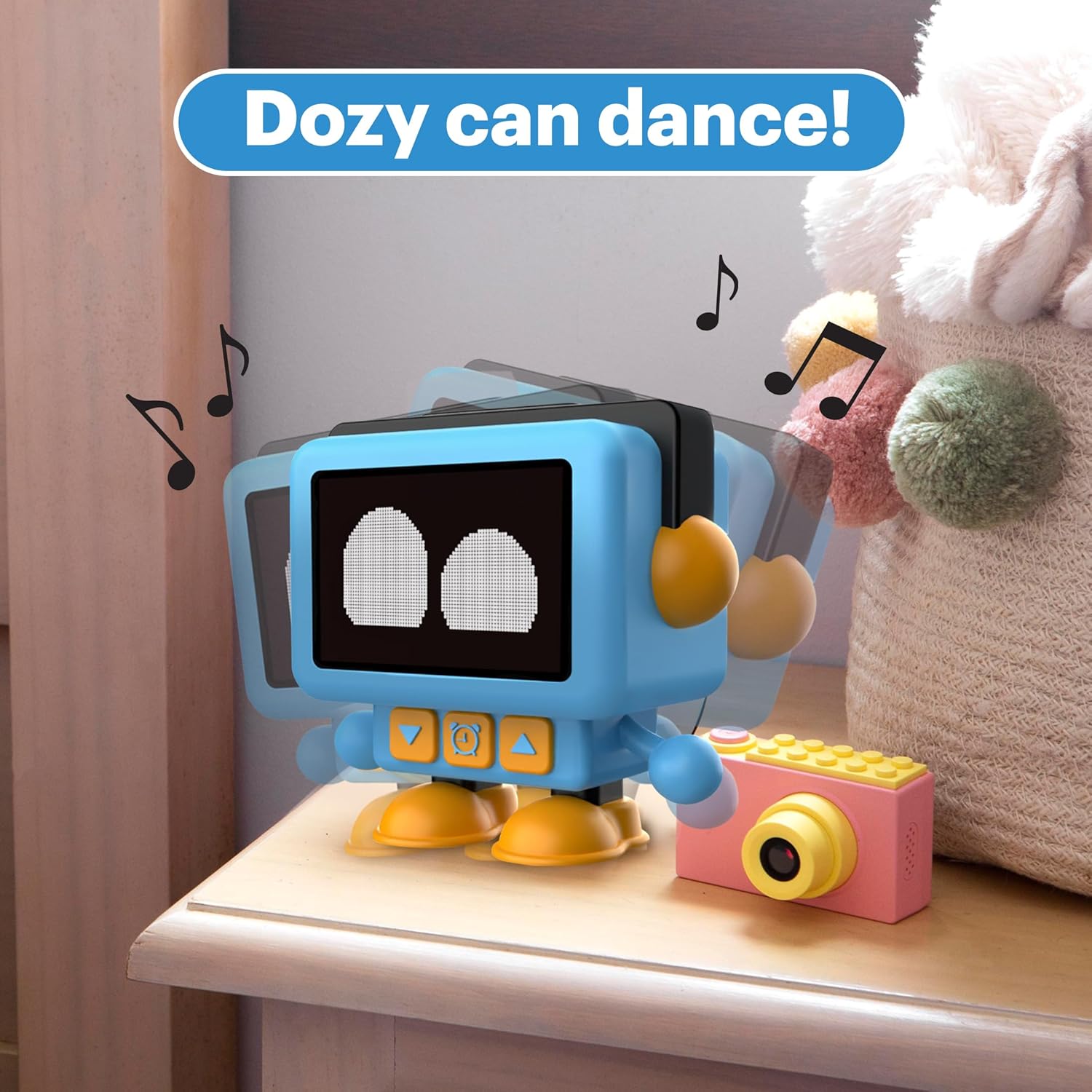

Figure 3: Dozy performs unique dances and music when an alarm activates.

Animated LCD Face and Display Modes

Dozy's LCD screen displays various animated expressions corresponding to its state (e.g., awake, sleeping, dancing, snoozing). Tapping the headband allows you to switch between these expressive modes and standard clock face displays.

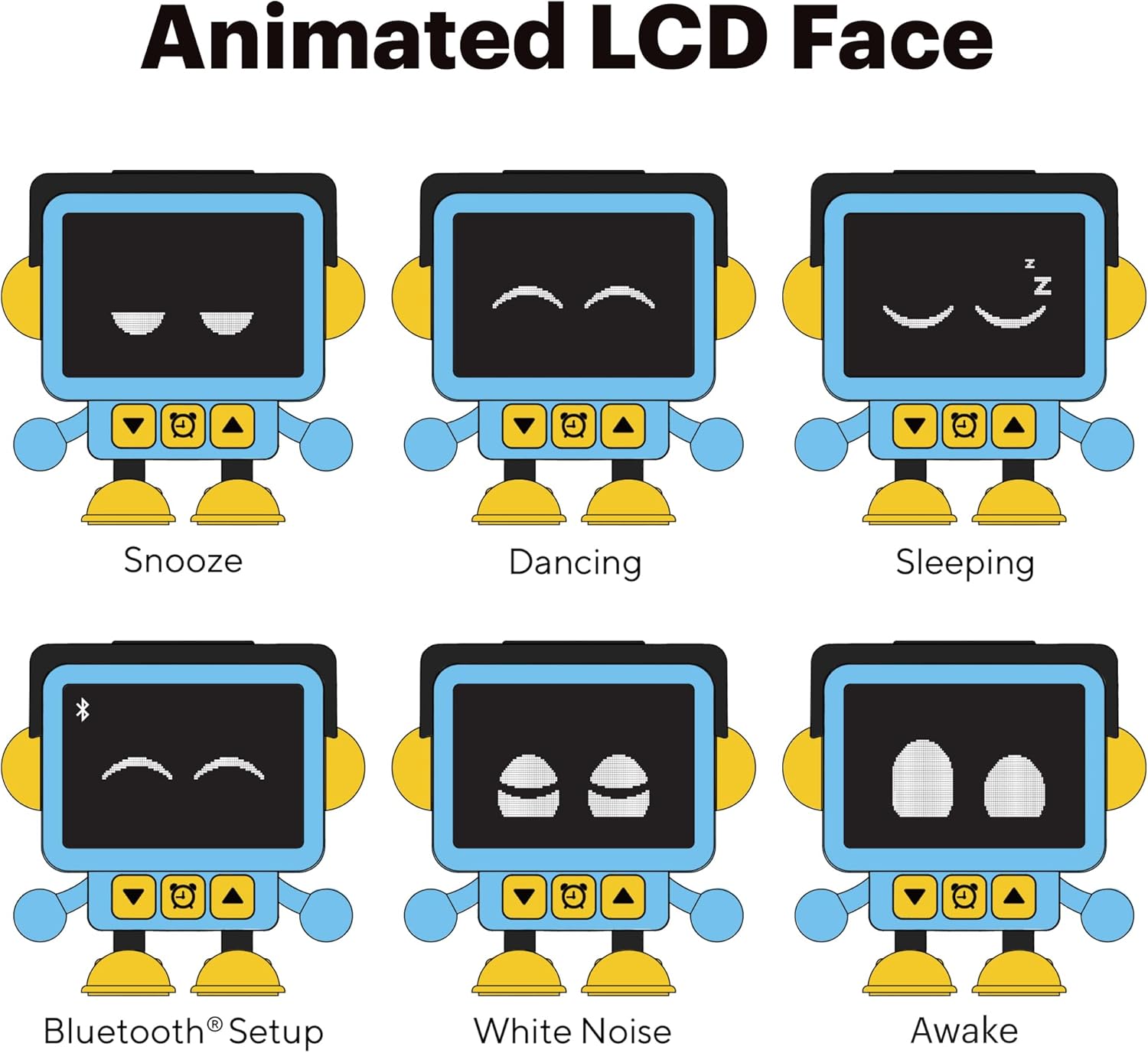

ചിത്രം 4: ഉദാamples of Dozy's animated LCD expressions.

ബ്ലൂടൂത്ത് ജോടിയാക്കൽ

To pair Dozy with a Bluetooth-enabled device (e.g., smartphone, tablet) for audio streaming:

1. Ensure Dozy is powered on and in Bluetooth pairing mode (indicated by a specific icon or animation on the LCD screen, as shown in Figure 4).
2. On your external device, enable Bluetooth and search for available devices.
3. Select "Dozy" or a similar name from the list of found devices to initiate pairing.
4. Once paired, Dozy will confirm the connection, and you can stream audio wirelessly.

എഫ്എം റേഡിയോ ട്യൂണർ

Dozy includes an FM radio tuner. To access and operate the FM radio:

1. Switch to FM radio mode using the mode button or by cycling through display modes via the headband tap sensor.
2. Use the Up/Down arrow buttons (▲ / ▼) to scan for and select radio stations.
3. Adjust the volume using the appropriate controls (refer to device-specific volume adjustment instructions if not covered by arrow buttons).

Figure 5: Dozy's display showing FM radio tuner interface.

മെയിൻ്റനൻസ്

വൃത്തിയാക്കൽ

To clean Dozy, gently wipe the surface with a soft, dry cloth. For stubborn marks, a slightly damp cloth can be used, ensuring no moisture enters the device's ports or openings. Do not use abrasive cleaners, solvents, or strong chemicals, as these may damage the finish or internal components.

ബാറ്ററി കെയർ

Dozy is equipped with a rechargeable Lithium Ion battery. To prolong battery life, avoid fully discharging the battery frequently. Recharge the device when the battery indicator shows low power. If storing the device for an extended period, charge it to approximately 50% and recharge every few months to prevent deep discharge.

ട്രബിൾഷൂട്ടിംഗ്

• ഉപകരണം പവർ ചെയ്യുന്നില്ല: ഉപകരണം പൂർണ്ണമായും ചാർജ് ചെയ്തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക. ഒരു പവർ സ്രോതസ്സുമായി ബന്ധിപ്പിച്ച് വീണ്ടും പവർ ഓൺ ചെയ്യാൻ ശ്രമിക്കുന്നതിന് മുമ്പ് കുറഞ്ഞത് 30 മിനിറ്റെങ്കിലും ചാർജ് ചെയ്യാൻ അനുവദിക്കുക.
• Alarm Not Sounding/Stopping: Verify that the alarm is correctly set and activated. Check the volume level. If the alarm is active and unresponsive, try a soft reset by holding the power button for an extended period (e.g., 10-15 seconds) until the device restarts.
• ബ്ലൂടൂത്ത് ജോടിയാക്കൽ പ്രശ്നങ്ങൾ: Ensure Dozy is in pairing mode. Turn off and on Bluetooth on your external device. Move Dozy closer to the external device. Clear previous Bluetooth connections on both devices and try pairing again.
• Display Not Responding to Headband Tap: Ensure the device is powered on and not in a locked mode. Try gently tapping the headband in different spots.
• മോശം എഫ്എം റേഡിയോ സ്വീകരണം: Reposition Dozy to improve signal reception. Ensure there are no large metallic objects nearby that could interfere with the signal.

സ്പെസിഫിക്കേഷനുകൾ

Figure 6: Product dimensions of Dozy.

വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or service inquiries regarding your Core Innovations PocketTunes Dozy, please refer to the documentation included with your product or contact Core Innovations customer service directly. Contact details can typically be found on the manufacturer's official webസൈറ്റ് അല്ലെങ്കിൽ ഉൽപ്പന്ന പാക്കേജിംഗിൽ.
