RILAND MIG130T 3-in-1 Welding Machine User Manual

1. ആമുഖവും ഉൽപ്പന്നവും കഴിഞ്ഞുview

The RILAND MIG130T is a versatile 3-in-1 multi-process welding machine designed for Flux Core MIG, Lift TIG, and Stick (MMA) welding. Powered by the innovative RICHIP, it offers enhanced welding performance with features like true Synergic Control, automatic wire feeding, and improved arc stability. This portable and lightweight unit is suitable for various applications, from home automotive repair to sheet metal processing.

Figure 1: The RILAND MIG130T welding machine shown with its complete set of included accessories, highlighting its compact design.

Figure 2: An illustration emphasizing the 3-in-1 capabilities and the high-efficiency RICHIP technology integrated into the welder.

2 സുരക്ഷാ വിവരങ്ങൾ

Always prioritize safety when operating welding equipment. This machine incorporates multiple safety protections including overheat, overcurrent, and overvoltage protection. An intelligent start-stop high-speed cooling system is also integrated. If the machine suddenly stops, it may be due to the self-protection mode activating.

• Ensure the machine's housing is reliably grounded to prevent accidents.
• Do not attempt to repair the machine unless you are a qualified specialist.
• Remove dust from the machine twice a month using compressed air to maintain optimal performance and prevent overheating.
• For high-dust environments, it is suggested to place the equipment 1 meter from the ground.

Figure 3: Visual representation of the welder's safety features, such as smart fan control, overheating auto shut down, overload auto shut down, and IP21 water rating.

3. പാക്കേജ് ഉള്ളടക്കം

Upon unboxing, verify that all the following items are included in your package:

• 1 x MIG130T Welder
• 1 x MIG Torch (6.6ft)
• 1 x Electrode Holder (6 ft)
• 1 x ഭൂമി Clamp (6.6 അടി)
• 1 x ക്ലീനിംഗ് ബ്രഷ്
• 2 x Contact Tips
• 1 x പവർ കോർഡ്
• 1 x E71T-GS Flux Core Wire .030" 1lb

Note: The TIG Torch is NOT included with this package.

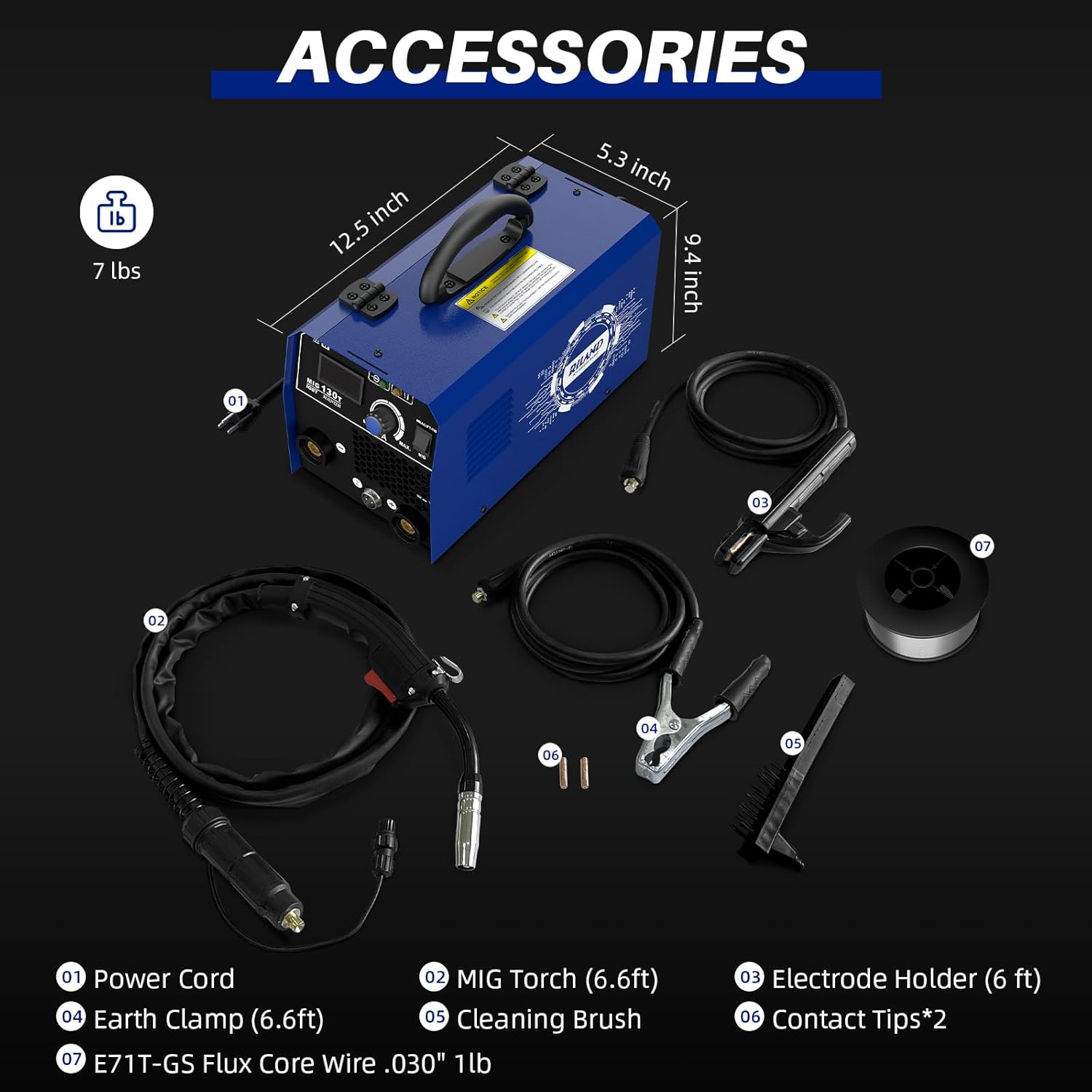

ചിത്രം 4: പൊട്ടിത്തെറിച്ച ഒരു view illustrating the various components and accessories included in the MIG130T package.

4. സജ്ജീകരണം

4.1. Installation of Wire Spool (for MIG/Flux Core)

The MIG130T comes with a pre-installed wire spool. To install or replace the wire spool, open the side panel of the welder. Follow the diagram provided inside the welder's panel for correct installation of the wire spool and wire feed roller. Ensure the wire is free of burrs or angles before feeding.

ചിത്രം 5: വിശദമായി view of the quality wire feeder and instructions for spool installation, suitable for .030"-.040" fluxed wire.

4.2. Connecting Welding Cables

Connect the MIG Torch, Electrode Holder, and Earth Clamp to the appropriate terminals on the front panel of the welder. Ensure connections are secure. The connections are designed with a bump to ensure proper alignment; simply insert and twist to secure.

Figure 6: The front panel of the MIG130T, indicating the digital display, power and thermal protection LEDs, synergic control knob, and MIG/MMA switching.

4.3. പവർ കണക്ഷൻ

The RILAND MIG130T operates on a 110V AC input. Connect the power cord to a suitable power outlet. The machine is designed for portability and does not require gas for flux core welding.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1. പാനൽ നിയന്ത്രണങ്ങൾ

• ഡിജിറ്റൽ ഡിസ്പ്ലേ: Shows current welding parameters.
• പവർ ഇൻഡിക്കേറ്റർ LED: Illuminates when the machine is powered on.
• താപ സംരക്ഷണ LED: Indicates if the machine is overheating or in protection mode.
• Synergic Control Knob: Automatically adjusts recommended current and wire feeding speed based on selected material thickness.
• MIG/MMA/Lift-TIG Switching: Selects the desired welding mode.

5.2. സിനർജിക് നിയന്ത്രണം

The RICHIP-powered Synergic Control simplifies operation by automatically recognizing the welding function and adjusting control parameters according to actual welding conditions. This ensures consistent welding quality and is particularly beneficial for beginners.

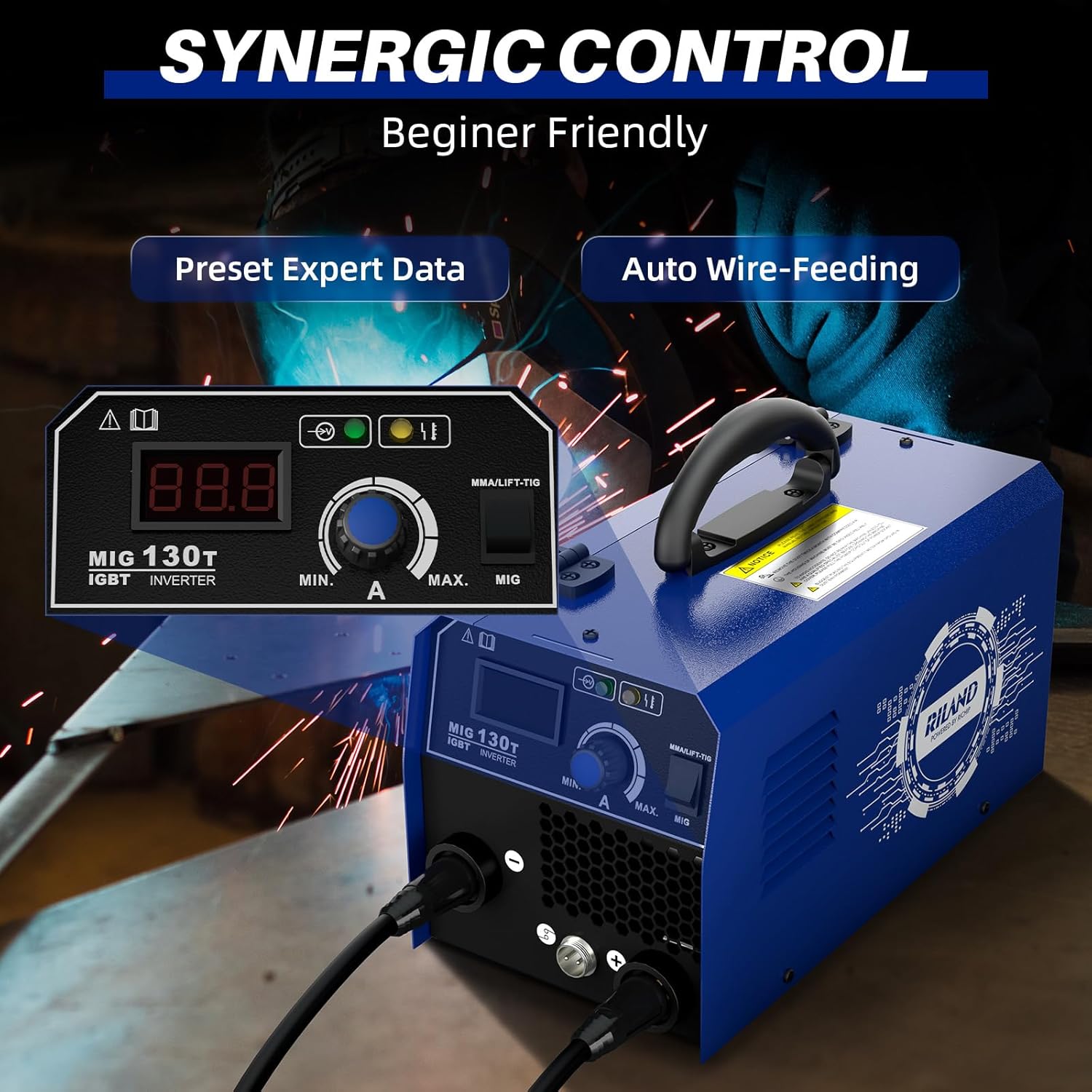

Figure 7: The Synergic Control feature, which provides preset expert data and automatic wire-feeding for user-friendly operation.

Figure 8: An illustration detailing the advantages of the RICHIP, including Synergic Control, auto wire feeding, easy arc starting, and no arc breaking.

5.3. വെൽഡിംഗ് മോഡുകൾ

• Flux Core MIG: Ideal for gasless welding, offering portability and ease of use. Compatible with .030''/.035''/.040'' (0.8~1.0mm) flux core wire.
• സ്റ്റിക്ക് (എംഎംഎ): Supports welding with 1/16~2/32'' electrodes, such as E6013 rods.
• ലിഫ്റ്റ് TIG: Provides precise welding capabilities. Note that the TIG torch is sold separately.

Figure 9: A graphic illustrating the three welding processes supported by the MIG130T: Flux MIG, Stick/MMA, and Lift TIG.

6. പരിപാലനം

Regular maintenance ensures the longevity and optimal performance of your RILAND MIG130T welder.

• വൃത്തിയാക്കൽ: Periodically clean the machine, especially the fan and ventilation grilles, to prevent dust buildup. Use compressed air to remove dust at least twice a month.
• കേബിൾ പരിശോധന: Regularly inspect all welding cables and connections for any signs of wear, damage, or loose connections.
• Contact Tips: Replace contact tips as needed to ensure proper wire feeding and arc stability.

ചിത്രം 10: ഒരു ആന്തരിക view highlighting the smart fan control system, which aids in heat dissipation and reduces the risk of machine failure.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your MIG130T, refer to the following common troubleshooting tips:

• Machine Stops Suddenly: This is likely the intelligent start-stop high-speed cooling system activating the self-protection mode due to overheating or overload. Allow the machine to cool down.
• Poor Arc Stability/Excessive Spatter: Check wire feeding speed and current settings. Ensure the correct wire diameter is selected and the contact tip is clean and properly sized. Verify proper grounding.
• ശക്തിയില്ല: Check the power connection and ensure the ON/OFF switch on the back panel is in the 'ON' position.

ചിത്രം 11: ഒരു ഓവർview of the machine's safe and reliable features, such as overcurrent and overload automatic shutdown, and IP21S waterproof testing.

8 സ്പെസിഫിക്കേഷനുകൾ

Figure 12: A detailed table of the technical specifications for the RILAND MIG130T, including output parameters for different welding modes.

9. വാറൻ്റിയും പിന്തുണയും

RILAND offers a 2 വർഷത്തെ വാറൻ്റി for the MIG130T welding machine, along with a 30-Day Money Back Guarantee. For any inquiries or assistance, RILAND provides 24/7 customer service to ensure a positive welding experience.

For further support, please visit the official RILAND store or contact customer service through the provided channels.
