LFF കാലാവസ്ഥാ സ്റ്റേഷൻ ഉപയോക്തൃ മാനുവൽ

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The LFF Weather Station (Model LWS163) is a comprehensive device designed to provide accurate indoor and outdoor environmental data, timekeeping, and weather forecasting. It features a large 7.5-inch color LCD touchscreen display, offering clear visibility of various metrics including temperature, humidity, barometric pressure, moon phase, and dynamic weather icons. The integrated atomic clock ensures precise time synchronization, and the system supports up to three wireless remote sensors for monitoring multiple locations.

Figure 1.1: LFF Weather Station Main Unit and Remote Sensor

2. സജ്ജീകരണം

2.1 പവർ സപ്ലൈ

The main weather station unit can be powered by either the included AC power cord or by 2 AAA batteries (not included). The remote sensor requires 2 AAA batteries (not included).

• Main Unit (Indoor Receiver): Use the provided power adapter for continuous backlight display. When powered by batteries only, the screen will automatically turn off after 10 seconds to conserve power.
• വിദൂര സെൻസർ: Insert 2 AAA batteries into the remote sensor. Ensure correct polarity.

Figure 2.1: Power Supply Connections

Figure 2.2: Backlight Behavior with Different Power Modes

2.2 Remote Sensor Placement

Place the wireless remote sensor outdoors in a shaded, dry location, away from direct sunlight and precipitation, to ensure accurate temperature and humidity readings. The transmission range is up to 100 meters (328 feet) in an open area. The main unit supports up to 3 remote sensors (one included).

Figure 2.3: Wireless Transmission Range and Sensor Placement

2.3 Initial Setup and Synchronization

After powering on both the main unit and the remote sensor, the main unit will automatically attempt to synchronize with the remote sensor and the atomic clock signal (WWVB). This process may take 10-15 minutes. Ensure the main unit is placed in an area where it can receive a clear signal for atomic time synchronization.

Figure 2.4: WWVB Signal Function

3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

3.1 പ്രദർശനം പൂർത്തിയായിview

The 7.5-inch color display provides a clear layout of all information. Key areas include:

• പുറത്തെ താപനിലയും ഈർപ്പവും: ഇടതുവശത്ത് സ്ഥിതിചെയ്യുന്നു.
• ഇൻഡോർ താപനിലയും ഈർപ്പവും: Located on the right side.
• Weather & Pressure: Central top section, showing current weather forecast and barometric pressure trend.
• Time, Moon Phase, & Date: Lower central and right sections.
• നിയന്ത്രണ ബട്ടണുകൾ: Touch-sensitive buttons at the bottom for Mode, Set, Alarm, Channel, Down, and Up.

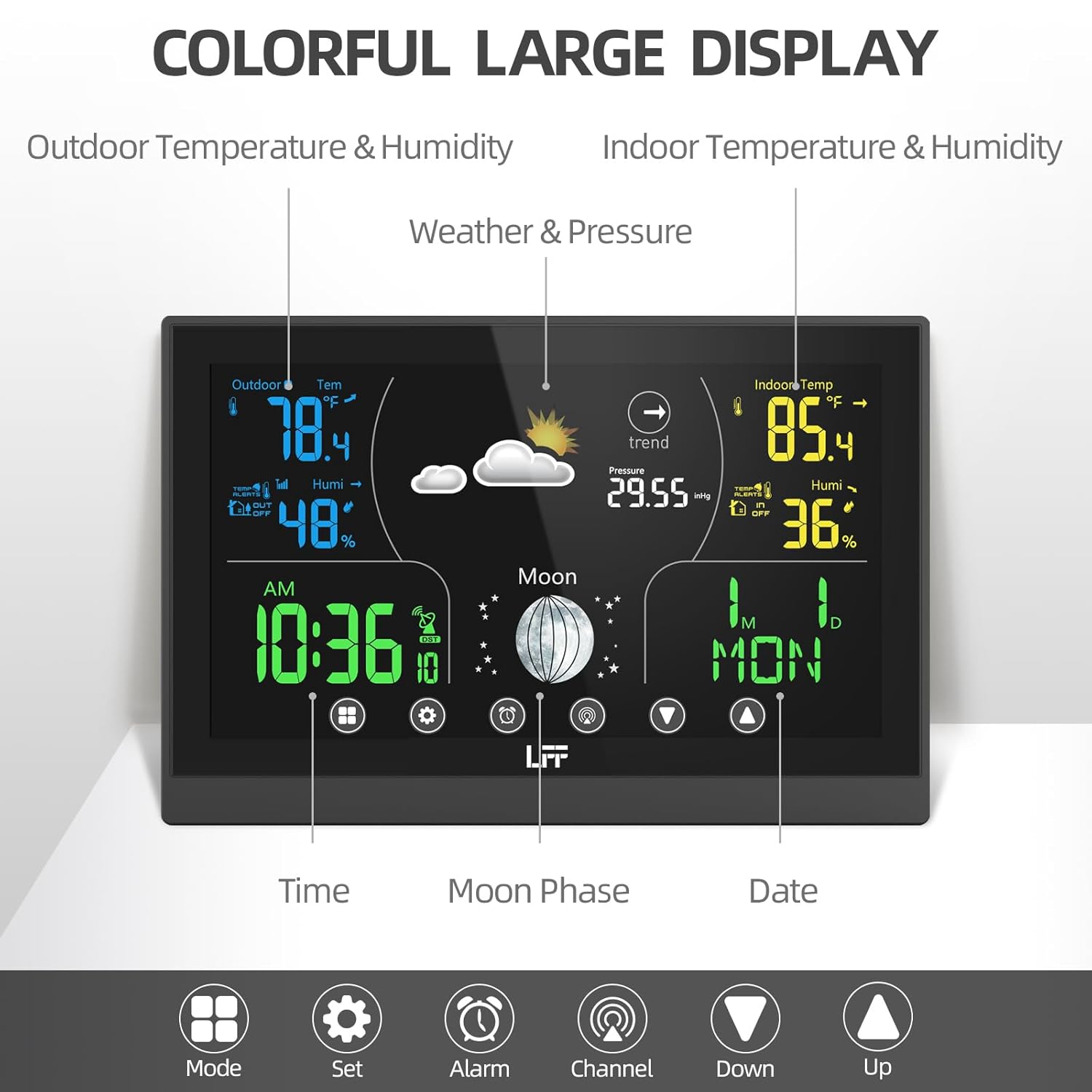

Figure 3.1: Detailed Display Layout

3.2 Time and Date Settings

The atomic clock feature automatically synchronizes the time and date. If manual adjustment is needed or preferred, use the "Set" button to enter time/date setting mode. You can adjust the 12H/24H format and select from 8 available time zones (AST, NST, EST, CST, MST, PST, AKT, HAT).

3.3 അലാറം ക്രമീകരണങ്ങൾ

The weather station includes two independent alarm clocks with a snooze function. Press the "Alarm" button to set or activate alarms. Follow the on-screen prompts to adjust alarm times and enable/disable them.

Figure 3.2: Dual Alarm Feature

3.4 ചാനൽ തിരഞ്ഞെടുക്കൽ

If you have multiple remote sensors, press the "Channel" button to cycle through the readings from each connected sensor (CH1, CH2, CH3). The display will show the data for the selected channel.

3.5 ബാക്ക്ലൈറ്റ് അഡ്ജസ്റ്റ്മെൻ്റ്

When the main unit is powered by the AC cord, there are 3 adjustable backlight modes. Use the appropriate control button (refer to the specific icon on the unit) to cycle through the brightness levels.

3.6 Weather Forecast Interpretation

The weather station provides a dynamic weather forecast for the next 8 hours, based on barometric pressure changes. The forecast is calibrated over 10 to 14 days for accuracy specific to your location. Interpret the weather icons as follows:

• Sunny, Partly Sunny, Cloudy, Light Rain, Heavy Rain, Light Snow, Heavy Snow

Figure 3.3: Weather Forecast Icons

4. പരിപാലനം

• ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ: Replace batteries in both the main unit (if used) and remote sensor when the low battery indicator appears on the display. Use fresh AAA batteries.
• വൃത്തിയാക്കൽ: Wipe the display and unit surfaces with a soft, damp തുണി. ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കരുത്.
• സെൻസർ പരിചരണം: Periodically check the outdoor sensor for debris or obstructions that might affect readings.

5. പ്രശ്‌നപരിഹാരം

If you encounter issues with your LFF Weather Station, please refer to the following common problems and solutions:

For more detailed troubleshooting or specific issues, please refer to the ഔദ്യോഗിക ഉപയോക്തൃ മാനുവൽ (PDF).

6 സ്പെസിഫിക്കേഷനുകൾ

7. വാറൻ്റിയും പിന്തുണയും

LFF stands behind the quality of its products. For warranty information, technical support, or service inquiries, please contact LFF customer service. Keep your purchase receipt for warranty claims.

For comprehensive details and additional assistance, please download the Official LFF Weather Station User Manual (PDF).
