RORRY D12

RORRY 3-ഇൻ-1 വയർലെസ് ചാർജിംഗ് സ്റ്റേഷൻ ഉപയോക്തൃ മാനുവൽ

മോഡൽ: ബി 12

1. ആമുഖം

Thank you for choosing the RORRY 3-in-1 Wireless Charging Station. This versatile device is designed to simplify your charging experience by providing a centralized solution for your iPhone, Apple Watch, and AirPods. It features a detachable 10000mAh power bank for on-the-go charging and a foldable design for portability. Please read this manual carefully to ensure proper use and maintenance of your charging station.

2 പ്രധാന സവിശേഷതകൾ

  • 3-ഇൻ-1 ചാർജിംഗ്: Simultaneously charges your iPhone (MagSafe compatible), Apple Watch, and AirPods.
  • Detachable 10000mAh Power Bank: Provides portable power for your iPhone, allowing for charging on the go.
  • മടക്കാവുന്ന ഡിസൈൻ: Compact and adjustable for easy storage and travel.
  • കാന്തിക വിന്യാസം: Ensures precise and efficient charging for MagSafe-compatible iPhones.
  • സുരക്ഷാ പരിരക്ഷകൾ: Built-in safeguards against overcharge, overcurrent, and short-circuiting.
RORRY 3-in-1 Wireless Charging Station with detachable power bank, showing an iPhone, Apple Watch, and AirPods charging.

Image: The RORRY 3-in-1 Wireless Charging Station in black, showcasing its ability to charge an iPhone, Apple Watch, and AirPods simultaneously. The detachable power bank and included PD 20W adapter are also visible.

Comparison table highlighting features like 3-in-1 detachable battery, 10000mAh portable charger, foldable design, and heat dissipation.

ചിത്രം: അഡ്വാൻസിനെ ചിത്രീകരിക്കുന്ന ഒരു താരതമ്യ പട്ടികtages of the RORRY charging station, including its 3-in-1 detachable battery, 10000mAh portable charger, foldable design, and effective heat dissipation.

3. പാക്കേജ് ഉള്ളടക്കം

അൺബോക്സിംഗ് ചെയ്യുമ്പോൾ പാക്കേജ് ഉള്ളടക്കങ്ങൾ പരിശോധിക്കുക:

  • 1 x Detachable power bank
  • 1 x PD 20W charging adapter
  • 1 x MagSafe charger station (base unit)
  • 1 x യുഎസ്ബി ടൈപ്പ്-സി കേബിൾ

4. സജ്ജീകരണ ഗൈഡ്

4.1 പ്രാരംഭ സജ്ജീകരണം

  1. Connect the provided USB Type-C cable to the charging station's input port.
  2. Plug the other end of the USB Type-C cable into the included PD 20W charging adapter.
  3. Insert the PD 20W charging adapter into a wall outlet. The indicator light on the charging station will illuminate, indicating it is powered on and ready for use.

4.2 Detachable Power Bank Integration

The detachable power bank magnetically attaches to the main charging station. Ensure it is properly aligned and seated for charging when docked.

Detachable 10000mAh power bank with an iPhone magnetically attached, showing its portability and charging capability.

Image: The detachable 10000mAh power bank shown with an iPhone magnetically attached, demonstrating its strong suction and high capacity for portable charging.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 Charging iPhone (MagSafe)

Place your MagSafe-compatible iPhone onto the magnetic charging pad of the station. The phone will automatically align and begin charging. Ensure your iPhone is centered for optimal charging efficiency.

iPhone charging on the MagSafe pad, indicating 15W charging capability.

Image: An iPhone charging wirelessly on the station's MagSafe pad, illustrating its 15W charging capability for compatible iPhone models.

5.2 ആപ്പിൾ വാച്ച് ചാർജ് ചെയ്യുന്നു

Place your Apple Watch onto the dedicated watch charging module. The watch will magnetically snap into place and begin charging. This module can be folded for compact storage or extended for use.

Apple Watch charging on its dedicated module, indicating 3.5W charging capability.

Image: An Apple Watch charging on its integrated module, highlighting its 3.5W charging output for various Apple Watch series.

5.3 Charging AirPods

Place your AirPods charging case onto the wireless charging pad located at the base of the station. Ensure the case is centered on the pad for effective charging.

AirPods charging case on the base wireless pad, indicating 5W charging capability.

Image: An AirPods charging case placed on the base wireless charging pad, demonstrating its 5W charging capability for AirPods and AirPods Pro models.

5.4 Using the Detachable Power Bank

To use the power bank independently, detach it from the main station. To activate the power bank, press the power button twice to turn it on. Attach your MagSafe-compatible iPhone to the power bank for portable wireless charging. The integrated watch charger can also be used when detached.

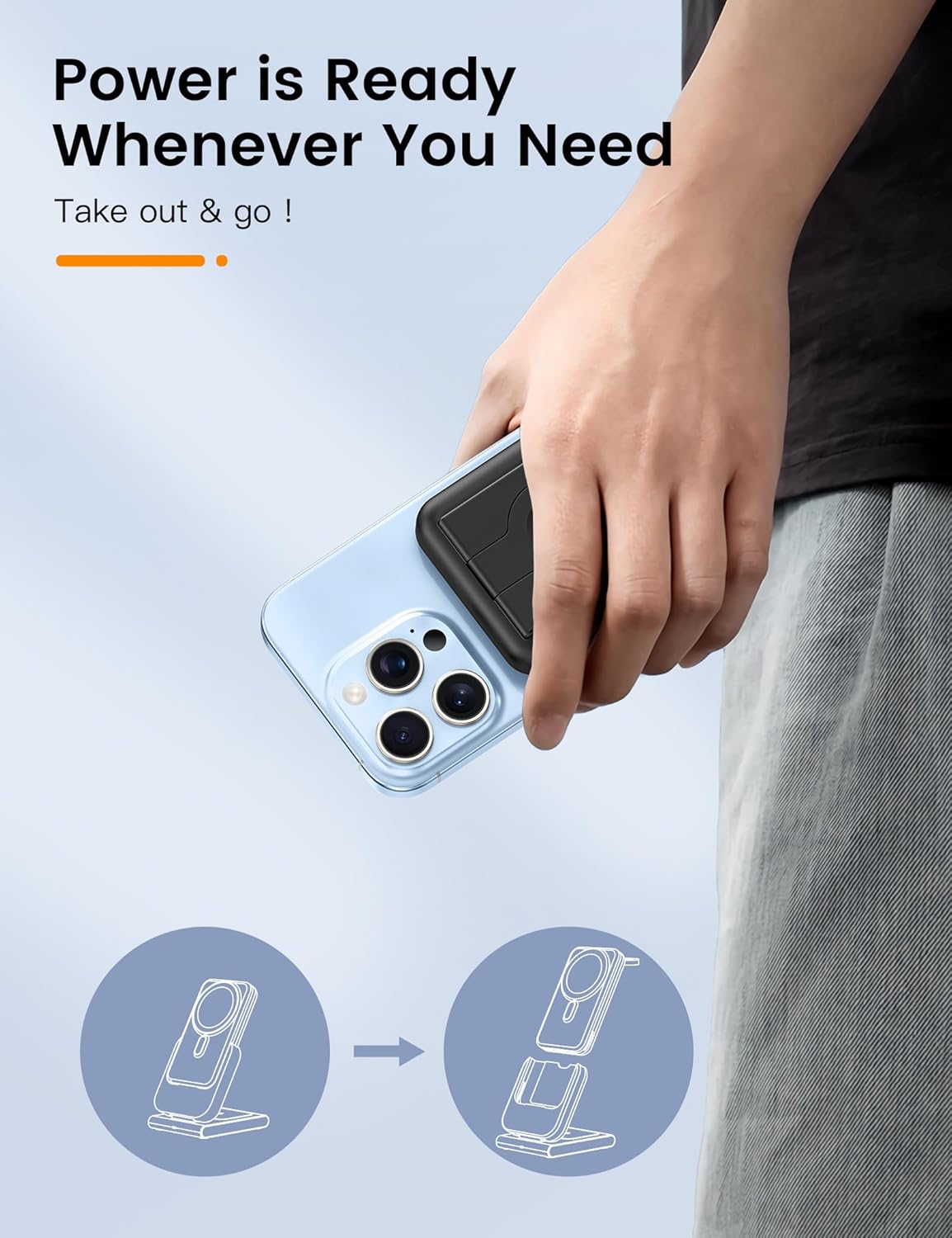

Hand holding an iPhone with the detachable power bank attached, illustrating portability.

Image: A hand holding an iPhone with the detachable power bank magnetically attached, emphasizing its readiness for on-the-go use.

Diagram showing the detachable power bank being used as a portable charger and a stand.

Image: A visual representation showing how the detachable power bank can be used both as a portable charger and as a stand for your device.

5.5 Foldable Stand Functionality

The charging station features a foldable design, allowing you to adjust the angle of your iPhone for optimal viewing while charging. This also makes it highly portable for travel.

The charging station folded and adjusted for travel, showing its compact form factor.

Image: The RORRY charging station demonstrating its foldable and adjustable design, highlighting its suitability for travel and compact storage.

6. പരിപാലനവും പരിചരണവും

  • Keep the charging station away from water, moisture, and extreme temperatures.
  • മൃദുവായതും ഉണങ്ങിയതുമായ തുണി ഉപയോഗിച്ച് ഉപരിതലം വൃത്തിയാക്കുക. അബ്രാസീവ് ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കരുത്.
  • ശക്തമായ ആഘാതങ്ങൾക്ക് ഉപകരണം ഇടുകയോ ഇടുകയോ ചെയ്യുന്നത് ഒഴിവാക്കുക.
  • ദീർഘകാലത്തേക്ക് ഉപയോഗിക്കാത്തപ്പോൾ തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് സൂക്ഷിക്കുക.

7. പ്രശ്‌നപരിഹാരം

പ്രശ്നംസാധ്യമായ കാരണംപരിഹാരം
ഉപകരണം ചാർജ് ചെയ്യുന്നില്ലIncorrect power adapter; loose connection; device misalignment; foreign object on charging pad.Ensure using the provided PD 20W adapter. Check all cable connections. Realign device on the charging pad. Remove any metal objects or thick cases.
Detachable power bank not turning on/chargingNot activated; low battery.പവർ ബട്ടൺ രണ്ടുതവണ അമർത്തുക to activate the power bank. Ensure it is fully charged by docking it on the main station.
Charging station or device gets hotNormal during wireless charging; poor ventilation; foreign object.Slight warmth is normal. Ensure adequate ventilation around the charger. Remove any foreign objects. If excessively hot, disconnect and allow to cool before resuming use.
സ്ലോ ചാർജിംഗ്Using non-optimal power adapter; device case interference.Use the included PD 20W adapter. Remove thick phone cases or cases with metal components.

8. ഉൽപ്പന്ന സവിശേഷതകൾ

ഫീച്ചർവിശദാംശങ്ങൾ
മോഡൽ നമ്പർD12
അളവുകൾ6.34 x 3.23 x 2.17 ഇഞ്ച്
ഇനത്തിൻ്റെ ഭാരം15.5 ഔൺസ്
ബാറ്ററി തരം1 ലിഥിയം അയോൺ ബാറ്ററി (ഉൾപ്പെടുത്തിയിരിക്കുന്നു)
കണക്റ്റിവിറ്റിവയർലെസ്
കണക്റ്റർ തരംയുഎസ്ബി ടൈപ്പ് സി
ഇൻപുട്ട് വോളിയംtage5 വോൾട്ട്
നിറംകറുപ്പ്
അനുയോജ്യമായ ഉപകരണങ്ങൾiPhone 12/13/14/15/16 series (MagSafe compatible), Apple Watch Series Ultra 2/Ultra/10/9/8/7/6/5/4/3/2/SE, AirPods 2/3/Pro/Pro 2/4
ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾDetachable power bank, PD 20W charging adapter, MagSafe charger station

9. വാറൻ്റിയും പിന്തുണയും

RORRY is committed to providing high-quality products and excellent customer service. Your RORRY 3-in-1 Wireless Charging Station comes with the following support:

  • 7x24H വിൽപ്പനാനന്തര സേവനം: സമർപ്പിത പിന്തുണ മുഴുവൻ സമയവും ലഭ്യമാണ്.
  • 30 ദിവസത്തെ എക്സ്ചേഞ്ച് സേവനം: Hassle-free exchanges within 30 days of purchase.
  • 12 മാസത്തെ പരിചരണ പദ്ധതി: Comprehensive coverage for 12 months.

For any inquiries, technical assistance, or warranty claims, please contact RORRY customer support through the platform where you purchased the product or visit the official RORRY store page.

Image showing customer service representatives with text 'Listen To Your Voice' and details about 7x24H After-sales Service, 30-Day Exchange Service, and 12-Months Care Plan.

Image: RORRY's commitment to customer satisfaction, detailing their 24/7 after-sales service, 30-day exchange policy, and 12-month care plan.
