MaMa Store IRIS 80 Suspended Bathroom Cabinet Instruction Manual

1. ആമുഖം

Thank you for choosing the MaMa Store IRIS 80 Suspended Bathroom Cabinet. This product is designed to provide a functional and aesthetic solution for your bathroom. This manual contains essential information for the correct assembly, installation, operation, and maintenance of your new bathroom cabinet, including the lavabo, mirror, and LED lamp. Please read these instructions carefully before proceeding with assembly and installation to ensure safe and proper use.

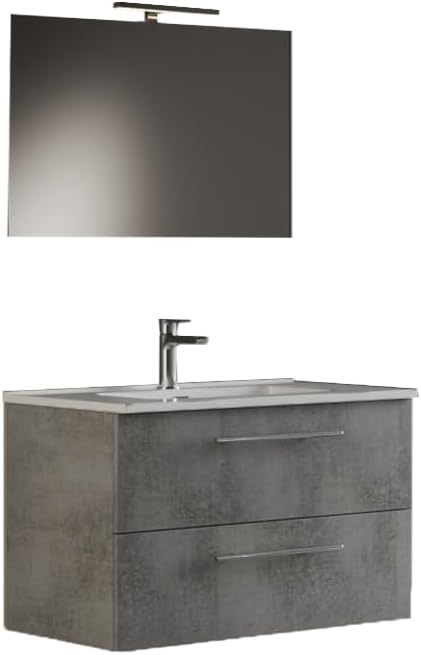

Figure 1: MaMa Store IRIS 80 Suspended Bathroom Cabinet with Lavabo, Mirror, and LED Lamp.

2 സുരക്ഷാ വിവരങ്ങൾ

ഉൽപ്പന്നത്തിന് പരിക്കുകളും കേടുപാടുകളും ഉണ്ടാകാതിരിക്കാൻ ഇനിപ്പറയുന്ന സുരക്ഷാ മാർഗ്ഗനിർദ്ദേശങ്ങൾ പാലിക്കുക:

• മുൻകൂട്ടി തുരന്ന ദ്വാരങ്ങൾ: Minor irregularities in pre-drilled holes are not manufacturing defects as they do not affect stability or use. These holes will be covered by components during assembly.
• Adhesive Residue: If adhesive residue is present along the edge of semi-finished parts, remove it immediately with a slightly damp തുണി.
• ഇൻസ്റ്റലേഷൻ ഉപരിതലം: Furniture must be installed on horizontal surfaces. Avoid impacts. Installation on uneven surfaces can cause tension, deformation, and malfunction of closing mechanisms. Such malfunctions are not considered manufacturing defects.
• Electrical and Water Connections: All electrical and water connections must be performed by qualified personnel in accordance with local regulations. The buyer must provide proof of professional installation in case of a claim.
• ഭാര പരിധി: Do not place excessively heavy objects on the cabinet or lavabo. The total weight should not exceed 2-2.5 kg.
• ചൂടും ഈർപ്പവും: Avoid placing wet or hot objects directly on furniture surfaces. In case of contact with water or other substances, clean immediately with a soft, absorbent, slightly damp തുണി.
• Lavabo Care: Avoid thermal shocks and impacts with metallic objects on the lavabo.
• Ventilation and Exposure: Install furniture in ventilated rooms, away from direct sunlight and direct contact with water. This furniture is not designed for outdoor installation. Permanent exposure to high humidity will cause deterioration (swelling) and is not covered by warranty.
• താപ സ്രോതസ്സുകൾ: Position the bathroom cabinet away from heat sources (e.g., radiators), maintaining a minimum distance of 30 cm.
• വൃത്തിയാക്കൽ: After each use, remove any excess water or substances with a soft, dry cloth. Grease or liquid marks should be cleaned with a dry cloth.
• പ്ലംബിംഗ് പരിശോധന: Periodically check the plumbing system connected to the cabinet to prevent water leaks that could lead to deterioration over time.
• മതിൽ മൗണ്ടിംഗ്: To prevent serious or fatal injuries from tipping or falling, the cabinet must be securely fixed to the wall. The appropriate fixing materials (e.g., anchors, hooks, screws) depend on your wall type and strength. Any fixing materials included are for indicative purposes only and may need to be verified or replaced. Consult specialized personnel for correct accessory selection.

3. പാക്കേജ് ഉള്ളടക്കം

The MaMa Store IRIS 80 cabinet is supplied as a DIY kit. Please verify that all components listed below are present before beginning assembly:

• Base cabinet components (wooden panels for the suspended unit)
• Ceramic lavabo with a wide, squared basin
• Panoramic flush-mounted mirror
• LED എൽamp (chrome-plated, contemporary design)
• Aluminum handles for drawers
• Metal square guides with soft-closing mechanism for drawers
• അസംബ്ലി നിർദ്ദേശങ്ങൾ
• Mounting hardware (screws, dowels, etc. - note section 2 regarding wall mounting hardware)

Note: Faucet, siphon, and additional multi-purpose storage units shown in promotional images are not included and are sold separately.

4. അസംബ്ലി നിർദ്ദേശങ്ങൾ

The MaMa Store IRIS 80 cabinet is designed for easy assembly. Follow the included detailed assembly instructions and diagrams carefully. It is recommended to have at least two people for assembly and installation.

4.1. ആവശ്യമായ ഉപകരണങ്ങൾ (ഉൾപ്പെടുത്തിയിട്ടില്ല)

• സ്ക്രൂഡ്രൈവർ സെറ്റ് (ഫിലിപ്സും ഫ്ലാറ്റ്ഹെഡും)
• Drill with appropriate bits for wall mounting
• ലെവൽ
• അളക്കുന്ന ടേപ്പ്
• പെൻസിൽ
• Hammer (if using wall anchors)

4.2. അസംബ്ലി ഘട്ടങ്ങൾ

1. അൺപാക്ക് ചെയ്ത് പരിശോധിക്കുക: Carefully unpack all components and check against the package contents list. Inspect for any damage.
2. അടിസ്ഥാന കാബിനറ്റ് കൂട്ടിച്ചേർക്കുക: Follow the step-by-step diagrams in the provided assembly manual to construct the main suspended cabinet frame. Ensure all connections are secure.
3. Install Drawer Guides: Attach the metal square guides to the cabinet frame and the drawers. Ensure the soft-closing mechanism is correctly aligned.
4. ഹാൻഡിലുകൾ അറ്റാച്ചുചെയ്യുക: Secure the aluminum handles to the drawer fronts.
5. മതിൽ കയറുന്നതിനുള്ള തയ്യാറെടുപ്പ്: Determine the desired height and position for the cabinet. Use a level to mark the drilling points on the wall. Refer to Section 2 (Safety Information) regarding appropriate wall fixing materials.
6. കാബിനറ്റ് മൌണ്ട് ചെയ്യുക: Securely attach the assembled base cabinet to the wall using the appropriate hardware. Verify stability before proceeding.
7. Install the Lavabo: Place the ceramic lavabo onto the cabinet. Ensure it is properly seated and sealed according to plumbing best practices. Connect the faucet and siphon (not included) as per their respective instructions.
8. Mount the Mirror: Install the panoramic flush-mounted mirror above the lavabo, ensuring it is level and securely fixed to the wall.
9. എൽഇഡി എൽ ഇൻസ്റ്റാൾ ചെയ്യുകamp: LED l അറ്റാച്ചുചെയ്യുകamp to the mirror or wall as indicated in the instructions. Connect it to the electrical supply (must be done by qualified personnel).

Figure 2: Assembly diagram and material features.

Figure 3: Cabinet with drawers open, showing storage and soft-closing mechanism.

5. ഓപ്പറേഷൻ

The MaMa Store IRIS 80 bathroom cabinet is designed for straightforward use.

• ഡ്രോയറുകൾ: The cabinet features two drawers with soft-closing mechanisms. Gently push the drawers to close them completely. Avoid forcing them.
• Lavabo: Use the ceramic lavabo for washing. Ensure the faucet is properly installed and connected to the water supply.
• എൽഇഡി എൽamp: എൽഇഡി എൽamp provides illumination. Operate it via its integrated switch or a wall switch, depending on installation.
• സംഭരണം: Utilize the drawers for storing bathroom essentials. Do not overload the drawers or place items exceeding the recommended weight limit (refer to Section 2).

6. പരിപാലനവും പരിചരണവും

Proper care will extend the life and maintain the appearance of your MaMa Store IRIS 80 bathroom cabinet.

• പൊതുവായ ശുചീകരണം: Clean the cabinet surfaces with a soft, dry cloth. For stubborn marks, use a slightly damp cloth with a mild, non-abrasive cleaner, then dry immediately.
• വാട്ടർ എക്സ്പോഷർ: Immediately wipe away any water splashes or spills from the cabinet surfaces with a soft, dry, absorbent cloth. Prolonged exposure to moisture can cause damage.
• Lavabo Cleaning: Clean the ceramic lavabo with standard bathroom cleaners. Avoid abrasive materials or harsh chemicals that could scratch the surface.
• കണ്ണാടി വൃത്തിയാക്കൽ: Use a glass cleaner and a soft, lint-free cloth to clean the mirror.
• കഠിനമായ രാസവസ്തുക്കൾ ഒഴിവാക്കുക: Do not use strong detergents, abrasive cleaners, or solvents on any part of the cabinet, lavabo, or mirror.
• വെൻ്റിലേഷൻ: Ensure adequate ventilation in the bathroom to minimize humidity, which can affect the cabinet's longevity.

7. പ്രശ്‌നപരിഹാരം

നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങളെ ഈ വിഭാഗം അഭിസംബോധന ചെയ്യുന്നു.

• ഡ്രോയറുകൾ സുഗമമായി അടയ്ക്കുന്നില്ല: Check if the drawer guides are clean and free of obstructions. Ensure the soft-closing mechanism is properly engaged. Verify that the cabinet is level and securely mounted to the wall.
• Water leaks from lavabo/faucet: Immediately turn off the water supply. Check all plumbing connections for tightness and proper sealing. If the issue persists, contact a qualified plumber.
• LED എൽamp പ്രവർത്തിക്കുന്നില്ല: Check the electrical connection and ensure the power supply is active. If the lamp has an integrated switch, ensure it is in the 'on' position. If issues persist, consult a qualified electrician.
• Cabinet appears unstable: Re-check the wall mounting hardware and ensure it is appropriate for your wall type and securely fastened. The cabinet must be firmly attached to the wall to prevent tipping.
• Surface discoloration/swelling: This is often due to prolonged exposure to moisture or harsh chemicals. Refer to Section 6 (Maintenance and Care) for prevention. Damage from excessive moisture is not covered by warranty.

8 സ്പെസിഫിക്കേഷനുകൾ

ബ്രാൻഡ്:

MaMa Store

മോഡൽ നമ്പർ:

IRIS80KCEMEFL03

Product Dimensions (LxPxA):

81 x 47 x 53 സെ.മീ (31.9 x 18.5 x 20.9 ഇഞ്ച്)

ഉൽപ്പന്ന ഭാരം:

45 കി.ഗ്രാം (99.2 പൗണ്ട്)

നിറം:

Cemento Chiaro (Light Cement)

മെറ്റീരിയൽ:

മരം

മൗണ്ടിംഗ് തരം:

DIY (Do-It-Yourself)

ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ:

Assembly instructions and hardware, Lavabo, Mirror, LED Lamp

പരിചരണ നിർദ്ദേശങ്ങൾ:

ഉണങ്ങിയ തുണി ഉപയോഗിച്ച് വൃത്തിയാക്കുക

9. വാറൻ്റിയും പിന്തുണയും

For specific warranty information or technical support, please refer to the documentation provided with your purchase or contact MaMa Store directly through their official channels. Ensure you have your proof of purchase and model number (IRIS 80) available when contacting support.
