Bradley 6A03-110000 Automatic Liquid Soap/Gel Sanitizer Dispenser

ആമുഖം

This manual provides instructions for the installation, operation, and maintenance of the Bradley 6A03-110000 Automatic Liquid Soap/Gel Sanitizer Dispenser. This surface-mounted dispenser features contemporary contours and a finish designed to match other accessories in Bradley's designer series. It has a capacity of 27 ounces (800 ml) and is equipped with a hinged cover, concealed mounting plate, vandal-resistant filler hole cover, and a sight gauge for monitoring liquid levels.

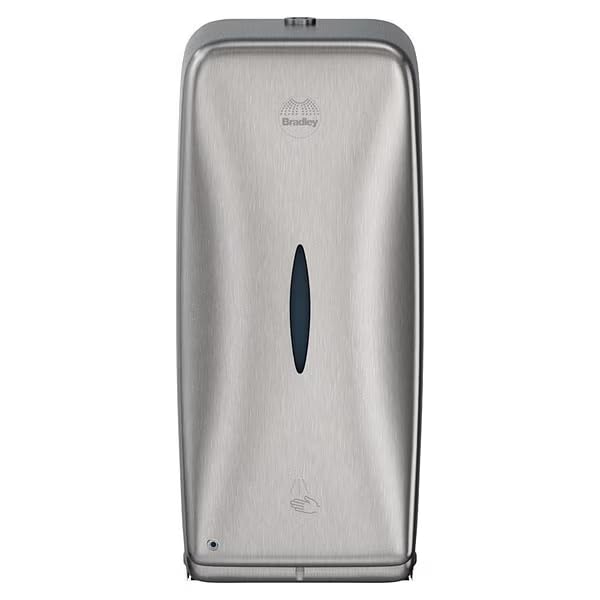

ചിത്രം: മുൻഭാഗം view of the Bradley 6A03-110000 Automatic Liquid Soap/Gel Sanitizer Dispenser.

പ്രധാന സവിശേഷതകൾ

• വൈവിധ്യമാർന്ന വിതരണം: Offers flexibility to dispense either liquid soap or gel hand sanitizer.
• അനുയോജ്യത: Compatible with Bradley's 6A20-110000 Hand Sanitizer/Soap Dispenser Stand (sold separately).
• സുരക്ഷാ സവിശേഷതകൾ: Includes a vandal-resistant filler hole cover and a concealed mounting plate.
• ഈട്: Equipped with a corrosion-resistant sanitizer valve.
• ടച്ച്-ഫ്രീ ഓപ്പറേഷൻ: Ensures hygienic dispensing.
• വലിയ ശേഷി: Features a tank capacity of 27 ounces (800 mL).
• Liquid Level Monitoring: Integrated sight gauge allows for easy monitoring of soap/sanitizer levels.

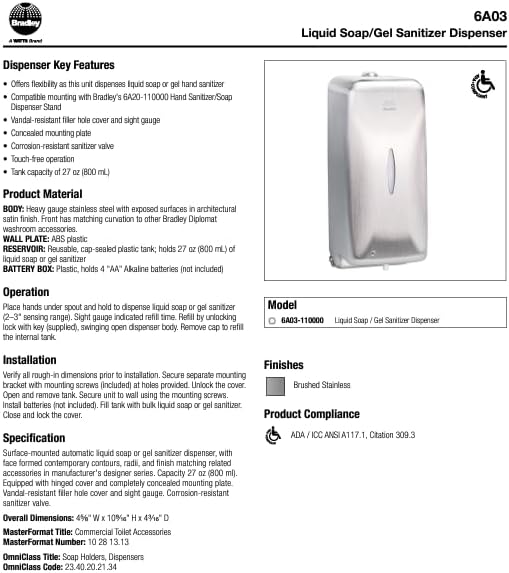

ചിത്രം: വിശദമായത് view of the dispenser, showcasing അതിന്റെ രൂപകൽപ്പനയും സവിശേഷതകളും.

ഉൽപ്പന്ന ഘടകങ്ങൾ

• ശരീരം: Heavy gauge stainless steel with exposed surfaces in architectural satin finish.
• വാൾ പ്ലേറ്റ്: എ ബി എസ് പ്ലാസ്റ്റിക്.
• റിസർവോയർ: Disposable, snap-sealed plastic tank with 27 oz (800 ml) capacity.
• ബാറ്ററി ബോക്സ്: Plastic, designed to hold 4 "AA" Alkaline batteries (not included).
• മൗണ്ടിംഗ് ഹാർഡ്‌വെയർ: Screws and a mounting bracket are included for installation.
• കീ: A key is supplied for unlocking the dispenser cover for refilling and maintenance.

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

1. Review അളവുകൾ: Before beginning installation, verify all rough-in dimensions to ensure proper placement.
2. മൌണ്ടിംഗ് ബ്രാക്കറ്റ്: Secure the separate mounting bracket to the wall using the provided mounting screws. Ensure it is level and firmly attached.
3. Access Dispenser Interior: Use the supplied key to unlock the dispenser cover. Open the cover and remove the internal tank.
4. Secure Dispenser to Wall: Align the dispenser unit with the mounted bracket and secure it to the wall using the provided screws.
5. ബാറ്ററികൾ ഇൻസ്റ്റാൾ ചെയ്യുക: Insert 4 "AA" Alkaline batteries (not included) into the battery box. Ensure correct polarity.
6. ടാങ്ക് നിറയ്ക്കുക: Fill the internal plastic tank with bulk liquid soap or gel sanitizer. Do not overfill.
7. അടച്ച് പൂട്ടുക: Reinsert the filled tank, close the dispenser cover, and lock it with the key.

Image: Technical diagram showing installation steps and components.

ഓപ്പറേഷൻ

To operate the dispenser, place your hands under the spout. The touch-free sensor will detect your hands within a 2-3 inch sensing range and automatically dispense a measured amount of liquid soap or gel sanitizer. The sight gauge on the front of the dispenser indicates when it is time to refill the unit.

മെയിൻ്റനൻസ്

ഡിസ്പെൻസർ വീണ്ടും നിറയ്ക്കുന്നു

1. Monitor the sight gauge on the front of the dispenser to determine when refilling is necessary.
2. Unlock the dispenser cover using the supplied key.
3. Swing open the dispenser body to access the internal plastic tank.
4. Remove the cap from the internal tank.
5. Fill the tank with the appropriate liquid soap or gel sanitizer. Do not overfill.
6. Replace the tank cap, close the dispenser body, and lock the cover with the key.

വൃത്തിയാക്കൽ

Clean the exterior surfaces of the dispenser regularly with a soft, damp cloth and a mild, non-abrasive cleaner. Avoid using harsh chemicals or abrasive materials that could damage the satin finish. Ensure no liquid enters the battery compartment or sensor area during cleaning.

ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ

When the dispenser's operation becomes inconsistent or stops, it may be time to replace the batteries. Unlock the dispenser cover, open the body, and access the plastic battery box. Replace the 4 "AA" Alkaline batteries with new ones, ensuring correct polarity. Close and lock the dispenser.

ട്രബിൾഷൂട്ടിംഗ്

• ഡിസ്പെൻസർ സജീവമാക്കുന്നില്ല:
  • Ensure hands are placed within the 2-3 inch sensing range directly under the spout.
  • ബാറ്ററികൾ ശരിയായി ഇൻസ്റ്റാൾ ചെയ്തിട്ടുണ്ടോ എന്നും ആവശ്യത്തിന് ചാർജ് ഉണ്ടോ എന്നും പരിശോധിക്കുക. ആവശ്യമെങ്കിൽ മാറ്റിസ്ഥാപിക്കുക.
  • Verify the dispenser is not obstructed.
• No Soap/Sanitizer Dispensed:
  • Check the liquid level via the sight gauge and refill if empty.
  • Ensure the internal tank cap is properly secured.
  • Confirm the dispenser is locked correctly after refilling.
• Leaking or Dripping:
  • Ensure the internal tank is not overfilled.
  • Verify the internal tank cap is tightly sealed.
  • Check for any damage to the dispenser valve or spout.

സ്പെസിഫിക്കേഷനുകൾ

അളവുകൾ

Refer to the diagram below for detailed product dimensions and recommended mounting heights.

Image: Technical drawing illustrating the dispenser's dimensions from various angles and recommended mounting heights.

വാറൻ്റിയും പിന്തുണയും

For warranty information or technical support regarding your Bradley 6A03-110000 Automatic Liquid Soap/Gel Sanitizer Dispenser, please refer to the official Bradley webസൈറ്റിൽ ബന്ധപ്പെടുകയോ അവരുടെ ഉപഭോക്തൃ സേവന വിഭാഗവുമായി ബന്ധപ്പെടുകയോ ചെയ്യുക. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.

Official Bradley Webസൈറ്റ്: www.bradleycorp.com
