ആമുഖം
This manual provides detailed instructions for the proper installation, operation, and maintenance of your OEDRO FRP Hard Tri-fold Tonneau Cover. Designed for 2015-2026 Ford F150 F-150 models with a 5.5 feet truck bed, this cover offers enhanced protection and security for your cargo. Constructed with high-strength fiberglass panels, it is built for durability and ease of use. Please read all instructions carefully before proceeding with installation or operation.

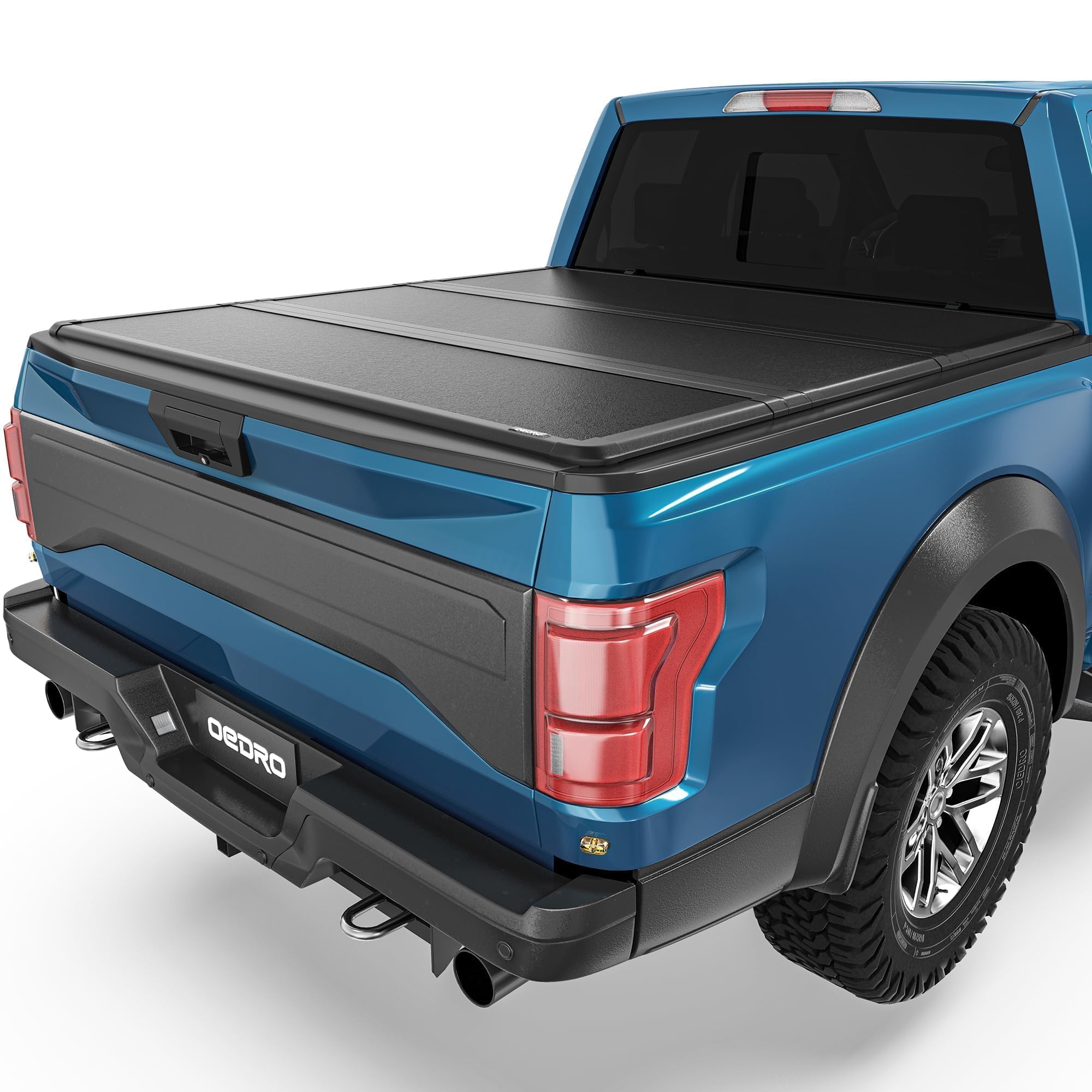

Figure 1: OEDRO FRP Hard Tri-fold Tonneau Cover installed on a Ford F150.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
The OEDRO FRP Hard Tri-fold Tonneau Cover is designed for effortless installation without the need for drilling. Follow these steps for a secure setup:
1. Verify Bed Size
Before installation, accurately measure your truck bed from the bulkhead (front of the bed) to the tailgate (with it closed) to confirm it is a 5.5 feet bed. This cover is specifically designed for this bed length.
Figure 2: Guide for measuring your truck bed to ensure compatibility.
2. Prepare the Truck Bed
Ensure the truck bed rails are clean and free of debris. If your vehicle has cargo racks or a cargo box, they must be removed before installing the tonneau cover.
Figure 3: Remove any existing cargo racks or boxes from the truck bed.
3. Install Weather Strips
Apply the provided weather strips along the edges of the truck bed rails to ensure a tight seal and prevent water intrusion.
Figure 4: Weather strips are included for enhanced sealing against the elements.
4. Position and Secure the Cover
Carefully place the folded tonneau cover onto the truck bed, aligning the front section with the bulkhead. Unfold the first section and secure it using the embedded clamps. Ensure all clamps are tightened before driving.
Figure 5: The cover features nylon straps, embedded clamps, and fiberglass plates for secure fitment.
Figure 6: The rear clamp features an upgraded iron ring release structure for secure driving.
ഇൻസ്റ്റലേഷൻ വീഡിയോ
Video 1: OEDRO FRP Hard Tri-fold Truck Bed Cover Installation Guide.
Video 2: OEDRO Hard Top FRP Bed Cover for Pickup Trucks Overview.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The tri-fold design allows for flexible access to your truck bed.
Folding the Cover
To access your truck bed, release the rear clamps and fold the cover sections towards the cab. Secure the folded sections using the integrated nylon straps to prevent movement while driving. Avoid driving with the cover partially opened without securing it.
Figure 7: The tri-fold cover can be easily folded back to access the truck bed.
Unfolding and Securing the Cover
To close the cover, release the nylon straps and carefully unfold each section towards the tailgate. Ensure each section lays flat and the clamps engage securely. The reinforced locking mechanism keeps the cover closed during travel.
Figure 8: The cover provides a secure and sleek appearance when fully closed.
Cargo Security
When properly closed and the tailgate is locked, your cargo is securely protected under the cover.
Figure 9: Enhanced security and ample space for items under the cover.
Video 3: OEDRO Hard Tri-fold Bed Cover Operation.
മെയിൻ്റനൻസ്
Regular maintenance will prolong the life and appearance of your tonneau cover.
- വൃത്തിയാക്കൽ: Wash the cover regularly with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the FRP panels.
- മുദ്ര പരിശോധന: Periodically check the bed seals for wear and tear. Replace if necessary to maintain water resistance.
- Clamp പരിശോധിക്കുക: എല്ലാം ഉറപ്പാക്കുകamps and locking mechanisms are functioning correctly and remain tight. Adjust as needed.
Figure 10: The cover is designed to safeguard your cargo in severe weather conditions.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter issues with your tonneau cover, refer to the following common solutions:
- വെള്ളം ചോർച്ച: Check the weather strips along the bed rails and ensure they are properly seated. Verify that all clamps are securely tightened. Some minor leaking may occur in extreme conditions like a carwash.
- Cover Not Closing Properly: Ensure no obstructions are preventing the panels from laying flat. Check that the bed rails are not warped or damaged.
- അയഞ്ഞ Clamps: Re-tighten any loose clampഎസ്. cl എങ്കിൽamps repeatedly loosen, inspect for wear or damage.
- മടക്കാനുള്ള ബുദ്ധിമുട്ട്: Ensure the release mechanisms are fully disengaged. Check for any debris or foreign objects hindering the folding action.
സ്പെസിഫിക്കേഷനുകൾ
| ബ്രാൻഡ് | ഒഎഡ്രോ |
| ശൈലി | Tri-fold Hard |
| എക്സ്റ്റീരിയർ ഫിനിഷ് | എഫ്.ആർ.പി |
| മെറ്റീരിയൽ | പോളിപ്രൊഫൈലിൻ |
| ലോക്ക് തരം | ടെയിൽഗേറ്റ് |
| മോഡൽ | OEDRO Hard Trifold Truck Bed Tonneau Cover 5.5 feet (MAOEDsn0I5) |
| ഇനത്തിൻ്റെ ഭാരം | 62.2 പൗണ്ട് |
| ഉൽപ്പന്ന അളവുകൾ | 69.29 x 26.38 x 6.1 ഇഞ്ച് |
| ഓട്ടോമോട്ടീവ് ഫിറ്റ് തരം | വാഹനത്തിൻ്റെ പ്രത്യേക ഫിറ്റ് |
| യു.പി.സി | 197839593862 |
വാറൻ്റി വിവരങ്ങൾ
OEDRO products are manufactured to high-quality standards. For specific warranty details regarding your FRP Hard Tri-fold Tonneau Cover, please refer to the warranty card included in your product packaging or visit the official OEDRO webസൈറ്റ്. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്ക് വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
ഉപഭോക്തൃ പിന്തുണ
If you have any questions, require assistance with installation, or need troubleshooting support, please contact OEDRO customer service. You can find contact information on the product packaging or the official OEDRO website. Our dedicated support team is ready to assist you.
