BoyKeep Ease Life 1080P Indoor Security Camera (Model K11) Instruction Manual

ആമുഖം

Thank you for choosing the BoyKeep Ease Life 1080P Indoor Security Camera, Model K11. This manual provides essential information for setting up, operating, and maintaining your camera to ensure optimal performance and security for your home. This camera features 1080P resolution, 2.4G Wi-Fi connectivity, motion detection, two-way audio, and night vision capabilities.

ബോക്സിൽ എന്താണുള്ളത്

• BoyKeep Ease Life 1080P Indoor Security Camera (Model K11)
• പവർ അഡാപ്റ്റർ
• ഇൻസ്ട്രക്ഷൻ മാനുവൽ

സജ്ജീകരണ ഗൈഡ്

1. പവർ ചെയ്യുന്നു

Connect the camera to the power adapter and plug it into a power outlet. The camera will initiate a self-calibration sequence.

2. ആപ്പ് ഡൗൺലോഡും ഇൻസ്റ്റാളേഷനും

Download the 'BoyKeep' app from the App Store (iOS) or Google Play Store (Android). Scan the QR code provided in the user manual or search directly for 'BoyKeep'.

ചിത്ര വിവരണം: A visual guide showing four steps to connect the camera: 1. Download the app, 2. Press and hold the reset button, 3. Scan the QR code, 4. Connect successfully.

3. ഉപകരണ ജോടിയാക്കൽ

1. Open the BoyKeep app and register an account if you haven't already.
2. Select 'Add Device' and choose the K11 model (Lightbulb Cam).
3. Follow the in-app instructions to connect to your 2.4G Wi-Fi network. Ensure your Wi-Fi password is correct.
4. The app will generate a QR code. Present this QR code to the camera lens (4 to 12 inches away) until you hear a 'beep-beep' sound, indicating successful pairing.

4 മൗണ്ടിംഗ് ഓപ്ഷനുകൾ

The camera can be placed on a flat surface or mounted on a wall or ceiling. Ensure the camera is positioned to cover the desired surveillance area. For outdoor use, place the camera in a sheltered area to protect it from direct weather exposure.

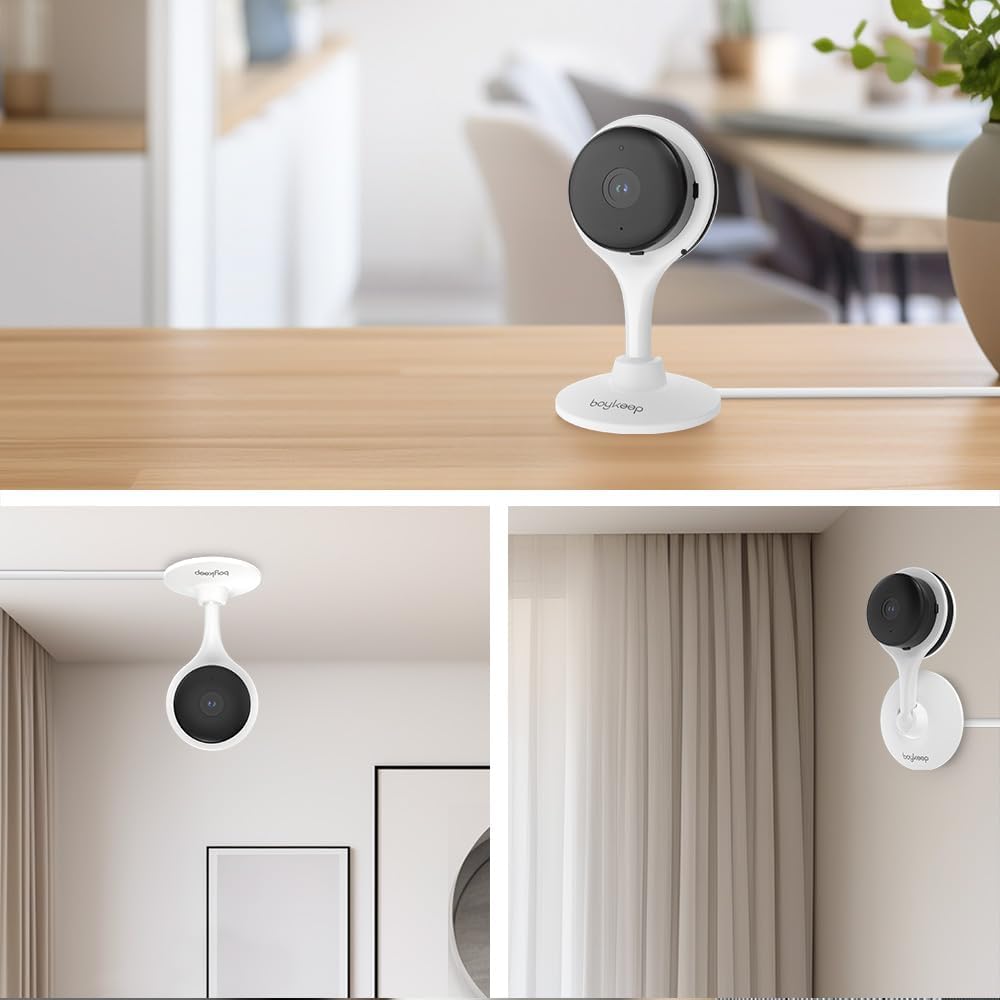

ചിത്ര വിവരണം: This image displays various mounting options for the BoyKeep K11 camera, including tabletop, ceiling, and wall mounting, demonstrating its versatile placement.

ചിത്ര വിവരണം: A notice illustrating the importance of sheltered operation for the camera. It shows correct placement under an eave and incorrect placement directly exposed to rain, emphasizing durability and performance.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. തത്സമയം View കൂടാതെ PTZ നിയന്ത്രണവും

Once connected, access the live feed through the BoyKeep app. Use the on-screen controls to pan (355° horizontal) and tilt (60° vertical) the camera for a comprehensive view of your space. Digital zoom is also available.

ചിത്ര വിവരണം: An illustration showing the 360-degree pan and tilt capabilities of the camera, providing all-round coverage without blind spots.

2. ടു-വേ ഓഡിയോ

The camera features a built-in microphone and speaker, allowing for two-way communication. Tap the microphone icon in the app to speak through the camera, and listen to audio from the camera's surroundings.

ചിത്ര വിവരണം: A visual representation of the two-way audio feature, showing a dog saying "Woof Woof!" and a person responding "Baby, miss you!" through the camera.

ചിത്ര വിവരണം: This image highlights the clear communication of the two-way audio, showing a child and a dog interacting with a parent's voice message, "It's time to go home."

3. ചലന കണ്ടെത്തലും ട്രാക്കിംഗും

Enable motion detection in the app settings to receive real-time alerts on your smartphone when movement is detected. The camera can also automatically track detected motion.

ചിത്ര വിവരണം: An image demonstrating the motion tracking feature, with a dog running in a yard and yellow boxes highlighting its movement as the camera follows.

4. നൈറ്റ് വിഷൻ

The K11 camera offers both clear night vision (black and white) and color night vision, ensuring visibility even in low-light conditions. The light can be activated manually via the app.

ചിത്ര വിവരണം: A scene of an outdoor patio at night, illuminated by string lights, showcasing the camera's color night vision capability.

ചിത്ര വിവരണം: A black and white image of a dog looking at food on a table, demonstrating the camera's clear night vision in monochrome.

5. റെക്കോർഡിംഗും സംഭരണവും

The camera supports local storage via a MicroSD card (not included) for continuous recording or event-triggered recordings. Cloud storage options are also available through a subscription service.

ചിത്ര വിവരണം: This image illustrates the recording capabilities of the camera, showing options for cloud storage and memory card storage, with a filmstrip overlay of recorded moments.

മെയിൻ്റനൻസ്

• വൃത്തിയാക്കൽ: ക്യാമറ ലെൻസും ബോഡിയും വൃത്തിയാക്കാൻ മൃദുവായതും ഉണങ്ങിയതുമായ തുണി ഉപയോഗിക്കുക. കഠിനമായ രാസവസ്തുക്കളോ അബ്രസീവ് ക്ലീനറുകളോ ഉപയോഗിക്കുന്നത് ഒഴിവാക്കുക.
• സോഫ്റ്റ്‌വെയർ അപ്‌ഡേറ്റുകൾ: Regularly check the BoyKeep app for firmware updates to ensure your camera has the latest features and security enhancements.
• പവർ സൈക്കിൾ: ക്യാമറയ്ക്ക് പ്രശ്‌നങ്ങൾ നേരിടുകയാണെങ്കിൽ, പവർ സ്രോതസ്സിൽ നിന്ന് 10 സെക്കൻഡ് നേരത്തേക്ക് അത് അൺപ്ലഗ് ചെയ്‌ത് വീണ്ടും പ്ലഗ് ഇൻ ചെയ്യാൻ ശ്രമിക്കുക.

ട്രബിൾഷൂട്ടിംഗ്

• ക്യാമറ വൈഫൈയിലേക്ക് കണക്റ്റ് ചെയ്യുന്നില്ല: Ensure your Wi-Fi network is 2.4G (the camera supports 5G, but some users report better stability on 2.4G). Verify the Wi-Fi password is correct. Try resetting the camera by holding the reset button for 30 seconds.
• തത്സമയം ഇല്ല view: Check your internet connection and ensure the camera is powered on. Restart the app.
• ചലന മുന്നറിയിപ്പുകൾ ലഭിച്ചില്ല: Verify motion detection is enabled in the app settings and that app notifications are allowed on your phone.
• മോശം വീഡിയോ നിലവാരം: Ensure your Wi-Fi signal is strong. Adjust video resolution settings in the app if necessary.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റി വിവരങ്ങൾ

Please refer to the product packaging or contact BoyKeep customer support for detailed warranty information. Typically, products come with a limited manufacturer's warranty covering defects in materials and workmanship.

ഉപഭോക്തൃ പിന്തുണ

For any questions, technical assistance, or support needs, please contact BoyKeep customer service. Contact details can usually be found in the included instruction manual or on the official BoyKeep webസൈറ്റ്.
