Paramount PH-100066 GY

പാരാമൗണ്ട് ഫ്ലേം പാറ്റിയോ ഹീറ്റർ ഉപയോക്തൃ മാനുവൽ

Model: PH-100066 GY

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Paramount Flame Patio Heater is designed to provide both warmth and visual appeal to your outdoor living space. Featuring a dancing flame within a protective glass tube, this heater delivers up to 41,000 BTUs of heat, creating a comfortable environment for cooler evenings. It is fueled by a standard 20-lb propane tank (not included), which is discreetly stored within the base. The electronic ignition system ensures easy startup, and integrated wheels allow for convenient repositioning.

Paramount Flame Patio Heater, front view, with flame visible

ചിത്രം 1.1: മുൻഭാഗം view of the Paramount Flame Patio Heater, showcasing its design and the visible flame.

പ്രധാന സവിശേഷതകൾ

  • Constructed from powder-coated steel for enhanced durability and a modern aesthetic.
  • Generates up to 41,000 BTUs of heat, suitable for outdoor use.
  • Features a stylish "Ultimate Grey" finish with silver accents.
  • Operates with a 20-lb propane tank (not included) and an electronic ignition system.
  • Includes a reflector and a protective guard for safety and heat distribution.
  • Equipped with an electric ignition (batteries not included) for easy startup.
  • ETL Certified, ensuring compliance with safety standards.
  • Provides an estimated maximum heating area of 125 square feet.
Paramount Flame Patio Heater in an outdoor patio setting with seating

Image 1.2: The patio heater positioned on an outdoor patio, demonstrating its integration into a living space.

2 സുരക്ഷാ വിവരങ്ങൾ

Read and understand all safety warnings and instructions before assembling, operating, or servicing this heater. Failure to follow these instructions could result in fire, explosion, serious injury, or death.

പൊതു സുരക്ഷാ മുന്നറിയിപ്പുകൾ

  • ബാഹ്യ ഉപയോഗത്തിന് മാത്രം: Never operate this heater indoors or in an enclosed area.
  • ക്ലിയറൻസ്: Maintain adequate clearance from combustible materials. Refer to the assembly instructions for specific distances.
  • വെന്റിലേഷൻ: പ്രവർത്തന സമയത്ത് ശരിയായ വായുസഞ്ചാരം ഉറപ്പാക്കുക.
  • പ്രൊപ്പെയ്ൻ ഗ്യാസ്: Use only propane gas. Do not use natural gas or any other fuel.
  • ചോര്ച്ച പരിശോധന: Always perform a leak test on all gas connections before initial use and after each propane tank change.
  • കുട്ടികളും വളർത്തുമൃഗങ്ങളും: Keep children and pets away from the heater, especially during operation.
  • ചൂടുള്ള പ്രതലങ്ങൾ: Surfaces of the heater become extremely hot during operation. Avoid direct contact.
  • സ്ഥിരത: Ensure the heater is placed on a firm, level surface to prevent tipping.
  • DO NOT MOVE: Never move the heater while it is operating or still hot.
  • സംഭരണം: Store the propane tank outdoors in a well-ventilated area when not in use.
  • അറ്റകുറ്റപ്പണി: യോഗ്യതയുള്ള സേവന ഉദ്യോഗസ്ഥർ മാത്രമേ അറ്റകുറ്റപ്പണികൾ നടത്താവൂ.

3. പാക്കേജ് ഉള്ളടക്കം

Carefully unpack all components and ensure all parts are present before beginning assembly. If any parts are missing or damaged, do not attempt to assemble or operate the heater. Contact customer support for assistance.

സാധാരണ ഘടകങ്ങളിൽ ഇവ ഉൾപ്പെടുന്നു:

  • Top Reflector Assembly
  • ഗ്ലാസ് ട്യൂബ്
  • ബർണർ അസംബ്ലി
  • Protective Grids (4 sections)
  • Main Body/Base Panels
  • നിയന്ത്രണ പാനൽ അസംബ്ലി
  • ചക്രങ്ങൾ (2)
  • Hardware Pack (screws, nuts, washers, etc.)
  • Regulator and Hose Assembly
  • ഉപയോക്തൃ മാനുവൽ

4. അസംബ്ലി നിർദ്ദേശങ്ങൾ

Assembly typically requires two people and basic tools (e.g., screwdriver, wrench). Follow the steps carefully to ensure proper and safe operation.

പൊതുസമ്മേളന ഘട്ടങ്ങൾ:

  1. Attach the wheels to the base panel.
  2. Assemble the main body panels to form the base enclosure.
  3. Install the control panel and secure the burner assembly.
  4. Carefully insert the glass tube into the central column. Ensure it is clean and free of fingerprints.
  5. Attach the protective grid sections around the glass tube.
  6. Mount the top reflector assembly.
  7. Connect the regulator and hose assembly to the burner.
  8. Place a 20-lb propane tank (not included) inside the base and connect the hose.
  9. Perform a leak test on all gas connections using a soapy water solution. Bubbles indicate a leak.

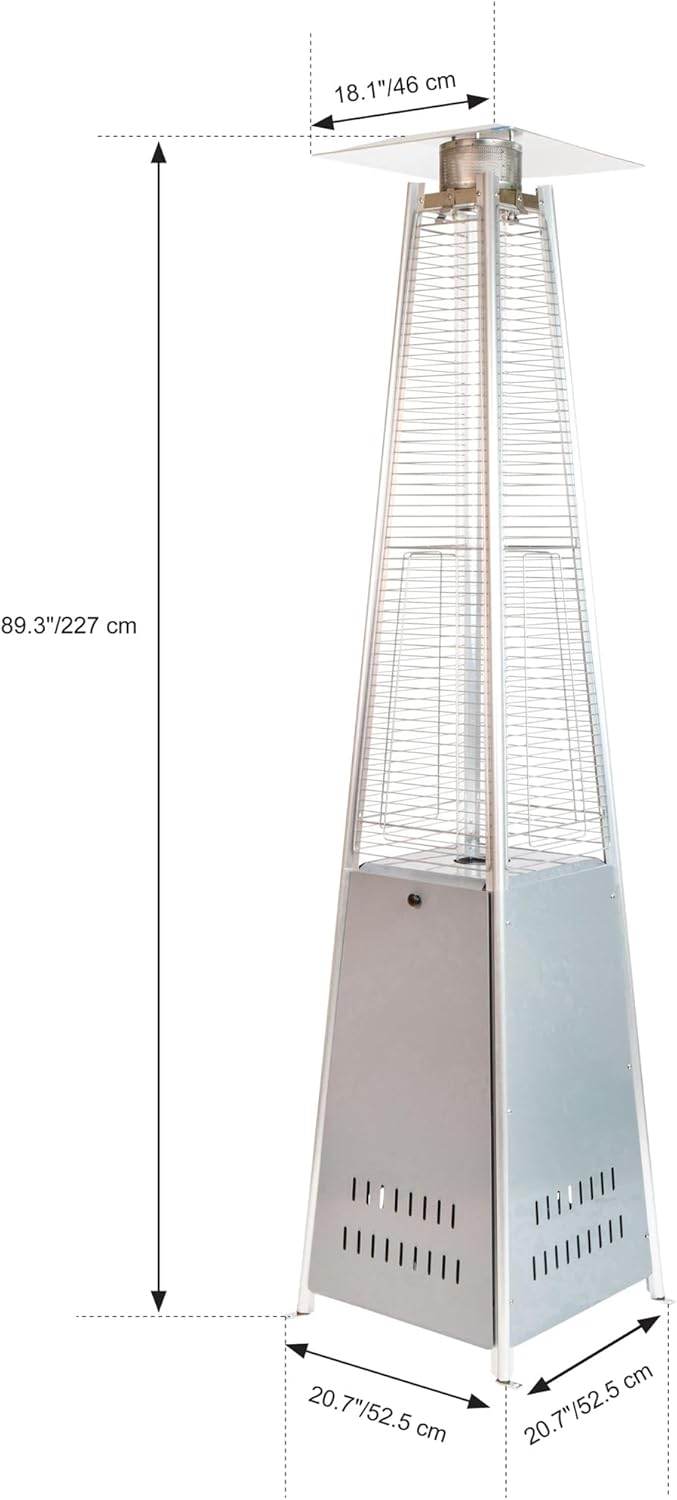

Diagram showing the dimensions of the Paramount Flame Patio Heater

Image 4.1: Dimensional diagram of the patio heater, indicating height (89.3"/227 cm) and base width (20.7"/52.5 cm).

Close-up of the wheels attached to the base of the patio heater

Image 4.2: Detail of the integrated wheels at the base, facilitating mobility.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Follow these steps to safely ignite and operate your Paramount Flame Patio Heater.

5.1. Starting the Heater

  1. Ensure the propane tank valve is fully open.
  2. Push and turn the variable control knob to the 'PILOT' position.
  3. While holding the control knob in, press the electronic igniter button repeatedly until the pilot flame lights. You may hear a clicking sound.
  4. Continue to hold the control knob in for approximately 15-30 seconds after the pilot lights to allow the thermocouple to heat up. Release the knob; the pilot should remain lit.
  5. Slowly turn the variable control knob to the desired heat setting (low to high). The main burner will ignite.

5.2. Adjusting the Flame

Rotate the variable control knob between the 'LOW' and 'HIGH' positions to adjust the flame height and heat output.

5.3. ഷട്ട് ഡൗൺ

  1. Turn the variable control knob to the 'OFF' position.
  2. Close the valve on the propane tank completely.
  3. Allow the heater to cool down completely before moving or storing.
Close-up of the control panel with ignition button and variable control knob

Image 5.1: Detail of the heater's control panel, showing the red electronic ignition button and the black variable control knob.

6. പരിപാലനം

Regular maintenance ensures the longevity and safe operation of your patio heater.

6.1. വൃത്തിയാക്കൽ

  • ബാഹ്യ ഉപരിതലങ്ങൾ: Wipe down powder-coated steel surfaces with a soft, damp തുണി. ഉരച്ചിലുകൾ ഉള്ള ക്ലീനറുകൾ ഒഴിവാക്കുക.
  • Glass Tube: Clean the glass tube with a glass cleaner and a soft cloth when the heater is cool. Ensure no residue remains.
  • Burner and Pilot Assembly: Keep the burner ports and pilot assembly free of dirt, dust, and spider webs. Use a soft brush or compressed air if necessary.

6.2. സംഭരണം

  • Ensure the heater is completely cool before storing.
  • Disconnect the propane tank and store it outdoors in a well-ventilated area, away from direct sunlight and heat sources.
  • Cover the heater with a weather-resistant cover to protect it from elements.
  • Store the heater in a dry, sheltered location during off-season periods.

7. പ്രശ്‌നപരിഹാരം

പൊതുവായ പ്രശ്നങ്ങളും അവയുടെ പരിഹാരങ്ങളും അറിയാൻ താഴെയുള്ള പട്ടിക കാണുക.

പ്രശ്നംസാധ്യമായ കാരണംപരിഹാരം
ഹീറ്റർ പ്രകാശിക്കില്ലNo propane gas flow; Igniter not sparking; Pilot light not staying lit.Check propane tank valve is open; Ensure tank has fuel; Check igniter battery; Hold control knob longer after pilot lights.
Low flame or inconsistent heatLow propane level; Regulator issue; Blocked burner ports.Replace or refill propane tank; Inspect regulator for damage; Clean burner ports.
ഗ്യാസിന്റെ മണംവാതക ചോർച്ച.Immediately turn off gas supply; Perform a leak test on all connections. If leak persists, do not operate and contact qualified service.
Pilot light goes outThermocouple not heating sufficiently; Drafts; Loose connection.Hold control knob in longer; Shield from wind; Check pilot assembly connections.

8 സ്പെസിഫിക്കേഷനുകൾ

Detailed technical specifications for the Paramount Flame Patio Heater.

ആട്രിബ്യൂട്ട്വിശദാംശങ്ങൾ
മോഡൽ നമ്പർPH-100066 GY
ബ്രാൻഡ്പരമപ്രധാനം
ഹീറ്റ് ഔട്ട്പുട്ട്41,000 ബി.ടി.യു
ഇന്ധന തരംPropane Gas (20-lb tank, not included)
ഇഗ്നിഷൻ സിസ്റ്റംഇലക്ട്രോണിക് ഇഗ്നിഷൻ
മെറ്റീരിയൽപൊടി-പൊതിഞ്ഞ സ്റ്റീൽ
നിറംUltimate Grey with Silver Accents
ഉൽപ്പന്ന അളവുകൾ (L x W x H)72.9 x 72.9 x 227 cm (28.7 x 28.7 x 89.3 inches) (approximate, based on base and height)
ഭാരം22.95 കി.ഗ്രാം (50.6 പൗണ്ട്)
സർട്ടിഫിക്കേഷനുകൾETL സാക്ഷ്യപ്പെടുത്തിയത്
നിർമ്മാതാവ്J & R Home Products Ltd.
മാതൃരാജ്യംചൈന

9. വാറൻ്റിയും പിന്തുണയും

Paramount products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your product or visit the official Paramount webസൈറ്റ്. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങലിന്റെ തെളിവ് സൂക്ഷിക്കുക.

ഉപഭോക്തൃ പിന്തുണ

If you have any questions, require technical assistance, or need to order replacement parts, please contact Paramount customer support. Contact information can typically be found on the manufacturer's webസൈറ്റ് അല്ലെങ്കിൽ ഉൽപ്പന്ന പാക്കേജിംഗിൽ.

കൂടുതൽ വിവരങ്ങൾക്ക്, സന്ദർശിക്കുക Paramount Store.
