Wacom Movink 13.3" OLED Drawing Tablet User Manual

ആമുഖം

The Wacom Movink 13 is a portable 13.3-inch OLED drawing tablet designed for creative professionals. It features a thin and lightweight design, an OLED display with vibrant color reproduction, and the Wacom Pro Pen 3 for precise input. This manual provides essential information for setting up, operating, and maintaining your device.

The Movink 13 is compatible with Mac, PC, Chromebook, and Android operating systems, offering versatility for various creative workflows.

Image: The Wacom Movink 13.3-inch OLED Drawing Tablet positioned on a desk next to a laptop, showcasing അതിന്റെ ഒതുക്കമുള്ള ഡിസൈൻ.

ബോക്സിൽ എന്താണുള്ളത്

Upon unboxing your Wacom Movink 13, verify that all the following components are present:

• Wacom Movink 13 digital drawing pad
• Wacom Pro Pen 3 (slim barrel)
• USB-C cable for connectivity and charging (1m)
• Nib holder with 3 replacement Nibs (1 standard, 2 felt)
• നിബ് റിമൂവർ
• ദ്രുത ആരംഭ ഗൈഡ്
• Regulation Sheet

Image: An illustration detailing the items included in the Wacom Movink 13 package: the Movink 13 tablet, Pro Pen 3, USB-C cable, Quick Start Guide, and extra nibs.

സജ്ജീകരണവും കണക്റ്റിവിറ്റിയും

The Wacom Movink 13 connects to your computer or compatible device via a single USB-C cable. This cable handles power, data, and display signals.

Connecting to a Computer with USB-C (DisplayPort Alt Mode / Thunderbolt 3 or 4)

1. Ensure your computer has a USB-C port that supports DisplayPort Alt Mode or Thunderbolt 3/4.
2. Connect one end of the included USB-C cable to a USB-C port on your Movink 13.
3. Connect the other end of the USB-C cable to the compatible USB-C port on your computer.
4. The Movink 13 display should activate, and your computer should detect it as an external display and input device.
5. Install the latest Wacom drivers from the official Wacom website for full functionality and customization options.

Connecting to a Computer with HDMI (Requires Adapter)

If your computer only has an HDMI port, you will need additional accessories, including a Wacom Converter, an HDMI cable, a USB-C to USB-A cable, and a USB-C power adapter. These items are not included with the Movink 13.

Image: A diagram illustrating the connectivity options for the Wacom Movink 13, showing direct USB-C connection for DisplayPort Alt or Thunderbolt, and the required additional components for HDMI connections.

ഡ്രൈവർ ഇൻസ്റ്റാളേഷൻ

For optimal performance and access to all features, download and install the latest drivers for your Wacom Movink 13 from the official Wacom support website. Drivers enable pen pressure sensitivity, tilt recognition, and customization of ExpressKeys and touch gestures.

ഉപകരണം പ്രവർത്തിപ്പിക്കുന്നു

വാകോം പ്രോ പെൻ 3

The included Wacom Pro Pen 3 offers 8192 levels of pressure sensitivity and tilt recognition, providing a natural drawing and painting experience. It features three customizable side switches that can be programmed for various functions such as right-click, scroll, or modifier keys.

• Customizing Pen Buttons: Use the Wacom Tablet Properties software (available after driver installation) to assign functions to the pen's side switches.
• നിബുകൾ മാറ്റിസ്ഥാപിക്കുന്നു: The Pro Pen 3 includes a nib holder with replacement nibs (standard and felt) and a nib remover. To replace a nib, use the remover to gently pull out the old nib and insert a new one until it clicks into place.

ചിത്രം: ഒരു ക്ലോസ്-അപ്പ് view of an artist's hand using the Wacom Pro Pen 3 on the Movink 13 tablet, demonstrating precise digital drawing.

Touchscreen and ExpressKeys

The Movink 13 features a multi-touch screen, allowing for intuitive navigation and gesture-based controls. It also includes two customizable ExpressKeys for quick access to frequently used functions.

• സ്പർശന ആംഗ്യങ്ങൾ: Use standard multi-touch gestures (e.g., pinch-to-zoom, two-finger scroll) for navigation within applications.
• Customizing ExpressKeys: The two physical ExpressKeys can be assigned specific shortcuts or commands through the Wacom Tablet Properties software to streamline your workflow.
• On-Screen Shortcuts: The device supports customizable on-screen shortcuts, providing additional quick access options.

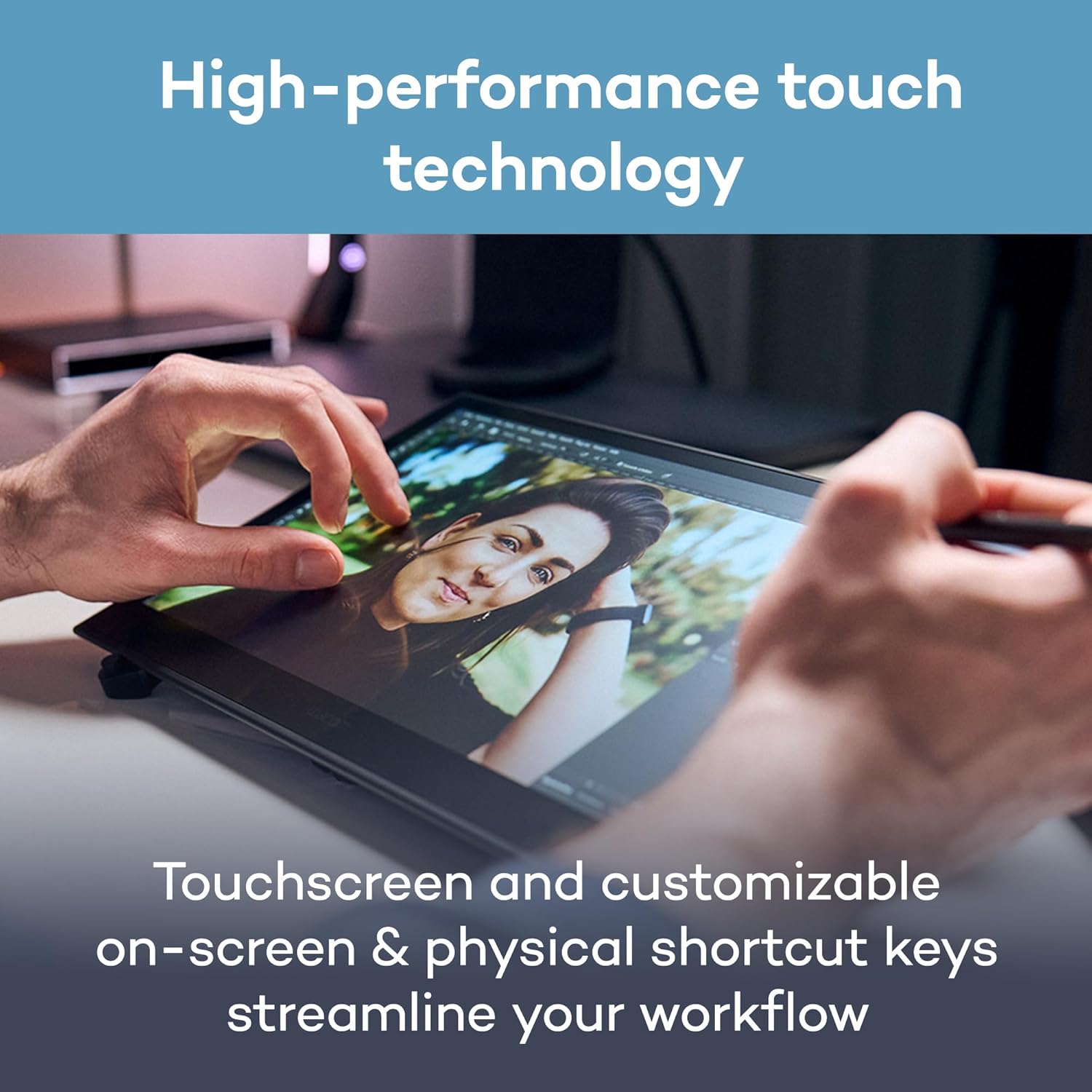

Image: A user interacting with the Wacom Movink 13 touchscreen using both touch gestures and the Pro Pen 3 simultaneously, highlighting its multi-input capabilities.

ഡിസ്പ്ലേ സവിശേഷതകൾ

The Movink 13 features a 13.3-inch OLED display, offering exceptional visual quality for creative work.

• ഊർജ്ജസ്വലമായ നിറം: The 10-bit color display provides a wide spectrum of colors, with hardware presets for Adobe RGB, sRGB, DCI-P3, Rec. 709, EBU, and Rec2020.
• ഉയർന്ന ദൃശ്യതീവ്രത: An ultra-high contrast ratio of 100,000:1 ensures deep blacks and bright whites, enhancing detail and visual precision.
• Anti-Glare Surface: The anti-glare, anti-fingerprint bonded etched glass touchscreen minimizes reflections and provides a natural pen-on-paper feel.

Image: The Wacom Movink 13 tablet displaying a high-resolution image with rich colors, connected to a laptop, illustrating its vibrant OLED display capabilities.

മെയിൻ്റനൻസ്

Proper care and maintenance will extend the lifespan of your Wacom Movink 13.

• സ്ക്രീൻ വൃത്തിയാക്കൽ: ഇലക്ട്രോണിക് ഉപകരണങ്ങൾക്കായി പ്രത്യേകം രൂപകൽപ്പന ചെയ്ത മൃദുവായ, ലിന്റ് രഹിത തുണി ഉപയോഗിക്കുക. കഠിനമായ പാടുകൾക്ക്, നേരിയ തോതിൽ dampen the cloth with water or a screen cleaner approved for OLED displays. Avoid harsh chemicals or abrasive materials.
• Cleaning the Pen: Wipe the Pro Pen 3 with a dry, soft cloth. Do not immerse it in water or use cleaning solutions.
• സംഭരണം: When not in use, store the Movink 13 in a protective sleeve or case to prevent scratches and damage. Avoid placing heavy objects on the tablet.
• കേബിൾ കെയർ: Handle the USB-C cable carefully. Avoid sharp bends or excessive pulling that could damage the connectors or cable insulation.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your Wacom Movink 13, try the following troubleshooting steps:

• ഡിസ്പ്ലേ ഇല്ല/പവർ ഇല്ല:
  • Ensure the USB-C cable is securely connected to both the Movink 13 and a compatible USB-C port on your computer.
  • Verify that your computer's USB-C port supports DisplayPort Alt Mode or Thunderbolt 3/4.
  • If using an adapter for HDMI, ensure all connections are correct and the power adapter is connected.
  • Try a different USB-C port on your computer, if available.
• Pen Not Responding/No Pressure Sensitivity:
  • Check if the Wacom drivers are installed correctly and are up to date.
  • Restart your computer and the Movink 13.
  • Ensure the pen nib is properly inserted. Try replacing the nib.
  • Test the pen in different applications to determine if the issue is software-specific.
• Touch Gestures Not Working:
  • Verify that touch input is enabled in the Wacom Tablet Properties.
  • Ensure your operating system settings allow for touch input.
  • Clean the screen to remove any dirt or smudges that might interfere with touch detection.
• Display Issues (Flickering, Incorrect Colors):
  • നിങ്ങളുടെ കമ്പ്യൂട്ടറിന്റെ ഗ്രാഫിക്സ് ഡ്രൈവറുകൾ അപ്ഡേറ്റ് ചെയ്യുക.
  • Check display settings on your computer to ensure the correct resolution and refresh rate are selected for the Movink 13.
  • If possible, test the Movink 13 with another compatible computer to rule out a device-specific issue.

For further assistance, refer to the Wacom support website or contact Wacom customer service.

സ്പെസിഫിക്കേഷനുകൾ

Image: A side-profile view of the Wacom Movink 13 tablet, highlighting its thin design and precise dimensions.

വാറൻ്റിയും പിന്തുണയും

For detailed warranty information, please refer to the warranty card included with your product or visit the official Wacom website. Wacom provides technical support and resources to assist with any product-related inquiries.

ഓൺലൈൻ പിന്തുണ: സന്ദർശിക്കുക wacom.com/support for drivers, FAQs, and troubleshooting guides.

കസ്റ്റമർ സർവീസ്: Contact Wacom customer service for personalized assistance. Contact details can be found on the Wacom support webനിങ്ങളുടെ പ്രദേശത്തിനായുള്ള സൈറ്റ്.
