RESTMO സ്പ്രിംഗ്ളർ ടൈമർ ഉപയോക്തൃ മാനുവൽ

ആമുഖം

The RESTMO Sprinkler Timer is an advanced ball valve water timer designed for efficient and automatic watering of gardens, lawns, and various irrigation systems. It is particularly effective with zero or low water pressure setups, including rain barrels. This multi-functional timer offers automatic, manual, and rain delay modes, providing flexible control over your watering schedule.

Figure 1: RESTMO Sprinkler Timer, showing the main unit with LCD display and control dial.

ഫീച്ചറുകൾ

• Zero and Low Pressure Watering: Optimized to work efficiently with low-pressure drip irrigation systems and zero-pressure setups, such as rain barrels, due to its ball valve mechanism.
• Multi-Functional Watering Modes: Includes Auto, Manual, and Rain Delay modes for versatile watering control.
• Easy Setup and Operation: Features an oversized dial and a large, easy-to-read LCD screen for intuitive programming of watering duration, frequency, and start times.
• നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Built with a robust ball valve and rated IP54 for water and leak resistance.
• വിശാലമായ ആപ്ലിക്കേഷൻ: Suitable for garden hoses, outdoor faucets, lawn sprinkler controllers, greenhouse mist systems, pool filling, birdbath drippers, and pet drinking systems.

Figure 2: Key features highlighting zero water pressure compatibility, ball valve, ease of use, and various watering modes.

പാക്കേജ് ഉള്ളടക്കം

• 1 x RESTMO Sprinkler Timer (Model O-HTB-1A)
• 1 x ഉപയോക്തൃ മാനുവൽ
• Note: 2 x AA Alkaline Batteries are not included.

സ്പെസിഫിക്കേഷനുകൾ

ചിത്രം 3: പൊട്ടിത്തെറിച്ചു view of the timer showing components like filter washer, LCD screen, ball valve, and control buttons, along with key specifications.

സജ്ജമാക്കുക

1. ബാറ്ററികൾ ഇൻസ്റ്റാൾ ചെയ്യുക: Open the battery compartment. Insert 2 x AA alkaline batteries (not included), ensuring correct polarity. Close the compartment securely. Important: Do not moisten the battery or battery compartment. Keep your hands dry during installation.
2. ഫ്യൂസറ്റിൽ അറ്റാച്ചുചെയ്യുക: Connect the timer to your standard 3/4" garden faucet. Ensure the connection is tight to prevent leaks. The timer is designed to work with 0-120 PSI water pressure.
3. ഹോസ് അറ്റാച്ചുചെയ്യുക: Connect your garden hose or irrigation system to the bottom outlet of the timer.
4. Turn on Faucet: Fully open your faucet to allow water pressure to the timer. The timer's ball valve will control the water flow according to your programmed schedule.

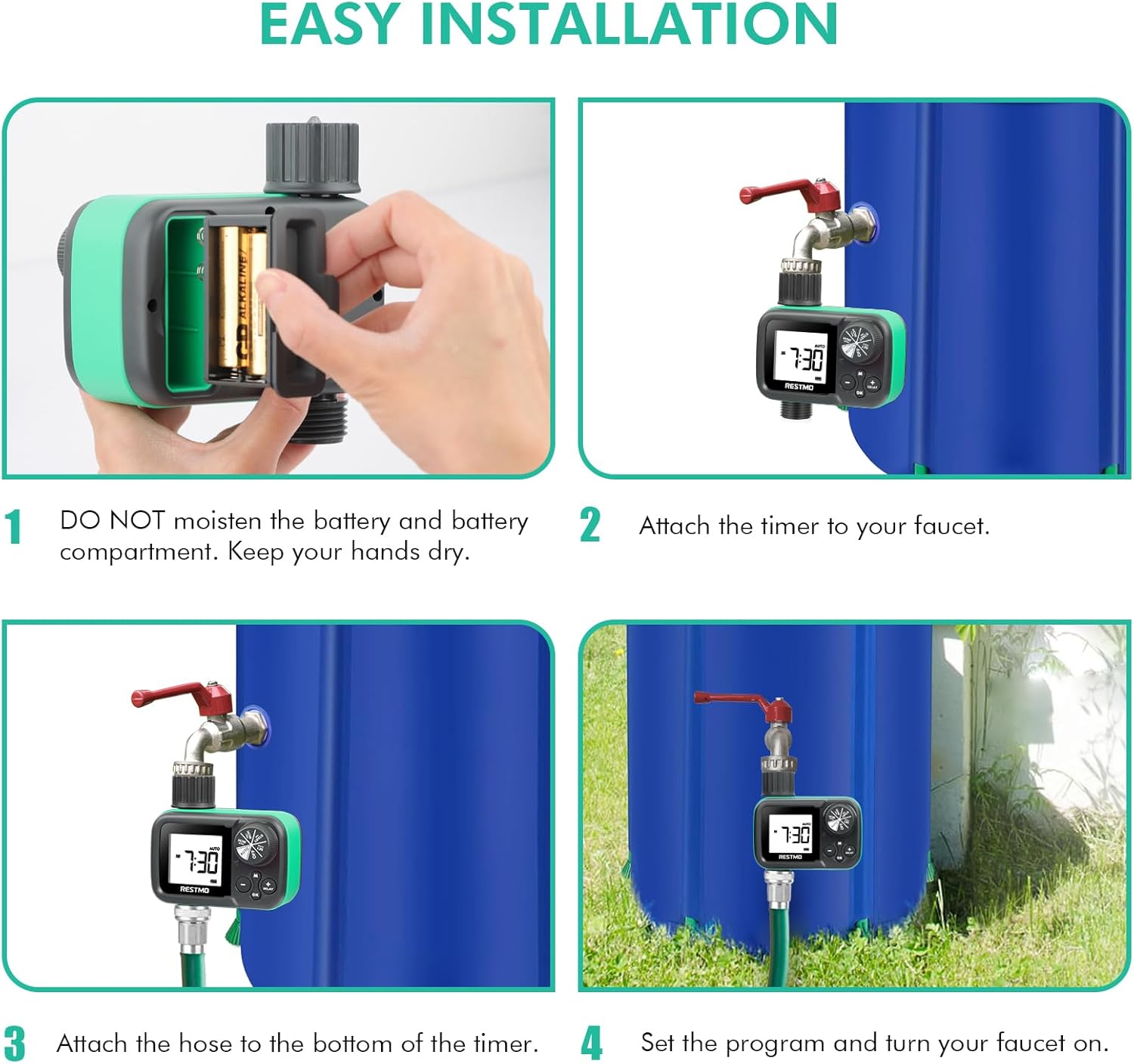

Figure 4: Visual guide for installing the timer, including battery insertion, attaching to faucet, connecting the hose, and turning on the faucet.

ഓപ്പറേഷൻ

The RESTMO Sprinkler Timer features a large dial for selecting different settings and buttons for adjustment. Rotate the dial to navigate through the programming options.

Dial Positions:

• ക്ലോക്ക് സജ്ജമാക്കുക: നിലവിലെ സമയം സജ്ജമാക്കുക.
• ആരംഭിക്കുന്ന സമയം: നനയ്ക്കുന്നതിന് ആവശ്യമുള്ള ആരംഭ സമയം സജ്ജമാക്കുക.
• എത്രകാലം: Set the duration of each watering cycle (1 minute to 4 hours 59 minutes).
• എത്ര ഇട്ടവിട്ട്: Set the frequency of watering (every 1-23 hours or every 1-7 days).
• സ്വയമേവ: Activates the automatic watering schedule based on your settings.
• ഓഫാണ്: Turns off all watering functions.

പ്രോഗ്രാമിംഗ് ഘട്ടങ്ങൾ:

1. ക്ലോക്ക് സജ്ജമാക്കുക: Rotate the dial to "SET CLOCK". Use the + ഒപ്പം - buttons to adjust the current time. Press OK സ്ഥിരീകരിക്കാൻ.
2. ആരംഭ സമയം സജ്ജമാക്കുക: Rotate the dial to "START TIME". Use the + ഒപ്പം - buttons to set the desired time for watering to begin. Press OK സ്ഥിരീകരിക്കാൻ.
3. Set Watering Duration (HOW LONG): Rotate the dial to "HOW LONG". Use the + ഒപ്പം - buttons to set how many minutes or hours the timer should water. Press OK സ്ഥിരീകരിക്കാൻ.
4. Set Watering Frequency (HOW OFTEN): Rotate the dial to "HOW OFTEN". Use the + ഒപ്പം - buttons to set how often the watering cycle should repeat (e.g., every 12 hours, every 2 days). Press OK സ്ഥിരീകരിക്കാൻ.
5. ഓട്ടോമാറ്റിക് മോഡ് സജീവമാക്കുക: Once all settings are confirmed, rotate the dial to "AUTO". The timer will now operate according to your programmed schedule.

മാനുവൽ നനവ്:

To initiate manual watering outside of the programmed schedule:

• Ensure the dial is set to "AUTO" and the timer is not in "DELAY" mode.
• അമർത്തുക M (Manual) button.
• ഉപയോഗിക്കുക + ഒപ്പം - buttons to set the desired manual watering duration (1 minute to 299 minutes).
• അമർത്തുക OK to start manual watering. The timer will water for the set duration and then return to its automatic schedule.

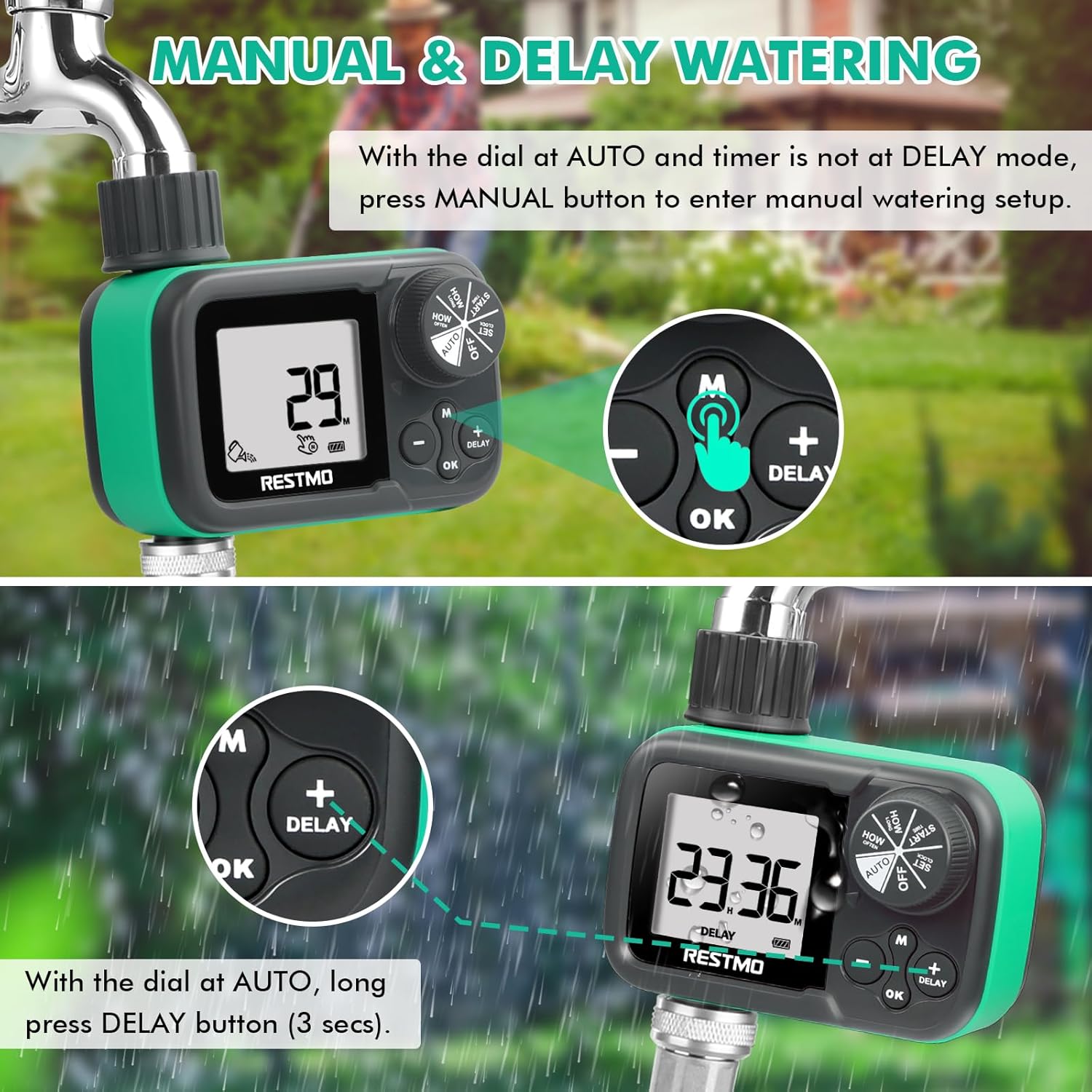

Figure 5: Visual guide for activating manual watering and rain delay functions.

മഴ വൈകൽ പ്രവർത്തനം:

To temporarily pause your watering schedule due to rain or other reasons:

• Ensure the dial is set to "AUTO".
• ദീർഘനേരം അമർത്തുക കാലതാമസം button (for 3 seconds).
• ഉപയോഗിക്കുക + ഒപ്പം - buttons to select the desired delay period (12, 24, 48, or 72 hours).
• The timer will pause for the selected duration and then resume its programmed schedule automatically.

മെയിൻ്റനൻസ്

• ശൈത്യകാല സംഭരണം: To prevent freezing damage, remove the timer from the faucet before the first frost. Dry the timer thoroughly and store it indoors in a dry, protected area during winter months.
• ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ: Replace batteries annually or when the low battery indicator appears on the LCD screen to ensure continuous operation.
• Filter Washer: Periodically check the filter washer at the inlet connection for debris. Clean if necessary to maintain optimal water flow and prevent blockages.
• വൃത്തിയാക്കൽ: Clean the exterior of the timer with a soft, damp തുണി. അബ്രാസീവ് ക്ലീനറുകൾ ഉപയോഗിക്കരുത് അല്ലെങ്കിൽ യൂണിറ്റ് വെള്ളത്തിൽ മുക്കരുത്.

Figure 6: Important warning regarding winter storage to prevent freezing damage.

ട്രബിൾഷൂട്ടിംഗ്

വാറൻ്റി & പിന്തുണ

RESTMO is committed to customer satisfaction and product quality.

• വാറൻ്റി: The product comes with a 100% satisfaction guarantee, a 45-day money-back guarantee, and an 18-month worry-free replacement service.
• ഉപഭോക്തൃ പിന്തുണ: For any questions, issues, or support needs, please reach out to our 24/7 local customer service team.

ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ:

• ഇമെയിൽ: support@restmo-link.com
• Phone (Toll-Free): +1 866-876-6888
• ഫോൺ: +1 929-329-4398

Figure 7: Product packaging displaying contact details for customer support and key specifications.
