ഉൽപ്പന്നം കഴിഞ്ഞുview
The new and improved Projecta Charge N’ Maintain 12V Battery Charger is perfectly suited for DIY enthusiasts and professionals alike. Its no-fuss operation means you can simply connect it to your battery, and the charger will automatically manage the charging process. This smart charger range offers a safe and practical method for charging and maintaining all your automotive and marine batteries. The advanced technology ensures accurate and efficient charging through switchable stages, promoting longer battery life and better performance over extended periods. The charger communicates with the battery to ascertain its charge level, balancing its load and optimizing charging methods to prevent overcharging.
പ്രധാന സവിശേഷതകൾ
- പൂർണ്ണമായും സ്വയമേവ: അമിത ചാർജിംഗ് സാധ്യതയില്ലാതെ കണക്റ്റുചെയ്ത് മറക്കുക.
- നാല് എസ്tages: Once connected, the charger will manage the entire process, whether charging or maintaining the battery to keep it ready for use.
- തീപ്പൊരി രഹിതവും ധ്രുവീയത പരിരക്ഷിതവും: Designed for safe use, even while the battery is still in the vehicle.
- ഫ്യൂസ്ഡ് വയറിംഗ് ഹാർനെസ്: Includes a quick-connect fused wiring harness for permanent installation (BCWH).
- സമ്പൂർണ്ണ കിറ്റ്: Comes with the harness, battery clamps, and a 9.84 ft (3m) extension cable.
സജ്ജീകരണവും കണക്ഷനും
Before connecting the charger, ensure your vehicle is turned off and the ignition is in the 'off' position. Always connect the charger in a well-ventilated area.
- ബാറ്ററി ടെർമിനലുകൾ തിരിച്ചറിയുക: നിങ്ങളുടെ ബാറ്ററിയിലെ പോസിറ്റീവ് (+), നെഗറ്റീവ് (-) ടെർമിനലുകൾ കണ്ടെത്തുക. പോസിറ്റീവ് ടെർമിനൽ സാധാരണയായി ഒരു പ്ലസ് ചിഹ്നം കൊണ്ട് അടയാളപ്പെടുത്തിയിരിക്കും, അത് വലുതായിരിക്കും, അതേസമയം നെഗറ്റീവ് ടെർമിനൽ ഒരു മൈനസ് ചിഹ്നം കൊണ്ട് അടയാളപ്പെടുത്തിയിരിക്കും.
- കണക്ഷൻ രീതി തിരഞ്ഞെടുക്കുക: The Projecta charger comes with both battery clamps and a fused wiring harness. Choose the method most suitable for your application.
- Connect Positive: Attach the red (positive) clamp or ring terminal from the charger to the positive (+) battery terminal.
- Connect Negative: Attach the black (negative) clamp or ring terminal from the charger to the negative (-) battery terminal. For safety, if connecting to a battery installed in a vehicle, connect the negative clamp ബാറ്ററിയിൽ നിന്നും ഇന്ധന ലൈനിൽ നിന്നും അകലെ വാഹന ഷാസിയിലേക്ക്.
- Plug in Charger: Once the battery connections are secure, plug the charger into a standard AC power outlet. The charger is designed to be spark-free and polarity protected, minimizing risks during connection.
Image: The Projecta charger connected to a car battery, demonstrating proper terminal attachment.
Image: The fused wiring harness, providing a permanent installation option for the charger.
Image: The red (positive) and black (negative) battery clamps included with the charger.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The Projecta Charge N’ Maintain charger is fully automatic, simplifying the charging process. Once connected and powered on, it will automatically detect the battery type and condition, then proceed through its four charging stages.
Automatic Charging Stages
- Stagഇ 1: ഡീസൽഫേഷൻ (if needed) - Recovers sulphated batteries.
- Stage 2: Bulk Charge - Charges the battery to approximately 80% capacity.
- Stage 3: Absorption Charge - Charges the battery to 100% capacity at a decreasinഗ്രാം കറന്റ്.
- Stage 4: Float/Maintenance Charge - Maintains the battery at full charge, preventing self-discharge and ensuring readiness.
The charger's display will show the charging status and battery voltage. There is no risk of overcharging, making it safe to leave connected for extended periods for maintenance.
Video: An official product video demonstrating the features and ease of use of the Projecta 'Charge N' Maintain' Automatic Battery Chargers.
ബാറ്ററി പരിപാലനം
The 'Maintain' function of this charger is crucial for extending battery life, especially for infrequently used vehicles or equipment. Once the battery is fully charged, the charger automatically switches to a maintenance mode, providing a small, continuous current to counteract self-discharge. This ensures your battery remains at optimal charge and ready for use whenever needed, preventing sulfation and prolonging its overall lifespan.
ട്രബിൾഷൂട്ടിംഗ്
If the charger is not operating as expected, please check the following:
- ശക്തിയില്ല: Ensure the charger is securely plugged into a live AC power outlet. Check the power outlet with another appliance.
- Incorrect Connection: Verify that the positive (red) and negative (black) clamps/terminals are correctly connected to the corresponding battery terminals. The charger has polarity protection, but incorrect connection will prevent charging.
- ബാറ്ററി അവസ്ഥ: If the battery is severely discharged or damaged, the charger may not initiate charging. Consult a professional for battery testing.
- ഫ്യൂസുകൾ: Check the fuse in the fused wiring harness (if used) for continuity. Replace if blown.
- ഡിസ്പ്ലേ പിശകുകൾ: Refer to the charger's display for any error codes or indicators and consult the specific meaning in the full user manual (if available).
For persistent issues, contact Projecta customer support.
സാങ്കേതിക സവിശേഷതകൾ
| മോഡൽ നമ്പർ | പിജെ-എസി008-2 |
| ഔട്ട്പുട്ട് Ampഉന്മേഷം | 0.8 Amps |
| Putട്ട്പുട്ട് വോളിയംtage | 12 വോൾട്ട് (DC) |
| ഉൽപ്പന്ന അളവുകൾ | 5.59 x 2.28 x 8.27 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 1.25 പൗണ്ട് (0.57 കിലോഗ്രാം) |
| നിറം | കറുപ്പ് |
| ചാർജിംഗ് എസ്tages | 4 എസ്tages |
എന്താണ് ഉൾപ്പെടുത്തിയിരിക്കുന്നത്
Your Projecta Charge N’ Maintain 12V Battery Charger package includes:
- Projecta PJ-AC008-2 Battery Charger Unit
- Fused Wiring Harness (BCWH)
- ബാറ്ററി Clamps
- 9.84 അടി (3 മീ) എക്സ്റ്റൻഷൻ കേബിൾ
Image: The Projecta battery charger displayed with all its included accessories, such as the fused wiring harness and battery clamps.

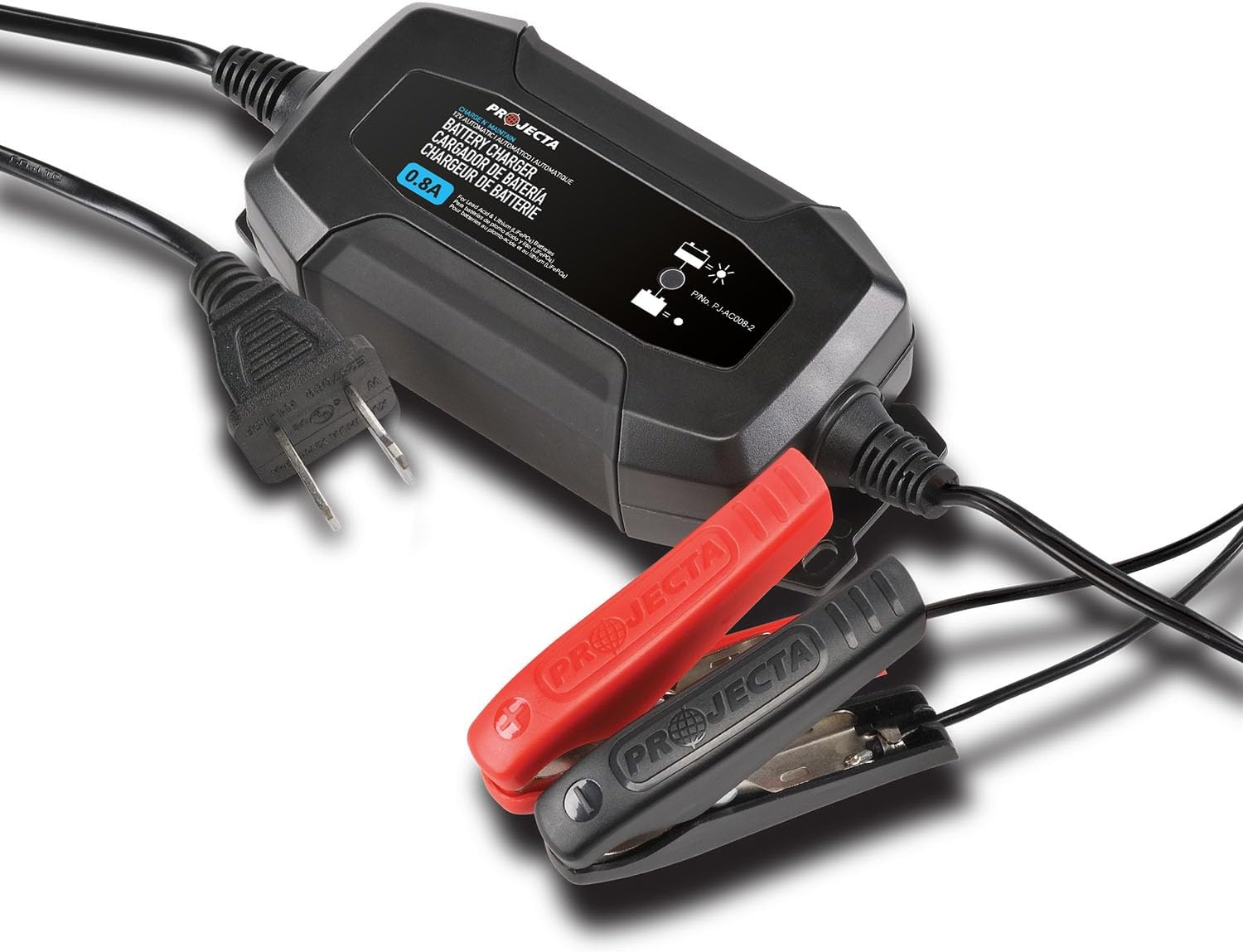

Image: The main unit of the Projecta PJ-AC008-2 Charge N’ Maintain 12V Battery Charger.
സുരക്ഷാ വിവരങ്ങൾ
Your safety is paramount when using electrical devices. The Projecta Charge N’ Maintain charger incorporates several safety features:
- Spark-Free Connection: Designed to prevent sparks when connecting or disconnecting from the battery, reducing the risk of ignition of flammable gases.
- പോളാരിറ്റി സംരക്ഷണം: Automatically detects incorrect polarity connections and prevents damage to the charger or battery.
- ഓവർചാർജ് പരിരക്ഷണം: The fully automatic, multi-stage charging process ensures the battery is never overcharged, which can lead to damage or reduced lifespan.
- ഷോർട്ട് സർക്യൂട്ട് സംരക്ഷണം: Protects against short circuits, enhancing safety during operation.
Always read and understand all instructions before operating the charger. Keep out of reach of children. Do not expose the charger to rain or excessive moisture.
വാറൻ്റിയും പിന്തുണയും
Projecta products are manufactured to high standards and are backed by a manufacturer's warranty. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your product or visit the official Projecta website. For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Projecta customer service through their official channels. Keep your proof of purchase for warranty claims.
