1 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ
Read all instructions carefully before installation and use. Failure to follow these instructions may result in injury or product damage.
- Always ensure the mounting surface is structurally sound. For drywall installations, solid wood blocking is required to provide a secure mounting surface for the track.
- Use appropriate tools and safety gear during installation.
- This barn door is heavy. Two people are recommended for safe handling and installation.
- Ensure all hardware is securely fastened before operating the door.
- ഇൻസ്റ്റലേഷൻ ഏരിയയിൽ നിന്ന് കുട്ടികളെയും വളർത്തുമൃഗങ്ങളെയും അകറ്റി നിർത്തുക.
2. പാക്കേജ് ഉള്ളടക്കം
Verify that all components listed below are present and undamaged before beginning installation.
Figure 2.1: Included components for the JUBEST barn door kit.
- Door Panel (36" W x 84" H)
- Sliding Track (72" length)
- Roller Hangers (2 units)
- ഡോർ ഹാൻഡിൽ
- Floor Guides (2 types available)
- Anti-jump Disks
- ഡോർ സ്റ്റോപ്പറുകൾ
- Wall Spacers
- Fasteners and Wrenches
3. ഉൽപ്പന്ന സവിശേഷതകൾ
| മോഡൽ നമ്പർ | OJC101-YGD01 |
| ഡോർ പാനൽ അളവുകൾ | 36" വീതി x 84" ഉയരം |
| വാതിൽ കനം | 1 3/8" |
| ട്രാക്ക് നീളം | 72" |
| മെറ്റീരിയൽ | Solid Wood, MDF, PVC Covered (Door Panel); Carbon Steel (Hardware) |
| നിറം | കറുപ്പ് |
| ഇനത്തിൻ്റെ ഭാരം | 47 പൗണ്ട് |
| ഉൽപ്പന്ന അളവുകൾ (മൊത്തം) | 84 x 12 x 3 ഇഞ്ച് |
Figure 3.1: Detailed dimensions of the barn door and hardware.
4. ഇൻസ്റ്റലേഷൻ നിർദ്ദേശങ്ങൾ
The JUBEST barn door kit is designed for straightforward installation. Follow these steps carefully for optimal performance and safety.

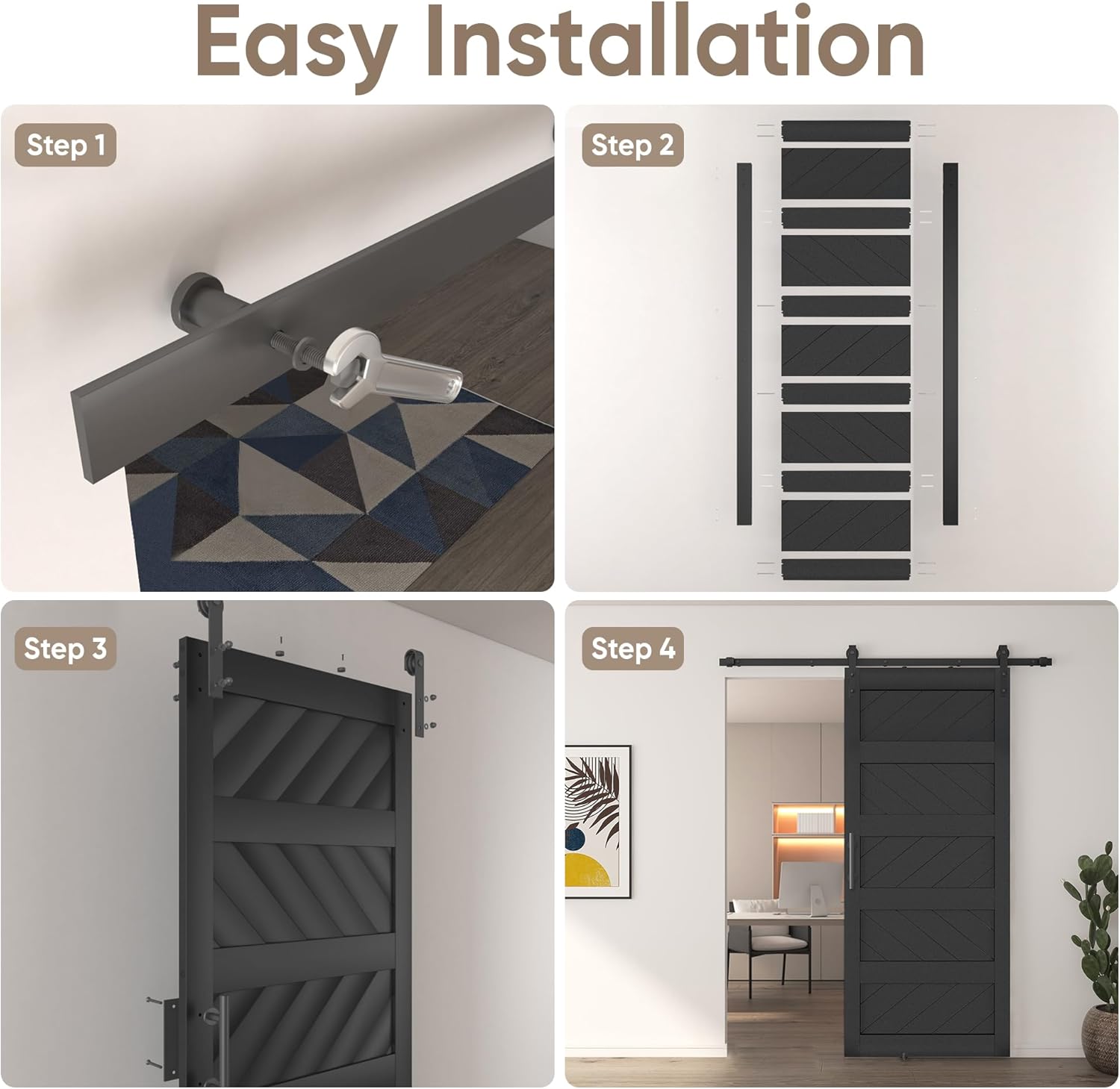

ചിത്രം 4.1: ഓവർview of the easy installation process.
- Step 1: Prepare the Wall and Mount the Track
Identify stud locations. If installing into drywall, install a solid wood blocking board (not included) across the opening to provide a secure mounting surface for the track. Attach the carbon steel sliding track to the wall using the provided fasteners. Ensure the track is level and securely anchored.
- Step 2: Assemble the Door Panel
Assemble the door panel components according to the detailed instructions provided in the physical manual. The wave-shape panels are designed for easy assembly.
- Step 3: Attach Rollers and Handle to Door
Securely attach the roller hangers to the top edge of the assembled door panel. Install the door handle on the desired side of the door.
- Step 4: Hang the Door and Install Floor Guides
Carefully lift the door panel and hang the rollers onto the mounted track. Install the floor guides at the bottom of the door opening to prevent the door from swinging. Adjust door stoppers on the track to control the door's travel distance.
For detailed step-by-step instructions, refer to the included paper manual.
5. ഓപ്പറേഷൻ
The JUBEST barn door is designed for smooth and quiet operation. To open or close the door, gently slide it along the track using the handle. The carbon steel hardware ensures a fluid motion.
Figure 5.1: The JUBEST barn door in an open position, demonstrating its sliding functionality.
Ensure the path of the door is clear of obstructions before sliding. The door stoppers on the track will prevent the door from sliding too far.
6. പരിപാലനം
Regular maintenance will help preserve the appearance and functionality of your barn door.
- വൃത്തിയാക്കൽ: The PVC-covered surface of the door panel is waterproof and easy to clean. Use a soft, damp cloth to wipe down the door and hardware. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- ഹാർഡ്വെയർ പരിശോധന: Periodically inspect all screws and fasteners on the track and rollers to ensure they remain tight. Tighten any loose components to maintain smooth operation and safety.
- ട്രാക്ക് ലൂബ്രിക്കേഷൻ: If the door's movement becomes less smooth over time, a small amount of silicone-based lubricant can be applied to the track and roller wheels.
Figure 6.1: The PVC surface allows for easy cleaning with a damp തുണി.
7. പ്രശ്നപരിഹാരം
If you encounter any issues with your JUBEST barn door, refer to the following common problems and solutions:
- Door does not slide smoothly:
- Check if the track is level. Adjust if necessary.
- Inspect the rollers for any debris or damage. Clean or replace if needed.
- Ensure all track fasteners are tight.
- Apply a silicone-based lubricant to the track and rollers.
- Door is difficult to move:
- Verify that the floor guides are properly aligned and not causing friction.
- Ensure there are no obstructions in the door's path.
- Door swings away from the wall:
- Confirm that the floor guides are correctly installed and adjusted.
8. വാറണ്ടിയും ഉപഭോക്തൃ പിന്തുണയും
JUBEST is committed to providing high-quality products and excellent customer service.
- For any quality problems, missing parts, or installation issues, please contact our professional customer service team.
- Our customer service team is available to assist you. Refer to your purchase documentation for contact details.
