Outsunny 10' x 19.5' Pop Up Canopy Tent with Sidewalls

1 സുരക്ഷാ വിവരങ്ങൾ

Please read and understand all safety warnings and instructions before assembling or using this product. Failure to follow these instructions may result in serious injury or property damage.

• കാലാവസ്ഥാ സാഹചര്യങ്ങൾ: NEVER leave your portable canopy unattended. Take it down before a major storm, strong winds, heavy rain, or snow rolls through. This canopy is designed for temporary use and is not intended as a permanent structure.
• ആങ്കറിംഗ്: Always use both the included stakes and guy ropes to secure the canopy to the ground. For additional stability, especially on hard surfaces like concrete, consider using leg weight bags (sandbags) filled with sand or other heavy material.
• അസംബ്ലി: A minimum of 2-3 people are required for safe and efficient installation. Ensure all locking mechanisms are fully engaged before use.
• സൈറ്റ് തിരഞ്ഞെടുക്കൽ: Measure your site before purchase and assembly to ensure adequate space and clearance from obstacles. Avoid setting up near open flames or heat sources.
• ഡ്രെയിനേജ്: The canopy features drainage holes to prevent water accumulation on the roof. However, it is recommended to take down the canopy if heavy rain is expected to prevent excessive water weight.

2. പാക്കേജ് ഉള്ളടക്കം

അസംബ്ലി ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്ന് ഉറപ്പാക്കുക. ഏതെങ്കിലും ഭാഗങ്ങൾ നഷ്ടപ്പെട്ടാലോ കേടുപാടുകൾ സംഭവിച്ചാലോ, ദയവായി ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.

• Canopy Frame (Pre-assembled pop-up design)
• Canopy Cover (Dark Blue, UPF 30+)
• Sidewalls (6 pieces with cathedral-style windows and two zippered doors)
• Leg Weight Bags (for stability)
• Stakes and Guy Ropes (for ground anchoring)
• Wheeled Carry Bag (for transport and storage)

3. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

Follow these steps for quick and easy assembly of your pop-up canopy. It is recommended to have 2-3 people for installation.

1. ഫ്രെയിം തുറക്കുക: Place the folded canopy frame in the desired location. With a partner, gently pull the outer legs of the frame outwards until it begins to expand.
2. Attach the Canopy Cover: Drape the canopy cover over the expanded frame. Ensure the corners are aligned with the frame's corners. Secure the cover to the frame using the attached Velcro straps or clips.
3. കാലുകൾ നീട്ടി വയ്ക്കുക: Push up on the push-button control system located on each leg to raise and lock the canopy frame into its initial height setting.
4. ഉയരം ക്രമീകരിക്കുക: To customize the height, press the red button on each leg and extend or retract the inner leg to one of the three available height settings. Ensure all legs are locked at the same height.
5. Add Sidewalls: Attach the sidewalls to the canopy frame using the Velcro fasteners. The sidewalls feature cathedral-style windows and two zippered doors for flexible configuration.
6. മേലാപ്പ് സുരക്ഷിതമാക്കുക: Use the provided stakes and guy ropes to anchor the canopy to soft ground. For hard surfaces, fill the leg weight bags with sand and place them around the base of each leg for added stability.

Figure 1: Visual guide for the easy pop-up setup process.

Figure 2: Detail of the push-button height adjustment system.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Your Outsunny canopy is designed for versatility and ease of use.

• ഉയരം ക്രമീകരിക്കൽ: The canopy features three height settings. To adjust, press the red button on each leg and slide the inner leg to the desired position. Ensure all four legs are set to the same height for stability.
• Sidewall Usage: The six included sidewalls can be attached or removed as needed. They provide protection from wind, sun, and offer privacy. The cathedral-style windows allow natural light, and the two zippered doors provide easy access. For increased airflow, some or all sidewalls can be removed.
• UV സംരക്ഷണം: The canopy cover offers UPF 30+ protection, providing shade and reducing exposure to harmful UV rays.

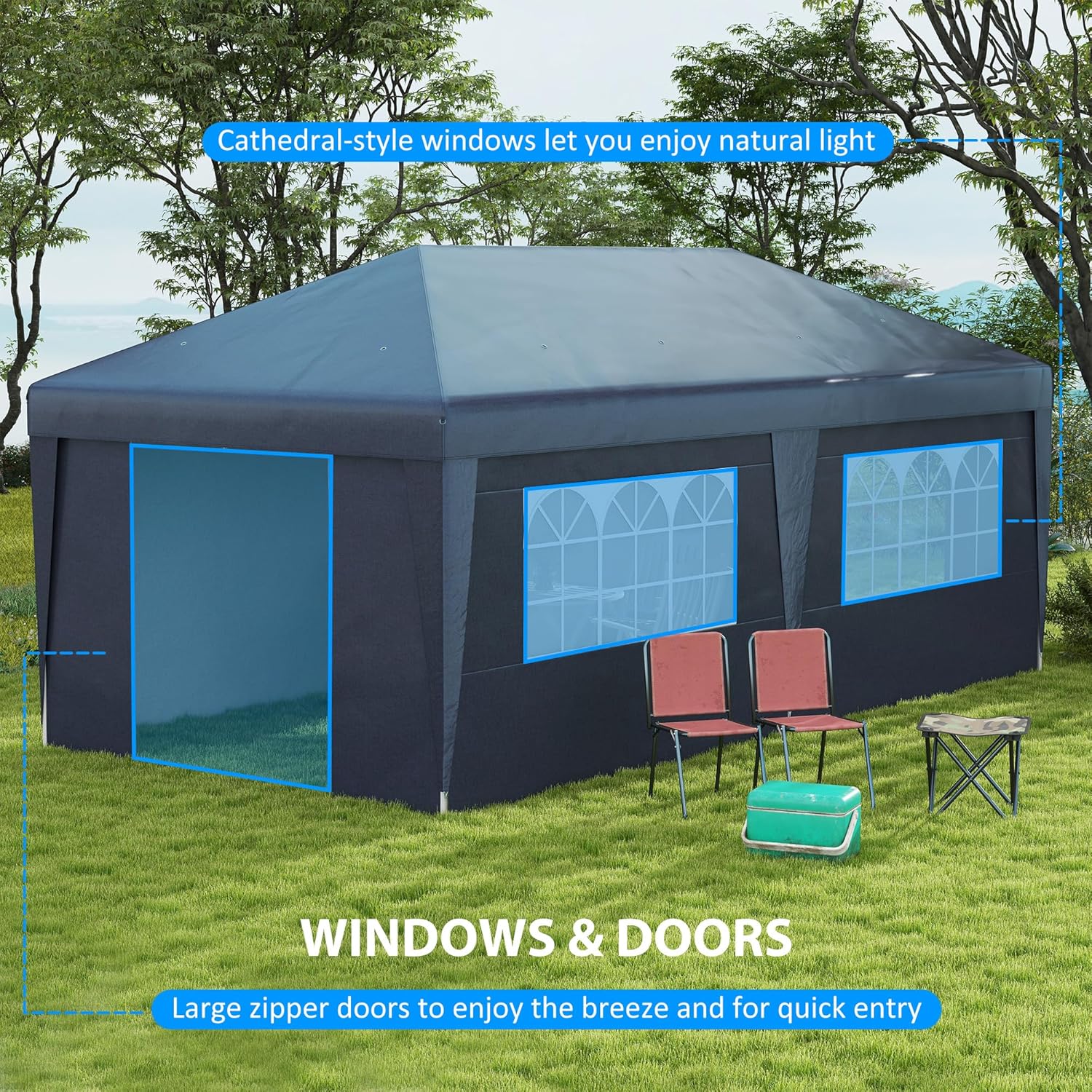

Figure 3: The canopy with sidewalls, highlighting the windows and doors.

5. പരിപാലനം

Proper maintenance will extend the life of your canopy.

• വൃത്തിയാക്കൽ: Clean the canopy fabric and sidewalls with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as this may damage the fabric or its UV coating. Allow all components to dry completely before storage to prevent mold and mildew.
• ഫ്രെയിം കെയർ: The high-strength alloy steel frame is powder-coated for rust resistance. Inspect the frame periodically for any signs of damage or corrosion. Clean any dirt or debris from the frame.
• സംഭരണം: When not in use, disassemble the canopy and store all components in the wheeled carry bag in a cool, dry place, away from direct sunlight and extreme temperatures.

6. പ്രശ്‌നപരിഹാരം

നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങൾക്കുള്ള പരിഹാരങ്ങൾ ഇതാ:

• അസ്ഥിരത: Ensure all legs are fully extended and locked at the same height. Always use stakes, guy ropes, and leg weight bags to secure the canopy, especially in windy conditions.
• മേൽക്കൂരയിലെ വെള്ളം കെട്ടിനിൽക്കൽ: The canopy is designed with drainage holes. If water still pools, ensure the canopy fabric is taut and properly attached to the frame. Adjust the height if necessary to create proper tension.
• അസംബ്ലി/വേർപെടുത്തുന്നതിലെ ബുദ്ധിമുട്ട്: Ensure you have 2-3 people assisting. Refer to the setup instructions and ensure all buttons and locking mechanisms are pressed correctly. Do not force components.

7 സ്പെസിഫിക്കേഷനുകൾ

Figure 4: Detailed dimensions of the canopy in both set up and folded states.

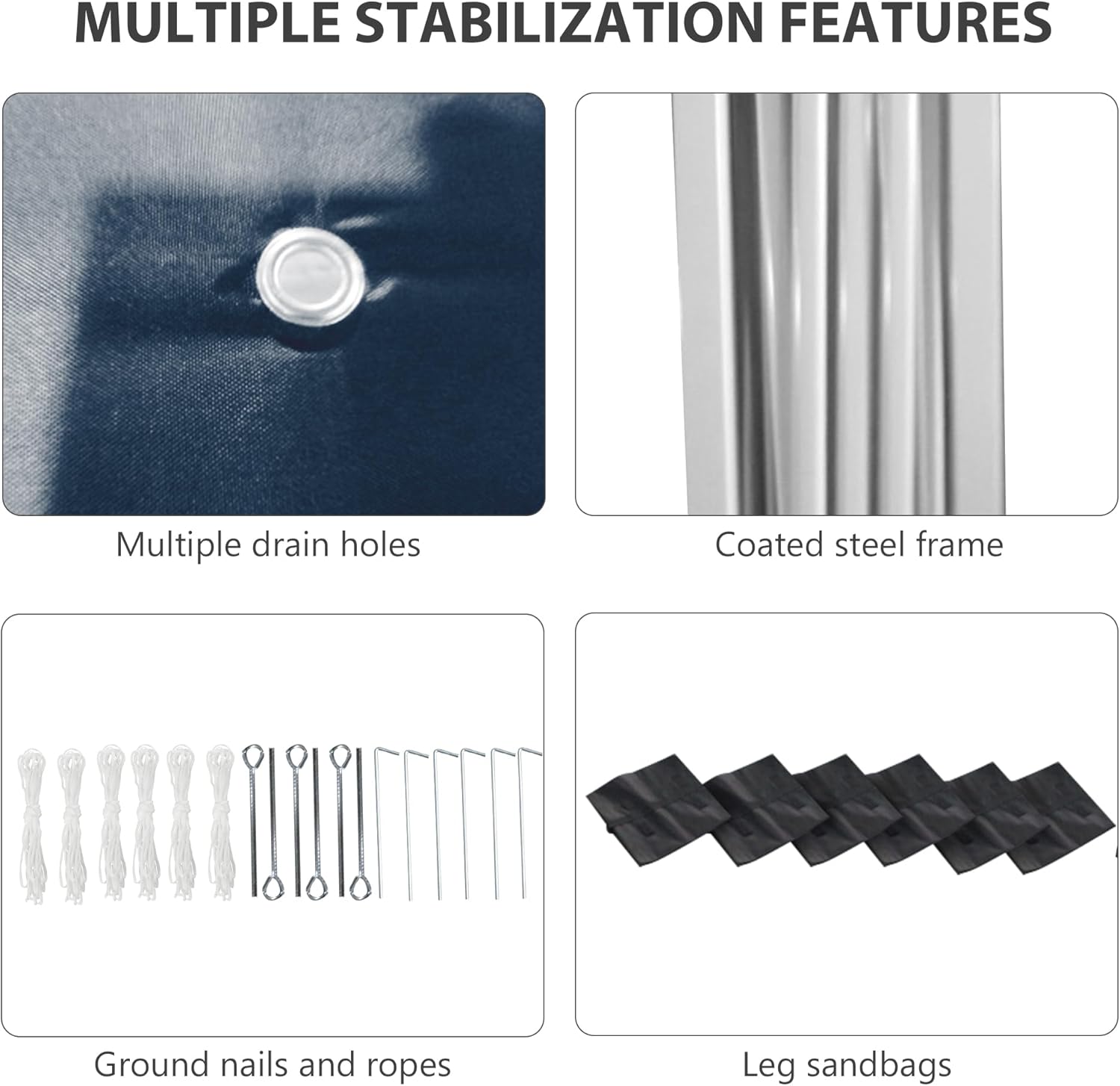

Figure 5: Key stabilization features including drain holes, coated frame, and anchoring accessories.

8. വാറൻ്റിയും പിന്തുണയും

For warranty information or customer support, please refer to the documentation included with your purchase or contact Outsunny customer service directly. General customer support is available through the retailer.

ഉപഭോക്തൃ പിന്തുണ: സഹായത്തിന്, ദയവായി സന്ദർശിക്കുക Aosom Direct seller page അല്ലെങ്കിൽ അവരുടെ പിന്തുണാ ടീമിനെ ബന്ധപ്പെടുക.
