Cybex EOS Basic Travel System Aton B2 User Manual

1 സുരക്ഷാ വിവരങ്ങൾ

Read all instructions carefully before assembly and use of the Cybex EOS Basic Travel System Aton B2. Failure to follow these instructions could result in serious injury to your child.

• This product is not suitable for jogging or rollerblading.
• Never place this product on an elevated surface or support.
• Always use the harness system to secure your child.
• ഉപയോഗിക്കുന്നതിന് മുമ്പ് എല്ലാ ലോക്കിംഗ് ഉപകരണങ്ങളും ഇടപെട്ടിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
• സ്റ്റോറേജ് ബാസ്‌ക്കറ്റിൽ ഓവർലോഡ് ചെയ്യരുത്.
• Regularly check for loose parts, damaged components, or worn fabric.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Cybex EOS Basic Travel System Aton B2 is a versatile solution designed for the safe and comfortable transport of your child from infancy through toddlerhood. It includes a stroller frame, a convertible seat unit (which can be used as a bassinet or toddler seat), and an Aton B2 infant car seat.

Figure 2.1: The Cybex EOS Basic Travel System Aton B2 in its standard stroller configuration.

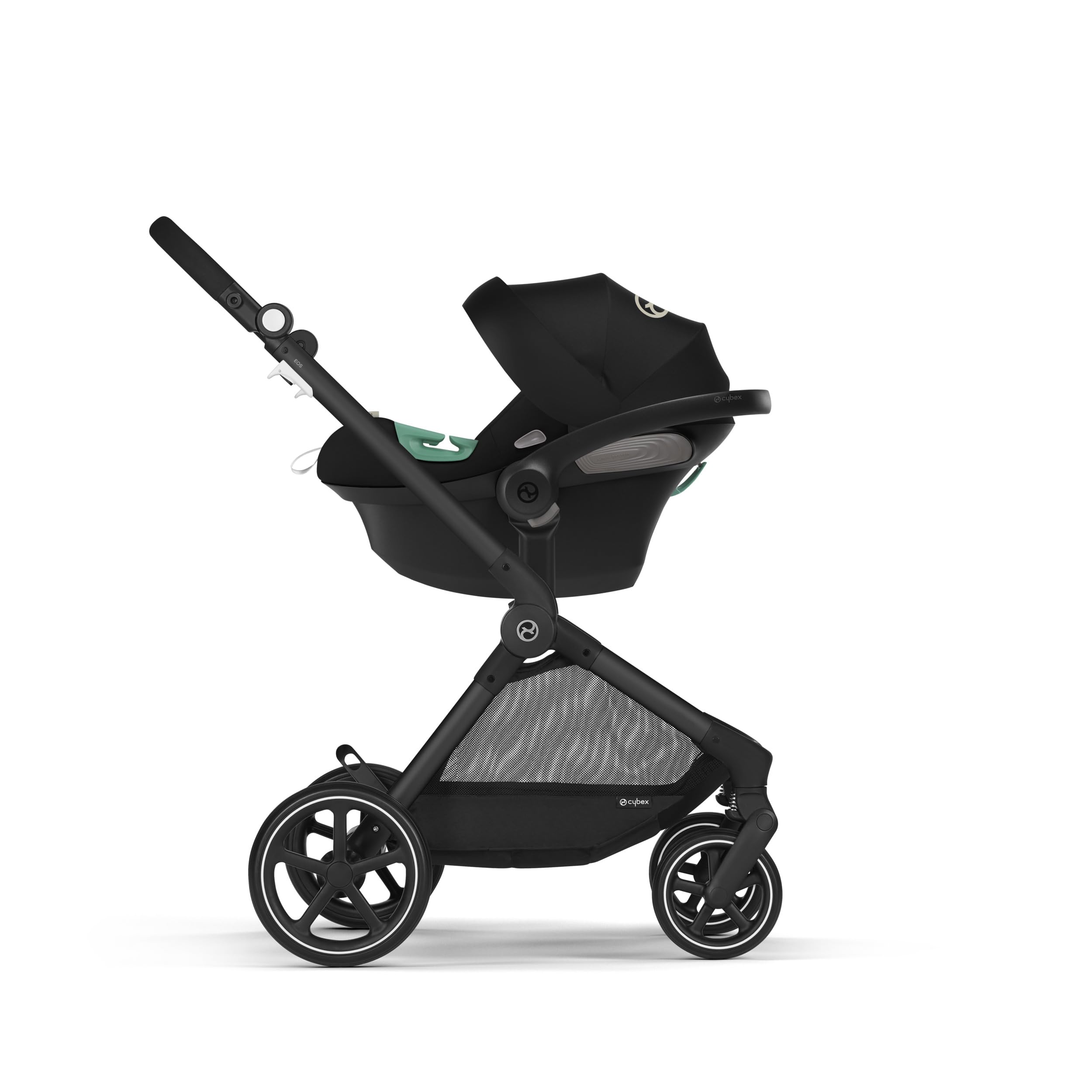

Figure 2.2: The travel system can be configured with a bassinet, an infant car seat, or a toddler seat.

3. സജ്ജീകരണവും അസംബ്ലിയും

3.1 Stroller Frame Assembly

1. ഫ്രെയിം തുറക്കുക: Release the folding latch and lift the handlebar until the frame locks into place. Ensure both sides are securely locked.
2. പിൻ ചക്രങ്ങൾ അറ്റാച്ചുചെയ്യുക: Slide the rear wheels onto the axle until they click into position. Pull on the wheels to ensure they are securely attached.
3. മുൻ ചക്രങ്ങൾ ഘടിപ്പിക്കുക: Insert the front wheel units into the designated slots on the front of the frame until they click. Verify secure attachment.

3.2 Attaching the Seat Unit / Bassinet

1. Align the connectors on the seat unit or bassinet with the mounting points on the stroller frame.
2. Press down firmly until you hear a click, indicating it is securely attached.
3. To reverse the seat direction, press the release buttons on both sides of the seat unit and lift, then reattach in the desired orientation.

3.3 Attaching the Aton B2 Infant Car Seat

To attach the Aton B2 infant car seat, you will need the included car seat adapters.

Figure 3.1: Car seat adapters for attaching the Aton B2 infant car seat to the stroller frame.

1. Insert the car seat adapters into the mounting points on the stroller frame until they click securely.
2. Place the Aton B2 infant car seat onto the adapters, ensuring it clicks into place on both sides.
3. Always check that the car seat is firmly attached by lifting it slightly before placing your child inside.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 ഹാൻഡിൽബാർ ക്രമീകരണം

Press the buttons on either side of the handlebar and adjust it to your desired height. Release the buttons to lock the handlebar in position.

4.2 Reclining the Seat

To recline the seat, locate the recline lever or button on the back of the seat unit. Press and hold the lever/button while adjusting the seat to the desired recline position. Release to lock.

4.3 Harness Adjustment

The 3-point harness should be adjusted to fit snugly around your child without being too tight. Adjust the shoulder straps to the appropriate height for your child's shoulders. Fasten the buckle securely.

4.4 ബ്രേക്കിംഗ് സിസ്റ്റം

Engage the brake by pressing down on the brake pedal located near the rear wheels. Ensure the stroller is stationary before releasing your grip. Disengage the brake by lifting the pedal.

Figure 4.1: The brake pedal and spacious under-seat storage basket.

4.5 മടക്കുന്നതും തുറക്കുന്നതും

To fold the stroller, ensure the seat is in an upright position and the canopy is retracted. Follow the specific folding mechanism instructions (usually involving pressing release buttons and pushing the handlebar forward or down). The stroller should lock into a compact folded position.

Figure 4.2: The stroller folds compactly for storage and transport.

5. പരിപാലനം

5.1 Cleaning Fabric Components

• Refer to the care label on the fabric for specific washing instructions.
• Most fabric covers can be spot cleaned with a mild detergent and cold water.
• Allow fabric to air dry completely before reattaching or folding.

5.2 Cleaning Frame and Wheels

• പരസ്യം ഉപയോഗിച്ച് ഫ്രെയിം തുടയ്ക്കുകamp തുണിയും വീര്യം കുറഞ്ഞ സോപ്പും നന്നായി ഉണക്കുക.
• Clean wheels regularly to remove dirt and debris. Lubricate moving parts with a silicone-based spray if necessary.

5.3 സംഭരണം

Store the travel system in a dry, well-ventilated area, away from direct sunlight and extreme temperatures. Ensure it is clean and dry before storing to prevent mold or mildew.

6. പ്രശ്‌നപരിഹാരം

6.1 Stroller Not Folding/Unfolding Smoothly

• മടക്കൽ സംവിധാനത്തിൽ എന്തെങ്കിലും തടസ്സങ്ങളുണ്ടോ എന്ന് പരിശോധിക്കുക.
• Ensure the seat is in the correct position (usually upright) before attempting to fold.
• Lubricate moving parts if they feel stiff.

6.2 Wheels Squeaking or Sticking

• Clean any dirt or debris from the wheel axles and bearings.
• Apply a silicone-based lubricant to the wheel axles.

6.3 Car Seat Not Attaching Securely

• Ensure the car seat adapters are correctly installed and fully clicked into the stroller frame.
• Verify that the car seat is aligned properly with the adapters before pressing down.
• Check for any damage to the car seat or adapter connectors.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

Cybex offers a 2-year availability for spare parts for the EOS Basic Travel System Aton B2. For warranty claims, technical support, or to order spare parts, please contact Cybex customer service through their official webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ പ്രാദേശിക റീട്ടെയിലർ.

വാറന്റിയുമായി ബന്ധപ്പെട്ട ഏതൊരു അന്വേഷണത്തിനും നിങ്ങളുടെ വാങ്ങിയതിന്റെ തെളിവ് സൂക്ഷിക്കുക.
