ENGWE T14 മിനി ഇലക്ട്രിക് ബൈക്ക് ഉപയോക്തൃ മാനുവൽ

ആമുഖം

Welcome to the user manual for your new ENGWE T14 Mini Electric Bike. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your e-bike. Please read it thoroughly before your first ride to ensure optimal performance and safety.

Figure 1: The ENGWE T14 Mini Electric Bike.

പ്രധാന സവിശേഷതകൾ

• Powerful Motor & Battery: Equipped with a 48V 10Ah removable Lithium battery and a 350W (Peak 600W) motor, allowing for a top speed of 20 mph and a range of 22 miles in electric mode, or 37.2 miles in assist mode.
• Multiple Shock Absorption System: Features shock absorption in the front fork, center, rear wheel, and saddle, providing a comfortable riding experience across various terrains.
• മടക്കാവുന്ന ഡിസൈൻ: Effortlessly folds for compact storage and convenient transportation, making it ideal for commuting and travel.
• ഈടുനിൽക്കുന്ന ടയറുകൾ: 14-inch vacuum rubber tires with thick, non-slip, and wear-resistant treads, designed to be puncture-resistant and suitable for diverse road surfaces.
• മൂന്ന് റൈഡിംഗ് മോഡുകൾ: Offers Pedal Assist Mode for moderate motor support, Fully Electric Mode for full power, and Pedal Mode for traditional cycling.

Figure 2: Illustration of the 350W Brushless Motor.

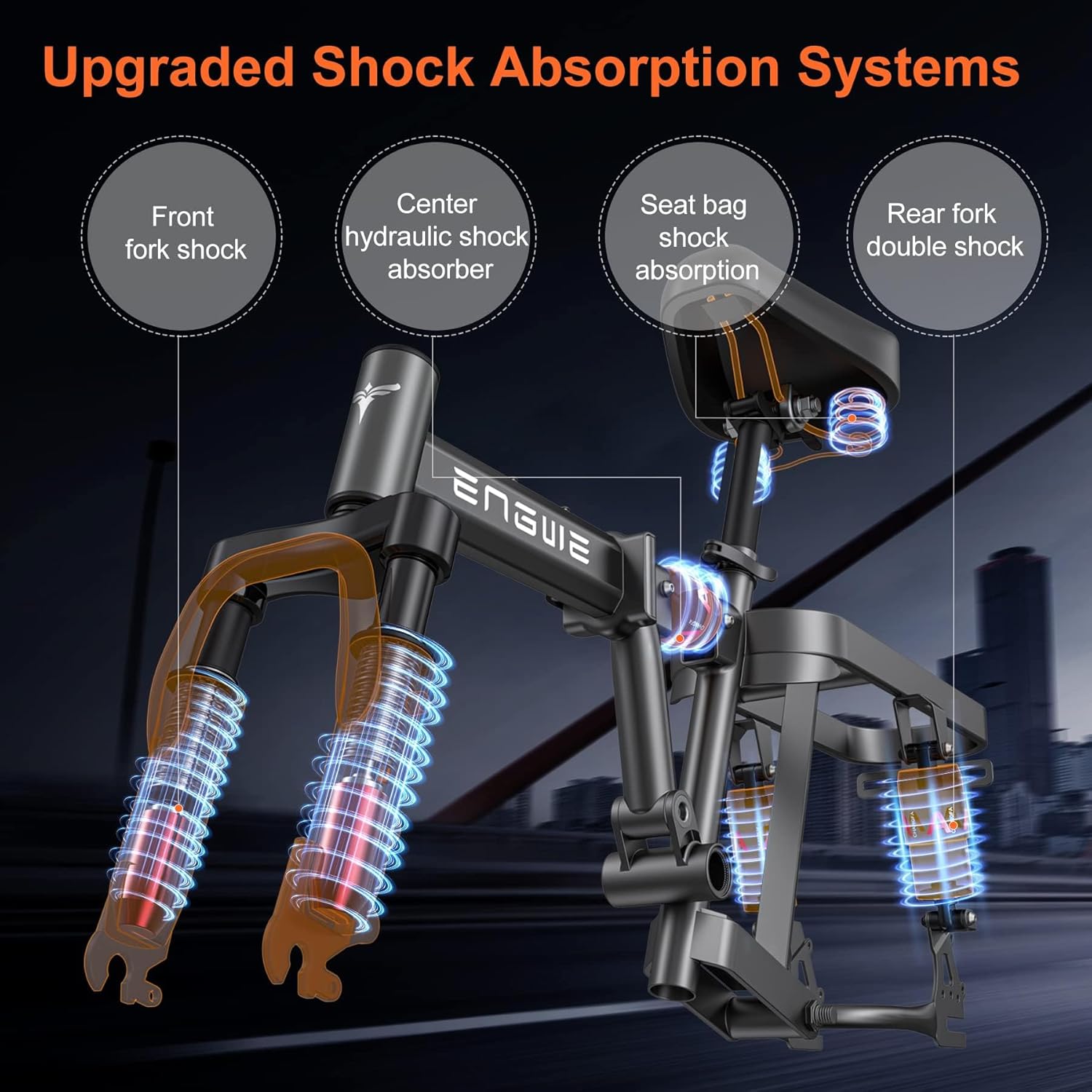

Figure 3: Diagram illustrating the multi-shock absorption system.

സജ്ജമാക്കുക

Your ENGWE T14 Mini Electric Bike comes mostly pre-assembled. Follow these steps for final setup:

1. സൈക്കിൾ തുറക്കൽ: Carefully unfold the frame until it locks into place. Secure all quick-release levers.
2. ഹാൻഡിൽബാർ ക്രമീകരണം: Adjust the handlebar height and angle to your preferred riding position. Ensure it is securely locked.
3. സീറ്റ് ക്രമീകരണം: Adjust the seat post height for comfortable pedaling, ensuring your feet can touch the ground when stopped. Secure the seat post clamp.
4. ബാറ്ററി ഇൻസ്റ്റാളേഷൻ: Insert the removable lithium battery into its compartment and ensure it is securely locked.
5. യാത്രയ്ക്ക് മുമ്പുള്ള പരിശോധന: Before your first ride, check tire pressure, brake functionality, and ensure all bolts and quick releases are tightened.

Figure 4: The ENGWE T14 in its folded state, ready for transport.

Figure 5: The compact size of the folded ENGWE T14 allows it to fit easily into a car trunk.

നിങ്ങളുടെ ഇ-ബൈക്ക് പ്രവർത്തിപ്പിക്കുന്നു

The ENGWE T14 offers versatile riding options:

• പെഡൽ മോഡ്: Ride the bike like a traditional bicycle, using only pedal power.
• പെഡൽ അസിസ്റ്റ് മോഡ്: The motor provides assistance as you pedal. This mode is ideal for extending range and reducing effort on longer rides or inclines.
• Fully Electric Mode: Use the throttle to engage the motor for full electric power without pedaling. This mode is suitable for quick bursts of speed or when you prefer not to pedal.

The bike can reach a top speed of 20 MPH and offers a range of up to 22 miles in electric mode or 37.2 miles in pedal assist mode, depending on terrain, rider weight, and riding style.

Figure 6: Close-up of the handlebar showing the controls and display.

മെയിൻ്റനൻസ്

Regular maintenance ensures the longevity and safety of your e-bike:

• ബാറ്ററി കെയർ: Charge the 48V 10Ah Lithium battery regularly, even when not in use, to maintain its health. Avoid fully discharging the battery. Store in a cool, dry place.
• ടയർ മർദ്ദം: Regularly check and maintain the recommended tire pressure for optimal performance and to prevent punctures. The 14-inch vacuum run-flat tires are designed for durability, but proper inflation is crucial.
• ബ്രേക്കുകൾ: Inspect brake pads and discs periodically for wear. Ensure brake levers provide firm and responsive braking. Adjust or replace components as needed.
• വൃത്തിയാക്കൽ: പരസ്യത്തിലൂടെ നിങ്ങളുടെ ഇ-ബൈക്ക് വൃത്തിയാക്കൂamp തുണി. ഉയർന്ന മർദ്ദത്തിൽ ഇലക്ട്രിക്കൽ ഘടകങ്ങളിൽ നേരിട്ട് കഴുകുന്നത് ഒഴിവാക്കുക.
• പൊതു പരിശോധന: Periodically check all bolts, nuts, and quick releases for tightness. Lubricate the chain and moving parts as necessary.

ചിത്രം 7: View of the 48V 10AH removable Lithium battery.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your ENGWE T14, consider these common solutions:

• ബൈക്ക് ഓൺ ആകുന്നില്ല: Ensure the battery is fully charged and properly seated in its compartment. Check all electrical connections for looseness.
• മോട്ടോർ സഹായിക്കുന്നില്ല: Verify that the pedal assist level is set correctly and that the throttle is engaged if using fully electric mode. Check for any error codes on the display.
• ബ്രേക്കുകൾ ഞെരുക്കുന്നത്/ഫലപ്രദമല്ലാത്തത്: Inspect brake pads for wear or contamination. Clean brake discs with a suitable cleaner. If issues persist, professional adjustment may be required.
• കുറഞ്ഞ ശ്രേണി: Ensure tires are properly inflated. Riding uphill frequently, carrying heavy loads, or using full electric mode extensively can reduce range.

For complex issues or repairs, it is recommended to contact ENGWE customer support or a certified e-bike technician.

സാങ്കേതിക സവിശേഷതകൾ

ചിത്രം 8: വിശദമായി view of the upgraded shock absorption systems.

Figure 9: Key dimensions of the ENGWE T14 electric bike.

വാറൻ്റിയും പിന്തുണയും

The ENGWE T14 Mini Electric Bike comes with a 1 വർഷത്തെ വാറൻ്റി. For detailed warranty terms, claims, or technical support, please visit the official ENGWE store or contact their customer service.

സന്ദർശിക്കുന്നതിലൂടെ നിങ്ങൾക്ക് കൂടുതൽ വിവരങ്ങളും പിന്തുണാ ഉറവിടങ്ങളും കണ്ടെത്താൻ കഴിയും ആമസോണിലെ ENGWE സ്റ്റോർ.
