ENGWE X24/X26 ഇലക്ട്രിക് ബൈക്ക് ഉപയോക്തൃ മാനുവൽ

1. ആമുഖവും ഓവറുംview

Welcome to the world of ENGWE electric bikes. The X24/X26 series is designed for adults seeking a powerful and versatile e-bike experience. Featuring a robust 1200W peak motor, dual removable batteries, and a triple suspension system, this folding e-bike is built to conquer diverse terrains and provide an exhilarating ride. This manual provides essential information to ensure safe and effective use of your new electric bike.

The ENGWE X24/X26 Electric Bike, ready for adventure.

2. സജ്ജീകരണവും അസംബ്ലിയും

Your ENGWE X24/X26 electric bike arrives approximately 85% pre-assembled. The included tool kit contains all necessary instruments for completing the setup. Follow these steps carefully to ensure proper assembly:

1. അൺപാക്ക് ചെയ്യുന്നു: Carefully remove the bike and all components from the packaging. Retain the original packaging for future storage or transport.
2. ഹാൻഡിൽബാർ ഇൻസ്റ്റലേഷൻ: Secure the handlebars to the stem using the provided tools. Ensure they are centered and tightened to the recommended torque specifications (refer to the included user manual for precise values).
3. ഫ്രണ്ട് വീൽ അറ്റാച്ച്മെന്റ്: Install the front wheel onto the fork. Align the disc brake rotor correctly within the caliper. Tighten the axle nuts securely.
4. പെഡൽ ഇൻസ്റ്റാളേഷൻ: Identify the left (L) and right (R) pedals. Thread them into their respective crank arms. Note that the left pedal threads counter-clockwise. Tighten firmly with the 15mm wrench from the tool kit.
5. Seat Post & Saddle Adjustment: Insert the seat post into the frame. Adjust the saddle height to your comfort, ensuring your feet can touch the ground when stopped. Secure the quick-release clamp ദൃഡമായി.
6. ടയർ വിലക്കയറ്റം: Inflate both fat tires to the recommended PSI range indicated on the tire sidewall.

The innovative folding frame allows for convenient storage and transport.

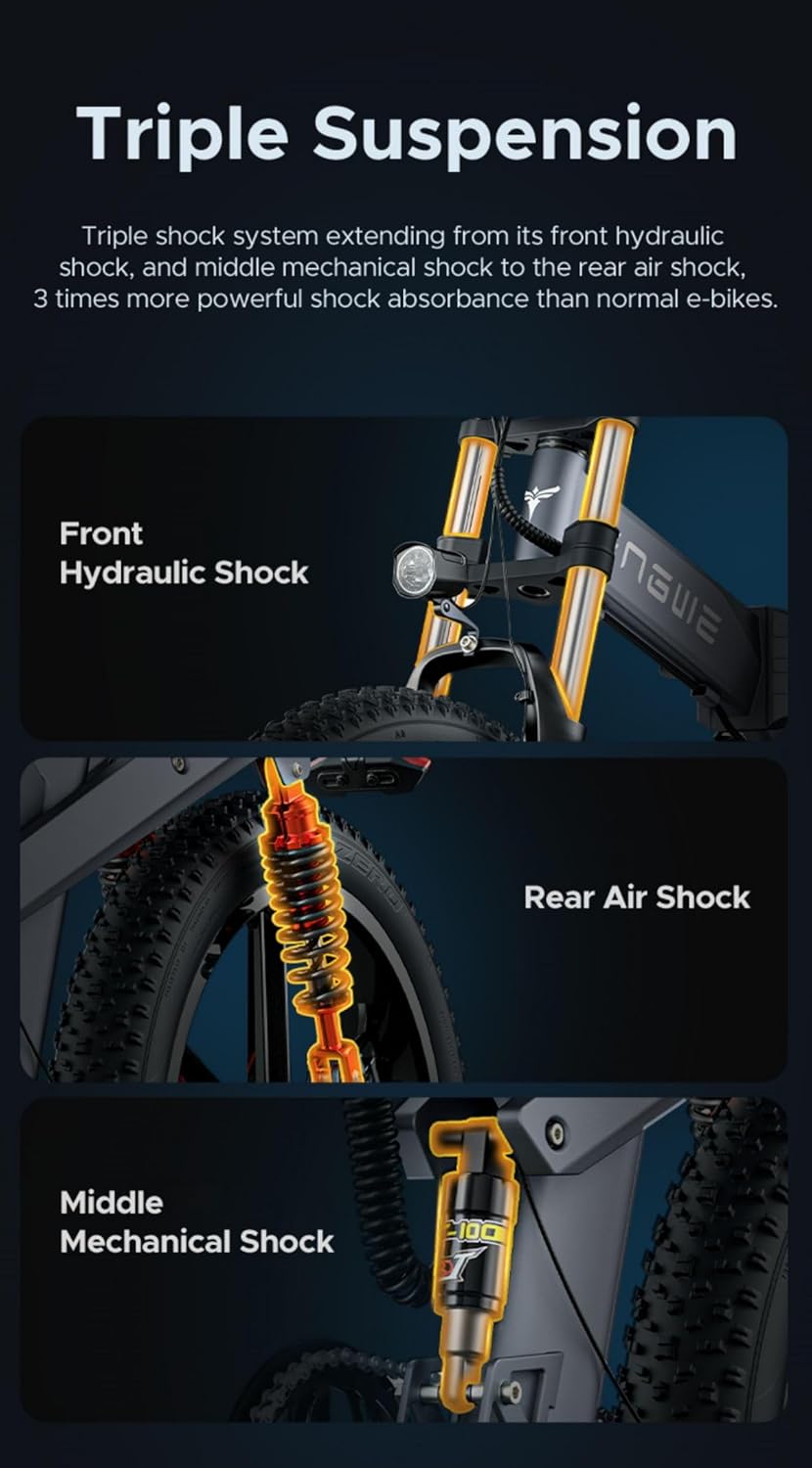

The triple-stage suspension system enhances ride comfort and stability.

3. നിങ്ങളുടെ ഇ-ബൈക്ക് പ്രവർത്തിപ്പിക്കുക

The ENGWE X24/X26 offers dynamic riding modes and intelligent features for an optimized experience:

• റൈഡിംഗ് മോഡുകൾ: Seamlessly switch between three distinct riding modes: ECO for extended range, സാധാരണ for balanced performance, and കായികം for maximum power and speed.
• Shimano 8-Speed System: Utilize the Shimano 8-speed gear system for efficient pedaling and adapting to various inclines and terrains.
• Intelligent Speed Control: The bike features an intelligent speed control system for maintaining a constant speed, reducing rider fatigue on longer journeys.
• LCD ഇന്റർഫേസ്: The intuitive LCD interface provides real-time data including current speed, battery status for both dual batteries, and active riding mode.
• ലൈറ്റിംഗ് സിസ്റ്റം: Equipped with automatic headlights and taillights for enhanced visibility and safety, especially during low-light conditions. Light-sensitive headlights adjust automatically to ambient light.
• ചാർജിംഗ് പോർട്ടുകൾ: Convenient cell phone charging ports are integrated for on-the-go device power.

Key features for an advanced riding experience.

Experience powerful propulsion with the 1200W peak hub-motor.

4. പരിപാലനം

Regular maintenance is crucial for the longevity and optimal performance of your ENGWE electric bike:

• വൃത്തിയാക്കൽ: പരസ്യം ഉപയോഗിച്ച് നിങ്ങളുടെ ബൈക്ക് പതിവായി വൃത്തിയാക്കുക.amp തുണി. ഉയർന്ന മർദ്ദത്തിൽ ഇലക്ട്രിക്കൽ ഘടകങ്ങളിൽ നേരിട്ട് കഴുകുന്നത് ഒഴിവാക്കുക.
• ടയർ മർദ്ദം: Check tire pressure before each ride. Proper inflation ensures optimal performance, range, and safety.
• ബ്രേക്ക് പരിശോധന: Periodically inspect the hydraulic disc brakes for wear and tear. Ensure brake levers provide firm and responsive stopping power.
• ബാറ്ററി കെയർ: Charge batteries regularly, even when not in use, to maintain their health. Avoid fully discharging the batteries. Store in a cool, dry place.
• സസ്പെൻഷൻ പരിശോധന: Inspect the triple suspension system for any signs of damage or leaks. Ensure smooth operation for effective shock absorption.
• ഫാസ്റ്റനറുകൾ: Periodically check all bolts and fasteners for tightness, especially after initial rides.

5. പ്രശ്‌നപരിഹാരം

ചില സാധാരണ പ്രശ്നങ്ങളും അവയുടെ സാധ്യമായ പരിഹാരങ്ങളും ഇതാ:

• ബൈക്ക് ഓൺ ആകുന്നില്ല: Check if the main battery switch is on. Ensure both batteries are properly seated and charged.
• മോട്ടോർ സഹായിക്കുന്നില്ല: Verify the pedal assist level on the LCD display. Check all cable connections for looseness or damage.
• കുറഞ്ഞ ശ്രേണി: Ensure tires are properly inflated. Riding in SPORT mode or on challenging terrain will reduce range. Check battery health.
• ബ്രേക്കുകൾ ഞെരുക്കുന്നത്/ഫലപ്രദമല്ലാത്തത്: Inspect brake pads for wear. Clean rotors if dirty. If issues persist, professional inspection is recommended.
• അസാധാരണമായ ശബ്ദങ്ങൾ: Check for loose components or debris caught in the drivetrain or wheels.

6 സ്പെസിഫിക്കേഷനുകൾ

7. വാറണ്ടിയും പിന്തുണയും

ENGWE stands behind the quality of its products. The ENGWE X24/X26 Electric Bike comes with a 1 വർഷത്തെ പരിമിത വാറൻ്റി covering motors, batteries, and controllers.

For any questions, concerns, or assistance with your electric bike, our dedicated customer support team is available 24/7. Please refer to the contact information provided in your product packaging or visit the official ENGWE webപിന്തുണാ വിശദാംശങ്ങൾക്കുള്ള സൈറ്റ്.
