1. ആമുഖം
This manual provides instructions for the setup, operation, and maintenance of your iDOO Hydroponics Growing System Kit. This indoor gardening system allows for the cultivation of various plants, including herbs, vegetables, and flowers, without soil. It features a 12-pod capacity, an LED grow light, and a 5-liter water tank, designed for efficient and convenient plant growth.
2. ഉൽപ്പന്ന ഘടകങ്ങൾ
Before assembly, verify that all components are present and undamaged. The kit includes the main growing system unit and a full set of accessories.
ചിത്രം 2.1: കഴിഞ്ഞുview of the iDOO Hydroponics Growing System Kit with included accessories.
പ്രധാന യൂണിറ്റ് ഘടകങ്ങൾ:
- LED Grow Light Panel: Provides full-spectrum light for plant growth.
- ക്രമീകരിക്കാവുന്ന എൽamp പോസ്റ്റ്: Allows height adjustment of the grow light.
- Water Tank (5L Capacity): Translucent tank for water and nutrient solution.
- Planting Deck: Holds the 12 grow pods.
- വാട്ടർ പമ്പ്: Circulates water within the system.
- ജലനിരപ്പ് ഗേജ്: Indicates the current water level.
ചിത്രം 2.2: വിശദമായത് view of the system's key components and features.
ഉൾപ്പെടുത്തിയ ആക്സസറികൾ:
- Grow Sponges (12 pcs)
- Grow Baskets (12 pcs)
- Dome Covers (12 pcs)
- Plant Food (Nutrient A & B)
- ട്വീസറുകൾ
- Plant Labels
- പവർ അഡാപ്റ്റർ
Image 2.3: All accessories provided with the hydroponics system.
3. സജ്ജീകരണ ഗൈഡ്
Follow these steps to set up your hydroponics growing system:
- എൽ കൂട്ടിച്ചേർക്കുകamp പോസ്റ്റ്: Insert the adjustable lamp post into the designated slot on the water tank. Ensure it is securely seated.
- Attach the LED Grow Light: Connect the LED grow light panel to the top of the adjustable lamp പോസ്റ്റ്.
- Prepare Grow Pods: Place a grow sponge into each grow basket. Insert seeds into the center of each grow sponge.
- Place Grow Pods: Insert the prepared grow baskets into the openings on the planting deck. Cover each grow basket with a dome cover to create a humid environment for germination.
- വാട്ടർ ടാങ്ക് നിറയ്ക്കുക: Fill the water tank with clean water up to the 'MAX' line indicated on the water level gauge. The tank has a 5-liter capacity.
- പോഷകങ്ങൾ ചേർക്കുക: Refer to the plant food instructions for the correct ratio and amount of Nutrient A and Nutrient B to add to the water tank. Mix thoroughly.
- പവർ ബന്ധിപ്പിക്കുക: Plug the power adapter into the system and then into a standard electrical outlet.
4. ഓപ്പറേഷൻ ഗൈഡ്
Understand how to operate your hydroponics system for optimal plant growth.
4.1 Light Modes and Cycle
The system features an LED grow light with different modes to support various plant types. The light operates on an automatic cycle of 16 hours on and 8 hours off.
- പച്ചക്കറി മോഡ്: Emits blue light, red light, far-red light, and white light. Suitable for leafy greens and herbs.
- പുഷ്പം/പഴം മോഡ്: Emits red light, far-red light, and white light. Suitable for flowering plants and fruiting vegetables.

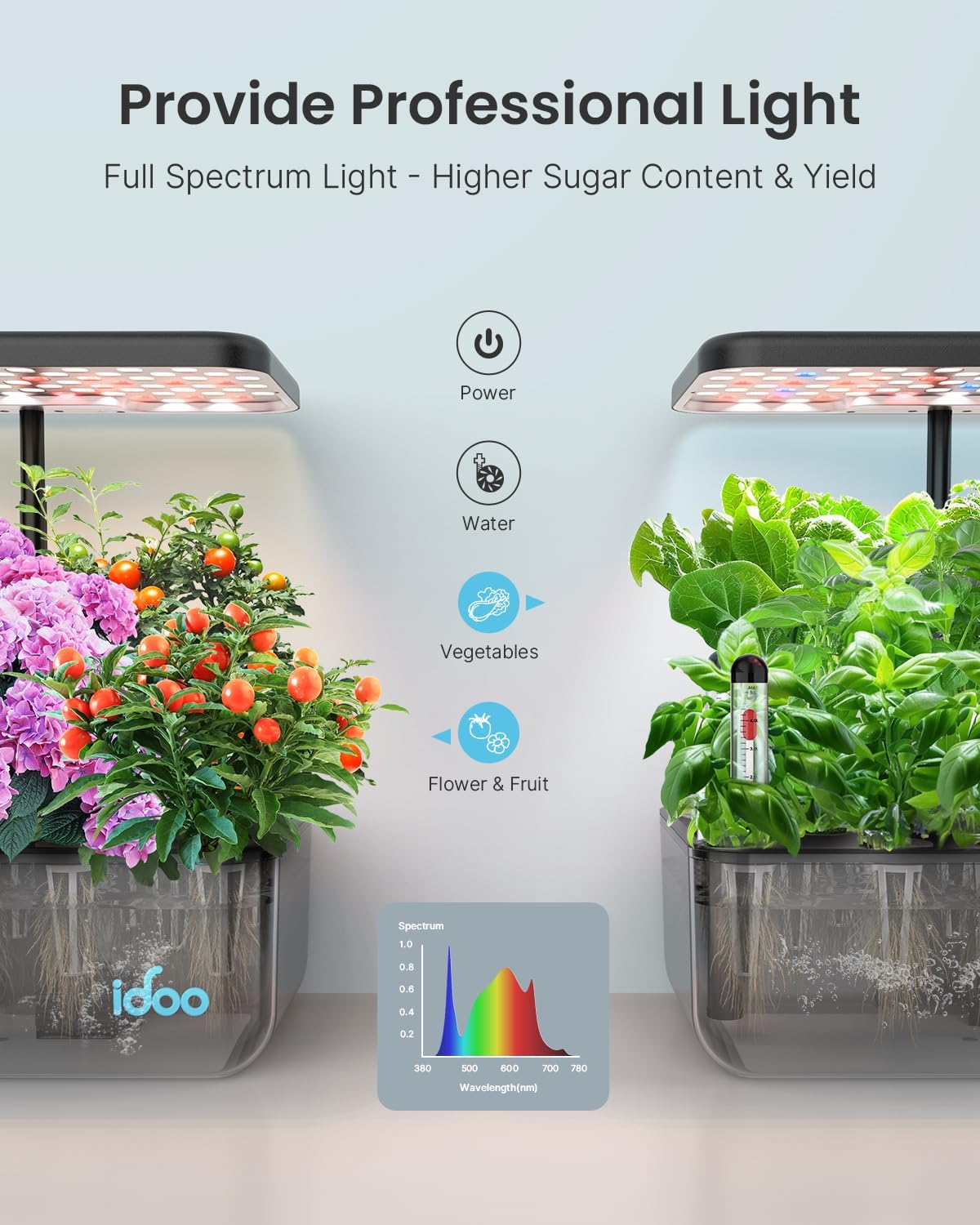

Image 4.1: Control panel and light spectrums for different growing modes.
Image 4.2: Illustration of the automatic 16-hour on, 8-hour off light cycle.
4.2 ജല-പോഷക പരിപാലനം
- ജലനിരപ്പ്: Monitor the water level gauge regularly. Refill water when it drops below the minimum indicator.
- പോഷക സമ്പുഷ്ടീകരണം: Add nutrients according to the plant's growth stage and the nutrient solution instructions. Typically, nutrients are added during water refills or full water changes.
- വാട്ടർ പമ്പ്: The integrated water pump cycles automatically every 30 minutes to ensure proper water circulation and oxygenation for roots.
Image 4.3: The translucent water tank allows for easy observation of root growth and water quality.
4.3 Adjusting Grow Light Height
As plants grow, adjust the height of the LED grow light to maintain an optimal distance from the plant canopy. The lamp post is adjustable up to 13.8 inches.
Image 4.4: The adjustable lamp post allows for light height customization.
5. പരിപാലനം
Regular maintenance ensures the longevity and efficiency of your hydroponics system.
5.1 Water Changes and Cleaning
- Full Water Change: It is recommended to perform a full water change every 2-3 weeks. Drain the old nutrient solution and refill with fresh water and new nutrients.
- ടാങ്ക് വൃത്തിയാക്കൽ: Periodically clean the water tank to prevent algae growth and mineral buildup. Disconnect power, remove plants, and clean with a soft brush and mild soap. Rinse thoroughly before refilling.
- പമ്പ് വൃത്തിയാക്കൽ: Inspect and clean the water pump regularly to ensure it operates efficiently. Remove any debris or mineral deposits.
5.2 സസ്യ സംരക്ഷണം
- അരിവാൾ: Prune your plants as needed to encourage bushier growth and prevent overcrowding.
- വിളവെടുപ്പ്: Harvest mature leaves or fruits regularly to promote continuous production.
6. പ്രശ്നപരിഹാരം
This section addresses common issues you might encounter with your hydroponics system.
| ഇഷ്യൂ | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| സസ്യങ്ങൾ വളരാതിരിക്കുകയോ വളർച്ച മന്ദഗതിയിലാക്കുകയോ ചെയ്യുന്നു | Incorrect nutrient levels, insufficient light, improper water pH, old seeds. | Check nutrient concentration, ensure light is on correct mode and height, test water pH, use fresh seeds. |
| വാട്ടർ ടാങ്കിൽ ആൽഗകളുടെ വളർച്ച | വെള്ളത്തിലേക്കുള്ള അമിതമായ വെളിച്ചത്തിന്റെ എക്സ്പോഷർ, ഉയർന്ന ജല താപനില. | Ensure grow baskets are covered, clean tank thoroughly, consider placing system in a cooler area. |
| വാട്ടർ പമ്പ് പ്രവർത്തിക്കുന്നില്ല | Power disconnected, pump clogged with debris. | Check power connection, clean the pump impeller and housing. |
| Leaves turning yellow | Nutrient deficiency, overwatering (lack of oxygen to roots), incorrect pH. | Adjust nutrient solution, ensure pump is circulating water, check pH. |
7. ഉൽപ്പന്ന സവിശേഷതകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | I-HGH01-BK |
| ബ്രാൻഡ് | iDOO |
| മെറ്റീരിയൽ | Food Grade ABS Material |
| നിറം | സുതാര്യം |
| ശേഷി | 5 ലിറ്റർ (വാട്ടർ ടാങ്ക്) |
| പോഡുകളുടെ എണ്ണം | 12 |
| ഉൽപ്പന്ന അളവുകൾ | 15.1"D x 9.6"W x 7.8"H |
| ഇനത്തിൻ്റെ ഭാരം | 4.84 പൗണ്ട് (2.2 കിലോഗ്രാം) |
| അംഗീകൃത വാല്യംtagഇ/ആവൃത്തി | 100 മുതൽ 120 വരെ വോൾട്ടുകളും 60 ഹെർട്സും |
| ഇൻഡോർ/ഔട്ട്ഡോർ ഉപയോഗം | ഇൻഡോർ |
| പ്രത്യേക ഫീച്ചർ | Self-watering, LED Grow Light, Visual Water Tank |
8 സുരക്ഷാ വിവരങ്ങൾ
- Always disconnect the power adapter before cleaning or performing maintenance on the system.
- Do not immerse the LED grow light panel or power adapter in water.
- Ensure the power cord is not damaged and is placed where it cannot be tripped over or damaged.
- Keep the system out of reach of children and pets to prevent accidental spills or damage.
- നൽകിയിരിക്കുന്ന പവർ അഡാപ്റ്ററും അനുബന്ധ ഉപകരണങ്ങളും മാത്രം ഉപയോഗിക്കുക.
- Operate the system in a stable, level location to prevent tipping.
9. വാറൻ്റിയും പിന്തുണയും
For warranty information or technical support, please refer to the contact details provided with your product packaging or visit the official iDOO website. Please have your model number (I-HGH01-BK) available when contacting support.
