1. ആമുഖം
This manual provides detailed instructions for the assembly, operation, maintenance, and safety of your DELTA 30'x20' PE Marquee Tent. This spacious and versatile tent is designed for various outdoor events, including parties, weddings, markets, and exhibitions. Please read this manual thoroughly before attempting to set up or use the tent to ensure proper installation and safe operation.
Key features of your DELTA Marquee Tent include a durable galvanized steel frame, a waterproof PE top cover, removable window walls for customizable airflow and views, heavy-duty corner stakes, and additional structural integrity provided by roof bar supports and tension wires.

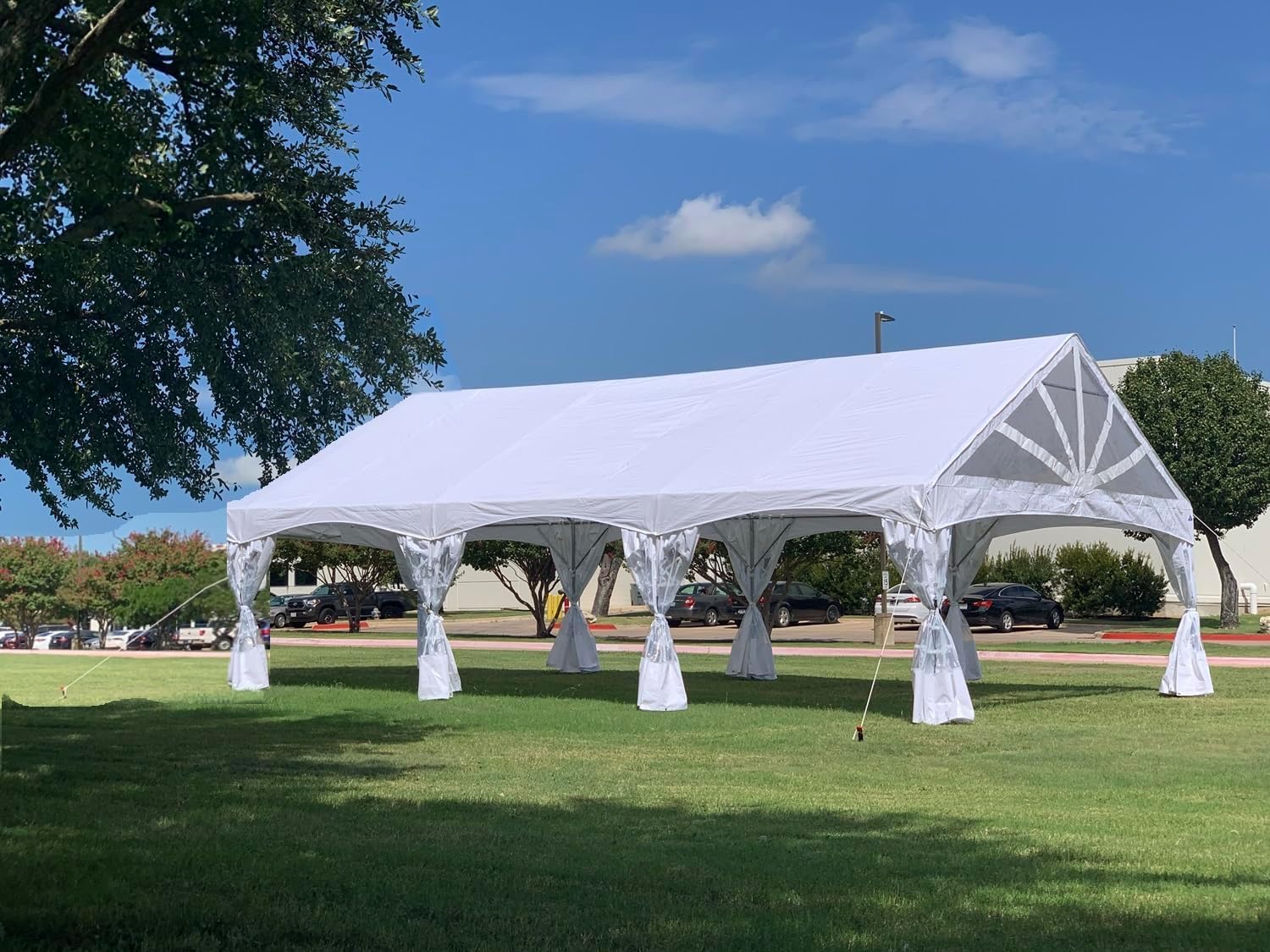

Image 1.1: Fully assembled DELTA 30'x20' PE Marquee Tent.
2 സുരക്ഷാ വിവരങ്ങൾ
Your safety and the safety of others are paramount. Adhere to all safety guidelines during assembly, use, and disassembly of the tent.
- പൊതുവായ മുൻകരുതലുകൾ: No special safety warnings beyond general precautions are provided by the manufacturer. However, always exercise caution when working with large structures.
- Assembly Team: Assembly requires multiple individuals. Do not attempt to set up the tent alone.
- കാലാവസ്ഥാ സാഹചര്യങ്ങൾ: This tent is designed for temporary use in fair weather conditions. It is not intended for use in strong winds, heavy rain, snow, or other severe weather. High winds can cause structural failure and injury. Always monitor weather forecasts.
- ആങ്കറിംഗ്: Ensure the tent is securely anchored to the ground using all provided heavy-duty corner stakes and any additional anchoring methods suitable for your ground type. Improper anchoring can lead to the tent becoming airborne in windy conditions.
- അഗ്നി സുരക്ഷ: Keep all heat sources, open flames, and flammable materials away from the tent fabric. The tent material is not fireproof.
- ഇലക്ട്രിക്കൽ സുരക്ഷ: If using electrical equipment inside the tent, ensure all wiring is properly insulated, grounded, and protected from moisture.
- സൈറ്റ് തിരഞ്ഞെടുക്കൽ: Choose a level, clear area free from overhead obstructions (e.g., power lines, tree branches) and sharp objects on the ground.
- ഘടക പരിശോധന: Before each assembly, inspect all poles, connectors, and fabric for damage or defects. Do not use damaged components.
3. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ
Careful and systematic assembly is crucial for the stability and longevity of your marquee tent. It is recommended to have at least 4-6 people for efficient and safe setup.
3.1. അൺപാക്കിംഗും ഭാഗം തിരിച്ചറിയലും
- Unpack all components from the storage bags. Lay them out in an organized manner to easily identify each part.
- Refer to the included parts list (if provided separately) to ensure all components are present and undamaged. Pay close attention to pole markings for correct assembly.
Image 3.1: Included storage bags for tent components.
3.2. ഫ്രെയിം അസംബ്ലി
- Begin by assembling the base frame of the tent. Connect the horizontal and vertical poles according to the frame diagram. Ensure all connections are secure.
- Gradually build the roof structure, connecting the ridge poles and roof support bars. The galvanized steel frame provides superior stability.
- Utilize the heavy-duty corner stakes to anchor the frame securely to the ground as you build. This prevents movement during assembly.
Image 3.2: Initial assembly of the tent's galvanized steel frame.
Image 3.3: Detail of a frame connection with roof tension wires for structural integrity.
3.3. Roof Cover Installation
- Carefully unfold the waterproof PE top cover. With the help of your team, lift the cover over the assembled frame.
- Align the cover with the frame, ensuring it is centered and taut. Secure the cover to the frame using the provided fasteners or bungee cords.
- Ensure the roof bar support and roof tension wires are properly engaged to further strengthen the unit and prevent sagging.
Image 3.4: Installing the waterproof PE roof cover onto the frame.
3.4. Side Wall Attachment
- Attach the removable window walls to the tent frame. These walls offer panoramic views and allow natural light.
- Secure each wall panel using the provided attachments, ensuring a snug fit to prevent drafts and water entry.
- The exclusive end panel design with a transparent upper triangle section should be positioned correctly to maximize natural light.
Image 3.5: The marquee tent with all window walls attached.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The DELTA Marquee Tent offers flexibility for various event needs.
- Customizable Airflow and Layout: The removable window walls allow you to adapt the tent for any event. You can keep them fully enclosed for protection from elements or remove them partially or entirely to create an open-air canopy.
- സ്വാഭാവിക വെളിച്ചം: The window walls and transparent upper triangle sections of the end panels are designed to maximize natural light, enhancing the interior ambiance.
- കാലാവസ്ഥ സംരക്ഷണം: The waterproof top cover provides protection from light rain, ensuring your event remains dry. However, it is not designed for heavy downpours or prolonged exposure to severe weather.
ചിത്രം 4.1: ഉൾഭാഗം view demonstrating the spaciousness and natural light within the tent.
5. പരിപാലനം
Proper maintenance will extend the life of your DELTA Marquee Tent.
- ക്ലീനിംഗ് ഫാബ്രിക്: Clean the PE top cover and side walls with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as these can damage the fabric's waterproof coating. Allow all fabric components to dry completely before storage to prevent mildew.
- ഫ്രെയിം കെയർ: ഗാൽവനൈസ്ഡ് സ്റ്റീൽ ഫ്രെയിം പരസ്യം ഉപയോഗിച്ച് തുടയ്ക്കുക.amp അഴുക്കും അവശിഷ്ടങ്ങളും നീക്കം ചെയ്യാൻ തുണി ഉപയോഗിക്കുക. തുരുമ്പിന്റെയോ കേടുപാടുകളുടെയോ ലക്ഷണങ്ങൾ ഉണ്ടോ എന്ന് പരിശോധിക്കുക.
- സംഭരണം: When not in use, disassemble the tent and store all components in the provided storage bags. Store in a cool, dry place away from direct sunlight and extreme temperatures.
- പതിവ് പരിശോധന: Periodically inspect all poles, connectors, ropes, and stakes for wear, damage, or corrosion. Replace any damaged parts immediately.
6. പ്രശ്നപരിഹാരം
നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങളെ ഈ വിഭാഗം അഭിസംബോധന ചെയ്യുന്നു.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Tent unstable or swaying in light wind. | Improper anchoring; loose frame connections; insufficient tension. | Ensure all heavy-duty corner stakes are fully driven into the ground. Verify all frame connections are tight. Check roof tension wires and adjust if necessary. Consider additional guy ropes and stakes in slightly breezy conditions. |
| Water leakage from roof or seams. | Improperly installed roof cover; damaged fabric; heavy rainfall exceeding tent's capacity. | Re-align and re-secure the roof cover to ensure a tight fit. Inspect fabric for tears or holes and repair if possible. Note that the tent is waterproof for light rain but not designed for heavy downpours. |
| എത്തിച്ചേരുമ്പോൾ കാണാതായതോ കേടായതോ ആയ ഭാഗങ്ങൾ. | ഷിപ്പിംഗ് കേടുപാടുകൾ; പാക്കേജിംഗ് പിശക്. | Immediately inspect all contents upon delivery. Contact customer support (see Section 8) with details and photos of any missing or damaged components. |
| ഫ്രെയിം തൂണുകൾ കൂട്ടിച്ചേർക്കുന്നതിൽ ബുദ്ധിമുട്ട്. | Misaligned poles; incorrect pole identification. | Double-check pole markings against the assembly diagram. Ensure poles are inserted straight and fully into connectors. Do not force connections. |
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | ഡെൽറ്റ |
| മോഡൽ | 30'x20' PE Marquee Tent |
| നിറം | വെള്ള |
| ഇനത്തിൻ്റെ ഭാരം | 386 പൗണ്ട് |
| ശുപാർശ ചെയ്യുന്ന ഉപയോഗങ്ങൾ | ഔട്ട്ഡോർ ഇവൻ്റുകൾ |
| അൾട്രാവയലറ്റ് രശ്മികളിൽ നിന്നുള്ള സംരക്ഷണം | അതെ |
| ഫ്രെയിം മെറ്റീരിയൽ | അലോയ് സ്റ്റീൽ (ഗാൽവനൈസ്ഡ്) |
| ജല പ്രതിരോധ നില | Waterproof (for light rain) |
| പോൾ മെറ്റീരിയൽ തരം | അലോയ് സ്റ്റീൽ |
| പരമാവധി സീലിംഗ് ഉയരം | 12.5 അടി |
| അസംബ്ലി ആവശ്യമാണ് | അതെ |
| നിർമ്മാതാവ് | WPIC |
8. വാറൻ്റിയും പിന്തുണയും
നിർമ്മാതാവിന്റെ വാറന്റി: The manufacturer typically offers a limited warranty, often 30 days from the date of purchase, covering defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and conditions.
റിട്ടേണുകൾ: This product is eligible for 30-day easy returns. Please consult the retailer's return policy for details.
സംരക്ഷണ പദ്ധതികൾ: Extended protection plans may be available for purchase separately, such as 2-Year or 3-Year Protection Plans, or a Complete Protect plan. These plans offer additional coverage beyond the manufacturer's warranty.
ഉപഭോക്തൃ പിന്തുണ: For assistance with missing parts, damaged components, or any questions regarding your DELTA Marquee Tent, please contact the seller, WPIC-Store, directly through the platform where you made your purchase.
