1. ആമുഖം
The KHS Platoon Steel Solar Watch, model KHS.PLASS.NB, is a robust timepiece designed to meet military specifications, drawing inspiration from the MIL-W-46374F standard. It features a reliable solar quartz movement, ensuring accurate timekeeping with minimal maintenance. This manual provides essential information on setting up, operating, and maintaining your watch to ensure its longevity and optimal performance.
ചിത്രം 1: മുൻഭാഗം view of the KHS Platoon Steel Solar Watch, showcasing the dial and hands.
2. സജ്ജീകരണം
2.1 പ്രാരംഭ ചാർജിംഗ്
Your KHS Platoon Steel Solar Watch is powered by light. Before initial use, or if the watch has stopped, expose the dial to a strong light source (natural sunlight is ideal) for several hours. The watch will begin operating once sufficient charge is accumulated. A full charge can provide approximately 4 months of operation in darkness.
2.2 സമയവും തീയതിയും ക്രമീകരിക്കുക
- കിരീടം വലിക്കുക: Gently pull the crown (located on the right side of the watch case) out to position 2 for setting the date, or position 3 for setting the time.
- തീയതി സജ്ജമാക്കുക (സ്ഥാനം 2): Rotate the crown clockwise or counter-clockwise to adjust the date. Avoid setting the date between 9 PM and 3 AM, as this may interfere with the automatic date change mechanism.
- സമയം സജ്ജമാക്കുക (സ്ഥാനം 3): Rotate the crown to move the hour and minute hands. Ensure the AM/PM is correctly set, especially when setting the date. The date will change at midnight.
- കിരീടം പിന്നിലേക്ക് തള്ളുക: Once the time and date are set, push the crown firmly back into position 1 (normal operating position) to engage the movement and ensure water resistance.
ചിത്രം 2: വശം view of the watch, illustrating the crown for time and date adjustments.
2.3 സ്ട്രാപ്പ് ക്രമീകരണം
The watch comes with a Nato strap. To adjust the strap, thread it through the spring bars and buckles to achieve a comfortable and secure fit on your wrist. Ensure the watch head is centered on the strap.
3. വാച്ച് പ്രവർത്തിപ്പിക്കൽ
3.1 Solar Quartz Movement
The KHS Platoon Steel Solar Watch utilizes a high-precision solar quartz movement. It converts light into electrical energy, which is stored in a rechargeable cell. This eliminates the need for regular battery replacements.
3.2 ലുമിനസ് ഡിസ്പ്ലേ
The watch features a powerful inactive luminous mass on the dial and hands, ensuring excellent readability in low-light conditions or complete darkness. The KHS Eagle logo on the dial is also illuminated.
Figure 3: The watch dial illuminated in darkness, showing the luminous hands and markers.
3.3 പവർ സേവിംഗ് ഫംഗ്ഷൻ
When the crown is pulled out to position 3 (time setting position) and left there, the watch enters a power-saving mode, reducing energy consumption by approximately 70%. This extends the standby time of the watch.
3.4 ക്വിക്ക് സ്റ്റാർട്ട് ഫംഗ്ഷൻ
If the watch stops due to low battery charge, expose it to light for about 10 seconds. The hands will resume movement. Initially, the second hand may move in two-second increments until the battery has accumulated sufficient charge for normal operation.
4. പരിപാലനം
4.1 വൃത്തിയാക്കൽ
നിങ്ങളുടെ വാച്ച് വൃത്തിയാക്കാൻ, കേസും ക്രിസ്റ്റലും ഒരു സോഫ്റ്റ്, ഡി-ടച്ച് ഉപയോഗിച്ച് തുടയ്ക്കുക.amp cloth. For the Nato strap, it can be removed and hand-washed with mild soap and water, then air-dried. Avoid using harsh chemicals or abrasive materials.
4.2 Water Resistance (10 BAR)
Your KHS Platoon Steel Solar Watch is water-resistant up to 10 BAR (100 meters / 330 feet). This makes it suitable for swimming, snorkeling, and showering. However, it is not recommended for scuba diving. Always ensure the crown is fully pushed in before exposing the watch to water. Do not operate the crown while the watch is wet or submerged.
4.3 ബാറ്ററി ലൈഫ്
With a full charge, the watch can operate for approximately 4 months in complete darkness. Regular exposure to light will maintain the charge and ensure continuous operation.
5. പ്രശ്നപരിഹാരം
- വാച്ച് നിർത്തി: Expose the watch to a strong light source for several hours to recharge the solar cell.
- Hands are moving in two-second increments: This indicates a low battery charge. Expose the watch to light to fully recharge it.
- അർദ്ധരാത്രിയിൽ തീയതി മാറില്ല: Check if the AM/PM setting was correct when setting the time. Adjust the time by 12 hours if necessary.
- വാച്ചിനുള്ളിലെ വെള്ളം: Immediately take the watch to an authorized service center. Ensure the crown was fully pushed in before water exposure.
6 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിവരണം |
|---|---|
| മോഡൽ നമ്പർ | KHS.PLASS.NB |
| പ്രസ്ഥാനം | Solar Quartz, 3 hands (hour, minute, central second) |
| പ്രവർത്തനങ്ങൾ | Time, Minute, Central Second, Stop-seconds (when crown pulled), Date with quick change |
| കേസ് മെറ്റീരിയൽ | Stainless Steel case, screw-down stainless steel back, stainless steel crown |
| ക്രിസ്റ്റൽ | Extra hardened mineral glass |
| ജല പ്രതിരോധം | 10 BAR (100 meters / 330 feet) |
| ഡയൽ ചെയ്യുക | Matte black with Arabic numerals, luminous markers and hands |
| പ്രകാശം | Inactive luminous color on dial and hands, luminous KHS Eagle logo |
| പവർ സേവിംഗ് ഫംഗ്ഷൻ | Reduces energy consumption by approx. 70% when crown is pulled |
| ദ്രുത ആരംഭ പ്രവർത്തനം | Hands resume movement after 10 seconds of light exposure when battery is low |
| ബാറ്ററി ലൈഫ് (പൂർണ്ണമായി ചാർജ്ജ്) | 4 months in darkness |
| Magnetic Field Shielding | 18.8 ഓ |
| ഷോക്ക് റെസിസ്റ്റൻസ് | NIHS 91-10 |
| പ്രവർത്തന താപനില | 0-50 °C |
| അളവുകൾ (L x W x H) | 45.6 x 51.5 x 10.4 മിമി |
| കേസ് വ്യാസം | 42 മി.മീ |
Figure 4: Diagram illustrating the key dimensions of the KHS Platoon Steel Solar Watch.

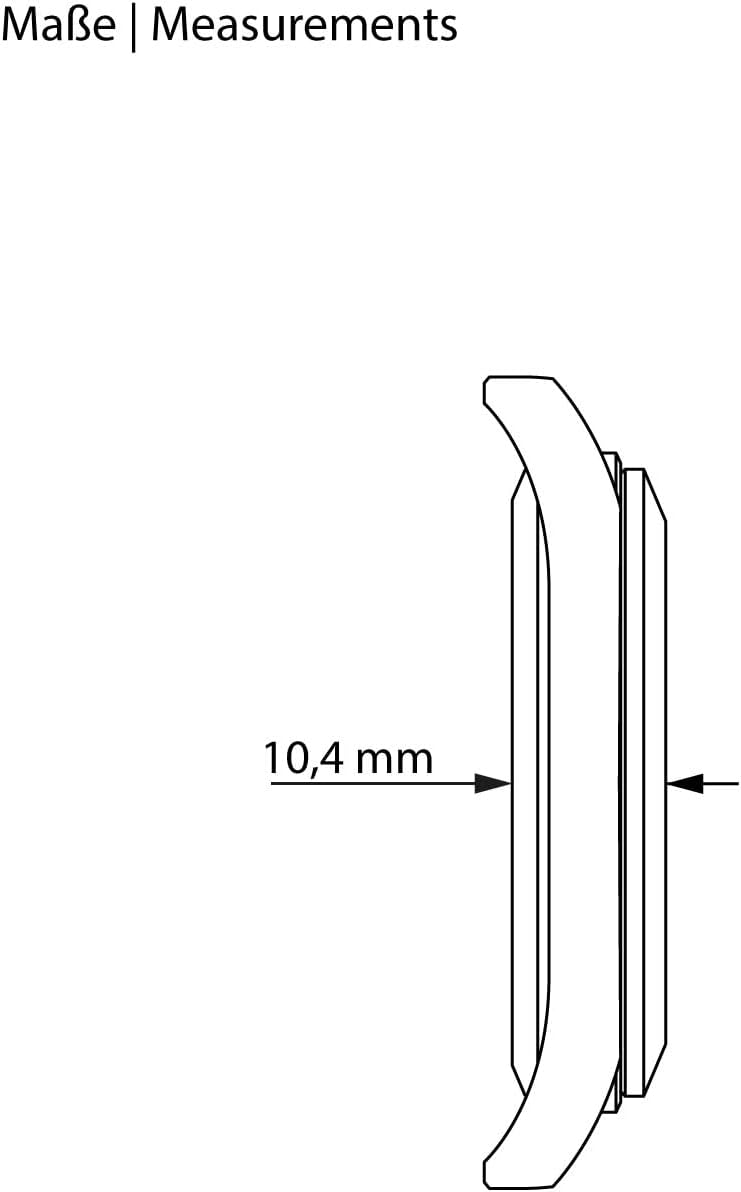

Figure 5: Diagram showing the thickness of the KHS Platoon Steel Solar Watch.
ചിത്രം 6: പൊട്ടിത്തെറിച്ചു view diagram detailing the internal components of the watch, including the watch glass, acrylic ring, dial, solar cell, and movement.
7. വാറൻ്റിയും പിന്തുണയും
Warranty information for your KHS Platoon Steel Solar Watch is typically provided with your purchase documentation. Please refer to these documents for details regarding warranty coverage and terms. For technical support, service, or inquiries not covered in this manual, please contact KHS customer service or an authorized KHS dealer.
