VINGLI Cordless Robotic Pool Cleaner Instruction Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The VINGLI Cordless Robotic Pool Cleaner is designed for efficient and hassle-free cleaning of both above-ground and in-ground flat-bottomed pools. This automatic vacuum eliminates the need for messy hoses and tangled lines, offering a simple one-click operation.

Equipped with a dual drive motor and two large suction ports, it effectively cleans grit, dirt, hair, and small leaves from your pool's bottom. Its smart navigation system allows it to turn around upon hitting walls, ensuring comprehensive coverage. The cleaner features a quick 2.5-hour charging time and provides up to 100 minutes of cleaning, capable of covering pools up to 1076 sq.ft. It also boasts a large 4L debris capacity, minimizing the need for frequent emptying during cleaning cycles.

This robotic cleaner is suitable for various pool materials and shapes, including those with slopes less than 15 degrees.

The VINGLI robotic pool cleaner is designed for efficient and autonomous pool cleaning, shown here partially submerged in water.

Enjoy leisure living with the cordless design, eliminating tangled cords and messy hoses typically associated with pool cleaning.

2. സജ്ജീകരണവും ചാർജിംഗും

Before first use, ensure the robotic pool cleaner is fully charged. The unit requires approximately 2.5 hours for a complete charge.

1. Unpack the robotic pool cleaner and all accessories.
2. Locate the charging port on the unit.
3. Connect the charger to the unit and plug it into a power outlet.
4. Allow the unit to charge for 2.5 hours until the battery indicator shows full.

The cleaner charges quickly in 2.5 hours, indicated by the battery display on top of the unit.

പ്രധാന നുറുങ്ങ്: Always read the instruction manual thoroughly before operating the device.

3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Operating the VINGLI Robotic Pool Cleaner is straightforward:

1. യൂണിറ്റ് പൂർണ്ണമായി ചാർജ്ജ് ചെയ്തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
2. യൂണിറ്റ് ഓണാക്കാൻ അതിന്റെ മുകളിലുള്ള പവർ ബട്ടൺ അമർത്തുക.
3. Immediately after pressing the power button, place the cleaner into the pool within 30 seconds. Failure to do so will cause the machine to shut down automatically.
4. The cleaner will begin its automatic cleaning cycle, navigating the pool bottom.
5. The unit is designed to turn around when it encounters a wall or obstacle.
6. Once the cleaning cycle is complete or the battery is low, the cleaner will automatically dock or stop.
7. To retrieve the cleaner from the pool, use the provided hook to lift it out. Avoid jumping into the pool to retrieve it.

The cleaner operates for 90-100 minutes on a full charge, efficiently cleaning large pool areas.

Dual suction ports and motors provide strong cleaning power, effectively removing debris from the pool floor.

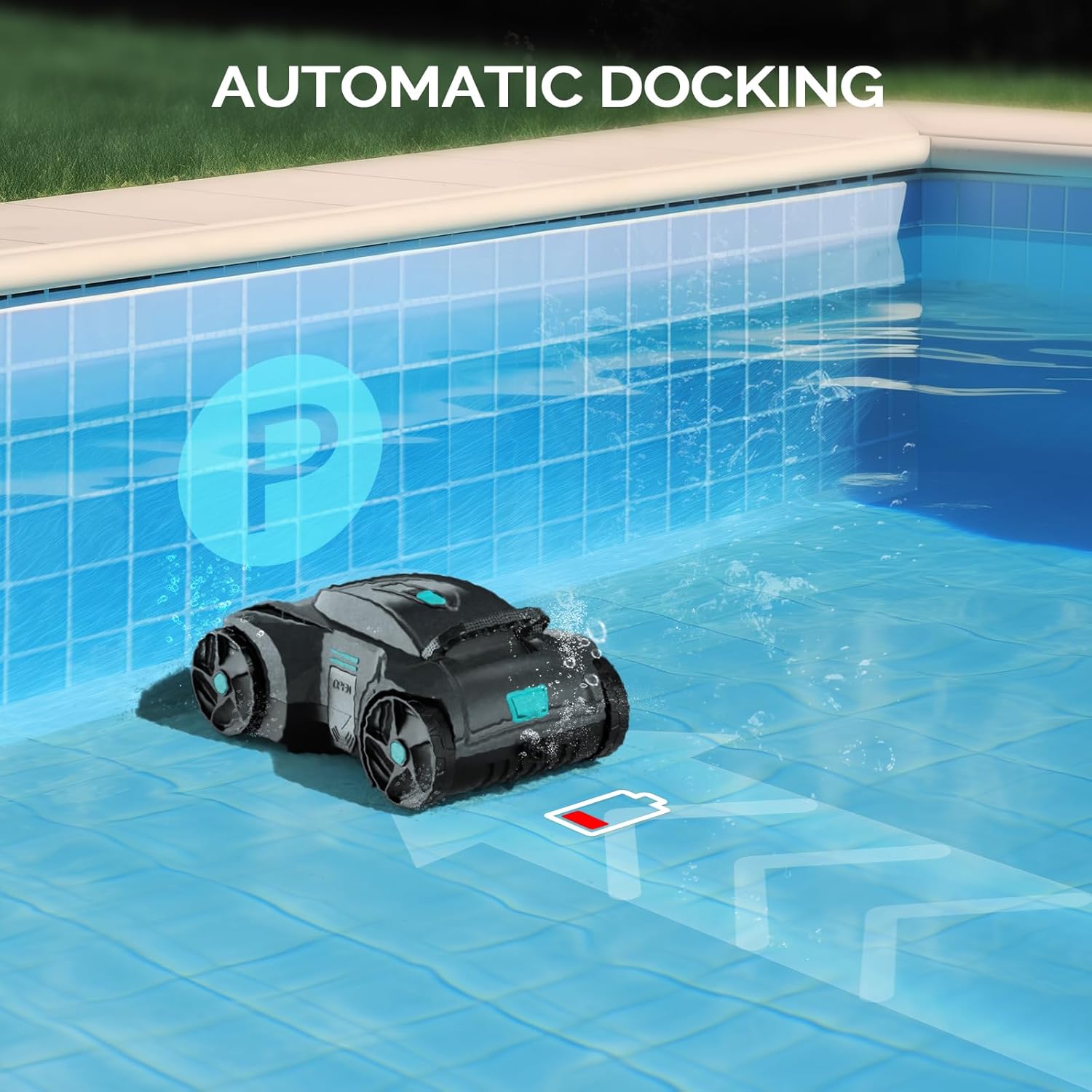

The cleaner automatically returns to the edge of the pool when its battery is low, simplifying retrieval.

4. പരിപാലനം

Regular maintenance ensures optimal performance and longevity of your VINGLI Robotic Pool Cleaner. The filter system is designed for easy cleaning.

1. ഓരോ ക്ലീനിംഗ് സൈക്കിളിനും ശേഷം, പൂളിൽ നിന്ന് ക്ലീനർ നീക്കം ചെയ്യുക.
2. Open the unit to access the internal filter.
3. Remove the filter basket/mesh.
4. Rinse the filter thoroughly with a hose to remove all collected debris.
5. Ensure the filter is clean before reinserting it into the unit.
6. Close the unit securely.

The cleaner features a 4L large capacity debris collection, and its filter is easily cleaned with a hose after use.

This robotic pool cleaner is suitable for various flat-bottomed pools, including above-ground and in-ground designs, and can handle slopes up to 15 degrees.

5. പ്രശ്‌നപരിഹാരം

If you encounter issues with your VINGLI Robotic Pool Cleaner, refer to the following common solutions:

• Unit shuts down automatically after 30 seconds: Ensure the cleaner is placed into the pool within 30 seconds of pressing the power button. This is a safety feature to prevent dry running.
• Poor cleaning performance or leaves debris behind:
  • Check the filter for excessive debris or clogging. Clean the filter thoroughly as described in the Maintenance section.
  • Ensure the battery is fully charged before operation to allow for a complete cleaning cycle.
• Unit gets stuck or does not move freely:
  • Verify that there are no large obstacles in the pool that might impede the cleaner's movement.
  • Confirm that the pool bottom is flat or has slopes within the specified 15-degree limit.
• Retrieving the unit: Always use the provided hook to retrieve the cleaner from the pool. Do not attempt to lift it manually while in the water.

6 സ്പെസിഫിക്കേഷനുകൾ

7. വാറൻ്റിയും പിന്തുണയും

Information regarding product warranty and customer support is not available in the provided product data. Please refer to the product packaging or the manufacturer's official website for detailed warranty terms and contact information for support.
