ZOYI MD1 LCR മീറ്റർ സ്മാർട്ട് ട്വീസറുകൾ ഉപയോക്തൃ മാനുവൽ

1. ആമുഖം

The ZOYI MD1 LCR Meter Smart Tweezers is a portable, handheld device designed for efficient measurement and identification of surface-mount device (SMD) components. It features automatic component identification, a wide measurement range for resistance, capacitance, and inductance, and a clear OLED display for presenting measurement results. This manual provides essential information for the safe and effective use of your MD1 LCR Meter.

2. പാക്കേജ് ഉള്ളടക്കം

താഴെ കൊടുത്തിരിക്കുന്ന എല്ലാ ഇനങ്ങളും നിങ്ങളുടെ പാക്കേജിൽ ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• ZOYI MD1 LCR Meter Smart Tweezers
• USB-C ചാർജിംഗ് കേബിൾ
• സ്റ്റോറേജ് ബാഗ്
• Extra Pair of Tweezers Clips (Tips)
• ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)

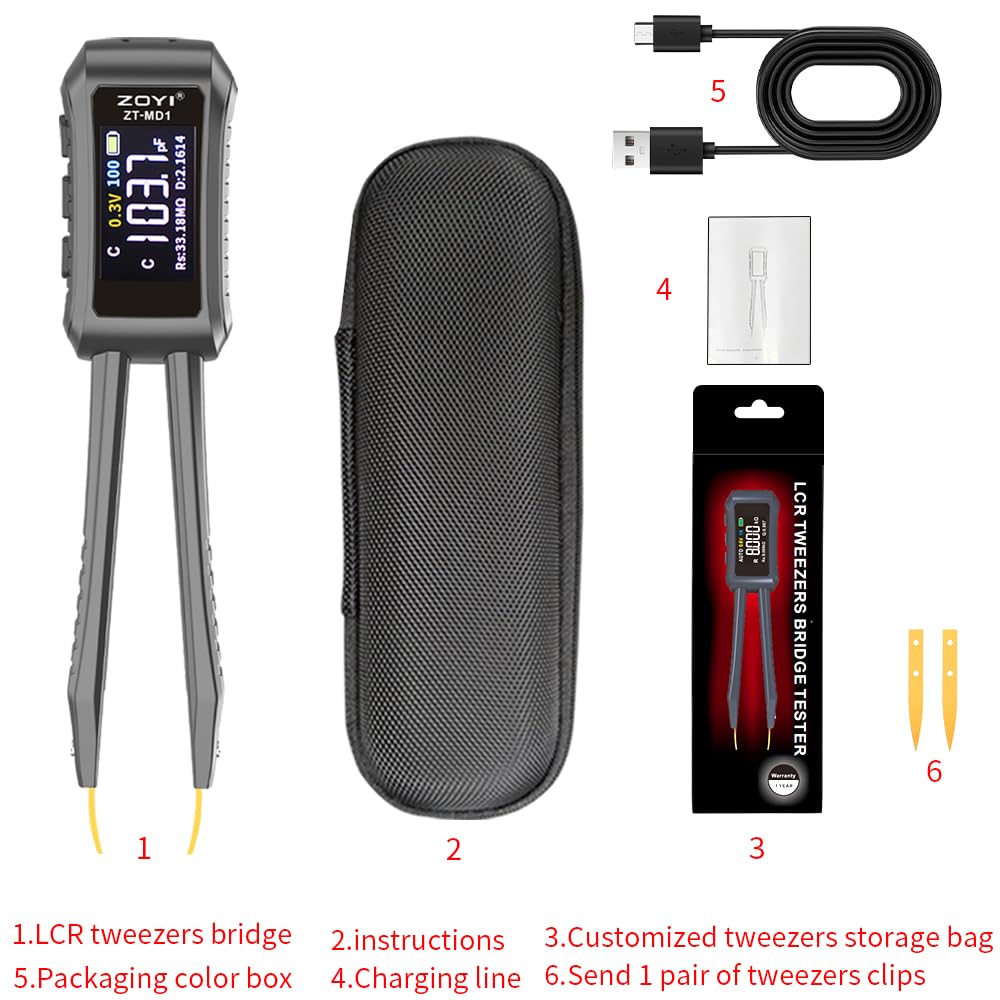

Figure 2.1: ZOYI MD1 LCR Meter and included accessories.

3. Setup and Overview

3.1 ഉപകരണം ചാർജ് ചെയ്യുന്നു

The ZOYI MD1 is powered by a built-in 400mAh lithium battery. To charge the device, connect the supplied USB-C cable to the charging port on the meter and to a standard USB power source (e.g., computer USB port, wall adapter). A full charge provides approximately 12 hours of continuous operation.

3.2 ഘടകം ഓവർview

The device features an ergonomic design with an OLED display and replaceable test tips. The main body houses the display, control buttons, and internal circuitry, while the tweezer arms provide precise contact with components.

Figure 3.1: ZOYI MD1 LCR Meter Smart Tweezers.

Figure 3.2: Removable test tips and ergonomic design.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 പവർ ഓൺ/ഓഫ്

Press and hold the power button to turn the device on or off. The device features an automatic shutdown function to conserve battery life after a period of inactivity.

4.2 Automatic Component Identification

The MD1 can automatically identify resistors, capacitors, inductors, and diodes upon contact. In 'AUTO' mode, simply clip the component with the tweezers, and the device will attempt to identify and measure it. This feature is designed to streamline the testing process for SMD components.

4.3 Manual Mode Selection

For specific component types or when auto-identification is not desired, you can manually select the measurement mode (L for Inductance, C for Capacitance, R for Resistance, Diode). Refer to the device's interface for button functions to cycle through modes.

4.4 Measurement Frequencies and Test Voltages

The device supports multiple test frequencies (100Hz, 1kHz, 10kHz) and test voltages (0.3V, 0.6V). These settings can be adjusted to suit different component types and measurement requirements, providing enhanced accuracy for various applications.

4.5 Interpreting the OLED Display

The vibrant OLED display shows primary and secondary measurement values simultaneously. The primary display area shows the main parameter (L, C, or R), while the secondary display area shows related parameters such as Rs (Series Resistance), Q (Quality Factor), or D (Dissipation Factor). The display also indicates the selected frequency, test voltage, and battery status.

Figure 4.1: OLED Display showing main and secondary parameters.

4.6 Testing SMD Components

To test an SMD component, gently grasp it between the tweezer tips. Ensure good contact for accurate readings. The compact design allows for testing components directly on printed circuit boards (PCBs) or as loose components.

Figure 4.2: SMD patch testing in progress.

4.7 ഡാറ്റ മാനേജ്മെൻ്റ്

The device automatically stores measurement results. You can connect the MD1 to a PC to export logs to Excel, facilitating project management and record-keeping.

5. പരിപാലനം

5.1 വൃത്തിയാക്കൽ

Regularly clean the device, especially the test tips, to ensure optimal performance. Use a soft, dry cloth. For stubborn residue on the tips, a small amount of isopropyl alcohol can be used, applied to a cotton swab, ensuring the device is powered off and disconnected from any power source.

5.2 Replacing Test Tips

The gold-plated test tips are replaceable. If the tips become worn or damaged, they can be exchanged for new ones. Refer to Figure 3.2 for the assembly of removable parts. Ensure the device is powered off before replacing tips.

5.3 ബാറ്ററി കെയർ

To prolong battery life, avoid fully discharging the device frequently. Charge the device regularly, especially if it will be stored for an extended period.

5.4 സുരക്ഷാ മുൻകരുതലുകൾ

• Always ensure that the circuit or component being tested is de-energized and free of any residual charge before making contact with the MD1.
• For larger capacitors, it is recommended to discharge them fully before testing to prevent damage to the device.
• Do not use the device in wet conditions or in the presence of flammable gases or vapors.

6. പ്രശ്‌നപരിഹാരം

• Inconsistent or Inaccurate Capacitance Readings:

  Capacitance measurements can sometimes show variability. For critical measurements, consider taking multiple readings or using manual mode. Ensure good contact with the component and that it is fully discharged.

• Diodes Reported as BAD/OPEN:

  The ZOYI MD1 has a maximum test voltage output of 0.6V. Many standard diodes (e.g., 1N4148, 1N400x series, and some LEDs) require a forward voltage greater than 0.6V to conduct. If a diode requires more than 0.6V to turn on, the MD1 may incorrectly report it as 'BAD' or 'OPEN'. This is a limitation of the device's design for certain diode types.

• Unreliable Auto-Identification:

  While the auto-identification feature is convenient, it may not always accurately identify complex or unusual components. If you suspect an incorrect identification, switch to manual mode and select the expected component type (L, C, R, Diode) for a more precise measurement.
• No Reading or 'OL' (Overload) Displayed:

  Ensure the component is properly gripped by the tweezers and that there is good electrical contact. Verify that the component's value falls within the MD1's specified measurement ranges. Check the battery level and recharge if necessary.

7 സ്പെസിഫിക്കേഷനുകൾ

The following table details the technical specifications of the ZOYI MD1 LCR Meter:

Figure 7.1: ZOYI MD1 Technical Specifications.

8. പിന്തുണ

For further assistance, technical support, or inquiries regarding your ZOYI MD1 LCR Meter, please refer to the official ZOYI website or contact their customer service department. Keep your purchase receipt for any warranty-related claims.
