PETGUGU PF2-02

PETGUGU PF2 Automatic Pet Feeder Instruction Manual

മോഡൽ: PF2-02

ഉൽപ്പന്നം കഴിഞ്ഞുview

The PETGUGU PF2 Automatic Pet Feeder is designed to provide a convenient and healthy feeding solution for your cats and dogs. Featuring a 3.5L capacity, video and voice call capabilities, and app-based data monitoring, this feeder ensures customized and timely feeding while preserving food freshness. Its advanced design includes a ceramic bowl for hygiene and easy removal for cleaning.

PETGUGU PF2 Automatic Pet Feeder with a smartphone displaying its camera view of a cat.
Figure 1: PETGUGU PF2 Automatic Pet Feeder and its smartphone application interface.
A golden retriever puppy lying next to the PETGUGU PF2 feeder, demonstrating the 175-degree camera view.
Figure 2: The PETGUGU PF2 feeder integrates with a health management system for pets.

സജ്ജീകരണ ഗൈഡ്

Follow these steps to set up your PETGUGU PF2 Automatic Pet Feeder and connect it to the mobile application.

  1. ആപ്പ് ഡൗൺലോഡ് ചെയ്യുക: Scan the QR code or search for "Petgugu" in your device's app store (App Store or Google Play) to download and install the Petgugu APP.
    2. A smartphone screen showing the Petgugu app download page with QR codes for App Store and Google Play.
    Figure 3: Download the Petgugu dedicated application.
  2. Enable Bluetooth and Wi-Fi: Ensure your phone's Bluetooth is turned on. Verify that your phone is connected to a 2.4GHz Wi-Fi network, as the device only supports 2.4GHz Wi-Fi.
  3. Open Petgugu APP: Launch the Petgugu application on your smartphone.
  4. ഉപകരണം ചേർക്കുക: On the device page within the app, click on the "Add Device" option.
  5. ജോടിയാക്കൽ ആരംഭിക്കുക: Long press the network distribution button on the feeder until the indicator light blinks, signaling it's ready for pairing.
  6. ആപ്പ് വഴി കണക്റ്റുചെയ്യുക: The app should auto-search and find the device. Click "Add" when the "Pet Automatic Feeder" appears.
  7. Wi-Fi പാസ്‌വേഡ് നൽകുക: Fill in the account password for the 2.4GHz Wi-Fi network your phone is currently connected to. Click "Next step" to start the network connection.
  8. സജ്ജീകരണം പൂർത്തിയാക്കുക: Once the connection is successful, click "Done" to complete the distribution network setup. Then, click on "Pet Automatic Feeder" to access its features.

Feeder Tray Calibration

To ensure accurate feeding, calibrate the feeder tray:

  1. Go to the "Settings" button in the upper right corner of the Pet Automatic Feeder page.
  2. Click on "Feeder tray calibration".
  3. Pick up the empty food bowl from the feeder base.
  4. Put the empty food bowl back into the feeder base.
  5. Click "Calibration" in the app. The calibration should succeed.
Video 1: Step-by-step guide on connecting the PETGUGU PF2 feeder to the mobile application and calibrating the feeder tray.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Intelligent Feeding via App

The mobile app allows you to manage your pet's feeding schedule with precision.

Smartphone screen showing the Petgugu app interface with daily, weekly, monthly, and yearly eating data, manual feeding, ring, plan, camera, and recording options.
Figure 4: App remote control interface for intelligent pet care.
A dog sitting next to the feeder, with a smartphone screen showing a daily feeding schedule with multiple timed meals and quantities.
Figure 5: Setting up a daily feeding schedule for your pet.
A small dog jumping with excitement next to the feeder, illustrating the benefit of setting a healthy feeding schedule.
Figure 6: Ensure every bite is fresh by setting a healthy feeding schedule.

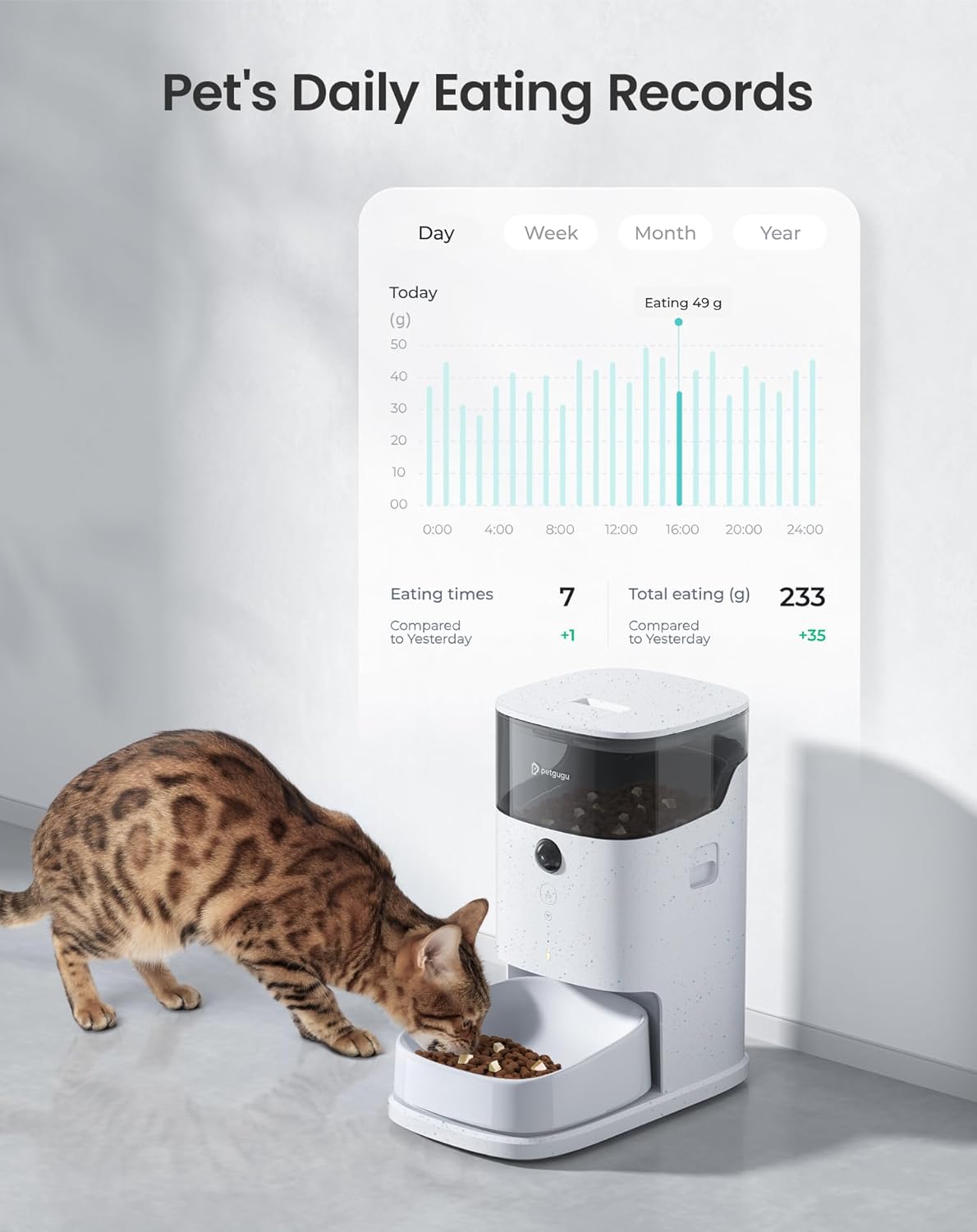

A cat eating from the feeder, with a smartphone screen displaying a graph of daily eating records, showing grams consumed over time.
Figure 7: Pet's daily eating records for health monitoring.
A graph showing accurate recording of eating data, categorizing consumption into 'Obese', 'Normal', and 'Disease' ranges.
Figure 8: Accurate recording of eating data for better pet health.
A smartphone screen showing pet eating reminders and work records, indicating manual food delivery and other events.
Figure 9: Pet eating reminders and work records to keep track of your pet's condition.

Remote Interaction and Monitoring

The feeder is equipped with features for remote interaction and monitoring of your pet.

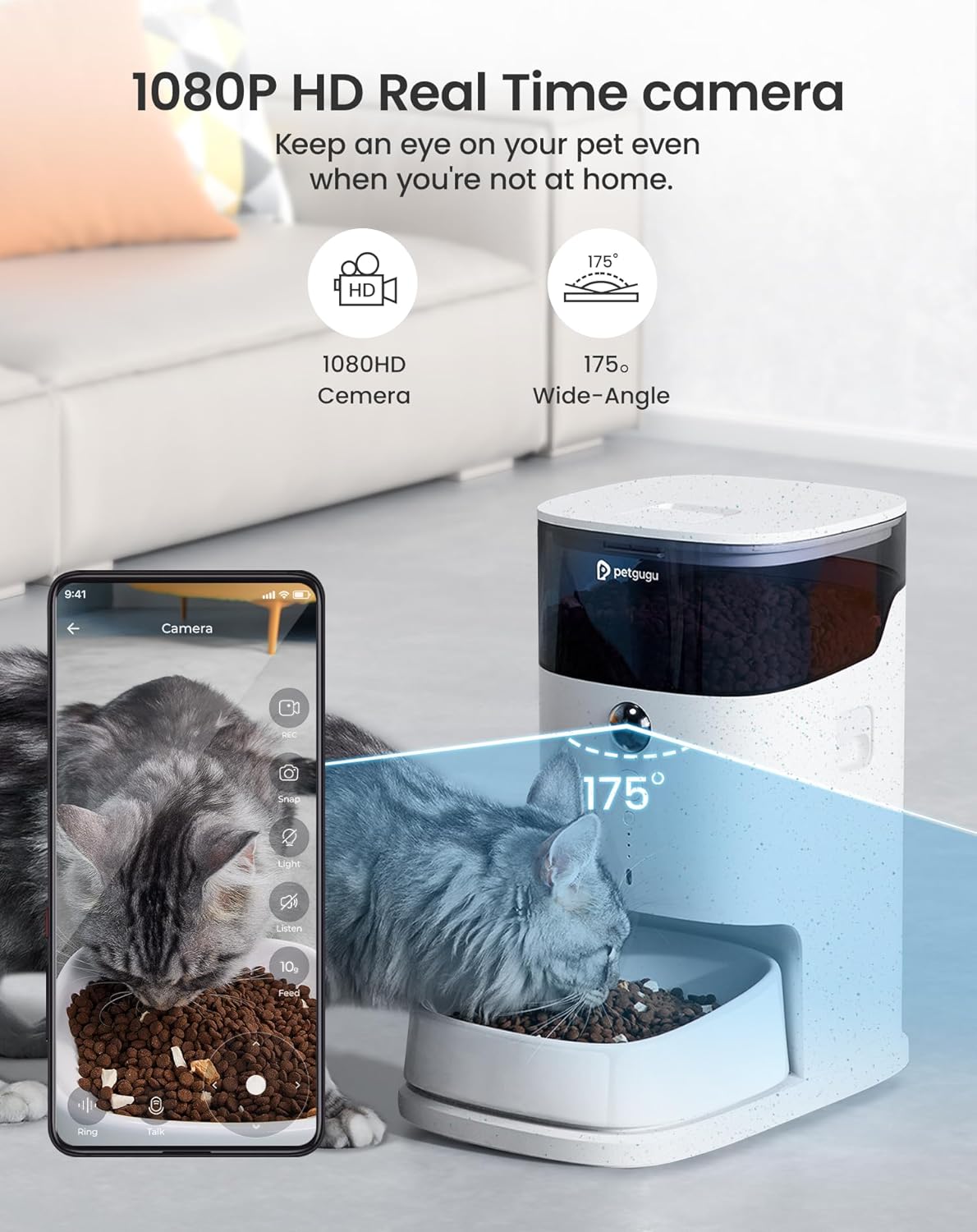

A cat eating from the feeder, with a smartphone screen showing the 1080P HD camera view and options like snap, light, and feed.
Figure 10: 1080P HD real-time camera for monitoring your pet.
A cat eating from the feeder, with a smartphone screen showing the 1080P HD camera view and a person speaking into the phone for two-way audio.
Figure 11: Monitor your pet's diet and communicate with them using the two-way voice system.
A cat looking up at the feeder, with a woman on a smartphone speaking into it, demonstrating the two-way voice system.
Figure 12: Two-way voice system for interacting with your pet.
A smartphone screen showing voice recording options for the feeder, with a cat listening to a voice message.
Figure 13: Voice and recording features to maintain a balanced diet for your pet.

മെയിൻ്റനൻസ്

പുതുമ സംരക്ഷിക്കൽ

The PETGUGU PF2 feeder incorporates triple freshness preservation technology to keep food fresh.

ക്ലോസ് അപ്പ് view of the desiccant box, which helps maintain food freshness.
Figure 14: The desiccant box is part of the freshness preservation system.

ശുചീകരണവും സുരക്ഷയും

For optimal hygiene and safety, regular cleaning and proper handling are recommended.

പൊട്ടിത്തെറിച്ചു view diagram of the PETGUGU PF2 feeder components, including sealing strip, desiccant box, safety twist-lock lid, patent rotor design, porcelain bowl, and weighing scale.
Figure 15: Internal components and large capacity of the feeder.
ക്ലോസ് അപ്പ് view of the safety twist-lock lid on the feeder.
Figure 16: The safety twist-lock lid ensures secure food storage.
ക്ലോസ് അപ്പ് view of the porcelain bowl, highlighting its easy removal for cleaning.
Figure 17: The removable porcelain bowl for easy cleaning.

സ്പെസിഫിക്കേഷനുകൾ

ഫീച്ചർവിശദാംശങ്ങൾ
മോഡലിൻ്റെ പേര്PF2-02
ശേഷി3.5 Liters (approx. 1.8 kg of pet food)
അളവുകൾ (LxWxH)13.6 x 8.2 x 14.4 ഇഞ്ച്
ഇനത്തിൻ്റെ ഭാരം9.46 പൗണ്ട്
മെറ്റീരിയൽഅക്രിലോണിട്രൈൽ ബ്യൂട്ടാഡീൻ സ്റ്റൈറൈൻ (എബിഎസ്)
ടാർഗെറ്റ് സ്പീഷീസ്പൂച്ച പട്ടി
ക്യാമറ1080p HD, 175° rotating
കണക്റ്റിവിറ്റി2.4GHz Wi-Fi (5GHz പിന്തുണയ്ക്കുന്നില്ല)
ശുപാർശ ചെയ്യുന്ന കിബിൾ വലുപ്പം5 to 12 mm diameter
പവർ ഉറവിടംAC adapter, supports mobile power supply (not included)
പ്രത്യേക സവിശേഷതകൾFeeding Schedule, Food Grade Material, Smart App, Two Way Audio, Child Safety Lock
Diagram showing recommended kibble sizes (5mm, 10mm, 12mm) and food types (Dry Food, Mixed Grain, Freeze Dried Snacks, Air-Dried Food) compatible with the feeder.
Figure 18: Recommended food types and kibble sizes.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your PETGUGU PF2 feeder, refer to the following common solutions:

വാറൻ്റിയും പിന്തുണയും

PETGUGU is committed to providing quality products and excellent customer service.

A cat wearing glasses and a headset, sitting in front of a laptop, symbolizing customer service and support.
Figure 19: 24-month warranty and 7/24 hour customer service available.
