MUNBYN Upgraded Android 13 Bar Code Scanner

1. ആമുഖം

This manual provides detailed instructions for the MUNBYN Upgraded Android 13 Bar Code Scanner, Model IPDA086. This device is a robust handheld mobile computer designed for efficient inventory and logistic management in various environments, including warehousing, manufacturing, and retail. It features an advanced Android 13 operating system, Wi-Fi 6 connectivity, and a durable design for reliable performance.

2. ഉൽപ്പന്ന സവിശേഷതകൾ

• Android 13 Version: The device operates on Android 13, offering strengthened privacy protections, enhanced customization options, and superior compatibility. This ensures data security and optimal work outcomes throughout the scanner's lifespan.
• മെച്ചപ്പെടുത്തിയ ഉപയോക്തൃ അനുഭവം: Equipped with Wi-Fi 6, this scanner provides data transfer speeds up to three times faster than Wi-Fi 5, facilitating seamless team collaboration and efficient training. This can significantly improve warehouse operations and increase work efficiency.
• Rugged & Compact Design: Featuring a Zebra SE4710 scanner engine, the device ensures swift and accurate barcode scanning, even for damaged or unclear codes. It comes with a pre-installed scanner application (infowedge) and boasts an IP65 rating for protection against water immersion and dust. A hand strap belt is included to prevent accidental drops, and it offers robust drop protection from heights up to 1.8 meters (5.91 feet).
• Durable and Clear Display: The scanner features a large 5.5-inch touch screen, providing clear visibility even outdoors due to excellent sunlight readability. The display is reinforced with impact-resistant Corning Gorilla Glass and includes an additional replaceable protector to extend the PDA's lifespan and maintain reliability.
• Excellent & Suitable Performance: This Android handheld scanner is powered by an exceptional CPU, the Qualcomm Snapdragon 6115 1.8GHz Octa-core, coupled with 3GB RAM and 32GB storage. It is compatible with inventory management software such as Odoo and Zoho Inventory.

ചിത്രം 2.1: മുന്നിലും പിന്നിലും view of the MUNBYN Upgraded Android 13 Bar Code Scanner, highlighting its robust design and integrated scanning capabilities.

Figure 2.2: Visual representation of the Android 13 system upgrade, emphasizing faster data transfer, low power consumption, and enhanced security and privacy protection.

Figure 2.3: Illustration of Wi-Fi 6 and Bluetooth 5.1 capabilities, demonstrating stable, barrier-free, and high-speed data loading for improved operational efficiency.

3. ബോക്സിൽ എന്താണുള്ളത്?

Upon unboxing your MUNBYN Bar Code Scanner, verify that all components are present:

• MUNBYN Bar Code Scanner (IPDA086)
• ഉപയോക്തൃ മാനുവൽ / ദ്രുത ആരംഭ ഗൈഡ്
• സ്ക്രീൻ പ്രൊട്ടക്ടർ
• യുഎസ്ബി ചാർജിംഗ് കേബിൾ (ടൈപ്പ്-സി)
• പവർ അഡാപ്റ്റർ
• Hand Strap Belt
• ബാറ്ററി (മുൻകൂട്ടി ഇൻസ്റ്റാൾ ചെയ്തതോ വേറിട്ടതോ)

Figure 3.2: A visual overview of the items typically found inside the product packaging, including the scanner, charging accessories, and documentation.

4. സജ്ജീകരണം

4.1. ബാറ്ററി ഇൻസ്റ്റാളേഷൻ

If the battery is not pre-installed, follow these steps:

1. ഉപകരണത്തിന്റെ പിൻഭാഗത്ത് ബാറ്ററി കമ്പാർട്ട്മെന്റ് കണ്ടെത്തുക.
2. ബാറ്ററി കവർ സൌമ്യമായി നീക്കം ചെയ്യുക.
3. കോൺടാക്റ്റുകൾ ശരിയായി വിന്യസിക്കുന്നുണ്ടെന്ന് ഉറപ്പാക്കി ബാറ്ററി ഇടുക.
4. ബാറ്ററി കവർ സുരക്ഷിതമായി മാറ്റിസ്ഥാപിക്കുക.

4.2. പ്രാരംഭ ചാർജിംഗ്

Before first use, fully charge the device:

1. Connect the USB Type-C cable to the device's charging port.
2. Connect the other end of the cable to the provided power adapter.
3. ഒരു മതിൽ ഔട്ട്ലെറ്റിലേക്ക് പവർ അഡാപ്റ്റർ പ്ലഗ് ചെയ്യുക.
4. The charging indicator will illuminate. Allow the device to charge until the indicator shows a full charge.

4.3. പവർ ഓൺ/ഓഫ്

• പവർ ഓണാക്കാൻ: Press and hold the Power button until the MUNBYN logo appears on the screen.
• പവർ ഓഫ് ചെയ്യാൻ: Press and hold the Power button until the power options menu appears, then select 'Power Off'.

Figure 4.1: The device booting up, displaying the Android 13 interface, indicating successful power-on after battery installation.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1. ബാർകോഡുകൾ സ്കാൻ ചെയ്യുന്നു

The device is equipped with a Zebra SE4710 scanner engine for efficient barcode reading.

1. Open the pre-installed scanning application (e.g., Infowedge) or your preferred inventory management software.
2. Point the scanner's red light beam at the barcode you wish to scan. Ensure the entire barcode is within the beam's range.
3. Press the dedicated scan button (typically a yellow button on the side or back) to activate the scanner.
4. A successful scan will usually be indicated by an audible beep and/or a visual confirmation on the screen.

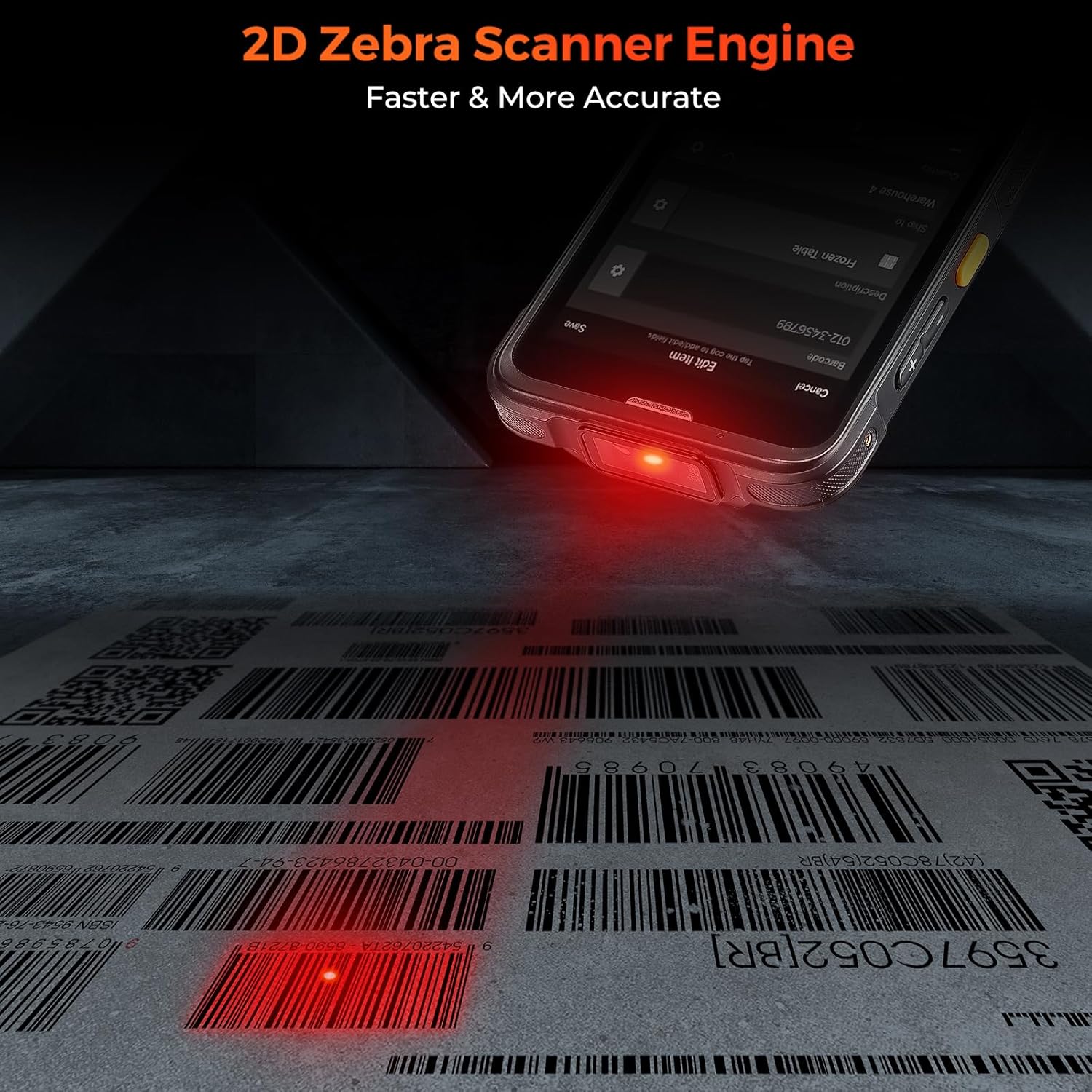

Figure 5.1: The device actively scanning a 2D barcode, demonstrating the red laser beam from the Zebra SE4710 scanner engine for fast and accurate data capture.

5.2. വൈ-ഫൈ, ബ്ലൂടൂത്ത് കണക്റ്റിവിറ്റി

To connect to Wi-Fi or Bluetooth networks:

1. നാവിഗേറ്റ് ചെയ്യുക ക്രമീകരണങ്ങൾ ഉപകരണത്തിൽ.
2. തിരഞ്ഞെടുക്കുക നെറ്റ്‌വർക്കും ഇൻ്റർനെറ്റും for Wi-Fi or ബന്ധിപ്പിച്ച ഉപകരണങ്ങൾ ബ്ലൂടൂത്തിന്.
3. Toggle Wi-Fi or Bluetooth On.
4. Select the desired network or device from the list and enter credentials if prompted.

5.3. Screen Casting Function

The device supports screen casting to synchronize data and manage information easily on a larger display.

1. Ensure your external display (e.g., TV, monitor) supports screen mirroring or casting.
2. On the scanner, go to ക്രമീകരണങ്ങൾ > ബന്ധിപ്പിച്ച ഉപകരണങ്ങൾ > കണക്ഷൻ മുൻഗണനകൾ > കാസ്റ്റ്.
3. Select your external display from the list of available devices.
4. Follow any on-screen prompts to establish the connection.

Figure 5.2: A user demonstrating the screen casting feature, where the scanner's display is mirrored onto a laptop screen, facilitating data synchronization and management.

6. പരിപാലനം

6.1. ഉപകരണം വൃത്തിയാക്കൽ

മികച്ച പ്രകടനവും ശുചിത്വവും നിലനിർത്തുന്നതിന്:

• മൃദുവായ, ലിൻ്റ് രഹിത തുണി ഉപയോഗിക്കുകampവെള്ളം അല്ലെങ്കിൽ നേരിയതും, ഉരച്ചിലുകളില്ലാത്തതുമായ ഒരു ക്ലീനർ ഉപയോഗിച്ച് തുടച്ചുമാറ്റുക.
• Wipe the screen and exterior surfaces gently.
• Avoid using harsh chemicals, aerosols, or abrasive materials.
• Ensure no liquid enters the ports or openings.

6.2. ബാറ്ററി പരിചരണം

Proper battery care extends the device's lifespan:

• Avoid extreme temperatures, both hot and cold, as they can degrade battery performance.
• ബാറ്ററി പതിവായി ചാർജ് ചെയ്യുക; ഇടയ്ക്കിടെ പൂർണ്ണമായും ഡിസ്ചാർജ് ചെയ്യാൻ അനുവദിക്കരുത്.
• If storing the device for an extended period, charge the battery to about 50% before storage.

6.3. Drop Protection and Durability

The device is designed for rugged use, but proper handling is still recommended:

• Always use the provided hand strap belt to secure the device during operation.
• While the device is drop-resistant up to 1.8 meters, avoid intentional drops or impacts.
• Ensure all port covers are securely closed to maintain IP65 water and dust resistance.

Figure 6.1: The device showcasing its upgraded quality features, including the wrist strap for secure handling, IP65 water and dust resistance, and robust 1.8m+ drop protection.

7. പ്രശ്‌നപരിഹാരം

This section addresses common issues you might encounter with your MUNBYN Bar Code Scanner.

If the issue persists after attempting these solutions, please contact MUNBYN customer support for further assistance.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

MUNBYN is committed to providing reliable products and excellent customer service.

9.1. വാറൻ്റി വിവരങ്ങൾ

The product is typically covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact MUNBYN customer support directly. Protection plans may also be available for extended coverage.

9.2. ഉപഭോക്തൃ പിന്തുണ

For any technical assistance, troubleshooting not covered in this manual, or repair services, please contact MUNBYN customer support. MUNBYN offers a local U.S. Repair Center for effortless, fast, and convenient service, often within 3 business days. They also provide 24/7/365 online support.

You can reach MUNBYN support through their official website or the contact information provided in your product packaging. They can also assist with testing your applications before bulk purchases.

Figure 9.1: Information regarding MUNBYN's local U.S. repair center, highlighting fast and convenient service for product maintenance and repairs.
