Genmitsu L8 Laser Engrave + MD18 Rotary Roller User Manual

1. ആമുഖം

Welcome to the Genmitsu L8 Laser Engrave + MD18 Rotary Roller user manual. This guide provides essential information for the safe and effective operation of your new laser engraving and cutting machine. The Genmitsu L8 is a high-performance 20W laser cutter featuring a built-in acrylic enclosure, air assist pump, honeycomb table, and camera, designed for precision and versatility. The included MD18 Rotary Roller expands its capabilities to engrave cylindrical objects.

Please read this manual thoroughly before operating the device to ensure proper setup, safe usage, and optimal performance. Keep this manual for future reference.

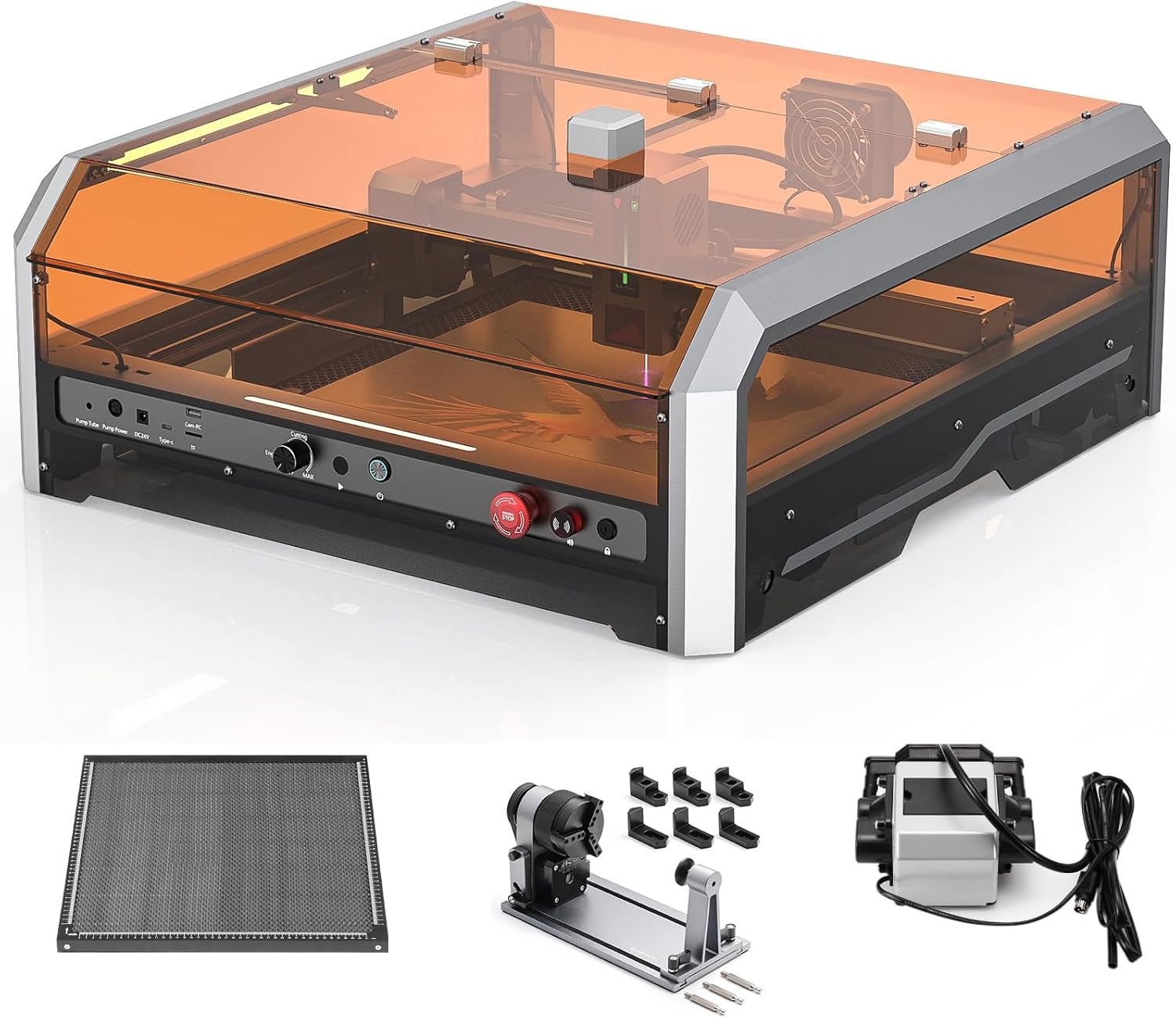

Figure 1.1: Genmitsu L8 Laser Engraver with included MD18 Rotary Roller, Air Assist Pump, and Honeycomb Table.

2 സുരക്ഷാ വിവരങ്ങൾ

Your safety is paramount. The Genmitsu L8 is a Class 1 laser product, designed with multiple safety features. However, improper use can lead to serious injury. Always adhere to the following safety guidelines:

• നേത്ര സംരക്ഷണം: Although the enclosure provides protection, never look directly at the laser beam or its reflection. Always wear appropriate laser safety glasses when the enclosure is open or if there is any risk of laser exposure.
• വെൻ്റിലേഷൻ: Ensure adequate ventilation in your workspace. Laser engraving and cutting can produce fumes and particles that may be harmful if inhaled. The built-in vent and air assist system help, but additional room ventilation is recommended.
• അഗ്നി അപകടം: Laser processing can ignite flammable materials. Never leave the machine unattended during operation. Keep a fire extinguisher nearby.
• മെറ്റീരിയൽ അനുയോജ്യത: Only engrave or cut materials approved for laser processing. Avoid materials that produce toxic fumes (e.g., PVC, vinyl) or are highly reflective.
• അടിയന്തരമായി നിർത്തുക: Familiarize yourself with the location and function of the emergency stop button. In case of an emergency, press it immediately.
• Enclosure Safety: The machine incorporates a door sensor that halts operation when the cover is open. Do not bypass this safety feature.
• കുട്ടികളുടെ സുരക്ഷാ ലോക്ക്: Utilize the child safety lock to prevent unauthorized operation.
• സ്ഥിരതയുള്ള ഉപരിതലം: Place the machine on a stable, level, and non-flammable surface.
• വൈദ്യുതി വിതരണം: Use only the provided power adapter and ensure it is connected to a grounded outlet.

Figure 2.1: The Genmitsu L8 is Laser Safety Class 1 Certified, emphasizing user safety.

ചിത്രം 2.2: ഓവർview of the Genmitsu L8's comprehensive safety features, including flame monitoring, active position protection, security lock, and emergency stop button.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview ഫീച്ചറുകളും

The Genmitsu L8 is an advanced laser engraving and cutting machine designed for precision and ease of use. Key features include:

• 20W Optical Power Output: Capable of cutting through materials like 12mm pinewood and 8mm black acrylic in a single pass.
• High Engraving Speed: Achieves up to 40,000 mm/min for efficient project completion.
• Built-in Acrylic Enclosure: Provides 360° anti-laser protection and allows for easy monitoring of your work.
• സ്മാർട്ട് എയർ അസിസ്റ്റ് സിസ്റ്റം: Improves cutting performance and reduces burn marks.
• Integrated Honeycomb Table: A 481 x 473 mm built-in honeycomb table ensures optimal airflow and support for materials.
• ബിൽറ്റ്-ഇൻ ക്യാമറ: LightBurn-compatible for real-time preview and easy project positioning.
• MD18 Rotary Roller: Included for engraving cylindrical objects with adjustable angle (0-30 degrees) and various jaw types.
• Adjustable Z-axis: Built-in height adjustment provides up to 80mm vertical space for diverse material needs.
• ഒന്നിലധികം സുരക്ഷാ സവിശേഷതകൾ: Door sensor, tilted automatic stop, active flame monitor, position protection limit switches, emergency stop, and child safety lock.
• മുൻകൂട്ടി കൂട്ടിച്ചേർത്ത ഘടകങ്ങൾ: Most components come pre-assembled for quick setup.

Figure 3.1: Key features of the Genmitsu L8, highlighting its laser power, speed, and integrated components.

Figure 3.2: Demonstrates the 20W laser's cutting capability on various materials in a single pass.

Figure 3.3: Speed comparison of the Genmitsu L8, highlighting its efficiency at 40,000 mm/min.

Figure 3.4: The MD18 Rotary Roller offers adjustable rotation angles for versatile engraving.

Figure 3.5: The MD18 Rotary Roller features various jaw types for different object shapes and sizes.

Figure 3.6: The MD18 Rotary Roller's multifunction jaw accommodates a wide range of object diameters.

4. സജ്ജീകരണ ഗൈഡ്

The Genmitsu L8 comes largely pre-assembled, simplifying the setup process. Follow these steps to get your machine ready for operation:

1. അൺപാക്ക് ചെയ്യുന്നു: പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഘടകങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക. പാക്കിംഗ് ലിസ്റ്റിൽ ലിസ്റ്റ് ചെയ്തിരിക്കുന്ന എല്ലാ ഭാഗങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക.
2. പ്ലേസ്മെൻ്റ്: Place the Genmitsu L8 on a sturdy, level, and non-flammable surface in a well-ventilated area. Ensure there is enough space around the machine for safe operation and access.
3. Connect Air Assist Pump: Connect the air assist pump to the designated port on the machine and plug it into a power source.
4. പവർ ബന്ധിപ്പിക്കുക: Connect the power adapter to the machine's power input and then plug it into a grounded electrical outlet.
5. കമ്പ്യൂട്ടറുമായി ബന്ധിപ്പിക്കുക: Use the provided USB cable to connect the machine to your computer.
6. സോഫ്റ്റ്‌വെയർ ഇൻസ്റ്റാളേഷൻ: Install the recommended laser control software (e.g., LightBurn) on your computer. Follow the software's installation instructions.
7. MD18 Rotary Roller Setup (Optional): If using the MD18 Rotary Roller, connect it to the machine's rotary axis port. Refer to the MD18's specific instructions for mounting and adjusting the jaws for your object.
8. പ്രാരംഭ ഫോക്കസ് ക്രമീകരണം: The laser module features three preset focal lengths for effortless focusing. Select the appropriate focal length based on your material's thickness.

Figure 4.1: The Genmitsu L8 comes largely pre-assembled for quick and easy setup.

Figure 4.2: The laser module offers three preset focal lengths for easy material focusing.

Figure 4.3: The built-in adjustable Z-axis provides ample vertical space for various materials and the rotary roller.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once the machine is set up and software is installed, you can begin your engraving or cutting projects. Always ensure the enclosure door is closed during operation.

1. മെറ്റീരിയൽ തയ്യാറാക്കുക: Place your material securely on the honeycomb table. For cylindrical objects, mount them on the MD18 Rotary Roller.
2. സോഫ്റ്റ്‌വെയർ സജ്ജീകരണം: Open your laser control software (e.g., LightBurn). Import or create your design.
3. സ്ഥാനനിർണ്ണയം: Use the built-in camera for real-time preview and precise positioning of your design on the material. Adjust the material or design as needed.
4. ക്രമീകരണങ്ങൾ ക്രമീകരിക്കൽ: Configure laser power, speed, and passes based on your material type and desired outcome. Refer to material testing guides for optimal settings.
5. പ്രവർത്തനം ആരംഭിക്കുക: Ensure the enclosure door is closed. Initiate the engraving or cutting process from the software.
6. നിരീക്ഷണം: Continuously monitor the machine during operation. The transparent acrylic enclosure allows for easy observation. The flame monitor will alert you to any potential fire hazards.
7. പൂർത്തീകരണം: Once the process is complete, wait for the laser to stop and the machine to cool down before opening the enclosure and removing your material.

Figure 5.1: The built-in camera facilitates precise real-time preview and positioning of designs.

Figure 5.2: The Genmitsu L8 is capable of producing vibrant, multi-color engravings on various materials.

6. പരിപാലനം

Regular maintenance ensures the longevity and optimal performance of your Genmitsu L8. Perform these tasks periodically:

• ക്ലീൻ ലേസർ ലെൻസ്: Regularly inspect and clean the laser lens using a lint-free cloth and lens cleaning solution. A dirty lens can reduce laser power and engraving quality.
• Clean Honeycomb Table: Remove debris and residue from the honeycomb table. A dirty honeycomb can affect airflow and cause back-reflection.
• Clean Enclosure: Wipe down the acrylic enclosure with a soft cloth and mild cleaner to maintain visibility.
• ചലിക്കുന്ന ഭാഗങ്ങൾ ലൂബ്രിക്കേറ്റ് ചെയ്യുക: Periodically apply a small amount of lubricant to the guide rails and lead screws to ensure smooth movement.
• Check Air Assist Nozzle: Ensure the air assist nozzle is clear of any blockages.
• ഫേംവെയർ അപ്‌ഡേറ്റുകൾ: Check the Genmitsu webനിങ്ങളുടെ മെഷീനിൽ ലഭ്യമായ ഏതെങ്കിലും ഫേംവെയർ അപ്‌ഡേറ്റുകൾക്കായി സൈറ്റ്.

Figure 6.1: The integrated Smart Air Assist and Honeycomb Table require regular cleaning for optimal performance.

Figure 6.2: Proper focus adjustment and lens cleanliness are crucial for maintaining engraving quality.

7. പ്രശ്‌നപരിഹാരം

This section addresses common issues you might encounter. If you experience problems not listed here, please contact Genmitsu support.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

Genmitsu products are backed by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Genmitsu webസൈറ്റ്.

For technical support, troubleshooting assistance, or spare parts, please contact Genmitsu customer service through their official website or the contact information provided in your product packaging. When contacting support, please have your product model number and purchase date ready.

ഓൺലൈൻ ഉറവിടങ്ങൾ:

• Genmitsu Official Store on Amazon
• Visit the Genmitsu official website for software downloads, FAQs, and community forums.
