ALFORDSON Marc Series Gaming Chair User Manual

1. ആമുഖം

Thank you for choosing the ALFORDSON Marc Series Gaming Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new chair. Please read it thoroughly before use and retain it for future reference.

The ALFORDSON Marc Series Gaming Chair is designed for comfort and functionality, featuring integrated LED lighting, an 8-point massage system, and ergonomic adjustments to enhance your gaming or work experience.

2 സുരക്ഷാ വിവരങ്ങൾ

• ഭാര പരിധി: This chair is designed to support a maximum weight of 180 kg (approximately 396 lbs). Do not exceed this weight limit to prevent damage or injury.
• അസംബ്ലി: Ensure all components are securely fastened before use. Follow the assembly instructions carefully.
• പ്രസ്ഥാനം: Avoid sudden movements or standing on the chair. Use caution when reclining or adjusting the chair's position.
• കുട്ടികൾ: Keep children away from moving parts during adjustment. Adult supervision is recommended if children use the chair.
• ഇലക്ട്രിക്കൽ ഘടകങ്ങൾ: The LED lighting and massage functions are powered via USB. Ensure proper connection and avoid exposing electrical components to liquids.

3. പാക്കേജ് ഉള്ളടക്കം

അസംബ്ലി ചെയ്യുന്നതിനുമുമ്പ്, എല്ലാ ഭാഗങ്ങളും നിലവിലുണ്ടെന്നും കേടുപാടുകൾ സംഭവിച്ചിട്ടില്ലെന്നും ഉറപ്പാക്കുക. ഏതെങ്കിലും ഭാഗങ്ങൾ നഷ്ടപ്പെട്ടിട്ടുണ്ടെങ്കിലോ കേടുപാടുകൾ സംഭവിച്ചിട്ടുണ്ടെങ്കിലോ, ദയവായി ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.

• ALFORDSON Gaming Chair Components (Backrest, Seat, Armrests, Base, Casters, Gas Lift, Mechanisms)
• ഹെഡ്‌റെസ്റ്റ് കുഷ്യൻ
• Lumbar Support Cushion (with massage function)
• LED റിമോട്ട് കൺട്രോൾ
• USB Cable for LED and Massage
• Assembly Hardware (screws, washers, Allen key)
• ഇൻസ്ട്രക്ഷൻ മാനുവൽ

4. അസംബ്ലി നിർദ്ദേശങ്ങൾ

Assembly typically requires two people. Please follow the included detailed assembly guide for step-by-step instructions. General steps include:

1. കസേരയുടെ അടിയിൽ കാസ്റ്ററുകൾ ഘടിപ്പിക്കുക.
2. അടിത്തറയുടെ മധ്യഭാഗത്ത് ഗ്യാസ് ലിഫ്റ്റ് ചേർക്കുക.
3. Attach the seat mechanism to the underside of the seat cushion.
4. Connect the backrest to the seat cushion using the provided hardware.
5. Mount the assembled seat and backrest onto the gas lift.
6. Attach the armrests to the chair.
7. ഹെഡ്‌റെസ്റ്റും ലംബർ സപ്പോർട്ട് കുഷ്യനുകളും ഇൻസ്റ്റാൾ ചെയ്യുക.
8. Connect the USB cables for the LED and massage functions.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1. എൽഇഡി ലൈറ്റിംഗ്

The chair features 12 customizable LED colors and up to 367 lighting modes. To activate the LED lighting:

1. Connect the extended 1-meter USB cable from the chair to a power source (e.g., PC, USB wall adapter).
2. Use the provided wireless remote control to power on the LEDs, select colors, adjust speed, and brightness.

Image: Wireless remote control for LED lighting, showing options for dot light, single color, cycle color, and multi-colors.

5.2. 8-Point Massage Function

The chair includes an 8-point massage system with 6 massage modes to help reduce muscle fatigue.

1. Connect the USB cable from the lumbar cushion to a power source (e.g., PC, USB wall adapter).
2. Use the wired massage controller to select massage points (upper back, lower back, lumbar, thigh) and choose from the 6 available modes.

Image: Diagram illustrating the 8 massage points located in the upper back, lower back, lumbar, and thigh areas, alongside the wired massage controller.

5.3. Recline and Swivel

The chair offers a recline function and 360-degree swivel for optimal positioning.

• ചാരിയിരിക്കുക: Use the lever on the side of the chair to adjust the backrest angle from 90° (upright) to 150° (deep recline). Lock the desired position by pushing the lever back in.
• സ്വിവൽ: The chair can rotate 360 degrees on its base.

Image: Illustration of the chair's backrest reclining from 90 degrees to 150 degrees, operated by a side lever.

5.4. പിൻവലിക്കാവുന്ന ഫുട്‌റെസ്റ്റ്

For added comfort, the chair includes a retractable footrest.

• To extend, pull the footrest out from under the seat.
• To retract, push the footrest back under the seat until it is fully stored.

5.5. Adjustable Armrests

The armrests are designed for improved sitting experience.

• The armrests feature a slide rail mechanism, allowing for horizontal adjustment to suit your preference.

ചിത്രം: ക്ലോസ്-അപ്പ് view of the chair's armrest, highlighting the innovative slide rail mechanism for adjustment.

6. പരിപാലനം

• വൃത്തിയാക്കൽ: For fabric surfaces, use a soft cloth and mild soap solution. For plastic or metal parts, wipe with a damp തുണി. കഠിനമായ രാസവസ്തുക്കൾ ഒഴിവാക്കുക.
• കാസ്റ്ററുകൾ: Regularly check casters for hair or debris and clean as needed to ensure smooth movement.
• ഫാസ്റ്റനറുകൾ: എല്ലാ സ്ക്രൂകളും ബോൾട്ടുകളും ഇറുകിയതാണെന്ന് ഉറപ്പാക്കാൻ ഇടയ്ക്കിടെ പരിശോധിക്കുക. ആവശ്യമെങ്കിൽ വീണ്ടും മുറുക്കുക.
• സംഭരണം: Store the chair in a dry environment away from direct sunlight to prevent material degradation.

7. പ്രശ്‌നപരിഹാരം

• കസേര അസ്ഥിരമാണ്/ആടുന്നു: Ensure all assembly screws are tightened. Check that the gas lift is properly seated in the base and seat mechanism.
• Gas lift not adjusting height: Verify the gas lift lever is fully engaged. If the issue persists, the gas lift may need replacement.
• LED-കൾ പ്രകാശിക്കുന്നില്ല: Ensure the USB cable is securely connected to a working power source. Check the remote control battery and ensure it's pointed at the receiver.
• Massage function not working: Confirm the USB cable for the massage unit is connected to a power source. Check the wired controller for any damage.
• കാസ്റ്ററുകൾ സുഗമമായി ഉരുളുന്നില്ല: Inspect casters for obstructions (e.g., hair, dust) and clean them.

If you encounter issues not listed here, please refer to the warranty and support section.

8 സ്പെസിഫിക്കേഷനുകൾ

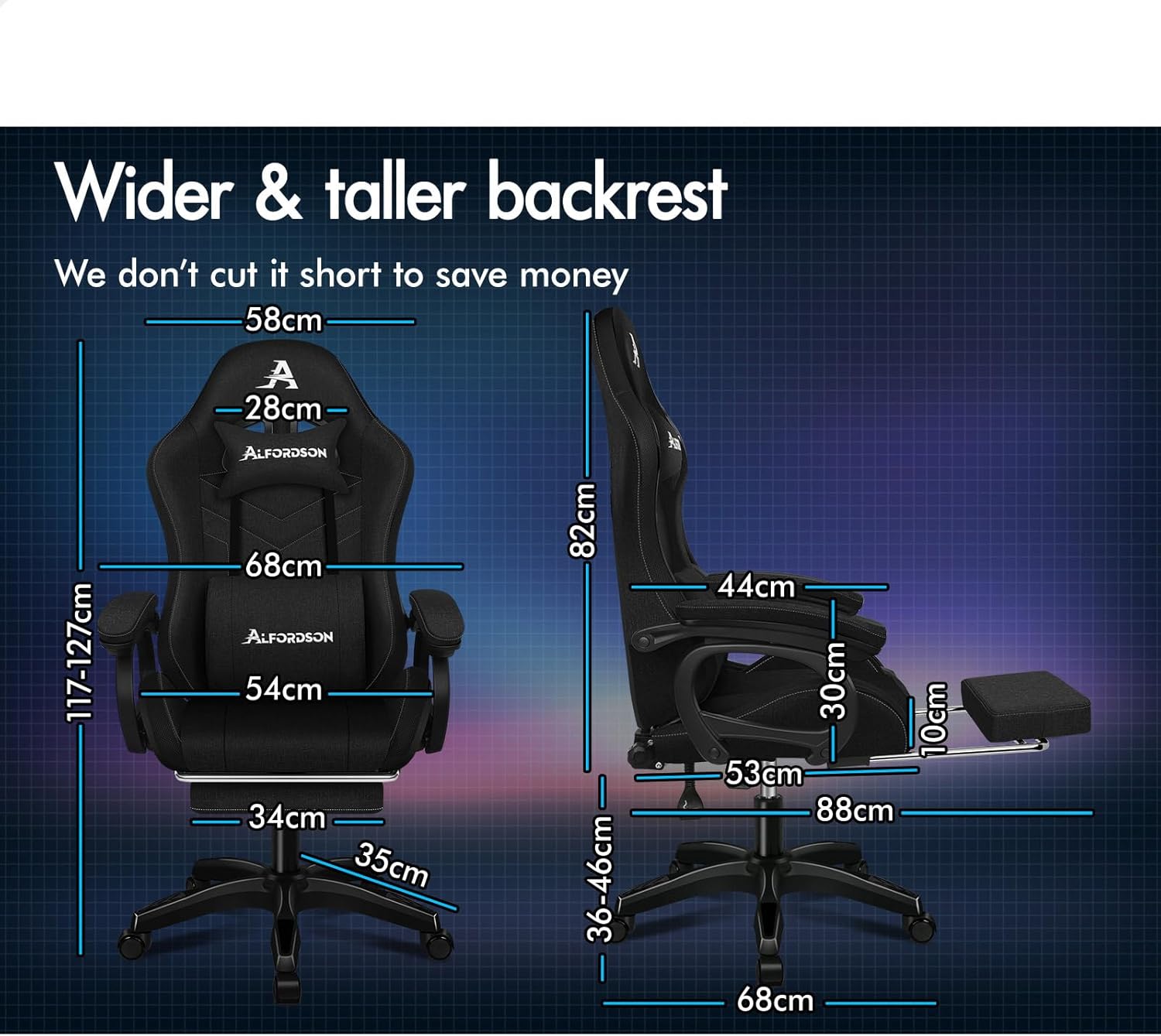

Image: Detailed diagram showing the dimensions of the ALFORDSON Marc Series Gaming Chair, including backrest height, seat width, and overall height adjustments.

Image: Illustration of the chair's integrated form foam for the backrest and seat, designed for better weight distribution and support.

Image: Depiction of the chair's dynamic ergonomic features, including removable head and lumbar cushions adjustable for optimal comfort and support.

9. വാറൻ്റിയും പിന്തുണയും

The ALFORDSON Marc Series Gaming Chair comes with a 2 വർഷത്തെ സർവീസ് വാറന്റി. This warranty covers manufacturing defects and significant malfunctions under normal use.

For warranty claims, technical support, or any questions regarding your product, please contact ALFORDSON customer service through your purchase platform or the official ALFORDSON website. Please have your purchase receipt and product model information ready when contacting support.
