BOYA BY-V20 വയർലെസ് മൈക്രോഫോൺ സിസ്റ്റം യൂസർ മാനുവൽ

1. ആമുഖം

Thank you for choosing the BOYA BY-V20 One-Trigger-Two 2.4G Wireless Microphone System. This omnidirectional mini lapel microphone system is designed for seamless audio recording with automatic pairing and smart noise reduction, offering a transmission range of up to 50 meters. It is an ideal solution for content creators, journalists, and anyone needing high-quality audio for phone vlogs, live streaming, interviews, and online chatting.

This manual provides detailed instructions on how to set up, operate, and maintain your BY-V20 wireless microphone system to ensure optimal performance.

2. പാക്കേജ് ഉള്ളടക്കം

എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കാൻ പാക്കേജ് ശ്രദ്ധാപൂർവ്വം പരിശോധിക്കുക:

• 2 x BY-V20 Transmitters (TX)
• 1 x BY-V20 Receiver (RX) with Type-C Connector
• 1 x യുഎസ്ബി-സി ചാർജിംഗ് കേബിൾ
• 1 x User Manual (English & Chinese)

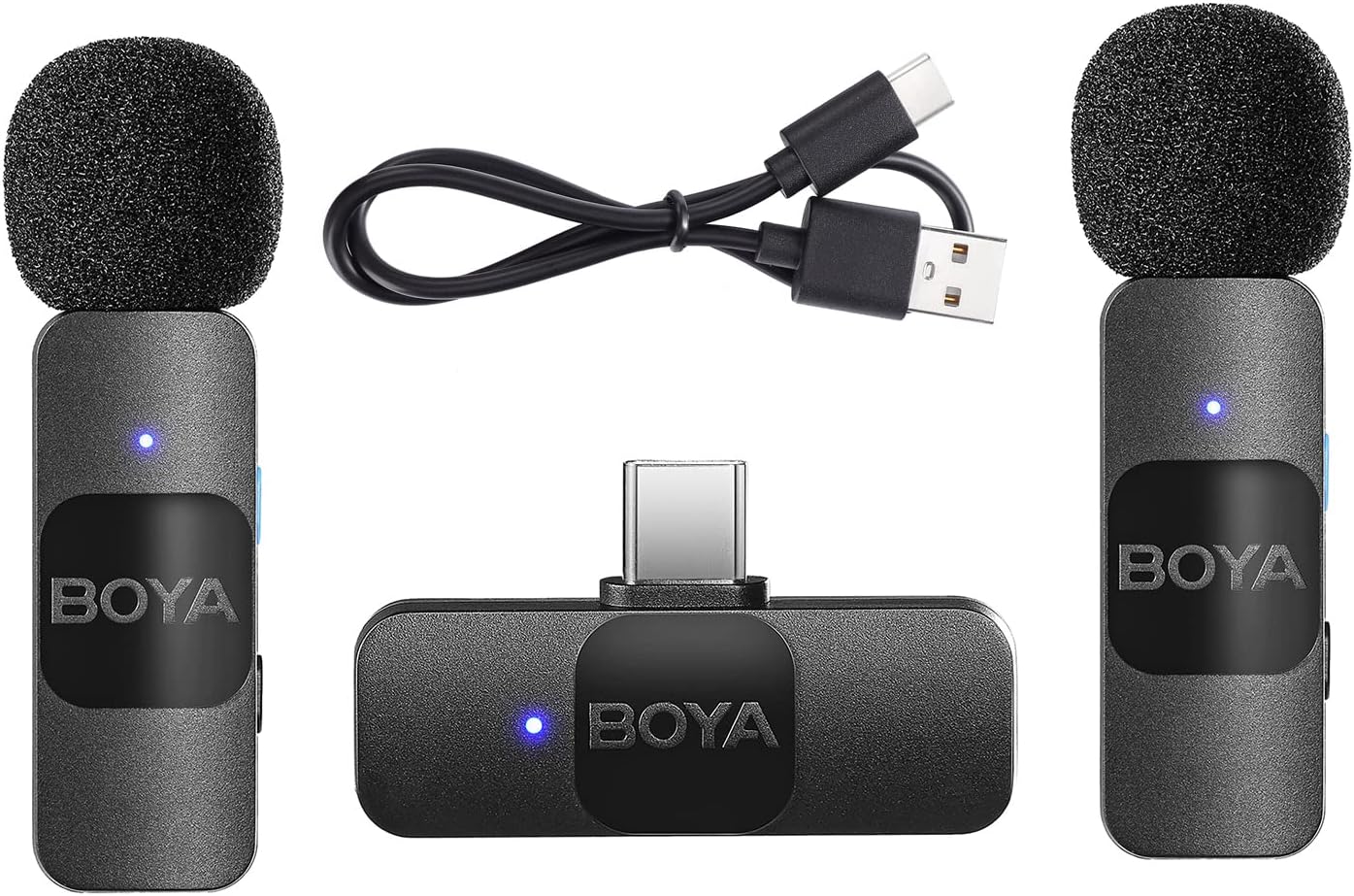

Image: The BOYA BY-V20 system, showing two transmitters, one receiver, and the charging cable.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

The BOYA BY-V20 is designed for portability and ease of use. Its compact and lightweight form factor makes it convenient for on-the-go recording.

Image: A person wearing the mini clip-on transmitter, highlighting its small size and omnidirectional built-in microphone.

Each transmitter features a 360° rotatable backside clip, allowing for convenient attachment to clothing, such as a collar. The omnidirectional polar pattern ensures comprehensive sound pickup from all directions.

Image: Detailed dimensions of the BY-V20 receiver (RX) and transmitter (TX), showing their compact size and light weight (RX: 6G, TX: 9.5G).

4. സജ്ജീകരണം

4.1 ഓട്ടോമാറ്റിക് ജോടിയാക്കൽ

The BOYA BY-V20 system supports automatic pairing, making setup quick and effortless. No additional applications or complex configurations are required.

1. Ensure both transmitters (TX) are charged.
2. Plug the receiver (RX) into the USB Type-C port of your compatible device (e.g., smartphone, tablet, laptop).
3. Turn on the transmitters. The transmitters and receiver will automatically pair within 10 seconds. A solid blue indicator light on both units confirms successful pairing.

Image: Visual representation of the automatic connection process between the transmitter and receiver.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 Noise Reduction Function

The BY-V20 system features a built-in smart noise reduction module. To activate or deactivate the noise reduction (NR) function, refer to the specific button on the transmitter. When activated, the microphone will effectively filter out ambient noise, improving sound clarity, especially in noisy environments.

5.2 ചാർജിംഗ്

The transmitters have a built-in rechargeable lithium battery. Use the provided USB-C charging cable to charge the transmitters. The receiver is powered directly by the external device it's connected to and also features a Type-C charging port, allowing you to charge your mobile phone simultaneously while using the microphone system.

Image: Illustration showing the approximate charging time (2 hours) and battery life (9 hours) for the transmitter.

5.3 അനുയോജ്യത

The BY-V20 receiver is compatible with a wide range of devices featuring a USB-C port. This includes, but is not limited to:

• USB-C Mobile Phones (e.g., Google, Samsung, Huawei, OnePlus, Xiaomi)
• USB-C Tablets
• USB-C Laptops
• Mac PCs

Image: A visual chart demonstrating the wide compatibility of the BY-V20 with various USB-C enabled mobile phones, tablets, and computers.

6. പരിപാലനം

To ensure the longevity and optimal performance of your BOYA BY-V20 wireless microphone system, please follow these maintenance guidelines:

• Keep the devices clean and free from dust and moisture. Use a soft, dry cloth for cleaning.
• Avoid exposing the microphone system to extreme temperatures, direct sunlight, or corrosive substances.
• Store the system in a cool, dry place when not in use, preferably in its original packaging or a protective case.
• Do not attempt to disassemble or repair the devices yourself, as this will void the warranty and may cause damage.
• Regularly charge the transmitters to maintain battery health, even if not used frequently.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your BOYA BY-V20 system, please refer to the following common troubleshooting steps:

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

BOYA provides a limited warranty for this product. For detailed warranty information, technical support, or service inquiries, please visit the official BOYA webസൈറ്റിൽ ബന്ധപ്പെടുക അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി ബന്ധപ്പെടുക. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങിയതിന്റെ തെളിവ് സൂക്ഷിക്കുക.
