MAXUS Coffee Scale User Manual

ആമുഖം

Thank you for choosing the MAXUS Coffee Scale. This high-precision digital scale is designed to enhance your coffee brewing experience, whether for espresso or pour-over methods. With its IP65 waterproof rating, USB rechargeable battery, and clear LCD display, it provides accurate and reliable measurements for consistent results.

The MAXUS Coffee Scale, showcasing its compact design and included USB charging cables.

ഉൽപ്പന്ന സവിശേഷതകൾ

• IP65 വാട്ടർപ്രൂഫ് ഡിസൈൻ: Ensures durability and reliability in various brewing environments.
• ഉയർന്ന കൃത്യത: Measures up to 2kg with an accuracy of 0.1g, ideal for precise coffee and water measurements.
• LCD സ്ക്രീൻ: Provides clear and easily readable measurements, even in low-light conditions.
• USB റീചാർജ് ചെയ്യാവുന്ന ബാറ്ററി: Equipped with a 1000mAh battery for extended usage and convenient Type-C charging.
• സംയോജിത ടൈമർ: Essential for monitoring brewing time, especially for pour-over and espresso.

Key features of the MAXUS Coffee Scale, highlighting its multifunctionality.

ആരംഭിക്കൽ (സജ്ജീകരണം)

സ്കെയിൽ ചാർജ് ചെയ്യുന്നു

Before first use, fully charge the scale. Connect the provided USB Type-C cable to the charging port on the side of the scale and plug the other end into a compatible USB power source (e.g., computer, wall adapter). The battery indicator on the LCD will show charging status.

The Type-C charging interface with its protective cap.

പവർ ഓൺ/ഓഫ്

• പവർ ഓണാക്കാൻ, അമർത്തുക ON ബട്ടൺ.
• പവർ ഓഫ് ചെയ്യാൻ, അമർത്തുക ഓഫ് ബട്ടൺ.
• The scale features an auto-shutoff function to conserve battery life.

ഓപ്പറേറ്റിംഗ് മോഡുകൾ

The MAXUS Coffee Scale offers two distinct operating modes to suit different brewing preferences.

Mode 1: Fully Manual

• The mode indicator displays "1" on the right side of the LCD.
• No automatic functions are active in this mode.
• The user must manually press the appropriate buttons for tare and timer functions.
• അമർത്തുക ടൈമർ button to start timing, press again to pause, and press and hold to reset to 0:00.

Mode 2: For Making Espresso

• The mode indicator displays "2" on the right side of the LCD.
• Place your cup on the platform; the weight will automatically tare.
• Start your espresso machine; the timer will begin to count up automatically.
• Weight is displayed as it increases.
• After the cup is removed, the last time and weight will be displayed for 5 seconds. The display then returns to 0:00 and 0.0g.

Detailed explanation of Mode 1 (Fully Manual) and Mode 2 (For Making Espresso).

അടിസ്ഥാന പ്രവർത്തനങ്ങൾ

യൂണിറ്റ് പരിവർത്തനം

അമർത്തുക യൂണിറ്റ് button to cycle through available measurement units (e.g., grams, ounces).

ടെയർ ഫംഗ്ഷൻ

To zero out the weight of a container or previous ingredients, place the item on the scale and press the TARE button. The display will reset to 0.0g.

ടൈമർ പ്രവർത്തനം

In Mode 1, press the ടൈമർ button to start/pause the timer. Press and hold to reset. In Mode 2, the timer operates automatically as described above.

The scale actively displaying weight and time during espresso preparation.

പരിചരണവും പരിപാലനവും

വൃത്തിയാക്കൽ

The MAXUS Coffee Scale has an IP65 waterproof rating, meaning it is protected against low-pressure water jets from any direction. This makes cleaning simple. Wipe the scale with a damp തുണി. സ്കെയിൽ വെള്ളത്തിൽ മുക്കുകയോ ഉരച്ചിലുകളുള്ള ക്ലീനറുകൾ ഉപയോഗിക്കുകയോ ചെയ്യരുത്.

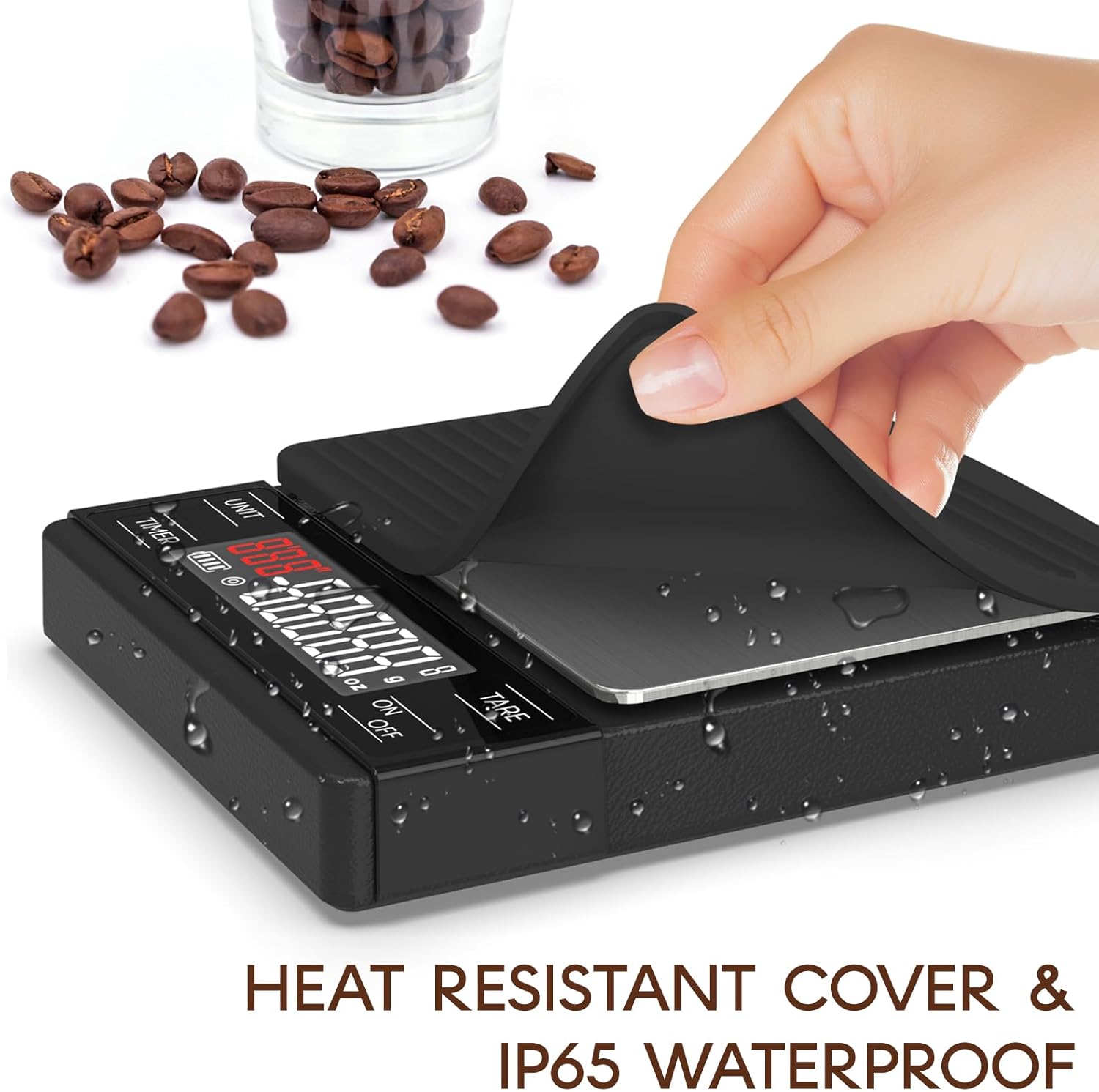

The heat-resistant cover and IP65 waterproof design allow for easy cleaning.

സംഭരണം

Store the scale in a dry, cool place away from extreme temperatures and direct sunlight. Ensure the protective cap for the Type-C port is securely closed when not charging.

ട്രബിൾഷൂട്ടിംഗ്

• പൊരുത്തമില്ലാത്ത വായനകൾ: Ensure the scale is placed on a flat, stable, and level surface. Avoid placing it near vibrating machinery or in drafty areas. Recalibration may be necessary if persistent inconsistencies occur (refer to manufacturer's website for calibration instructions if not provided in packaging).
• സ്കെയിൽ ഓണാക്കുന്നില്ല: Check the battery level. If low, recharge the scale using the provided USB Type-C cable.
• പിശക് സന്ദേശങ്ങൾ പ്രദർശിപ്പിക്കുക: If an error message appears (e.g., "EEEE"), it may indicate an overload. Remove items from the scale immediately. If the error persists, contact customer support.
• Scale Shuts Off When Wet: While the scale is IP65 waterproof, excessive water directly on the display or buttons can sometimes interfere with operation. Wipe off any liquid immediately. If the issue persists, ensure the charging port's protective cap is sealed and allow the scale to dry completely before attempting to use it again.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official MAXUS webസൈറ്റ്. വാറൻ്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
