Cisco PWR-C5-125WAC Power Supply User Manual

1. ആമുഖം

This manual provides essential instructions for the safe and efficient use of the Cisco PWR-C5-125WAC Power Supply. This unit is designed to provide reliable 125W power delivery for Cisco Catalyst 9200L Series Switches, ensuring consistent operation of network equipment. Please read this manual thoroughly before installation and operation.

2 സുരക്ഷാ വിവരങ്ങൾ

ഉപകരണങ്ങൾക്ക് പരിക്കേൽക്കുന്നതും കേടുപാടുകൾ സംഭവിക്കുന്നതും തടയാൻ ഇനിപ്പറയുന്ന സുരക്ഷാ മുൻകരുതലുകൾ പാലിക്കുക:

• Ensure the power supply is disconnected from the power source before installation or removal.
• യോഗ്യതയുള്ള ഉദ്യോഗസ്ഥർ മാത്രമേ ഇൻസ്റ്റാളേഷനും സർവീസിംഗും നടത്താവൂ.
• നനഞ്ഞതോ തണുത്തതോ ആയ കാലാവസ്ഥയിൽ വൈദ്യുതി വിതരണം പ്രവർത്തിപ്പിക്കരുത്.amp വ്യവസ്ഥകൾ.
• ഇൻപുട്ട് വോളിയം ആണെന്ന് പരിശോധിക്കുകtage matches the power supply's specifications.
• Use only approved power cords and connectors.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these steps to properly install the Cisco PWR-C5-125WAC Power Supply into a compatible Catalyst 9200L Series Switch chassis.

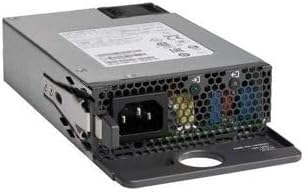

This image displays the Cisco PWR-C5-125WAC Power Supply unit. The front panel features the AC power input connector (IEC 60320 C14 type) and ventilation grilles. The overall form factor is compact, designed for integration into network switch chassis.

1. Prepare the Switch Chassis: Ensure the Catalyst 9200L Series Switch is powered off and disconnected from all power sources. Locate the power supply bay on the switch chassis.
2. Remove Filler Panel (if present): If a blank filler panel is installed in the power supply bay, carefully remove it by loosening any retaining screws or clips.
3. പവർ സപ്ലൈ ചേർക്കുക: Align the PWR-C5-125WAC power supply with the open bay. Gently slide the power supply into the bay until it is fully seated. Ensure the connector aligns correctly with the backplane.
4. Secure the Power Supply: Once seated, secure the power supply using any provided thumbscrews or locking mechanisms on the unit or chassis.
5. പവർ കേബിൾ ബന്ധിപ്പിക്കുക: Connect a compatible IEC 60320 C14 power cable to the AC input port on the power supply. Connect the other end of the power cable to a grounded electrical outlet.
6. പവർ ഓൺ: After verifying all connections are secure, power on the Catalyst 9200L Series Switch. The power supply status indicator should illuminate, indicating proper operation.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The Cisco PWR-C5-125WAC Power Supply operates automatically once installed and connected to a power source. It provides continuous power to the connected Catalyst 9200L Series Switch.

സ്റ്റാറ്റസ് സൂചകങ്ങൾ

Refer to the switch's documentation for specific LED indicators related to power supply status. Typically, a solid green LED indicates normal operation, while an amber or off LED may indicate a fault or no power.

5. പരിപാലനം

The Cisco PWR-C5-125WAC Power Supply is designed for minimal maintenance. However, periodic checks can help ensure optimal performance:

• വെൻ്റിലേഷൻ: Ensure that the ventilation grilles on the power supply and switch chassis are clear of obstructions to allow for proper airflow and cooling.
• കേബിൾ കണക്ഷനുകൾ: Periodically check that all power cables are securely connected and free from damage.
• പരിസ്ഥിതി വ്യവസ്ഥകൾ: Operate the power supply within the recommended temperature and humidity ranges specified for the Catalyst 9200L Series Switch.
• വൃത്തിയാക്കൽ: If necessary, gently clean the exterior of the power supply with a dry, lint-free cloth. Do not use liquid cleaners.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with the power supply, consider the following troubleshooting steps:

• ശക്തിയില്ല:
  • Verify the power cable is securely connected to both the power supply and the electrical outlet.
  • മറ്റൊരു ഉപകരണം പ്ലഗ് ഇൻ ചെയ്‌ത് ഇലക്ട്രിക്കൽ ഔട്ട്‌ലെറ്റ് പ്രവർത്തനക്ഷമമാണോ എന്ന് പരിശോധിക്കുക.
  • Ensure the switch's power button (if applicable) is in the 'On' position.
• ഇടവിട്ടുള്ള ശക്തി:
  • Inspect the power cable for any signs of damage. Replace if necessary.
  • Ensure the power supply is fully seated in its bay within the switch chassis.
• അമിത ചൂടാക്കൽ:
  • Check for obstructions around the ventilation grilles of the power supply and switch.
  • Ensure the operating environment temperature is within specified limits.

If these steps do not resolve the issue, consult the Cisco Catalyst 9200L Series Switch documentation or contact Cisco support.

7 സ്പെസിഫിക്കേഷനുകൾ

Key technical specifications for the Cisco PWR-C5-125WAC Power Supply:

8. വാറൻ്റിയും പിന്തുണയും

For information regarding warranty coverage, technical support, or service for your Cisco PWR-C5-125WAC Power Supply, please refer to the documentation provided with your Cisco Catalyst 9200L Series Switch or contact your authorized Cisco reseller or Cisco Systems directly. Support options and warranty terms may vary based on region and purchase agreement.
