LENSGO പോർട്ടബിൾ ഫോഗ് മെഷീൻ സ്മോക്ക് എസ് മിനി ഇൻസ്ട്രക്ഷൻ മാനുവൽ

ആമുഖം

Welcome to the LENSGO Portable Fog Machine Smoke S Mini user manual. This compact and versatile fog machine is designed to enhance photography, outdoor events, indoor parties, studio work, short video filming, and stage effects by producing a controlled, non-toxic fog. Please read this manual thoroughly before operation to ensure safe and optimal performance.

സുരക്ഷാ വിവരങ്ങൾ

സുരക്ഷിതമായ പ്രവർത്തനം ഉറപ്പാക്കുന്നതിനും ഉപകരണത്തിന് കേടുപാടുകൾ സംഭവിക്കാതിരിക്കുന്നതിനും അല്ലെങ്കിൽ പരിക്കേൽക്കാതിരിക്കുന്നതിനും, ദയവായി ഇനിപ്പറയുന്ന സുരക്ഷാ മാർഗ്ഗനിർദ്ദേശങ്ങൾ പാലിക്കുക:

• Use only LENSGO professional mist fluid. Other fluids may damage the device or produce harmful fumes.
• Do not block the fog outlet during operation.
• കുട്ടികൾക്കും വളർത്തുമൃഗങ്ങൾക്കും ലഭ്യമല്ലാത്തവിധം ഉപകരണം സൂക്ഷിക്കുക.
• Do not attempt to disassemble, modify, or repair the device yourself. Contact qualified personnel for service.
• Ensure adequate ventilation when operating the fog machine indoors.
• Avoid direct contact with the fog fluid. If contact occurs, wash thoroughly with water.
• Do not operate the device if it is visibly damaged or malfunctioning.
• The device features a built-in overheating protection system for safe operation.
• This product is certified with CE, RoHS, SDS, and MSDS, ensuring compliance with safety standards.

പാക്കേജ് ഉള്ളടക്കം

എല്ലാ ഇനങ്ങളും ഉണ്ടെന്നും നല്ല നിലയിലാണെന്നും ഉറപ്പാക്കാൻ പാക്കേജ് പരിശോധിക്കുക:

• LENSGO Smoke S Mini Fog Machine (Subject) x1
• സ്റ്റോറേജ് ബാഗ് x1
• ഇൻഫ്രാറെഡ് റിമോട്ട് കൺട്രോൾ x1
• 60ml E-liquid (Fog Fluid) x1
• Hard Tube x2 (one straight, one elbow)
• Silicone Hose x1
• High Pressure Nozzle x1
• Liquid Smoke Filter x1
• ചാർജിംഗ് കേബിൾ x1

Image: Contents of the LENSGO Smoke S Mini package, showing the main unit, remote control, fog fluid, storage bag, and various attachments.

ഉൽപ്പന്നം കഴിഞ്ഞുview

The LENSGO Smoke S Mini is a compact and portable device designed for easy handling and versatile use in various creative scenarios.

Image: The LENSGO Smoke S Mini in action, demonstrating its ability to produce fog for atmospheric effects over a beverage.

പ്രധാന ഘടകങ്ങൾ

• Fog Machine Unit: The main device housing the fluid reservoir and heating element.
• നിയന്ത്രണ ബട്ടണുകൾ: Located on the unit for manual operation.
• ഇൻഫ്രാറെഡ് റിമോട്ട് കൺട്രോൾ: For wireless operation up to 10 meters.
• ഫ്ലൂയിഡ് റിസർവോയർ: Holds the specialized fog fluid.
• Various Nozzles/Tubes: Hard straight tube, hard elbow tube, silicone hose, liquid smoke filter, high pressure nozzle for different fog effects.

ചിത്രം: വിശദമായത് view of the fog machine's control buttons, indicating double-click for smoke and single-click to pause, along with power on/off buttons.

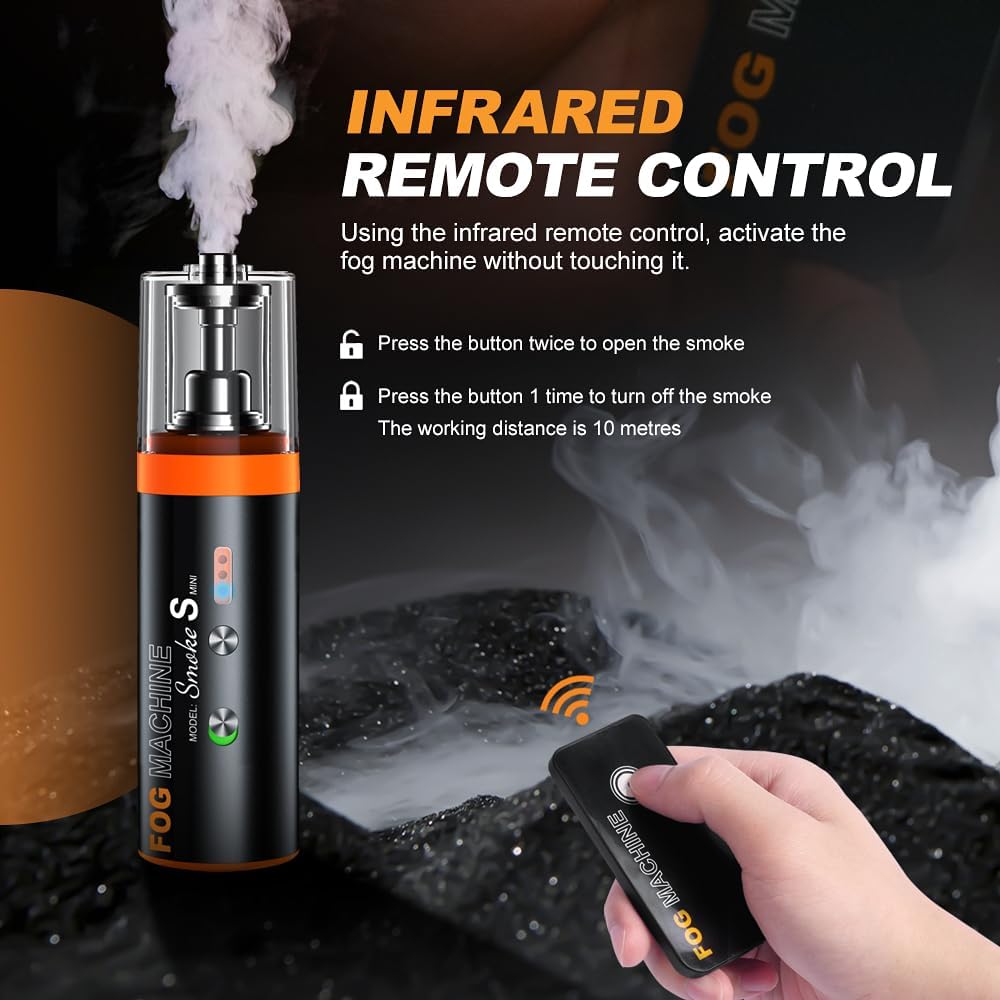

Image: The fog machine and its infrared remote control, highlighting the wireless operation capability and working distance.

സജ്ജമാക്കുക

ഉപകരണം ചാർജ് ചെയ്യുന്നു

Before first use, fully charge the LENSGO Smoke S Mini using the provided charging cable. A full charge takes approximately 2 hours and provides up to 16 minutes of continuous smoke output.

Filling the Fluid Reservoir

1. Ensure the device is powered off before filling.
2. Carefully open the fluid reservoir cap.
3. Pour only LENSGO professional mist fluid into the reservoir. Do not overfill.
4. Securely close the reservoir cap after filling.

ആക്സസറികൾ അറ്റാച്ചുചെയ്യുന്നു

Select the appropriate nozzle or tube (hard straight tube, hard elbow tube, silicone hose, liquid smoke filter, or high pressure nozzle) based on your desired fog effect and securely attach it to the device's outlet.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

പവർ ചെയ്യുന്നത് ഓൺ/ഓഫ്

To power on the device, push the power button up for 3 seconds. To power off, push the power button down.

Generating Smoke

Once powered on, double-click the designated button on the unit or the remote control to start producing smoke.

To pause smoke output, single-click the button.

റിമോട്ട് കൺട്രോൾ ഉപയോഗിക്കുന്നു

The infrared remote control allows for convenient wireless operation up to 10 meters.

• Press the button twice on the remote to activate smoke output.
• Press the button once on the remote to stop smoke output.

Smoke Modes

The LENSGO Smoke S Mini offers six distinct smoke modes to suit various creative needs:

1. Portrait Mode

Ideal for photography, this mode uses the hard straight tube to direct smoke precisely where needed, creating a soft, atmospheric background. The fog formula is safe for humans and clothing.

Image: Demonstrates the use of the fog machine for portrait photography, creating a soft, diffused atmosphere.

2. Dry Ice Mode

Achieve a magical liquid smoke effect without the need for actual dry ice. This mode typically uses the hard bent tube and liquid smoke filter to create a dense, low-lying fog.

Image: The fog machine producing a dry ice effect, suitable for food presentation or atmospheric drinks.

3. Film Level Mist Mode

Empowers filmmakers with quick cinematic atmosphere, making it easier to create smoke in difficult or specific locations for professional video production.

ചിത്രം: ഉദാamples of the fog machine being used in film production to create cinematic mist effects.

4. Smoke Effects

General purpose smoke generation for various atmospheric needs, providing versatile visual enhancements.

5. Incense Burning Mode

Utilizes the High-Pressure Nozzle to create a compressed, faster-moving smoke, mimicking the effect of burning incense.

Image: The fog machine creating an incense-like smoke effect, often used for culinary presentations.

6. Controlled Smoke

This mode allows for precise control over smoke output, enabling users to achieve specific visual effects for their projects.

വീഡിയോ പ്രദർശനം

Watch this video for a demonstration of the LENSGO Portable Fog Machine Smoke S Mini in various applications, including outdoor shooting and special effects.

Video: Official LENSGO demonstration of the Smoke S Mini, showcasing its use in different scenarios like outdoor filming and creating atmospheric effects.

മെയിൻ്റനൻസ്

വൃത്തിയാക്കൽ

After each use, especially if changing fluid types, it is recommended to run the machine with a small amount of distilled water to clean the internal components and prevent clogs.

Wipe the exterior of the device with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these may damage the finish or internal components.

സംഭരണം

Store the device in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the fluid reservoir is empty or securely sealed if storing for extended periods. Use the provided storage bag for protection during transport and storage.

ട്രബിൾഷൂട്ടിംഗ്

No Smoke Output

• ദ്രാവക നില പരിശോധിക്കുക: Ensure there is sufficient LENSGO professional mist fluid in the reservoir.
• ബാറ്ററി നില: Verify the device is charged. Recharge if necessary, as low battery can prevent smoke generation.
• ചൂടാക്കൽ സമയം: Allow adequate time for the device to heat up after powering on (typically a few seconds).
• അടഞ്ഞ നോസൽ: Check if the nozzle or tube is clogged. Clean as per maintenance instructions.

Weak Smoke Output

• ദ്രാവക ഗുണനിലവാരം: Ensure you are using genuine LENSGO professional mist fluid. Substandard fluids can affect performance.
• ബാറ്ററി നില: Low battery can affect the intensity of smoke output. Recharge the device.
• താപനില: Ensure the device is operating within its optimal temperature range. Extreme cold can reduce efficiency.

റിമോട്ട് കൺട്രോൾ പ്രവർത്തിക്കുന്നില്ല

• ബാറ്ററി: റിമോട്ട് കൺട്രോളിൽ ബാറ്ററി മാറ്റിസ്ഥാപിക്കുക.
• ദൂരം: Ensure you are within the 10-meter operating range of the remote.
• തടസ്സങ്ങൾ: Remove any physical obstructions between the remote and the device that might block the infrared signal.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റി & പിന്തുണ

For warranty information and technical support regarding your LENSGO Smoke S Mini Portable Fog Machine, please refer to the official LENSGO website or contact their customer service directly. It is advisable to keep your purchase receipt as proof of purchase for any warranty claims.
