LUXOR LLMC10 മോഡുലാർ ചാർജിംഗ് കാബിനറ്റ്

1. ആമുഖം

This manual provides essential information for the proper setup, operation, and maintenance of your LUXOR LLMC10 Modular Charging Cabinet. Designed for educational environments, warehouses, retail, and more, this cabinet offers a flexible and scalable solution for charging, storing, and securing up to 10 laptops or tablets.

ചിത്രം 1.1: മുൻഭാഗം view of the LLMC10 Modular Charging Cabinet.

2 പ്രധാന സവിശേഷതകൾ

The LUXOR LLMC10 Modular Charging Cabinet is engineered with several features to ensure efficient and secure device management:

• ഉപകരണ ശേഷി: Accommodates up to 10 laptops or tablets with screens up to 13 inches.
• ഉപകരണ സംരക്ഷണം: Padded storage slots help protect devices from scratches and damage.
• ക്രമീകരിക്കാവുന്ന ഡിവൈഡറുകൾ: Movable divider fins allow selection between two storage slot widths (0.6" or 1.25") to fit various device sizes.
• സംയോജിത പവർ മാനേജ്മെൻ്റ്: Power strips are located in a separate drawer to keep cords and power bricks neat and organized. Integrated cords wrap on cabinets and carts to keep power cords organized.
• സുരക്ഷ: Each cabinet includes a front locking door and two keys to secure devices.
• വെൻ്റിലേഷൻ: Ventilated sides help keep devices cool during charging.
• നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Constructed from durable powder-coated steel for long-lasting use.
• ബഹുമുഖ പ്ലെയ്‌സ്‌മെന്റ്: Can be placed on a shelf, mounted to a wall, stacked, or connected to optional dollies for mobility.
• എളുപ്പത്തിലുള്ള കണക്ഷൻ: Included thumb screws make it easy to connect cabinets to a cart and/or other cabinets.

ചിത്രം 2.1: ഓവർview of LLMC Modular Charging System features.

3. ഘടകങ്ങൾ കഴിഞ്ഞുview

The LLMC10 Modular Charging Cabinet consists of the following main components:

• Main Cabinet Body (Powder-Coated Steel)
• Front Locking Door with Key Lock
• രണ്ട് കീകൾ
• Internal Padded Device Slots
• Movable Divider Fins
• Top Storage Drawer for Power Bricks and Cords
• Integrated Power Strips (UL/cUL-listed)
• Ventilated Side Panels
• Thumb Screws (for stacking/connecting)

Figure 3.1: Cabinet interior showing the top storage drawer and device slots.

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The LLMC10 cabinet requires some assembly. Please follow these steps carefully:

4.1 അൺപാക്കിംഗ്

1. പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഘടകങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക.
2. Verify that all listed components are present and undamaged. Refer to the packing list included with your cabinet.
3. Retain packaging materials for future transport or storage, if necessary.

4.2 അസംബ്ലി

Detailed assembly instructions are provided in a separate assembly guide included with your product. Please refer to that guide for step-by-step instructions on assembling the cabinet and attaching any optional accessories like dollies or wall mounts.

4.3 പ്ലേസ്മെന്റ് ഓപ്ഷനുകൾ

The LLMC10 offers flexible placement options:

• ഷെൽഫ് പ്ലേസ്മെൻ്റ്: The cabinet can be placed securely on any sturdy shelf or flat surface.
• മതിൽ മൗണ്ടിംഗ്: For fixed installations, the cabinet can be mounted to a wall using appropriate hardware (sold separately). Ensure the wall can support the cabinet's weight plus the weight of all devices.
• സ്റ്റാക്കിംഗ്: Multiple cabinets can be stacked up to three high using the included thumb screws for secure connection.
• Dolly Connection: For mobility, the cabinet can be attached to an optional single or double dolly (sold separately). Single dollies hold up to three cabinets, and double dollies hold up to six.

ചിത്രം 4.1: പിൻഭാഗം view of the cabinet, highlighting ventilation and mounting points.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 ചാർജിംഗ് ഉപകരണങ്ങൾ

1. Unlock the front door using one of the provided keys and open it.
2. Pull out the top storage drawer to access the integrated power strips.
3. Plug your device's power adapter into an available outlet on the power strip.
4. Route the charging cable through the cable management openings to the device slot below.
5. Place your laptop or tablet into one of the padded device slots. Ensure the device is properly seated and connected to its charging cable.
6. Repeat for all devices.
7. Once all devices are placed and connected, close the top storage drawer.
8. Close and lock the front door to secure the devices.

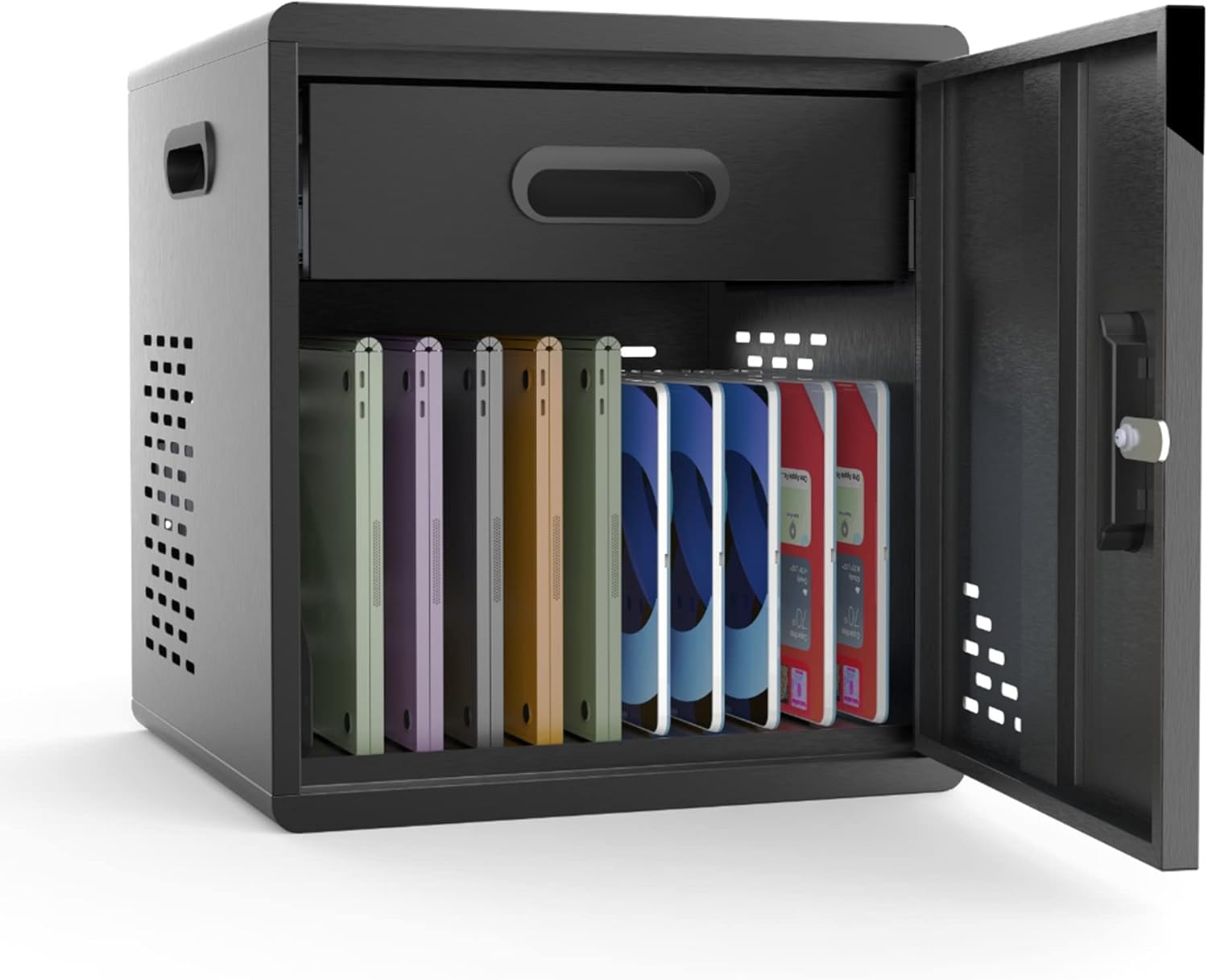

Figure 5.1: Cabinet interior with devices in charging slots.

5.2 Adjusting Divider Fins

The internal divider fins can be adjusted to accommodate devices of varying thicknesses:

• To adjust, gently lift the divider fin from its current slot.
• Reinsert the fin into an alternative slot to achieve the desired width (0.6 inches or 1.25 inches).
• Ensure all fins are securely seated before placing devices.

Figure 5.2: Adjustable divider fins for device customization.

6. പരിപാലനം

Regular maintenance ensures the longevity and optimal performance of your charging cabinet.

6.1 വൃത്തിയാക്കൽ

• ഒരു മൃദുവായ, ഡി ഉപയോഗിച്ച് ബാഹ്യ പ്രതലങ്ങൾ തുടയ്ക്കുകamp cloth. Avoid abrasive cleaners or solvents that could damage the powder-coated finish.
• For interior cleaning, ensure the cabinet is unplugged and all devices are removed. Use a dry or slightly damp cloth to clean the padded slots and internal surfaces.
• Periodically check ventilation openings for dust accumulation and clear as needed to ensure proper airflow.

6.2 പൊതു പരിചരണം

• Do not overload the cabinet beyond its stated capacity of 10 devices.
• Ensure power cords are not pinched or damaged when closing the drawer or door.
• Keep the cabinet in a dry, well-ventilated area.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your LLMC10 cabinet, refer to the following common problems and solutions:

8 സ്പെസിഫിക്കേഷനുകൾ

Detailed technical specifications for the LUXOR LLMC10 Modular Charging Cabinet:

Figure 8.1: Cabinet Dimensions.

9. വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or to purchase replacement parts, please contact Luxor customer service directly. Refer to the contact information provided with your product packaging or visit the official Luxor webസൈറ്റ്.

Luxor Official Webസൈറ്റ്: ആമസോണിലെ ലക്‌സർ സ്റ്റോർ സന്ദർശിക്കുക
