ഇ-ഫ്ലൈറ്റ് സൂപ്പർ ടിംബർ 1.7 മീറ്റർ ആർസി എയർപ്ലെയിൻ ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The E-flite Super Timber 1.7m is a feature-rich and capable remote-controlled airplane designed for a dynamic flying experience. It incorporates advanced technologies and robust construction for reliable performance.

• വിപുലമായ സവിശേഷതകൾ: Equipped with numerous details making it the most capable Timber model to date.
• Powerful Propulsion: Features a specially tuned Spektrum brushless motor compatible with 4S to 6S batteries, paired with an 85-amp Spektrum Avian Smart Lite ESC.
• സ്മാർട്ട് ടെക്നോളജി: 85-amp Spektrum Avian Smart Lite ESC provides real-time battery voltage, current, and other data via compatible receivers and transmitters.
• മെച്ചപ്പെടുത്തിയ സ്ഥിരത: Includes a Spektrum AR637TA receiver with full-range telemetry and industry-leading DSMX technology.
• Durable Landing Gear: Features inflatable rubber tires with beadlock wheels and heavy-duty articulated, shock-absorbing landing gear.

Figure 1.1: E-flite Super Timber 1.7m RC Airplane.

2 സുരക്ഷാ വിവരങ്ങൾ

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property, and cause serious injury. This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. The product manual contains instructions for safety, operation, and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

3. സജ്ജീകരണവും അസംബ്ലിയും

3.1 Items Needed to Complete

The E-flite Super Timber 1.7m BNF Basic model requires additional components to be flight-ready. These items are not included with the aircraft and must be purchased separately:

• ട്രാൻസ്മിറ്റർ
• ബാറ്ററി
• ചാർജർ

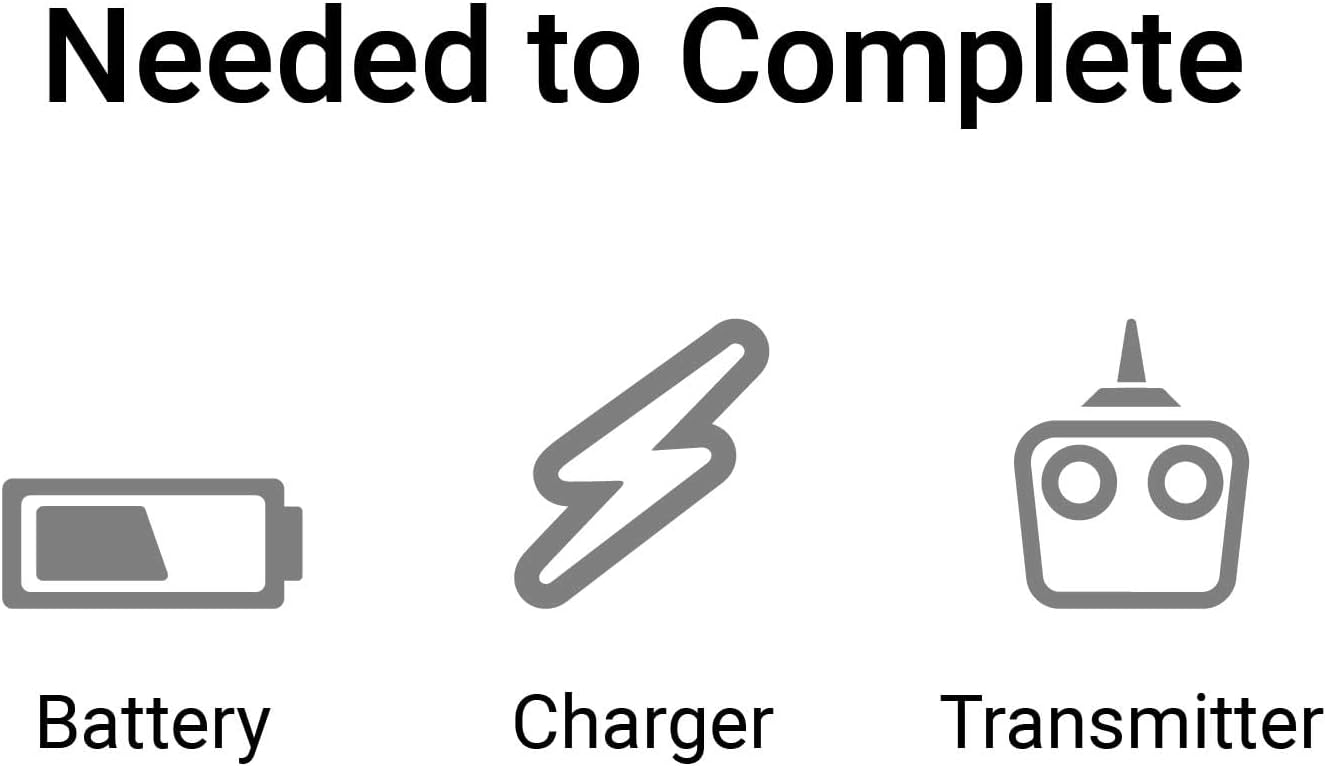

Figure 3.1: Essential components not included with the aircraft.

3.2 പ്രാരംഭ അസംബ്ലി

The E-flite Super Timber 1.7m comes largely pre-assembled. Follow the detailed instructions in the full manual for final assembly steps, which typically involve attaching wings, tail, and landing gear. Ensure all connections are secure and control surfaces move freely.

Figure 3.2: The E-flite Super Timber 1.7m aircraft.

3.3 ബാറ്ററി ഇൻസ്റ്റാളേഷൻ

Install your compatible 4S to 6S LiPo battery into the designated battery compartment, ensuring it is securely fastened to prevent shifting during flight. Connect the battery to the 85-amp Spektrum Avian Smart Lite ESC.

Figure 3.3: Securely installed battery in the compartment.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 വിമാനയാത്രയ്ക്ക് മുമ്പുള്ള പരിശോധനകൾ

ഓരോ ഫ്ലൈറ്റിനും മുമ്പ്, ഇനിപ്പറയുന്ന പരിശോധനകൾ നടത്തുക:

• Ensure all control surfaces (ailerons, elevator, rudder, flaps) move freely and correctly in response to transmitter inputs.
• Verify the battery is fully charged and securely installed.
• Check propeller for any damage and ensure it is securely attached.
• Confirm the receiver is properly bound to the transmitter.
• Inspect the landing gear for any damage or loose connections.

4.2 Flight Modes and Stability

The Spektrum AR637TA receiver with AS3X and optional SAFE Select technologies provides enhanced stability and ease of control.

Figure 4.1: AS3X and SAFE Select technologies for enhanced flight.

AS3X സാങ്കേതികവിദ്യ: Works behind the scenes to smooth out the effects of wind and turbulence, providing a stable and precise flight experience. No programming is required.

സേഫ് സെലക്ട് ടെക്നോളജി: Offers an extra margin of safety, especially for new pilots. When enabled, it provides:

• പിച്ച്, ബാങ്ക് ആംഗിൾ പരിധികൾ: Prevents excessive roll, climb, or dive angles.
• ഓട്ടോമാറ്റിക് സെൽഫ്-ലെവലിംഗ്: The aircraft returns to and holds level flight when control sticks are released.

Figure 4.2: Detailed explanation of SAFE Select features.

4.3 ടേക്ക് ഓഫും ലാൻഡിംഗും

The Super Timber 1.7m is designed for versatile takeoffs and landings, including short field operations. Utilize the flaps for shorter takeoff and landing distances.

Figure 4.3: Flaps for improved short field performance.

The robust landing gear with inflatable tires allows for operations from various surfaces.

Figure 4.4: Articulated landing gear for rough terrain.

4.4 Aerobatics and Advanced Maneuvers

The Super Timber 1.7m is capable of a wide range of aerobatic maneuvers, including inverted flight, thanks to its powerful motor and precise control surfaces.

Figure 4.5: The Super Timber performing inverted flight.

Figure 4.6: Inverted flight demonstration.

5. പരിപാലനം

Regular maintenance is crucial for the longevity and safe operation of your E-flite Super Timber 1.7m. Always inspect the aircraft before and after each flight.

• പ്രൊപ്പല്ലർ: Check for cracks, chips, or bends. Replace if any damage is found.
• നിയന്ത്രണ ഉപരിതലങ്ങൾ: Ensure hinges are intact and surfaces move freely without binding.
• മോട്ടോറും ESCയും: Check for any unusual noises or excessive heat after flights.
• ലാൻഡിംഗ് ഗിയർ: Inspect for damage, especially after rough landings.
• ബാറ്ററി: Store and charge batteries according to manufacturer guidelines.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your aircraft, consider the following common troubleshooting steps:

• Loss of Control/Unstable Flight: Re-check control surface throws, ensure battery is fully charged, and verify receiver binding. If SAFE Select is enabled, ensure it's functioning as expected.
• മോട്ടോർ കറങ്ങുന്നില്ല: Check battery connection, ESC connection to receiver, and propeller for obstructions.
• Short Flight Times: Ensure battery is fully charged and in good condition. Check for excessive drag or motor issues.
• Damaged Propeller: Replace immediately with an E-flite approved propeller to maintain performance and safety.

7 സ്പെസിഫിക്കേഷനുകൾ

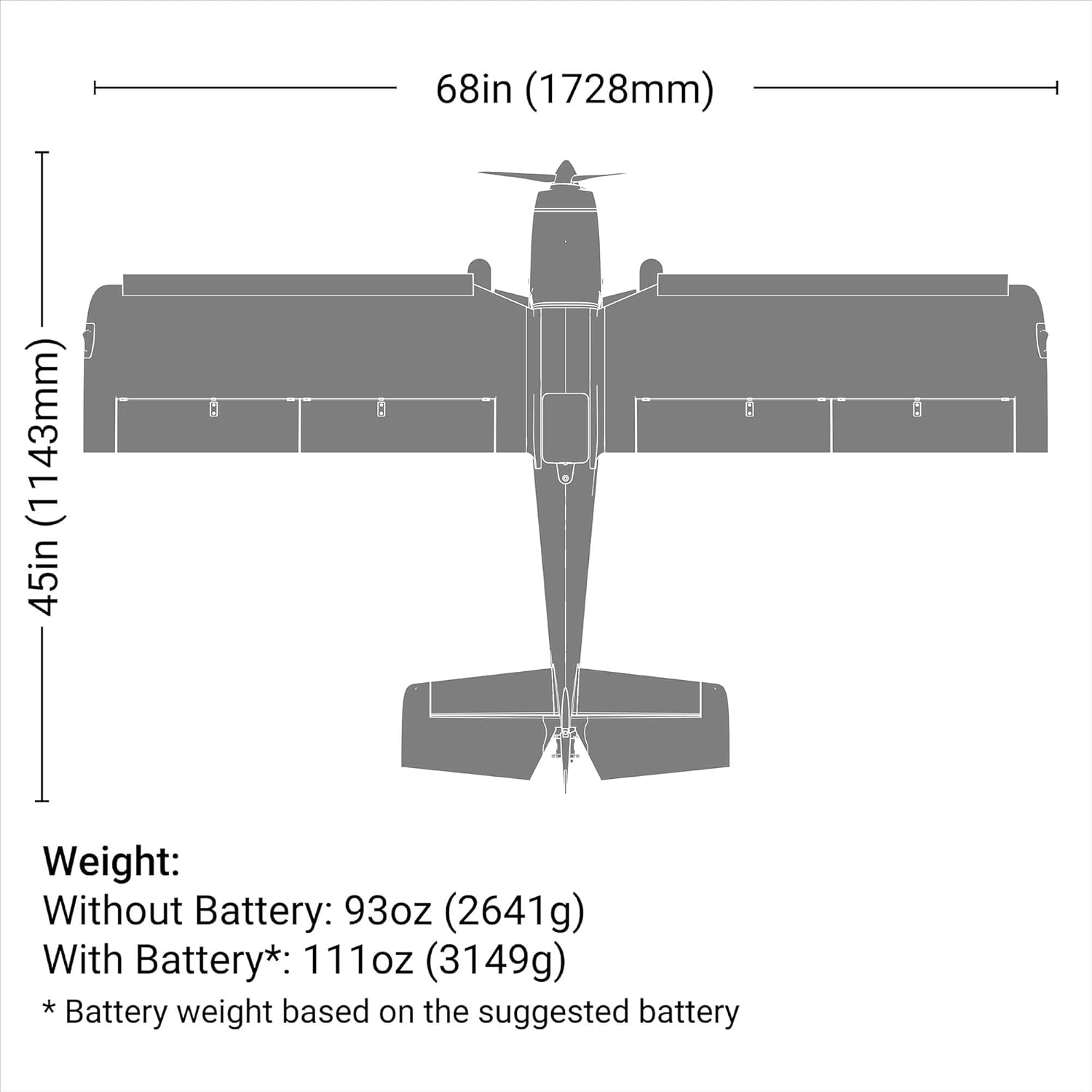

Figure 7.1: Aircraft dimensions and weight specifications.

8. ബോക്സിൽ എന്താണുള്ളത്?

The E-flite Super Timber 1.7m BNF Basic package includes:

• E-flite Super Timber 1.7m BNF Basic Aircraft
