1. ആമുഖം
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Ranein RE14K Electric Tankless Water Heater. Please read this manual thoroughly before installation and use, and retain it for future reference.
The Ranein RE14K is a 14 kW, 240V on-demand instant water heater designed for residential whole-house shower applications. It features an LED temperature display and a compact, space-saving design. Key features include:
- ഊർജ്ജ കാര്യക്ഷമത: Up to 99% thermal efficiency, saving up to 60% on heating costs compared to tank-type heaters. No preheating required.
- ശക്തമായ പ്രകടനം: Provides endless hot water with a flow rate up to 3.6 GPM, suitable for 2-3 usage points simultaneously.
- ലളിതമായ പ്രവർത്തനം: Features knob controls and an LED display for easy temperature adjustment from 86°F to 131°F in 1°F increments.
- സുരക്ഷാ സവിശേഷതകൾ: Incorporates leakage protection, overheat protection, and automatic shutdown. Heating elements are separated from water to prevent scale buildup.
2 സുരക്ഷാ വിവരങ്ങൾ
പ്രധാനപ്പെട്ടത്: Installation must be performed by a qualified electrician and plumber in accordance with all local and national electrical and plumbing codes. Failure to do so may result in property damage, serious injury, or death.
- Ensure the water heater is sized correctly for your hot water needs.
- Verify your electrical infrastructure can accommodate the power supply requirements (14 kW, 240V, 1 x 60 Amp circuit breaker).
- Do not install the unit outdoors or in areas exposed to weather.
- യൂണിറ്റ് കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
- A mandatory grounding wire must be connected for safety.
- Heating elements are separated from water to prevent scale buildup and ensure longevity.
- The unit includes leakage protection, overheat protection, and automatic shutdown features.
3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
3.1 ഇൻസ്റ്റാളേഷന് മുമ്പുള്ള പരിശോധനകൾ
Before beginning installation, confirm the following requirements:
- ശക്തി: 14 kW, 240 Volts.
- സർക്യൂട്ട് ബ്രേക്കർ: 1 x 60 Amp double-pole breaker required.
- വയർ ഗേജ്: 6 AWG (American Wire Gauge) cable required.
- ജല കണക്ഷൻ: 1/2" NPT.
- യൂണിറ്റ് അളവുകൾ: Approximately 10.7" x 14.25" x 3.22".
Ensure your home's electrical panel has sufficient space and capacity for the required breaker.
3.2 യൂണിറ്റ് മൌണ്ട് ചെയ്യുന്നു
The compact design allows for flexible installation. Ensure adequate clearance around the unit for safety and maintenance. Typically, 15 inches above and 12 inches to the side are recommended clearances.
Use the provided mounting brackets and hardware. A template may be included in the packaging to assist with drilling holes for precise placement.
3.3 പ്ലംബിംഗ് കണക്ഷനുകൾ
The unit has clearly marked inlet (blue) and outlet (red) ports for water connections. Use 1/2" NPT fittings. It is highly recommended to install isolation valves on both the hot and cold water lines for future servicing.
- Connect the cold water supply line to the blue "INLET" port.
- Connect the hot water output line to the red "OUTLET" port.
- Use Teflon tape on all threaded metal-to-metal connections to ensure a watertight seal.
3.4 ഇലക്ട്രിക്കൽ കണക്ഷനുകൾ

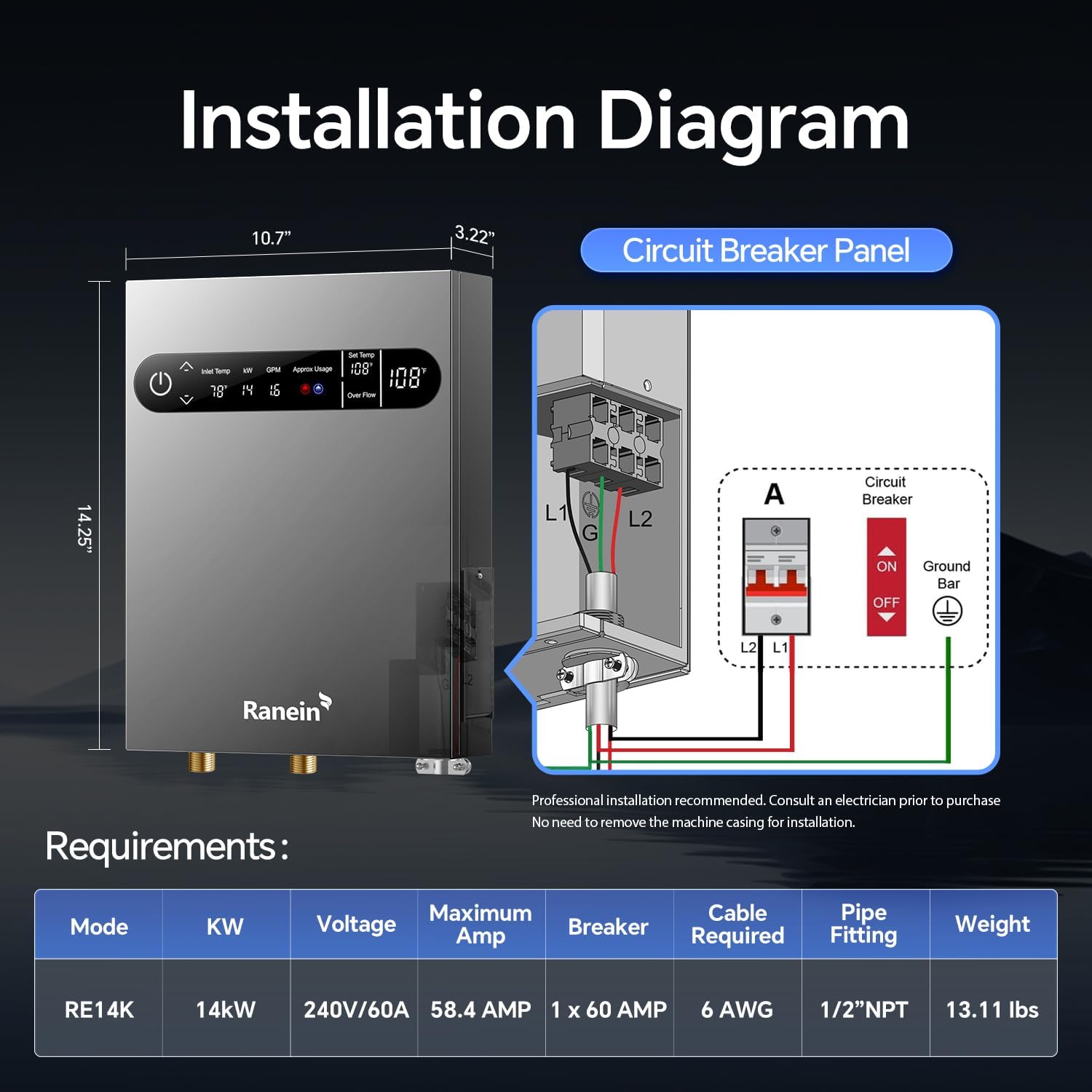

Before making any electrical connections, ensure the main power supply to the circuit breaker panel is turned OFF. The Ranein RE14K requires a 240V, 60 Amp double-pole circuit breaker and 6 AWG wiring.
- Remove the front cover of the water heater to access the wiring terminals.
- Connect the 6 AWG wires from the 60 Amp double-pole breaker to the designated terminals inside the unit.
- Ensure a mandatory grounding wire is properly connected.
- എല്ലാ കണക്ഷനുകളും ദൃഢമായി ഉറപ്പിക്കുക.
- Replace the front cover once wiring is complete.
3.5 Initial Startup and Flushing
Before turning on the electrical power, ensure all plumbing connections are secure and open the cold water supply valve. Run water through the hot water faucets for at least one minute to purge any air from the system. This prevents damage to the heating elements.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once installed and flushed, your Ranein RE14K water heater is ready for operation.
4.1 താപനില നിയന്ത്രണം
- പവർ ഓൺ/ഓഫ്: Click the control knob to turn the unit on or off.
- താപനില ക്രമീകരിക്കുക: Rotate the knob to adjust the desired water temperature. The temperature range is 86°F to 131°F (30°C to 55°C), adjustable in 1°F increments.
- യൂണിറ്റുകൾ മാറുക: To switch between Fahrenheit (°F) and Celsius (°C) display, press and hold the knob for 3 seconds.
- The LED display will show the set temperature and other operational data.
4.2 Usage Points
With a flow rate of up to 3.6 GPM, the RE14K is suitable for providing hot water to 2-3 usage points simultaneously, such as a shower and a sink, or two sinks.
5. പരിപാലനം
The Ranein RE14K is designed for low maintenance. The heating elements are separated from the water flow, which helps prevent scale buildup and corrosion, extending the unit's lifespan.
- Regularly inspect water connections for any signs of leakage.
- Ensure the area around the water heater remains clear of obstructions for proper ventilation.
- If the unit is to be left unused for an extended period in freezing temperatures, ensure proper winterization procedures are followed to prevent damage.
6. പ്രശ്നപരിഹാരം
For specific troubleshooting steps, please refer to the detailed troubleshooting section in the printed manual included with your product. Common issues may include:
- No hot water: Check power supply, circuit breaker, and water flow.
- Insufficient hot water: Verify correct temperature setting and ensure flow rate is within specifications for simultaneous usage.
- Error codes on LED display: Consult the manual for specific code meanings and resolutions.
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| ബ്രാൻഡ് | റാനൈൻ |
| മോഡൽ നമ്പർ | RE14K |
| പവർ ഉറവിടം | കോർഡഡ് ഇലക്ട്രിക് |
| വാല്യംtage | 240 വോൾട്ട് |
| വാട്ട്tage | 14 കെ.ഡബ്ല്യു |
| സർക്യൂട്ട് ബ്രേക്കർ ആവശ്യമാണ് | 1 x 60 Amp ഇരട്ട-ധ്രുവം |
| Wire Gauge Required | 6 AWG |
| വാട്ടർ കണക്ഷൻ | 1/2" NPT |
| താപനില പരിധി | 86°F - 131°F (30°C - 55°C) |
| Flow Rate (Max) | 3.6 GPM |
| താപ കാര്യക്ഷമത | 99% വരെ |
| ഉൽപ്പന്ന അളവുകൾ | 34.2 x 34.2 x 52.5 സെ.മീ (10.7" x 14.25" x 3.22") |
| ഇനത്തിൻ്റെ ഭാരം | 5.44 കി.ഗ്രാം (12 പൗണ്ട്) |
| മെറ്റീരിയൽ | ഇരുമ്പ് |
| ഇൻസ്റ്റലേഷൻ രീതി | മതിൽ ഘടിപ്പിച്ചത് |
| പ്രത്യേക സവിശേഷതകൾ | Overheat Protection, Leakage Protection, Automatic Shutdown |
8. വാറൻ്റിയും പിന്തുണയും
Specific warranty details for the Ranein RE14K Electric Tankless Water Heater are typically provided in the product packaging or on the manufacturer's official website. Please refer to the documentation included with your purchase for comprehensive warranty information and contact details for customer support.
For technical assistance or service inquiries, please contact Ranein customer support. Contact information can usually be found in your product manual or on the Ranein brand store page.
