Amazon Signage Stick User Manual

ആമുഖം

The Amazon Signage Stick is a professional-grade digital signage media player designed for a wide range of businesses and applications. It offers premier signage performance, supporting 4K video streaming and playback with high-bandwidth WiFi 6E connectivity. This device is engineered for unattended operation, automatically launching content management software in kiosk mode to maximize uptime.

It integrates seamlessly with over 25 leading Content Management Software (CMS) providers, requiring a separate CMS subscription. The Amazon Signage Stick is built to scale, allowing easy expansion across multiple displays and locations by using one stick per screen. Security is a core feature, with a secure boot loader, data encryption, and regular updates ensuring smooth and safe operation.

Image: The Amazon Signage Stick, a compact black device, is shown alongside its accompanying remote control. The stick features an HDMI connector and a micro-USB port, while the remote has standard navigation and playback buttons.

സജ്ജീകരണ ഗൈഡ്

Setting up your Amazon Signage Stick is designed to be straightforward, requiring minimal technical expertise.

1. ഹാർഡ്‌വെയർ കണക്ഷൻ

1. Connect the Signage Stick: Plug the Amazon Signage Stick directly into an available HDMI input on your display or TV.
2. പവർ ഓൺ: Connect the included power adapter to the micro-USB port on the Signage Stick and then plug it into a power outlet.
3. ഇൻപുട്ട് തിരഞ്ഞെടുക്കുക: Switch your display's input source to the HDMI port where the Signage Stick is connected.

ചിത്രം: ഒരു ക്ലോസ്-അപ്പ് view of the Amazon Signage Stick plugged into the HDMI port on the side of a display, illustrating its compact form factor when installed.

2. പ്രാരംഭ ഉപകരണ സജ്ജീകരണം

Upon first power-on, the device will guide you through the initial setup process.

• റിമോട്ട് ജോടിയാക്കൽ: If prompted, pair the remote control by holding the Home button for at least 12 seconds until the LED flashes. If issues persist, unplug the Signage Stick and plug it back in.
• നെറ്റ്വർക്ക് കണക്ഷൻ: Follow the on-screen instructions to connect your Signage Stick to your Wi-Fi network. For Wi-Fi 6E support, a compatible Wi-Fi 6E router is required.

3. Using the Amazon Signage App (Recommended)

The new Amazon Signage app simplifies the setup and monitoring of multiple Signage Sticks, eliminating the need for remotes for initial setup.

• ആപ്പ് ഡൗൺലോഡ് ചെയ്യുക: Download the "Amazon Signage" app on your mobile phone.
• ആപ്പ് വഴി കണക്റ്റുചെയ്യുക: Use the app to connect your Signage Stick to your Wi-Fi network and complete the initial registration. This method is often more reliable than manual remote input, especially for complex Wi-Fi passwords or hidden networks.
• Monitor Devices: The app provides a centralized dashboard to monitor all your Signage Sticks.

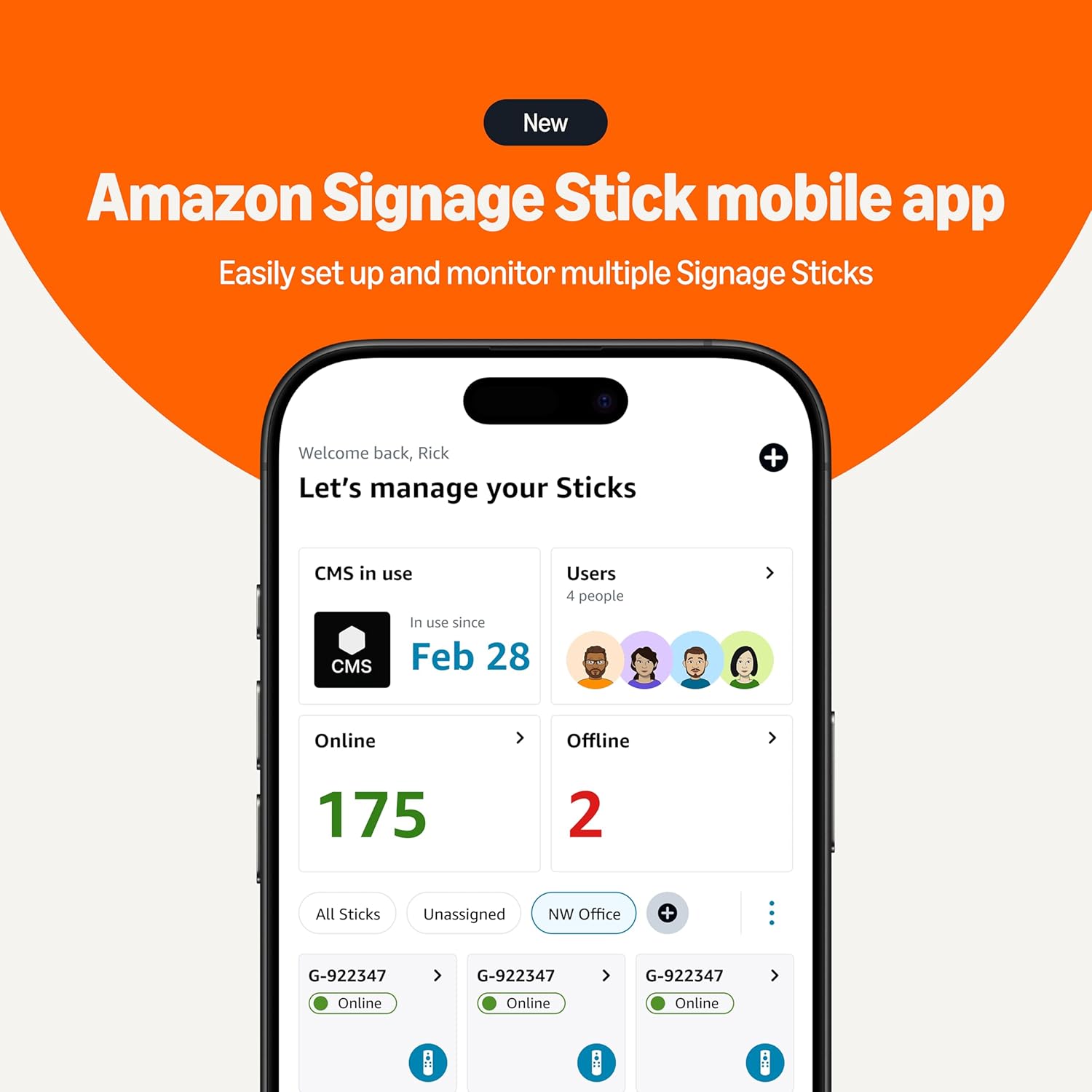

Image: A smartphone screen displaying the new Amazon Signage Stick mobile app interface, showing a dashboard to manage and monitor multiple Signage Sticks, indicating online and offline status.

4. CMS Integration

Once connected to the internet, the Signage Stick will prompt you to integrate with your chosen Content Management Software (CMS).

• Select CMS: Choose your preferred CMS from the list of supported providers.
• രജിസ്ട്രേഷൻ: Follow the on-screen instructions or your CMS provider's guide to register the Signage Stick with your CMS account. This typically involves entering a code displayed on the screen into your CMS dashboard.

ചിത്രം: ഒരു സമഗ്രമായ view of the Amazon Signage ecosystem, featuring a large display showing digital signage content, a desktop computer displaying the CMS selection interface, the Amazon Signage Stick remote, and a smartphone running the Amazon Signage app.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The Amazon Signage Stick is designed for continuous, unattended operation once configured with your CMS.

• ഉള്ളടക്ക പ്ലേബാക്ക്: The device will automatically download and play content scheduled through your integrated CMS.
• കിയോസ്‌ക് മോഡ്: The Signage Stick operates in kiosk mode, ensuring that only your digital signage content is displayed, preventing unauthorized access or changes.
• 4K വീഡിയോ സ്ട്രീമിംഗ്: For 4K content playback, ensure you have a compatible 4K-resolution display, a CMS that supports 4K, and 4K content.
• റിമോട്ട് മാനേജ്മെൻ്റ്: Manage and update your content remotely through your CMS dashboard. The Amazon Signage app also allows for monitoring device status.

മെയിൻ്റനൻസ്

The Amazon Signage Stick requires minimal physical maintenance. Regular software updates are crucial for optimal performance and security.

• സോഫ്റ്റ്‌വെയർ അപ്‌ഡേറ്റുകൾ: The device receives regular software security updates automatically. Ensure your device is connected to the internet to receive these updates, which keep the signage safe and running smoothly.
• വൃത്തിയാക്കൽ: Periodically, gently wipe the exterior of the device with a soft, dry cloth to remove dust. Do not use liquid cleaners or abrasive materials.
• വെൻ്റിലേഷൻ: Ensure the device is placed in an area with adequate ventilation to prevent overheating, although it is designed for long hours of operation.

ട്രബിൾഷൂട്ടിംഗ്

This section addresses common issues you might encounter with your Amazon Signage Stick.

• ഉപകരണം പവർ ചെയ്യുന്നില്ല:
  • Ensure the power adapter is securely connected to the Signage Stick and the power outlet.
  • പവർ ഔട്ട്‌ലെറ്റ് പ്രവർത്തനക്ഷമമാണോയെന്ന് പരിശോധിക്കുക.
• ഡിസ്പ്ലേ/കറുത്ത സ്ക്രീൻ ഇല്ല:
  • Check that the Signage Stick is fully inserted into the HDMI port of your display.
  • നിങ്ങളുടെ ഡിസ്പ്ലേ ശരിയായ HDMI ഇൻപുട്ട് ഉറവിടത്തിലേക്ക് സജ്ജീകരിച്ചിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
  • Verify your display supports HDCP requirements for protected content playback.
• റിമോട്ട് കൺട്രോൾ പ്രതികരിക്കുന്നില്ല:
  • റിമോട്ട് കൺട്രോളിൽ AAA ബാറ്ററികൾ മാറ്റിസ്ഥാപിക്കുക.
  • To re-pair the remote, hold the Home button for at least 12 seconds. If unsuccessful, unplug the Signage Stick from power, wait a few seconds, and plug it back in, then try pairing again.
• Wi-Fi കണക്ഷൻ പ്രശ്നങ്ങൾ:
  • നിങ്ങളുടെ വൈഫൈ നെറ്റ്‌വർക്ക് സജീവമാണെന്നും പരിധിക്കുള്ളിലാണെന്നും ഉറപ്പാക്കുക.
  • വൈഫൈ പാസ്‌വേഡ് രണ്ടുതവണ പരിശോധിക്കുക.
  • If using a hidden network or encountering issues with password input via remote, consider using the Amazon Signage app for network setup.
  • Restart your Wi-Fi router and the Signage Stick.
• CMS Registration Failure / Setup Loop:
  • If the QR code scan for registration fails, try manual registration by entering the code displayed on the screen into your CMS console.
  • If the device enters a setup loop or states "failed to complete setup," a factory reset may be necessary. This will require re-registering with your CMS and re-configuring Wi-Fi.
• Content Not Displaying / Lagging:
  • Verify your CMS is correctly configured and content is scheduled.
  • നിങ്ങളുടെ ഇന്റർനെറ്റ് കണക്ഷൻ വേഗത പരിശോധിക്കുക.
  • Ensure your content format is supported by the Signage Stick.
  • For 4K content, confirm your display and CMS support 4K.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

Your Amazon Signage Stick comes with a 1 വർഷത്തെ പരിമിതമായ വാറണ്ടിയും സേവനവും. For detailed terms and conditions, please refer to the official Amazon product page or contact Amazon customer support.

സോഫ്റ്റ്‌വെയർ സുരക്ഷാ അപ്‌ഡേറ്റുകൾ: This device is guaranteed to receive software security updates for at least three years from its last availability for purchase as a new unit on Amazon websites. These updates are crucial for maintaining the security and functionality of your device.

കൂടുതൽ സഹായം, ട്രബിൾഷൂട്ടിംഗ് അല്ലെങ്കിൽ വാറന്റി ക്ലെയിമുകൾ എന്നിവയ്ക്കായി, ദയവായി ആമസോൺ പിന്തുണ സന്ദർശിക്കുക webസൈറ്റ് സന്ദർശിക്കുക അല്ലെങ്കിൽ ആമസോൺ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുക.
