ആമുഖം
Thank you for choosing the toocki 140W 5-Port GaN USB C Charging Station. This device is designed to provide efficient and safe charging for multiple electronic devices simultaneously. Featuring advanced GaN technology and a digital display, it offers a compact and powerful charging solution for home, office, and travel.
സുരക്ഷാ വിവരങ്ങൾ
Please read all safety instructions before using this product to prevent injury or damage.
- Do not expose the device to liquids, extreme temperatures, or direct sunlight.
- ഉപകരണം ഡിസ്അസംബ്ലിംഗ് ചെയ്യുകയോ പരിഷ്കരിക്കുകയോ നന്നാക്കാൻ ശ്രമിക്കുകയോ ചെയ്യരുത്.
- Use only compatible cables and power sources.
- കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
- The charger features built-in safeguards against overcharging, overheating, and short circuits to ensure reliable and safe charging.
Image: The toocki 140W charger highlighting its 8-Point Safety System, including protections against over-temp, over-current, over-voltage, over-charge, short circuit, electric shock, fireproof material, and smart IC chip protection.
Image: The toocki 140W charging station on a nightstand, charging a tablet and a smartphone, illustrating its safe operation for daily use.
പാക്കേജ് ഉള്ളടക്കം
പായ്ക്ക് അൺപാക്ക് ചെയ്യുമ്പോൾ, എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:
- 1 x toocki 140W 5-Port GaN USB C Charging Station
- 1 x 5FT (1.5m) AC Extension Cable
- 1 x ഉപയോക്തൃ ഗൈഡ് (ഈ പ്രമാണം)
ഉൽപ്പന്നം കഴിഞ്ഞുview
The toocki 140W Charging Station is a compact and powerful device designed to streamline your charging needs. It features multiple ports and a digital display for real-time wattagഇ നിരീക്ഷണം.

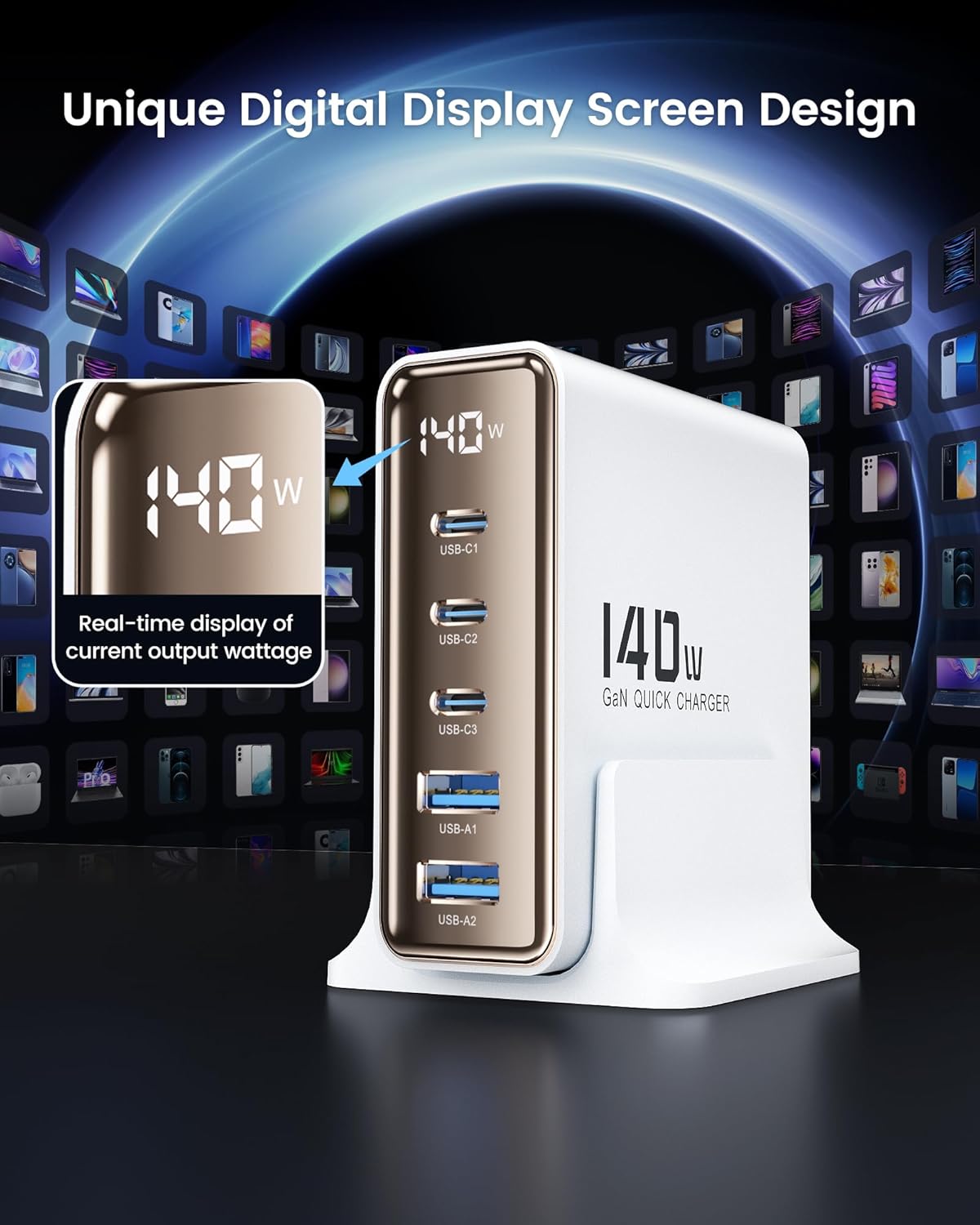

Image: Close-up of the toocki 140W charging station, highlighting its unique digital display screen that shows real-time current output wattage.
Image: A visual comparison demonstrating the compact size of the toocki 140W 5-Port Fast Charging Station versus several individual power adapters and a power strip, emphasizing its travel-sized and compact design.
Image: Before and after images illustrating how the toocki 140W charging station helps reduce desktop clutter by consolidating multiple chargers into one device.
Image: A hand holding the toocki 140W charging station, demonstrating its compact and portable design, making it convenient to carry anywhere.
Image: The toocki 140W charging station connected to a laptop via its 5ft (1.5m) detachable extension cord, illustrating its versatility for various charging needs.
Image: A woman comfortably using her laptop with the toocki 140W charging station positioned conveniently, emphasizing a comfortable charging environment for daily use.
സജ്ജമാക്കുക
- എസി പവർ കേബിൾ ബന്ധിപ്പിക്കുക: Insert the provided 5FT AC extension cable into the power input port of the charging station.
- Plug into a Wall Outlet: Connect the other end of the AC power cable to a standard wall outlet.
- നിങ്ങളുടെ ഉപകരണങ്ങൾ ബന്ധിപ്പിക്കുക: Use appropriate USB-C or USB-A cables to connect your devices to the available ports on the charging station.
Video: An unboxing and setup demonstration of a GaN PD fast charger station, showing how to connect the power cable and plug in multiple devices for charging.
Video: A demonstration of connecting various devices to a fast charging station, highlighting its multi-port capabilities for simultaneous charging.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The toocki 140W Charging Station is designed for ease of use. Once connected, it intelligently distributes power to your devices.
- ഡിജിറ്റൽ ഡിസ്പ്ലേ: The integrated LED display shows the real-time wattage being delivered to your connected devices. This allows you to monitor charging status at a glance.
- ഒരേസമയം ചാർജിംഗ്: The station is equipped with 3 USB-C ports and 2 USB-A ports, allowing you to charge up to 5 devices concurrently.
- ഫാസ്റ്റ് ചാർജിംഗ്: When a single USB-C device is connected, it can receive up to 100W of power. This enables rapid charging for compatible laptops and smartphones.

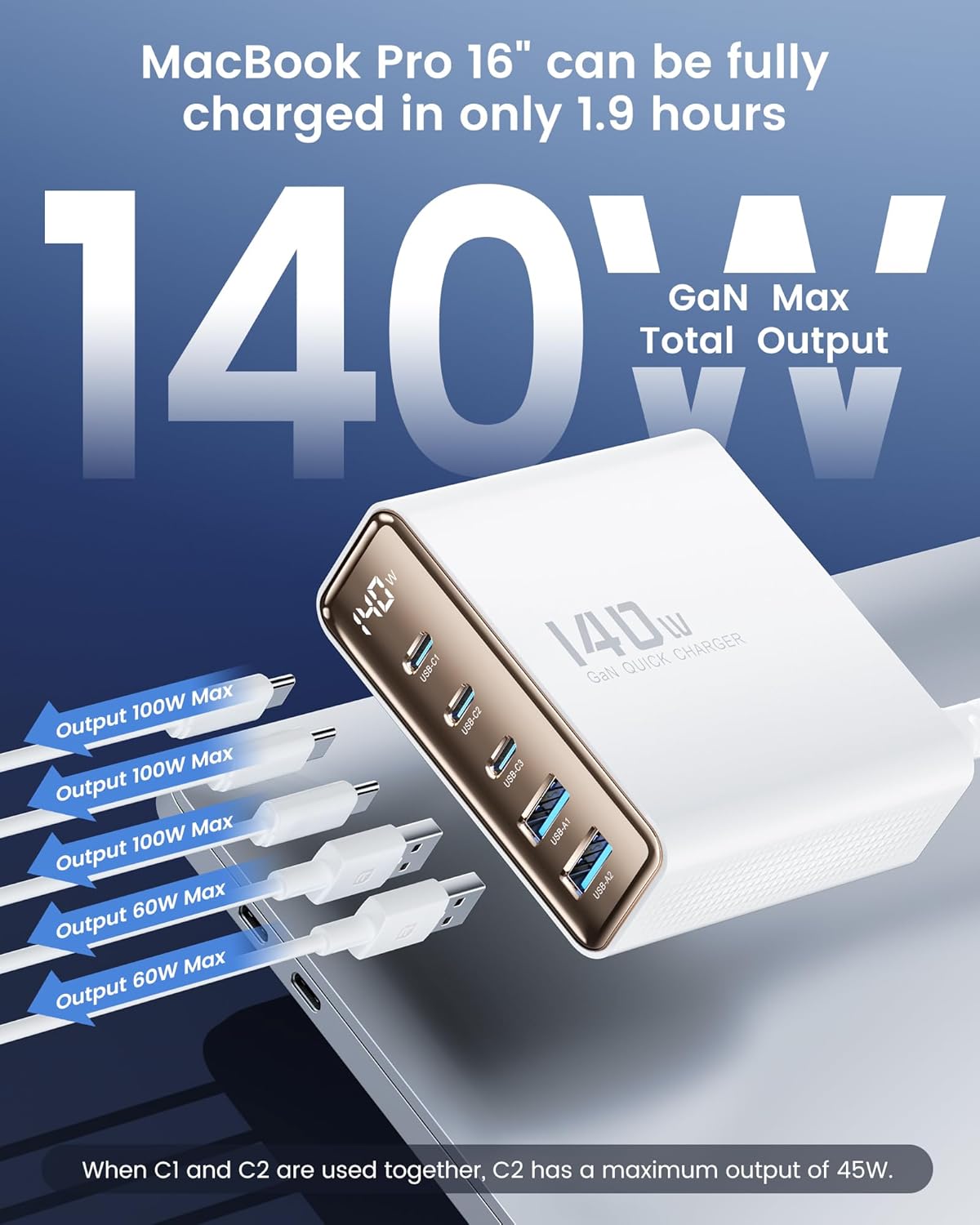

Image: The toocki 140W charging station with multiple cables connected to its USB-C and USB-A ports, illustrating the individual maximum output for each port (100W Max for C1/C2/C3, 60W Max for A1/A2).
Image: The toocki 140W charging station connected to a MacBook Pro 14-inch, demonstrating 100W charging capability and showing a 0-55% charge in 30 minutes.
Image: The toocki 140W charging station simultaneously charging a laptop, tablet, smartphone, and earbuds, showcasing its ability to fast charge 5 devices at once.
Image: The toocki 140W charging station connected to a MacBook Pro 14-inch, illustrating PD 100W charging for USB-C ports C1, C2, and C3, achieving 60% charge in 30 minutes.
Image: The toocki 140W charging station connected to a laptop, smartwatch, earbuds, and two smartphones, demonstrating high-efficiency simultaneous charging for up to 5 devices.
Image: The toocki 140W charging station simultaneously charging two laptops, showing power distribution of 95W and 45W.
Image: The toocki 140W charging station simultaneously charging a laptop, tablet, and smartphone, showing power distribution of 65W, 45W, and 30W.
പവർ ഔട്ട്പുട്ട് വിശദാംശങ്ങൾ
The charging station intelligently adjusts power output based on connected devices and port usage. Below are typical output configurations:
സിംഗിൾ പോർട്ട് ഔട്ട്പുട്ട്
Image: Diagram illustrating the maximum power output when only one port is in use: USB-C1, USB-C2, or USB-C3 can deliver up to 100W; USB-A1 or USB-A2 can deliver up to 60W.
Dual Port Output
Image: Diagram illustrating various power output combinations when two ports are in use, showing intelligent power distribution (e.g., 95W + 45W, 100W + 36W).
Three Port Output
Image: Diagram illustrating various power output combinations when three ports are in use, showing intelligent power distribution (e.g., 100W + 12W + 12W, 65W + 45W + 30W).
Four Port Output
Image: Diagram illustrating various power output combinations when four ports are in use, showing intelligent power distribution (e.g., 65W + 45W + 12W + 12W, 60W + 45W + 20W + 25W).
Five Port Output
Image: Diagram illustrating the power output when all five ports are in use: USB-C1 (65W), USB-C2 (30W), USB-C3 (20W), USB-A1 (12W), and USB-A2 (12W), demonstrating smart matching for flexible and efficient charging.
അനുയോജ്യത
The toocki 140W Charging Station offers versatile compatibility with a wide range of devices:
- ലാപ്ടോപ്പുകൾ: MacBook Pro 13''/15''/16", MacBook Air, MacBook 12'', Dell XPS, ThinkPad, and more.
- സ്മാർട്ട്ഫോണുകൾ: iPhone 16/15/14/13 Series, Galaxy S23 Ultra/S23/S22/S21 Series, Google Pixel, and more.
- ഗുളികകൾ: iPad Pro/Air/Mini Series.
- മറ്റു ഉപകരണങ്ങൾ: Game Consoles (Nintendo Switch, Steam Deck), Smartwatches, Headphones (Airpods), etc.
Image: The toocki 140W charger surrounded by various compatible devices, including iPhone (30W), MacBook Pro 16" (100W), Galaxy Series (25W), MacBook Pro 13"/14" (65W), Switch/Steam Deck, and Dell Laptop (45W).
Image: The toocki 140W charger with a detailed compatibility list for various phones (iPhone 8-15, Galaxy S9-S24, Google/Sharp/Sony, Xiaomi/Huawei), tablets (iPad Pro/Air/Mini), laptops (MacBook Pro/Air, Dell XPS, Microsoft Surface), and other devices (AirPods, Switch, Smartwatches).
മെയിൻ്റനൻസ്
- വൃത്തിയാക്കൽ: Disconnect the charger from the power outlet before cleaning. Use a dry, soft cloth to wipe the surface. Do not use liquid cleaners.
- സംഭരണം: ഉപയോഗിക്കാത്തപ്പോൾ നേരിട്ട് സൂര്യപ്രകാശം ഏൽക്കാത്തതും ഈർപ്പമുള്ളതുമായ ഒരു തണുത്ത, വരണ്ട സ്ഥലത്ത് ചാർജർ സൂക്ഷിക്കുക.
ട്രബിൾഷൂട്ടിംഗ്
- ഉപകരണം ചാർജ് ചെയ്യുന്നില്ല: Ensure the charging station is properly plugged into a live wall outlet. Verify that the charging cable is securely connected to both the charger and your device. Check if your device is compatible with the port it's connected to.
- വേഗത കുറഞ്ഞ ചാർജിംഗ്: Ensure you are using a high-quality cable that supports fast charging. The total power output is 140W; if multiple high-power devices are connected, the power may be distributed, resulting in slower charging for individual devices. Refer to the 'Power Output Details' section for specific port outputs.
- ഡിജിറ്റൽ ഡിസ്പ്ലേ പ്രവർത്തിക്കുന്നില്ല: Ensure the charger is powered on and connected to a device. If the issue persists, try a different wall outlet.
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | ടൂക്കി |
| മോഡൽ | TCT140-22 |
| ആകെ വാട്ട്tage | 140W പരമാവധി |
| USB-C പോർട്ടുകൾ | 3 (USB-C1/C2/C3) |
| USB-A പോർട്ടുകൾ | 2 (USB-A1/A2) |
| USB-C ഔട്ട്പുട്ട് (സിംഗിൾ പോർട്ട്) | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (100W പരമാവധി) |
| USB-A ഔട്ട്പുട്ട് (സിംഗിൾ പോർട്ട്) | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A (60W പരമാവധി) |
| ഇൻപുട്ട് | 100-240V~50/60Hz 2.5A Max |
| അളവുകൾ | 82mm x 60mm x 31mm (ഏകദേശം) |
| മെറ്റീരിയൽ | Aluminum (housing) |
| പ്രത്യേക സവിശേഷതകൾ | Digital Display, GaN Technology, Fast Charging, Lightweight Design, Short Circuit Protection, Travel-friendly |

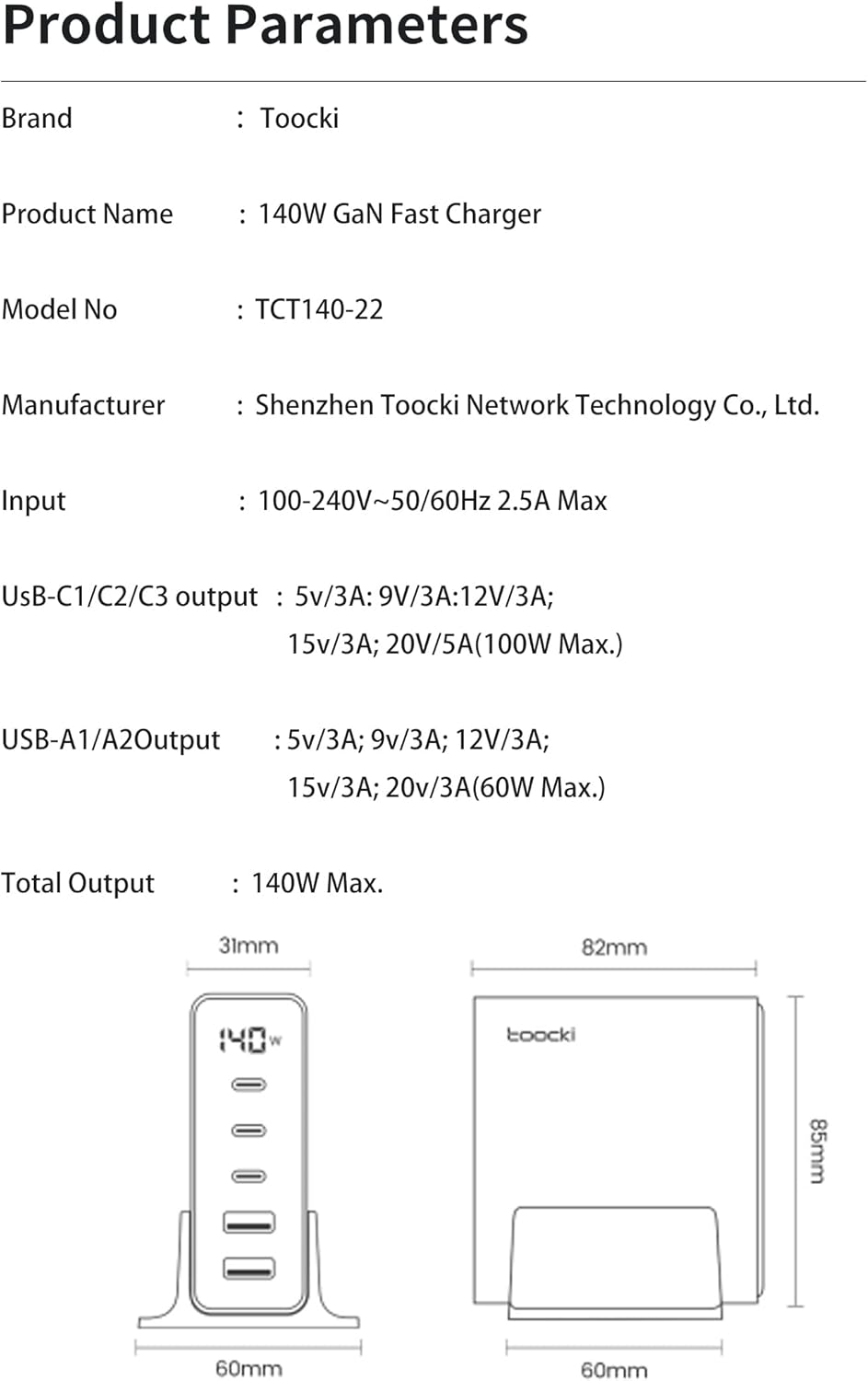

Image: A table detailing the product parameters including brand, product name, model number, manufacturer, input, USB-C/C2/C3 output, USB-A1/A2 output, and total output. Also includes diagrams showing the dimensions of the charging station.
വാറൻ്റിയും പിന്തുണയും
Your toocki 140W 5-Port GaN USB C Charging Station comes with a 12-month service period, covering refunds or replacements. For any questions or assistance, please contact our customer support team. We are available 24/7 and committed to resolving your issues within 24 hours.
പിന്തുണയ്ക്കായി, ദയവായി സന്ദർശിക്കുക: toocki Store on Amazon
