KKnoon HHXE25381-2 Tuya WiFi 4-in-1 എയർ ക്വാളിറ്റി മോണിറ്റർ യൂസർ മാനുവൽ

1. ആമുഖം

The KKnoon HHXE25381-2 is a versatile 4-in-1 environmental air quality detector designed for household and various indoor environments. This device integrates the detection of decibel levels, carbon dioxide (CO2) concentration, temperature, and humidity into a single, wall-mountable unit. It features a large LED display with adjustable brightness and a user-friendly interface, including color-coded indicators for air quality.

Key functionalities include automatic data measurement, CO2 auto-calibration for accuracy, and an over-limit alarm system with customizable thresholds and alarm sound control. For enhanced convenience, an optional Tuya APP function allows for remote monitoring of environmental data via a mobile device.

2. പാക്കേജ് ഉള്ളടക്കം

• 1 x KKnoon HHXE25381-2 Air Quality Monitor
• 1 x USB ചാർജിംഗ് കേബിൾ
• 1 x ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

The device features a clear LED display that simultaneously shows decibel levels, CO2 concentration, temperature, and humidity. Indicators such as signal strength, battery status, and Wi-Fi connectivity are also present. The back of the device includes mounting holes for wall installation and ventilation grilles for sensor operation.

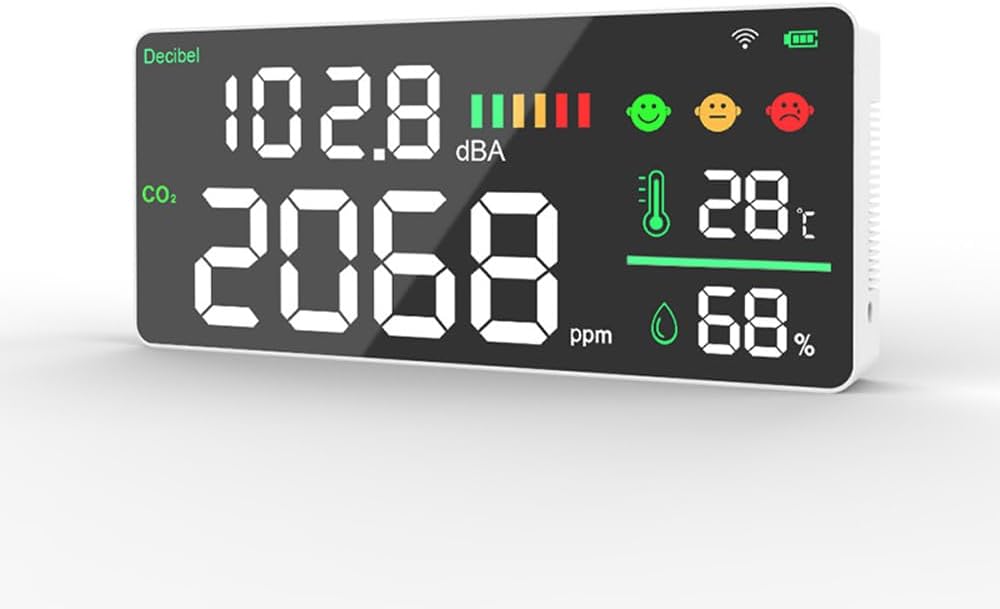

ചിത്രം 3.1: മുൻഭാഗം view of the monitor displaying environmental data.

ചിത്രം 3.2: പിൻഭാഗം view of the monitor, highlighting wall mounting points.

4 സ്പെസിഫിക്കേഷനുകൾ

5. സജ്ജീകരണം

5.1 ഉപകരണം ചാർജ് ചെയ്യുന്നു

Before first use, fully charge the device using the provided USB charging cable. Connect the cable to the device's charging port and a standard USB power adapter (not included). The battery indicator on the display will show charging status.

5.2 പവർ ഓൺ/ഓഫ്

Press and hold the power button (location typically on the side or back) for a few seconds to turn the device on or off. The LED display will illuminate upon power-on.

5.3 വാൾ മൗണ്ടിംഗ്

The device is designed for wall-mounted installation. Use appropriate screws and wall anchors (not included) to secure the device to a wall using the mounting holes on the back. Ensure the device is placed in a location free from obstructions to allow for accurate air circulation and sensor readings.

ചിത്രം 5.1: ഉദാample of the monitor mounted on a wall.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

6.1 ഡിസ്പ്ലേ മനസ്സിലാക്കുന്നു

The LED display provides real-time readings for:

• Decibel (dB): Sound level in decibels.
• CO2 (ppm): Carbon Dioxide concentration in parts per million.
• Temperature (℃): Ambient temperature in Celsius.
• ഈർപ്പം (%): ആപേക്ഷിക ആർദ്രത ശതമാനംtage.

The display also features color-coded smiley patterns to visually indicate the general air quality status, changing from green (good) to yellow (moderate) to red (poor) based on detected levels.

6.2 Adjusting LED Brightness

The LED screen brightness can be manually adjusted to suit different lighting conditions. Refer to the device's physical buttons (usually labeled 'Brightness' or indicated by an icon) to cycle through brightness levels.

6.3 CO2 Auto-Calibration

The device is equipped with an automatic CO2 calibration function to maintain measurement accuracy. For optimal performance, ensure the device is exposed to fresh outdoor air periodically, or follow specific instructions in the device's menu for manual calibration if available.

6.4 Setting CO2 Alarm Thresholds

The device provides an automatic alarm when CO2 levels exceed a preset threshold. You can manually adjust this threshold between 800ppm and 2000ppm. Consult the device's menu or control buttons for instructions on how to access and modify this setting.

6.5 Alarm Sound Control

The audible alarm can be manually turned on or off. This allows customization based on user preference and environment. Locate the dedicated button or menu option for alarm sound control.

7. Tuya APP Control (Optional)

For models equipped with Tuya WiFi functionality, the device can be connected to the Tuya Smart mobile application. This allows you to view real-time measurement data, receive alerts, and potentially control certain device settings remotely.

7.1 Connecting to Tuya APP

1. Download the 'Tuya Smart' app from your mobile device's app store (iOS or Android).
2. നിങ്ങളുടെ Tuya അക്കൗണ്ടിൽ രജിസ്റ്റർ ചെയ്യുക അല്ലെങ്കിൽ ലോഗിൻ ചെയ്യുക.
3. Ensure your device is powered on and in pairing mode (refer to device display for Wi-Fi icon or pairing indicator).
4. In the Tuya Smart app, tap '+' to add a new device. Follow the on-screen instructions to connect the air quality monitor to your home Wi-Fi network.
5. കണക്റ്റുചെയ്‌തുകഴിഞ്ഞാൽ, നിങ്ങൾക്ക് കഴിയും view environmental data and manage settings within the app.

Figure 7.1: Monitor showing Wi-Fi and Tuya connectivity indicators.

8. പരിപാലനം

8.1 വൃത്തിയാക്കൽ

Wipe the device's exterior with a soft, dry cloth. Do not use abrasive cleaners, solvents, or immerse the device in water. Ensure the ventilation grilles on the back are free from dust and debris to maintain accurate sensor readings.

8.2 ബാറ്ററി കെയർ

To prolong battery life, avoid fully discharging the device frequently. Charge the device when the battery indicator is low. If storing the device for an extended period, charge it to approximately 50% and recharge every few months.

9. പ്രശ്‌നപരിഹാരം

9.1 ഉപകരണം ഓണാകുന്നില്ല

• Ensure the device is fully charged. Connect it to a power source using the USB cable.
• കുറച്ച് സെക്കൻഡ് നേരത്തേക്ക് പവർ ബട്ടൺ അമർത്തിപ്പിടിക്കുക.

9.2 കൃത്യമല്ലാത്ത വായനകൾ

• CO2: Ensure the device has been exposed to fresh air for auto-calibration. Avoid placing it near strong air currents, vents, or direct sources of CO2 (e.g., breathing directly on it).
• താപനില/ഈർപ്പം: Ensure the device is not in direct sunlight, near heat sources, or in areas with extreme temperature fluctuations.
• ഡെസിബെൽ: മൈക്രോഫോൺ തടസ്സപ്പെട്ടിട്ടില്ലെന്ന് ഉറപ്പാക്കുക.

9.3 Alarm Not Functioning

• Check if the alarm sound is enabled in the device settings.
• Verify that the CO2 alarm threshold is set correctly and that current CO2 levels exceed this threshold.

9.4 Tuya APP Connectivity Issues

• Ensure your Wi-Fi network is 2.4GHz (5GHz networks are typically not supported by smart home devices).
• Check that your Wi-Fi signal is strong where the device is located.
• Restart the device and attempt the pairing process again.
• Ensure your mobile device is connected to the same Wi-Fi network during the pairing process.

10. വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please refer to the documentation provided at the time of purchase or visit the official KKnoon webസൈറ്റ്. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്ക് വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
