1. ആമുഖം
Thank you for choosing the Steelmate 986X Motorcycle 2-Way Alarm System. This system is designed to provide advanced security and convenience features for your motorcycle, including anti-theft protection and remote engine starting capabilities. Please read this manual thoroughly before installation and operation to ensure proper use and to maximize the system's benefits.
2. ഉൽപ്പന്ന സവിശേഷതകൾ
- 2-Way Communication (Remote Monitoring): The system notifies the remote control of any abnormalities detected on the motorcycle. Transmission range is approximately 150 meters, and reception range is up to 1000 meters.
- Security/Anti-theft Function: Features a siren and blinker alarm. An initial shock triggers a light warning sound. If a second shock is detected within 15 seconds, a full alarm activates, including a 15-second siren, blinker flashing, and engine lock. The remote control also receives a notification.
- Engine Starter Function: Allows remote starting of the engine, ideal for warming up the motorcycle before use.
- Hijack Prevention Function: Enables forced engine shutdown. Pressing the stop button will trigger an alarm after 10 seconds, followed by engine cessation.
- High-Sensitivity Shock Sensor: Integrated shock sensor with three adjustable sensitivity levels via the remote control.
- Time Display and Alarm Setting: The remote control displays the current time and supports alarm clock settings.
- Parking Location Confirmation: A convenient feature to help locate your motorcycle in crowded parking areas.
- ബാറ്ററി വോളിയംtagഇ നിരീക്ഷണം: Provides real-time monitoring of the motorcycle's battery voltage, aiding in battery management.
- Signal Strength Display: The remote control indicates the signal reception strength, allowing you to confirm the effective range.
- Two Ultra-Compact Remote Controls: Includes two small, portable remote controls.
- സുരക്ഷാ LED: An integrated LED indicator for visual security status.
3. പാക്കേജ് ഉള്ളടക്കം
Upon opening your Steelmate 986X system, please verify that all the following components are included:
- Control Box Main Unit (Daily waterproof specification)
- Alarm Unit (Siren)
- Remote Controls (2 units, with built-in rechargeable lithium batteries)
- യുഎസ്ബി ചാർജിംഗ് കേബിൾ
- Wiring Harness (1 set)
- Japanese Instruction Manual (This document is an English translation/summary)
ചിത്രം: ഒരു സമ്പൂർണ്ണ view of all Steelmate 986X alarm system components: the main control unit, siren, two remote controls, USB charging cable, wiring harness, and fuses.
4 സ്പെസിഫിക്കേഷനുകൾ
| പരാമീറ്റർ | മൂല്യം |
|---|---|
| ഉദ്ദേശം | Anti-theft, Engine Starter Function |
| System Weight (Main Unit + Parts) | 0.7 കി |
| Remote Control Weight (per unit) | 30 ജി |
| Control Box Dimensions (L*W*H) | 7.5 x 6.5 x 2 സി.എം |
| Remote Control Dimensions (L*W*H) | 7 x 3.5 x 1 സി.എം |
| ഓപ്പറേറ്റിംഗ് വോളിയംtage | 12 വി ± 2 വി |
| സ്റ്റാൻഡ്ബൈ കറൻ്റ് | < 20mA |
| സൈറൺ put ട്ട്പുട്ട് | 120dB |
| Maximum Receive Range | 1000 മീറ്റർ |
5. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Installation of the Steelmate 986X system requires electrical knowledge and should ideally be performed by a qualified professional. Incorrect installation can lead to damage to the system or your motorcycle's electrical components.
5.1 ഘടകം തിരിച്ചറിയൽ
പ്രധാന ഘടകങ്ങളുമായി പരിചയപ്പെടുക:
- കൺട്രോൾ ബോക്സ്: The central processing unit of the alarm system.
- സൈറൺ: Produces the alarm sound.
- വിദൂര നിയന്ത്രണങ്ങൾ: Used to operate the system.
- വയറിംഗ് ഹാർനെസ്: Connects the components to the motorcycle's electrical system.
- സുരക്ഷാ LED: Visual indicator for system status.
5.2 വയറിംഗ് ഡയഗ്രം ഓവർview
The following diagram illustrates the general wiring connections for the 986X system. Refer to this diagram carefully during installation.
Image: Detailed wiring diagram for the Steelmate 986X Motorcycle Alarm System, showing connections to the AC ECU, engine key, 12V battery, LED, siren, and blinkers.
5.3 General Installation Steps (Consult a Professional)
- ബാറ്ററി വിച്ഛേദിക്കുക: Always disconnect the motorcycle's battery before beginning any electrical work.
- മൗണ്ട് കൺട്രോൾ ബോക്സ്: Securely mount the main control box in a hidden, dry location on the motorcycle. Ensure it is protected from water and excessive vibration.
- Mount Siren: Install the siren in a location where its sound will not be muffled and is difficult for unauthorized individuals to access.
- പവർ ബന്ധിപ്പിക്കുക: Connect the main power wires (red for positive, black for negative) from the control box to the motorcycle's 12V battery.
- Connect Ignition: Connect the ignition wire (e.g., orange) to the motorcycle's ignition circuit. This is crucial for the engine start and engine lock functions.
- Connect Blinker Wires: Connect the blinker wires (e.g., yellow) to the motorcycle's left and right turn signal circuits.
- Connect Security LED: Install the security LED in a visible location to deter potential thieves.
- Connect Engine Start/Kill Wires: Carefully connect the engine start and kill wires according to the diagram and your motorcycle's specific wiring. This may involve cutting existing wires (e.g., gray ignition code wire).
- സുരക്ഷിത വയറിംഗ്: Route and secure all wiring to prevent chafing, pinching, or interference with moving parts.
- ബാറ്ററി വീണ്ടും ബന്ധിപ്പിച്ച് പരിശോധിക്കുക: Once all connections are made and secured, reconnect the motorcycle battery and perform a thorough test of all alarm functions.
6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The Steelmate 986X system is operated primarily via its two-way remote controls.

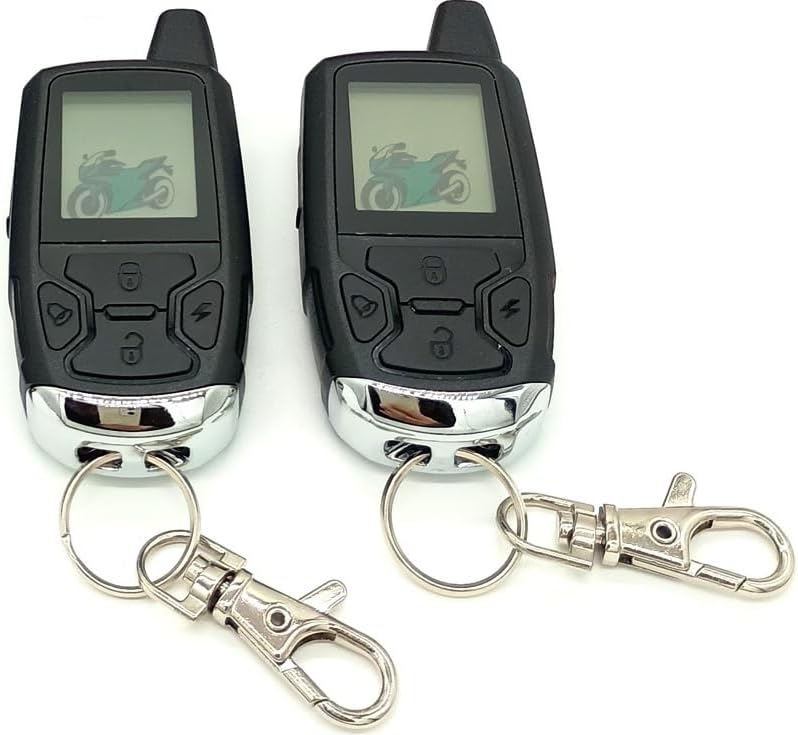

Image: A pair of Steelmate 986X two-way remote controls, featuring an LCD screen and control buttons, attached to metal keychains.
6.1 റിമോട്ട് കൺട്രോൾ ഓവർview
Each remote control features an LCD screen and several buttons for various functions.
Image: A Steelmate 986X remote control held in a hand, displaying information such as battery voltage (15.5V), time (17:45), and signal strength on its LCD screen.
6.2 അടിസ്ഥാന പ്രവർത്തനങ്ങൾ
- അലാറം ആയുധമാക്കുന്നു: അമർത്തുക പൂട്ടുക button once. The system will arm, and the security LED will flash. The remote will confirm with an audible tone and display.
- അലാറം നിരായുധമാക്കുന്നു: അമർത്തുക അൺലോക്ക് ചെയ്യുക button once. The system will disarm, and the security LED will turn off. The remote will confirm.
- റിമോട്ട് എഞ്ചിൻ സ്റ്റാർട്ട്: അമർത്തിപ്പിടിക്കുക എഞ്ചിൻ സ്റ്റാർട്ട് button (often depicted with a lightning bolt or engine icon) for a few seconds. The motorcycle engine will start.
- Remote Engine Stop: While the engine is running via remote start, press the എഞ്ചിൻ സ്റ്റോപ്പ് button (often depicted with a stop sign or power icon).
- Parking Location Confirmation: അമർത്തുക Horn/Locate button (often depicted with a horn icon) once. The motorcycle's siren will chirp and blinkers will flash, helping you locate it.
- Shock Sensor Sensitivity Adjustment: Refer to the detailed instructions in the original manual for specific button combinations to adjust the 3-level shock sensor sensitivity. This is typically done while the alarm is disarmed.
- Hijack Prevention: അടിയന്തര സാഹചര്യത്തിൽ, അമർത്തിപ്പിടിക്കുക നിർത്തുക button on the remote. After approximately 10 seconds, the alarm will sound, and the engine will be forced to stop.
6.3 Remote Control Display Information
The LCD screen on the remote control provides important status information:
- ബാറ്ററി വോളിയംtage: Displays the motorcycle's current battery voltage.
- സമയം: നിലവിലെ സമയം കാണിക്കുന്നു.
- സിഗ്നൽ ശക്തി: Indicates the strength of the signal received from the motorcycle.
- അലാറം നില: Icons will indicate if the alarm is armed, triggered, or disarmed.
- Shock Indicator: Shows if a shock has been detected.
7. പരിപാലനം
- റിമോട്ട് കൺട്രോൾ ബാറ്ററി: The remote controls have built-in rechargeable lithium batteries. Recharge them using the provided USB cable when the battery indicator on the remote shows low power.
- സിസ്റ്റം ക്ലീനിംഗ്: Keep the main control unit and siren clean and free from dirt or debris. Avoid using harsh chemicals.
- വയറിംഗ് പരിശോധന: Periodically check all wiring connections for signs of wear, corrosion, or looseness. Ensure all connections are secure.
- വാട്ടർ എക്സ്പോഷർ: While the control box is daily waterproof, avoid direct high-pressure water spray on any components, especially the siren and remote controls.
8. പ്രശ്നപരിഹാരം
If you encounter issues with your Steelmate 986X system, refer to the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Alarm does not arm/disarm. | Remote control battery low; out of range; system power issue. | Recharge remote battery; move closer to motorcycle; check motorcycle battery and system wiring. |
| Engine start function not working. | Incorrect wiring; motorcycle in gear; low motorcycle battery. | Verify wiring connections (especially ignition and engine start wires); ensure motorcycle is in neutral; check motorcycle battery voltage. |
| Alarm triggers too easily or not at all. | Shock sensor sensitivity incorrectly set. | Adjust shock sensor sensitivity via the remote control. |
| Remote control display is blank. | റിമോട്ട് കൺട്രോൾ ബാറ്ററി മരിച്ചു. | Recharge the remote control battery using the USB cable. |
| Poor signal reception on remote. | Obstructions; excessive distance; interference. | Move to an open area; reduce distance to motorcycle; avoid areas with high electromagnetic interference. |
If you are unable to resolve an issue after consulting this section, please contact your dealer or a qualified service technician.
9 സുരക്ഷാ വിവരങ്ങൾ
- Always ensure the motorcycle is in neutral before attempting remote engine start.
- Do not attempt to install the system if you are not familiar with motorcycle electrical systems. Seek professional installation.
- കുട്ടികളിൽ നിന്ന് റിമോട്ട് കൺട്രോൾ സൂക്ഷിക്കുക.
- Do not disassemble or modify the system components. This may void your warranty and cause damage.
- Ensure all wiring is properly insulated and secured to prevent short circuits or electrical hazards.
