maXpeedingrods Coilover Suspension Kit Instruction Manual

1. ആമുഖം

This manual provides essential information for the installation, operation, and maintenance of your maXpeedingrods Coilover Suspension Kit, Model RT14YNM. This kit is specifically designed for Toyota Camry ACV30/MCV30 models manufactured between 2002 and 2006. It features 24 levels of adjustable damping and adjustable ride height, allowing for customized vehicle dynamics.

Please read this manual thoroughly before attempting any installation or adjustment. Proper installation and maintenance are crucial for the performance and longevity of the coilovers and the safety of your vehicle.

Image 1: Complete maXpeedingrods Coilover Suspension Kit components.

2 സുരക്ഷാ വിവരങ്ങൾ

• പ്രൊഫഷണൽ ഇൻസ്റ്റാളേഷൻ ശുപാർശ ചെയ്യുന്നു: Installation of suspension components requires specialized tools and knowledge. It is highly recommended that this kit be installed by a qualified automotive technician.
• വാഹന പിന്തുണ: Always use appropriate jack stands or a vehicle lift to securely support the vehicle when working underneath it. Never rely solely on a jack.
• ടോർക്ക് സ്പെസിഫിക്കേഷനുകൾ: Ensure all fasteners are tightened to the vehicle manufacturer's specified torque values. Refer to your vehicle's service manual.
• വീൽ അലൈൻമെൻ്റ്: After installation, a professional wheel alignment is mandatory to ensure proper handling, tire wear, and vehicle safety.
• പതിവ് പരിശോധന: Periodically inspect all suspension components for wear, damage, or loose fasteners.
• റോഡ് അവസ്ഥകൾ: Be aware that lowering your vehicle may affect ground clearance and handling characteristics, especially on uneven surfaces or speed bumps.

3. പാക്കേജ് ഉള്ളടക്കം

ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്നും കേടുപാടുകൾ സംഭവിച്ചിട്ടില്ലെന്നും ഉറപ്പാക്കുക:

• Front Coilover Assemblies (2 units)
• Rear Coilover Assemblies (2 units)
• Spanner Wrenches for Height Adjustment (2 units)
• Hex Key for Damping Adjustment (1 unit)

4 സ്പെസിഫിക്കേഷനുകൾ

ചിത്രം 2: വിശദമായത് view of coilover components and materials.

5. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Installation of coilovers is a complex procedure that should ideally be performed by a certified mechanic. The following is a general overview and not a substitute for a professional service manual.

പൊതു ഇൻസ്റ്റാളേഷൻ ഘട്ടങ്ങൾ:

1. വാഹനം തയ്യാറാക്കൽ: Safely lift the vehicle and secure it on jack stands or a lift. Remove the wheels.
2. Remove OEM Suspension: Carefully disconnect and remove the original shock absorbers and springs. Note the orientation of all components.
3. പുതിയ കോയിലോവറുകൾ സ്ഥാപിക്കുക: Mount the maXpeedingrods coilover assemblies. Ensure all bolts are finger-tightened initially.
4. പ്രാരംഭ ക്രമീകരണങ്ങൾ: Before fully tightening, set the initial ride height and damping settings as desired (refer to Section 6).
5. അന്തിമ മുറുക്കൽ: With the vehicle's weight on the suspension (or simulating it), tighten all mounting bolts to the vehicle manufacturer's torque specifications.
6. വീലുകൾ വീണ്ടും ഇൻസ്റ്റാൾ ചെയ്യുക: Reattach the wheels and lower the vehicle.
7. പ്രൊഫഷണൽ വിന്യാസം: Immediately after installation, have a professional wheel alignment performed. This is critical for vehicle safety and performance.

Image 3: Thread-type ride height adjustment during installation.

6. പ്രവർത്തന നിർദ്ദേശങ്ങളും ക്രമീകരണങ്ങളും

6.1 ഡിamping Adjustment (24 Levels)

The coilovers feature 24 distinct levels of rebound damping adjustment, allowing you to fine-tune the ride comfort and handling characteristics. The adjustment knob is located at the top of each coilover unit.

• അഡ്ജസ്റ്റ്മെന്റ് നടപടിക്രമം: To adjust, remove the protective cap (if present) from the top of the coilover. Use the provided hex key or turn the knob by hand to select the desired damping level. Turning clockwise generally increases damping (harder ride), while turning counter-clockwise decreases damp(മൃദുവായ സവാരി).
• ശുപാർശ ചെയ്യുന്ന ക്രമീകരണങ്ങൾ:
  • ലെവലുകൾ 0-8: തെരുവ് ഉപയോഗത്തിന് ശുപാർശ ചെയ്‌തിരിക്കുന്നു, ഇത് കൂടുതൽ സുഖകരമായ യാത്ര നൽകുന്നു.
  • ലെവലുകൾ 9-16: മലയോര റോഡുകൾക്കോ ​​ഉത്സാഹഭരിതമായ ഡ്രൈവിംഗിനോ വേണ്ടി നിർദ്ദേശിക്കപ്പെട്ടിരിക്കുന്നത്, സുഖസൗകര്യങ്ങളുടെയും നിയന്ത്രണത്തിന്റെയും സന്തുലിതാവസ്ഥ വാഗ്ദാനം ചെയ്യുന്നു.
  • ലെവലുകൾ 17-24: Suggested for track use, providing maximum stiffness and control for performance driving.

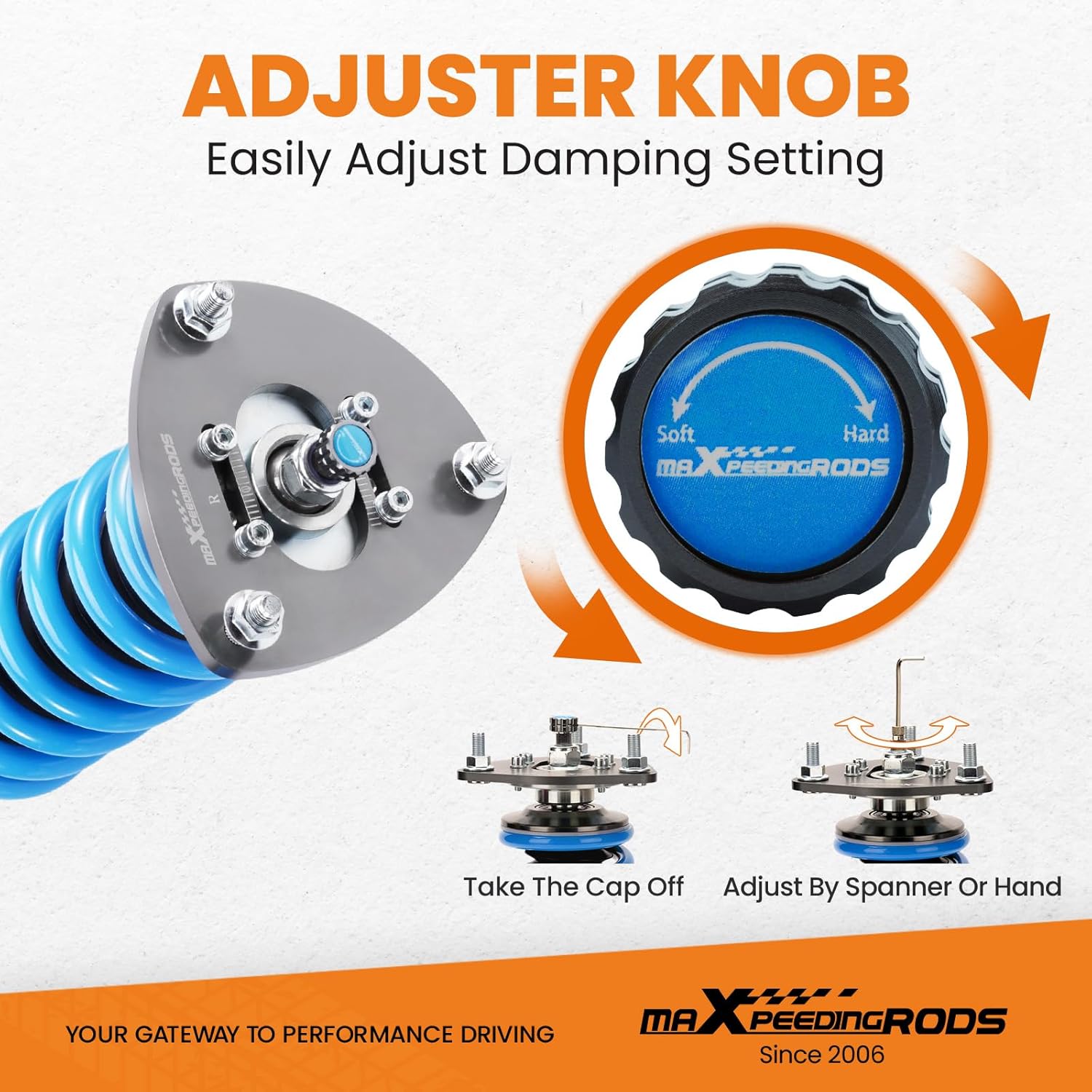

Image 4: Damping adjustment knob and procedure.

Image 5: Damping level recommendations for various driving conditions.

6.2 ഉയരം ക്രമീകരിക്കൽ

The coilovers allow for independent ride height adjustment, separate from spring preload. This enables lowering the vehicle by 1-3 inches from the original ride height.

• അഡ്ജസ്റ്റ്മെന്റ് നടപടിക്രമം: Use the provided spanner wrenches to loosen the locking rings on the coilover body. Rotate the lower perch to raise or lower the vehicle. Once the desired height is achieved, securely tighten the locking rings to prevent movement.
• പ്രധാന പരിഗണനകൾ:
  • Ensure both sides of the vehicle (front or rear axle) are adjusted to the same height to maintain balance.
  • After any significant height adjustment, a wheel alignment is necessary.
  • Do not lower the vehicle beyond the recommended limits, as this can compromise suspension travel and safety.

Image 6: Illustration of height adjustment capability.

Image 7: Detail of perches and locking rings for height adjustment.

7. പരിപാലനം

Regular maintenance helps ensure the longevity and optimal performance of your maXpeedingrods coilovers.

• വിഷ്വൽ പരിശോധന: Periodically inspect the coilovers for any signs of damage, leaks, corrosion, or loose components. Check the dust boots for tears.
• വൃത്തിയാക്കൽ: Keep the coilover bodies and threads clean, especially in environments with road salt, dirt, or debris. Use mild soap and water, then rinse thoroughly.
• ഫാസ്റ്റനറുകൾ പരിശോധിക്കുക: Ensure all mounting bolts and locking rings remain securely tightened. Re-torque if necessary.
• ബെയറിംഗ് പരിശോധന: If equipped with camber plates, check the radial bearings for smooth operation and any signs of wear.

8. പ്രശ്‌നപരിഹാരം

This section addresses common issues that may arise with coilover suspension systems.

പൊതുവായ പ്രശ്നങ്ങളും സാധ്യതയുള്ള പരിഹാരങ്ങളും:

• Knocking or Clunking Noise:
  • കാരണം: Loose mounting bolts, improper spring preload, worn top mounts, or contact with other vehicle components.
  • പരിഹാരം: Re-check all mounting hardware for proper torque. Verify spring preload is set correctly (7-10mm). Inspect top mounts and ensure no components are contacting the chassis or suspension arms. Professional inspection is recommended.
• അസമമായ റൈഡ് ഉയരം:
  • കാരണം: Inconsistent height adjustment between left and right sides.
  • പരിഹാരം: Measure the ride height from a consistent point (e.g., fender lip to wheel center) on both sides and adjust accordingly.
• Poor Handling or Instability:
  • കാരണം: തെറ്റായ ഡിamping settings, improper ride height, or misaligned wheels.
  • പരിഹാരം: ക്രമീകരിക്കുക ഡിamping settings (refer to Section 6.1). Ensure ride height is appropriate and consistent. Obtain a professional wheel alignment.
• ഞരക്കമുള്ള ശബ്ദങ്ങൾ:
  • കാരണം: Dirt or debris on spring coils, dry bushings, or worn components.
  • പരിഹാരം: Clean the springs and coilover body. Inspect bushings for wear and lubricate if necessary.

If you encounter persistent issues that cannot be resolved with these steps, it is advisable to consult a qualified automotive technician or contact maXpeedingrods customer support.

9. വാറൻ്റിയും പിന്തുണയും

maXpeedingrods is committed to providing quality products and customer satisfaction. For specific warranty information regarding your coilover suspension kit, please refer to the warranty card included with your product or visit the official maXpeedingrods webസൈറ്റ്.

Should you require technical assistance, have questions about installation, or need to report a product issue, please contact maXpeedingrods customer support. Our team is available to provide expert assistance and support.

ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ: Please refer to the contact details provided on the maXpeedingrods official webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ വാങ്ങൽ ഡോക്യുമെന്റേഷൻ.
