meross WiFi Water Hose Timer Instruction Manual

1. ആമുഖം

Thank you for choosing the meross WiFi Water Hose Timer. This smart device allows you to automate your watering schedules for lawns, gardens, and pools, integrating seamlessly with smart home ecosystems like Apple HomeKit, Amazon Alexa, and Google Assistant. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance of your water timer.

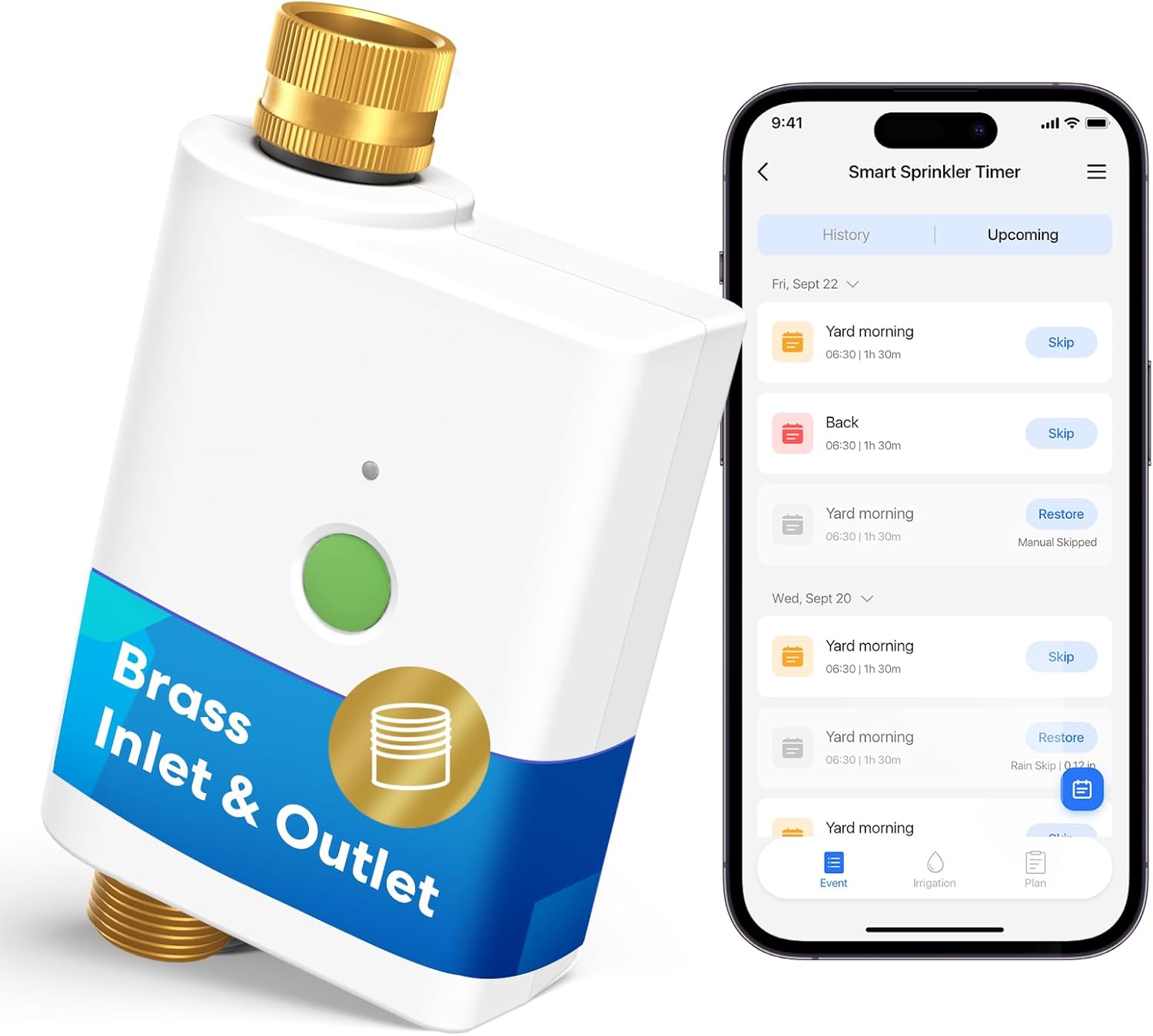

Image: The meross WiFi Water Hose Timer shown alongside a smartphone displaying its control application.

2 പ്രധാന സവിശേഷതകൾ

• Requires WiFi Hub: This water timer operates only when paired with a compatible meross WiFi hub (Model: MSH400). The hub is sold separately or can be part of an existing meross smart irrigation system.
• മോടിയുള്ള പിച്ചള നിർമ്മാണം: Features solid brass inlet and outlet for enhanced corrosion resistance and long-lasting durability, ensuring a leak-free connection even in outdoor conditions.
• Multi-Platform Smart Integration: Compatible with Apple HomeKit, Amazon Alexa, and Google Assistant for convenient voice control and remote management from anywhere.
• Smart Weather Skip: Utilizes hyper-local weather data to automatically skip watering during rain, freezing temperatures, or windy conditions, preventing overwatering and protecting plants.
• ഇഷ്ടാനുസൃതമാക്കാവുന്ന ജലസേചന ഷെഡ്യൂളുകൾ: Allows for flexible scheduling with adjustable start times, durations (1 minute to 11 hours 59 minutes), and frequencies (e.g., Mon-Sun, odd/even days, weekly cycles).
• Water Usage Tracking & Alerts: Monitor water consumption via the Meross app and receive instant notifications for any issues, helping to conserve water and manage utility bills.
• Easy Manual Watering & Auto Shut-Off: Initiate watering manually with a simple button press. Features an adjustable automatic shut-off (default 15 minutes) to prevent water waste.

ചിത്രം: വിശദമായത് view highlighting the durable brass inlet and outlet of the water timer.

3. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ ഇനിപ്പറയുന്ന ഇനങ്ങൾ ഉണ്ടോ എന്ന് പരിശോധിക്കുക:

• meross WiFi Water Hose Timer (MST100)
• ഉപയോക്തൃ മാനുവൽ

Note: The meross WiFi Hub (MSH400) is sold separately and is required for the timer's operation.

4. സജ്ജീകരണ ഗൈഡ്

4.1. ബാറ്ററി ഇൻസ്റ്റാളേഷൻ

The meross Water Hose Timer requires 4 AA batteries (not included). Due to the waterproof design, the battery compartment may be tight. Use a small screwdriver to gently pry open the battery cover if needed.

1. ടൈമറിന്റെ പിൻഭാഗത്ത് ബാറ്ററി കമ്പാർട്ട്മെന്റ് കണ്ടെത്തുക.
2. Gently pry open the battery cover using a screwdriver if it's too tight to open by hand.
3. Insert 4 new 1.5V AA batteries, ensuring correct polarity (+/-).
4. Securely close the battery cover. The timer will power on, indicated by a green light.

Image: Visual guide for inserting batteries and the initial pairing steps for the smart sprinkler timer.

4.2. Connecting the WiFi Hub (MSH400)

The meross WiFi Water Hose Timer requires a meross WiFi Hub (MSH400) to function. If you do not have one, please purchase it separately.

1. Power on your meross WiFi Hub and ensure your smartphone is connected to a 2.4GHz WiFi network.
2. ആപ്പ് സ്റ്റോറിൽ നിന്നോ ഗൂഗിൾ പ്ലേയിൽ നിന്നോ മെറോസ് ആപ്പ് ഡൗൺലോഡ് ചെയ്യുക.
3. Open the Meross app, click the "+" icon, and add the Smart Hub "MSH400" by scanning its QR code or following the in-app instructions.

Image: Step-by-step guide for connecting the meross WiFi Hub to your home network and the Meross app.

4.3. Pairing the Water Timer with the Hub

1. After installing batteries in the water timer, press the button on the sprinkler timer twice. The indicator light will flash.
2. Press the hub button twice. The hub indicator light will flash.
3. Wait a few seconds until the indicator lights on both the timer and the hub stop flashing, indicating successful pairing.

5. ഓപ്പറേഷൻ

5.1. മാനുവൽ നനവ്

You can initiate watering manually directly from the device or through the Meross app.

• ഉപകരണത്തിൽ: Press the green button on the water timer once to start manual watering. The default duration is 15 minutes, which can be adjusted in the Meross app.
• ആപ്പ് വഴി: Open the Meross app, select your water timer, and tap the manual watering option. You can set the desired duration.

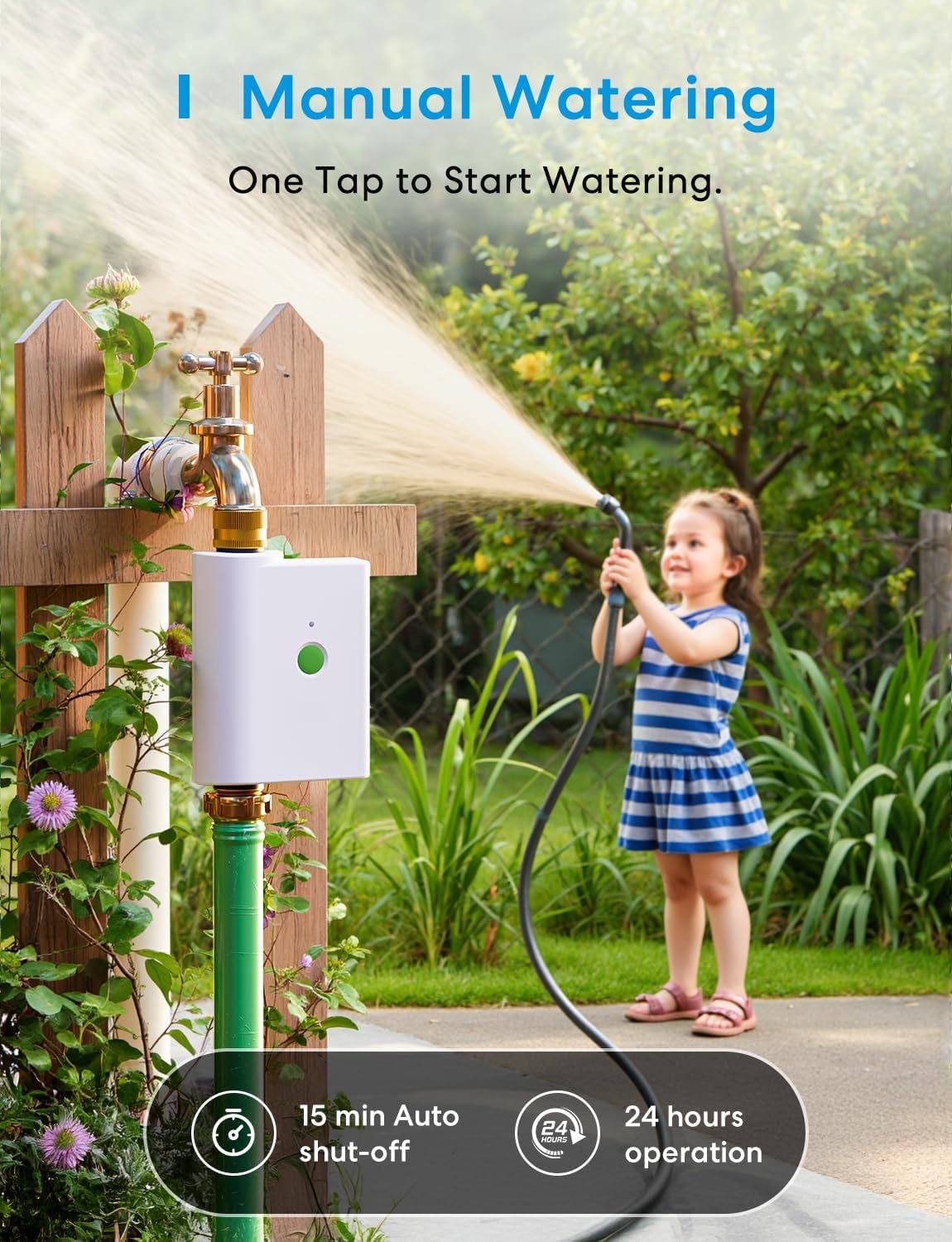

Image: A child using a hose connected to the meross smart water timer for manual watering.

5.2. Creating Watering Schedules

Use the Meross app to create and manage automated watering schedules.

1. Open the Meross app and select your water timer.
2. ഷെഡ്യൂളിംഗ് വിഭാഗത്തിലേക്ക് നാവിഗേറ്റ് ചെയ്യുക.
3. Set desired start times, watering durations, and frequency (e.g., specific days of the week, odd/even days, or custom intervals).
4. Save your schedule. Schedules will run even if the timer is offline.

ചിത്രം: ഉദാamples of customizable watering plans for different areas like backyard, lawn, and flower beds.

5.3. Smart Weather Skip

The timer can automatically adjust watering based on local weather conditions.

• Enable the Smart Weather Skip feature in the Meross app.
• The timer will use hyper-local weather data to skip watering before, during, or after rain, or in freezing/windy conditions.

Image: The meross water timer shown in a rainy environment, demonstrating its ability to skip watering based on weather conditions like rain, frost, or wind.

5.4. ശബ്ദ നിയന്ത്രണം

Control your meross Water Hose Timer using voice commands with compatible smart assistants.

• Ensure your meross account is linked to Apple HomeKit, Amazon Alexa, or Google Assistant.
• ഇനിപ്പറയുന്നതുപോലുള്ള കമാൻഡുകൾ ഉപയോഗിക്കുക:
  • "Hey Siri, open the sprinkler timer."
  • "Alexa, open the sprinkler timer."
  • "Hey Google, open the sprinkler timer."

Image: A woman using voice commands with a smart speaker to control her meross sprinkler timer.

5.5. Water Usage Monitoring

Track your water consumption directly through the Meross app.

• The Meross app provides detailed reports on water usage, helping you understand and optimize your watering habits.
• Receive alerts for any anomalies or issues with water flow.

Image: The meross water timer connected to an outdoor faucet, with an overlay showing a graph of water usage data from the app.

5.6. Expanding Your Sprinkler System

One meross WiFi Hub (MSH400) can support up to 24 water timers, allowing you to manage multiple watering zones from a single hub.

ചിത്രം: ഒരു ആകാശ ചിത്രം view of a large property illustrating how multiple meross water timers can be connected to a single WiFi hub for expanded coverage.

6. പരിപാലനം

• വൃത്തിയാക്കൽ: ഒരു സോഫ്റ്റ്, ഡി ഉപയോഗിച്ച് ടൈമറിന്റെ പുറംഭാഗം തുടയ്ക്കുകamp തുണി. കഠിനമായ രാസവസ്തുക്കളോ ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ഉപയോഗിക്കരുത്.
• ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ: Replace batteries when the low battery indicator appears in the app or on the device. Always use fresh 1.5V AA batteries.
• ശീതകാലം: Before freezing temperatures, disconnect the timer from the faucet and hose. Remove batteries and store the timer indoors in a dry, protected area to prevent damage from frost.
• കണക്ഷനുകൾ പരിശോധിക്കുക: Periodically check all connections to ensure they are secure and leak-free.

7. പ്രശ്‌നപരിഹാരം

7.1. Timer Not Responding

• ബാറ്ററികൾ പരിശോധിക്കുക: ബാറ്ററികൾ ശരിയായി ഇൻസ്റ്റാൾ ചെയ്തിട്ടുണ്ടെന്നും ആവശ്യത്തിന് ചാർജ് ഉണ്ടെന്നും ഉറപ്പാക്കുക. ആവശ്യമെങ്കിൽ മാറ്റി സ്ഥാപിക്കുക.
• പവർ പരിശോധിക്കുക: Verify the timer's indicator light is on. If not, re-install batteries.

7.2. Cannot Connect to WiFi Hub

• Hub Status: Ensure the meross WiFi Hub (MSH400) is powered on and connected to your home WiFi network.
• സാമീപ്യം: Make sure the water timer is within range of the WiFi Hub (up to 328 ft unobstructed).
• വീണ്ടും ജോടി: Try re-pairing the timer with the hub by following the steps in Section 4.3.
• 2.4GHz വൈഫൈ: Confirm your smartphone and hub are connected to a 2.4GHz WiFi network during setup.

7.3. Watering Schedule Not Running

• Check Schedule Settings: Verify the schedule is enabled and configured correctly in the Meross app (times, durations, frequencies).
• കാലാവസ്ഥ ഒഴിവാക്കുക: Check if Smart Weather Skip is active and if current weather conditions are causing the schedule to be skipped.
• ജല സമ്മർദ്ദം: Ensure adequate water pressure from your faucet.

7.4. Leaks at Connections

• കണക്ഷനുകൾ ശക്തമാക്കുക: Ensure all connections (faucet, timer, hose) are securely tightened.
• Check Washers: Verify that rubber washers are properly seated in the connections. Replace if damaged.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

meross products are designed with quality and reliability in mind. For warranty information, technical support, or any questions regarding your meross WiFi Water Hose Timer, please visit the official meross website or contact their customer support directly. You can also refer to the digital user manual available for download on the product's Amazon page.

ഓൺലൈൻ ഉറവിടങ്ങൾ:

• ഔദ്യോഗിക മെറോസ് Webസൈറ്റ്: www.meross.com
• ഉപയോക്തൃ മാനുവൽ (PDF): PDF ഡൗൺലോഡ് ചെയ്യുക
