ESR MagSafe Power Bank with Kickstand (10,000mAh, Qi2 Certified) Instruction Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The ESR MagSafe Power Bank with Kickstand is a Qi2 certified portable charger designed to provide fast and reliable power to your compatible devices. It features a 10,000mAh battery capacity, an intelligent LED display, and a versatile built-in kickstand for convenient viewing.

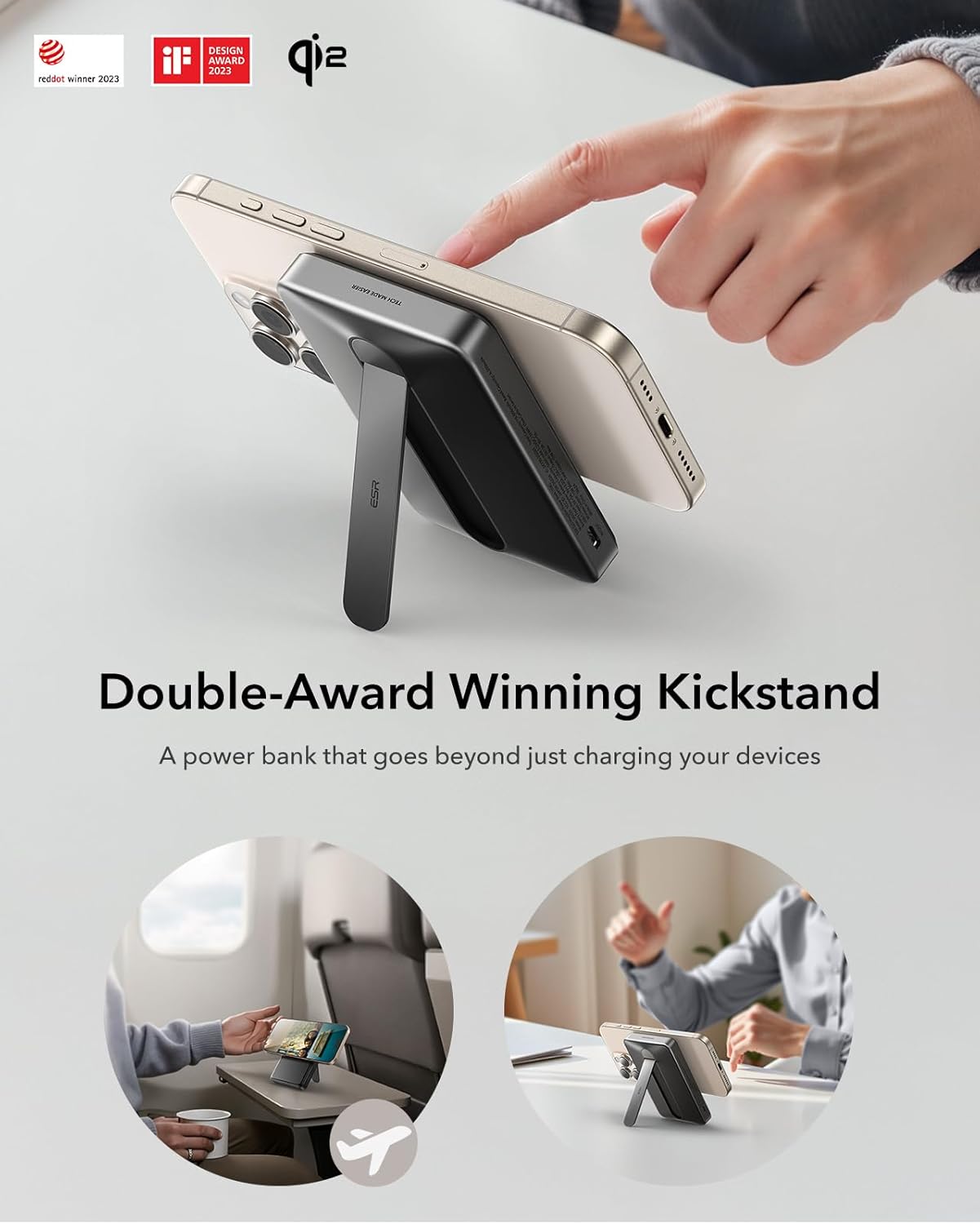

Image: The ESR MagSafe Power Bank with Kickstand, showcasing its sleek design and integrated stand.

2. എന്താണ് ഉൾപ്പെടുത്തിയിരിക്കുന്നത്

• 1 x ESR Qi2 15W Portable Charger (Model: 2G524)
• 1 x 2.0-ft (0.6 m) USB-C to USB-C Cable
• 1 x ഇൻസ്ട്രക്ഷൻ മാനുവൽ

Image: Contents of the product packaging, including the power bank and USB-C cable.

3. സജ്ജീകരണം

3.1 പവർ ബാങ്കിന്റെ പ്രാരംഭ ചാർജിംഗ്

Before first use, fully charge your ESR MagSafe Power Bank. Connect the provided USB-C to USB-C cable to the power bank's USB-C port and to a compatible power adapter (not included). The LED display will show the charging progress.

3.2 Activating the LED Display

Press the power button located on the side of the power bank to activate the intelligent LED display. This display shows the current battery percentagഇ, ചാർജിംഗ് സ്റ്റാറ്റസ്.

Image: Close-up of the power bank's LED display indicating 99% battery charge.

3.3 വീഡിയോ ഗൈഡ് സജ്ജീകരിക്കുക

For a quick visual guide on setting up your power bank, please refer to the official setup video:

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 Wireless MagSafe Charging

The power bank features Qi2 certified 15W MagSafe wireless charging. Simply align your compatible iPhone (12 series or later) or other MagSafe-compatible device to the magnetic charging surface on the power bank. The strong 1,200g magnetic force ensures a secure connection.

• അനുയോജ്യത: iPhone 17/iPhone Air/iPhone 17 Pro/iPhone 17 Pro Max/16/15/14/13/12 series and Google Pixel 10/Google Pixel 10 Pro/Google Pixel 10 Pro XL.
• കുറിപ്പ്: Samsung and Android devices with non-magnetic cases do not support MagSafe wireless charging. Qi2 15W fast charging is not supported for Samsung and Android devices.

Image: Demonstrates the strong magnetic connection between the power bank and a smartphone.

4.2 വയർഡ് USB-C ചാർജിംഗ്

You can charge two devices simultaneously: one wirelessly via MagSafe and another via the 27W USB-C port. Connect your device to the USB-C port using a compatible cable.

• അനുയോജ്യത: Samsung and Android devices without wireless charging can utilize 27W USB-C wired charging.

Image: The power bank connected to a smartphone via a USB-C cable for wired charging.

4.3 ബിൽറ്റ്-ഇൻ കിക്ക്സ്റ്റാൻഡ് ഉപയോഗിക്കുന്നു

The integrated kickstand allows for adjustable viewing angles (between 45° and 70°), perfect for watching videos, making video calls, or browsing content while your device charges.

Image: A smartphone is propped up by the power bank's kickstand, demonstrating its viewപ്രവർത്തനക്ഷമത.

5. പരിപാലനവും സുരക്ഷയും

5.1 Heat Dissipation and Overheating Prevention

The power bank incorporates a built-in NTC sensor, AI algorithm, and graphene heat dissipation technology to actively monitor charging temperatures. This prevents overcharging and overheating, ensuring safe device protection and compliance with air travel regulations.

Image: Diagram illustrating the intelligent cooling technology with NTC sensors and AI algorithms.

5.2 പൊതു സുരക്ഷാ മാർഗ്ഗനിർദ്ദേശങ്ങൾ

• Recommended for use between 50°F (10°C) and 104°F (40°C).
• ഉപയോഗത്തിലില്ലാത്തപ്പോൾ തണുത്തതും ഉണങ്ങിയതുമായ സ്ഥലത്ത് സൂക്ഷിക്കുക.
• Avoid overcharging the power bank or connected devices.
• ബാറ്ററിയുടെ ആരോഗ്യം നിലനിർത്താൻ പവർ ബാങ്ക് പതിവായി ചാർജ് ചെയ്യുക.
• Always use the original USB-C to USB-C cable provided to charge the power bank.

5.3 iOS Charging Tips

With iOS 17, your iPhone may temporarily pause charging at 80% if it detects overheating. This is a protective measure for your battery. Charging will resume once the device cools down. Moving your iPhone to a cooler location can help speed up this process.

Image: An iPhone screen displaying a message about charging being on hold due to temperature.

6. പ്രശ്‌നപരിഹാരം

6.1 Device Not Charging Wirelessly

• Ensure your device is MagSafe compatible (iPhone 12 series or later) or has a MagSafe-compatible case.
• പവർ ബാങ്കിന് മതിയായ ചാർജുണ്ടോയെന്ന് പരിശോധിക്കുക.
• Verify proper alignment of your device on the power bank's magnetic charging surface.

6.2 സ്ലോ ചാർജിംഗ് വേഗത

• For optimal wireless charging, ensure your device supports Qi2 15W fast charging.
• When using wired charging, ensure your cable and wall adapter support 27W Power Delivery.
• Note that Samsung and Android devices do not support Qi2 15W fast wireless charging.

6.3 പവർ ബാങ്ക് അമിത ചൂടാക്കൽ

• If your device or power bank feels excessively hot, temporarily discontinue charging.
• Move the device and power bank to a cooler environment.
• Ensure there are no obstructions blocking the power bank's heat dissipation areas.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

ESR offers comprehensive customer support for your product. This includes:

• Detailed setup videos and FAQs.
• A comprehensive 24-month protection plan.
• Lifetime support.
• Personalized help.

For further assistance, please visit the official ESR webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുക.
