ഗാലഗർ എസ്20 സോളാർ ഇലക്ട്രിക് ഫെൻസ് ചാർജർ

1. ആമുഖം

The Gallagher S20 Solar Electric Fence Charger is a portable, self-contained energizer designed to provide reliable electric fencing for various applications, including poultry, livestock, gardens, and pets. It features advanced lithium battery technology and a high-efficiency solar panel, ensuring continuous operation even in challenging weather conditions. This manual provides essential information for the safe and effective installation, operation, and maintenance of your S20 energizer.

2 സുരക്ഷാ വിവരങ്ങൾ

മുന്നറിയിപ്പ്: Electric fence energizers produce high voltage pulses. Improper installation or use can cause injury. Read all instructions carefully before use.

• Do not connect the energizer to mains power. This unit is designed for solar operation only.
• Keep children and unauthorized persons away from the electric fence.
• സുരക്ഷിതവും ഫലപ്രദവുമായ പ്രവർത്തനത്തിനായി എനർജൈസറിന്റെ ശരിയായ ഗ്രൗണ്ടിംഗ് ഉറപ്പാക്കുക.
• Do not operate the energizer if it is damaged or malfunctioning.
• Avoid touching the fence and ground simultaneously.
• Install warning signs on the electric fence at regular intervals, especially near public access points.
• Disconnect the energizer from the fence and earth leads before performing any maintenance or repairs.

3. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• Gallagher S20 Solar Electric Fence Energizer (with integrated solar panel and lithium battery)
• Fence lead
• ഭൂമിയുടെ ലീഡ്
• ഉപയോക്തൃ ഗൈഡ് (ഈ പ്രമാണം)

4. സവിശേഷതകൾ

• സോളാർ ലിഥിയം സാങ്കേതികവിദ്യ: Equipped with a lithium battery and high-efficiency solar panel for superior and continuous operation in all weather conditions. Lithium batteries recharge faster and hold their charge longer than traditional lead-acid batteries.
• പോർട്ടബിൾ പവർ: Designed for easy movement around the farm. Lightweight, compact, and easy to install and move with an integrated carry handle, making it ideal for strip grazing and rotational pasture management.
• ഇന്റലിജന്റ് അഡാപ്റ്റീവ് എനർജി കൺട്രോൾ: Smart adaptive electronics constantly monitor stored solar energy, measure it against battery voltage, and adjust output energy to ensure the fence is powered for as long as possible, day or night, rain or shine.
• Protected Circuitry and Battery Longevity: Features a dual-insulated plastic enclosure that protects internal components and lithium batteries from extreme temperatures, allowing operation in extreme cold and heat.
• Long-Lasting Off-Grid Fence Power: Provides up to 3 weeks of operation without sunlight, making it ideal for remote fencing locations, rotational grazing systems, and areas with inconsistent weather.

5. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The Gallagher S20 is designed for quick and easy setup. Follow these steps for proper installation:

1. ഒരു ലൊക്കേഷൻ തിരഞ്ഞെടുക്കുക: Select a location for the energizer that receives maximum direct sunlight throughout the day. Avoid shaded areas from trees, buildings, or other obstructions.

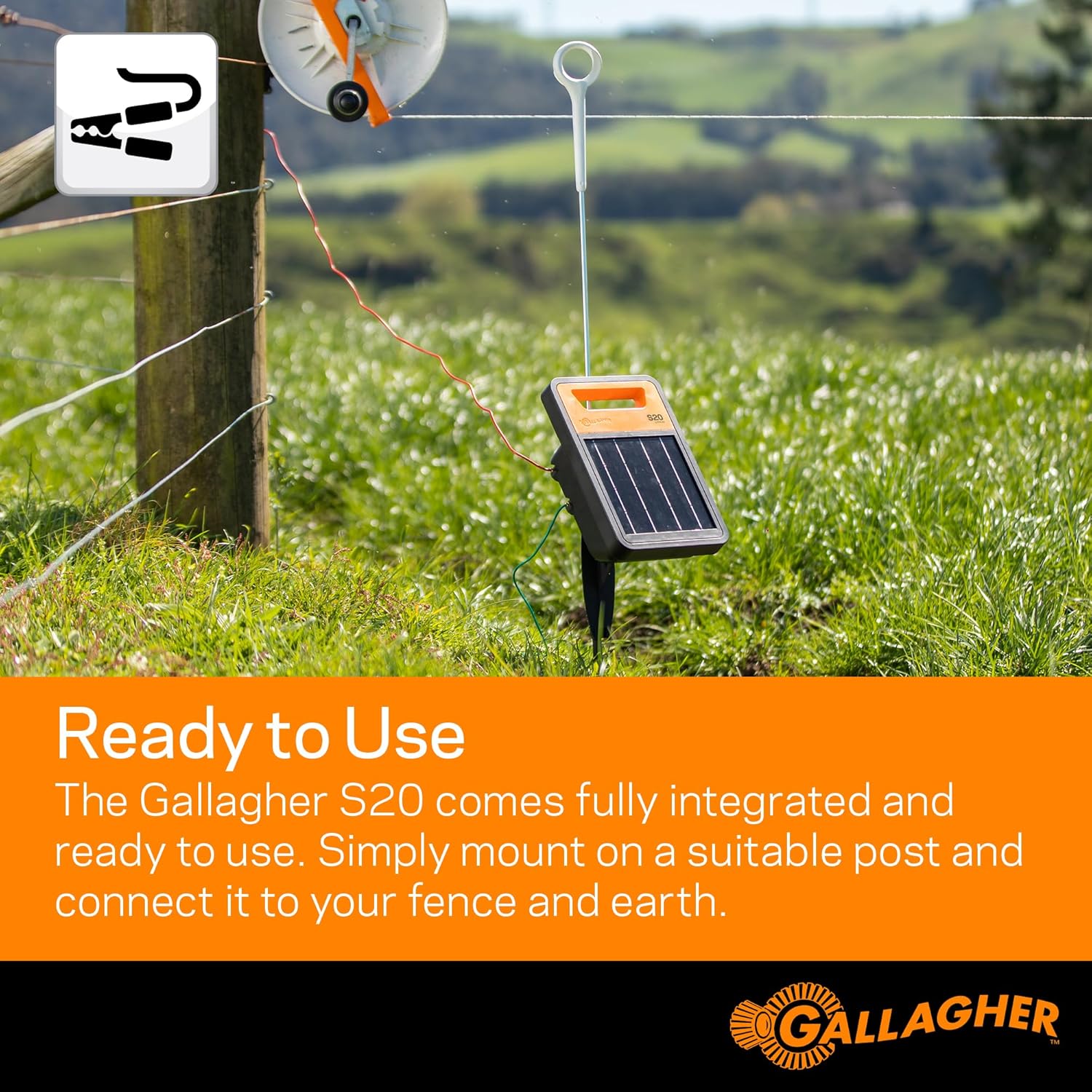

2. എനർജൈസർ ഘടിപ്പിക്കുക: The S20 can be mounted on a suitable post (e.g., Y steel post, T steel post, wood post, ground rod, or ring top post). Ensure the solar panel faces the sun.
3. Connect the Earth Lead: Connect the green earth lead from the energizer to a reliable earth stake. The earth stake should be driven into moist ground away from any underground cables or pipes.
4. Connect the Fence Lead: Connect the red fence lead from the energizer to your electric fence line. Ensure all fence connections are secure and insulated.
5. പ്രാരംഭ ചാർജ്: For optimal performance, allow the energizer to charge in direct sunlight for at least 3 days before connecting it to the fence, especially if it has been stored for a long period.

6. ഓപ്പറേഷൻ

Once installed and charged, the Gallagher S20 operates automatically. The intelligent adaptive energy control system manages power output based on battery levels and solar input.

• The energizer will automatically turn on and begin pulsing once sufficient charge is detected.
• It will continue to operate day and night, utilizing stored energy from the lithium battery when sunlight is not available.
• Monitor the indicator lights (if present on your model) for status updates on battery charge and fence activity.

7. പരിപാലനം

Regular maintenance ensures the longevity and optimal performance of your S20 energizer.

• വൃത്തിയുള്ള സോളാർ പാനൽ: ഇടയ്ക്കിടെ സോഫ്റ്റ്, ഡി-ടൈപ്പ് ഉപയോഗിച്ച് സോളാർ പാനൽ തുടയ്ക്കുക.amp സൂര്യപ്രകാശത്തെ തടസ്സപ്പെടുത്തുകയും ചാർജിംഗ് കാര്യക്ഷമത കുറയ്ക്കുകയും ചെയ്യുന്ന പൊടി, അഴുക്ക് അല്ലെങ്കിൽ അവശിഷ്ടങ്ങൾ നീക്കം ചെയ്യാൻ തുണി ഉപയോഗിക്കുക.
• കണക്ഷനുകൾ പരിശോധിക്കുക: Regularly inspect all fence and earth connections to ensure they are tight and free from corrosion. Loose connections can reduce fence performance.
• ബാറ്ററി കെയർ: The integrated lithium battery is designed for long life. For extended storage, ensure the energizer is fully charged and store it in a cool, dry place. Avoid prolonged storage in a completely discharged state.
• സസ്യ നിയന്ത്രണം: Keep vegetation clear from the fence line to prevent shorts and maintain maximum fence voltage.

8. പ്രശ്‌നപരിഹാരം

If your S20 energizer is not performing as expected, refer to the following troubleshooting guide:

9 സ്പെസിഫിക്കേഷനുകൾ

10. വാറൻ്റിയും പിന്തുണയും

The Gallagher S20 Solar Electric Fence Charger is protected by a മൂന്ന് വർഷത്തെ വാറന്റി, covering defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Gallagher customer support:

• Webസൈറ്റ്: www.gallagher.com
• ഫോൺ: Refer to the Gallagher webപ്രാദേശിക കോൺടാക്റ്റ് നമ്പറുകൾക്കായുള്ള സൈറ്റ്.
