EMKE Thermostatic Shower System Instruction Manual

1. ആമുഖം

Thank you for choosing the EMKE Thermostatic Shower System. This manual provides essential information for the safe installation, operation, and maintenance of your new shower system. Please read these instructions carefully before installation and retain them for future reference.

ഒരു സമ്പൂർണ്ണ view of the EMKE thermostatic shower system in matte black, featuring a square rain shower head, a hand shower, and a control panel with an integrated shelf.

2 സുരക്ഷാ വിവരങ്ങൾ

• Ensure all installation work is performed by a qualified professional in accordance with local plumbing and building codes.
• Before installation, turn off the main water supply.
• Verify that water pressure and temperature are within the recommended limits for the product.
• The thermostatic mixer is designed to prevent scalding. Do not tamper with the factory-set 38°C safety stop.
• Regularly check all connections for leaks.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The EMKE Thermostatic Shower System is designed for wall-mounted installation. Professional installation is recommended.

3.1 പ്രീ-ഇൻസ്റ്റലേഷൻ പരിശോധനകൾ

• എല്ലാ ഘടകങ്ങളും അൺപാക്ക് ചെയ്ത് പാക്കിംഗ് ലിസ്റ്റുമായി താരതമ്യം ചെയ്യുക.
• Inspect all parts for any damage. Do not install damaged components.
• Ensure hot and cold water supply lines are correctly identified and accessible.

3.2 ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ (പൊതു മാർഗ്ഗനിർദ്ദേശങ്ങൾ)

1. Prepare the wall: Ensure the wall surface is clean, flat, and capable of supporting the shower system's weight.
2. Mount the main body: Secure the main shower column to the wall using appropriate fasteners.
3. Connect water lines: Connect the hot and cold water supply lines to the designated inlets on the thermostatic mixer. Ensure proper sealing.
4. Install the rain shower head: Attach the rain shower head to the shower arm. The universal ball joint allows for 360° adjustment.
5. Install the hand shower and hose: Connect the hand shower hose to the outlet and attach the hand shower to its holder.
6. Test the system: Slowly turn on the main water supply and check for any leaks. Test all functions and temperature settings.

The EMKE thermostatic shower system mounted on a wall in a contemporary bathroom, showcasing its sleek design against a backdrop of a pool and outdoor scenery.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The EMKE Thermostatic Shower System offers intuitive controls for a customized showering experience.

4.1 ജലപ്രവാഹ നിയന്ത്രണം

The system features piano-style buttons for selecting water outlets:

• മഴ ചാറ്റൽ: Press the designated button for overhead rain shower flow.
• ഹാൻഡ് ഷവർ: Press the designated button for the hand shower. The hand shower itself has a push-button spray with three functions.
• താഴെയുള്ള ഔട്ട്‌ലെറ്റ്: Press the designated button for the downward water outlet, useful for washing feet or cleaning.

എ വിശദമായി view of the shower system's control panel, highlighting the three piano-style buttons for rain shower, water outlet, and hand shower, along with the thermostatic dial set at 38°C.

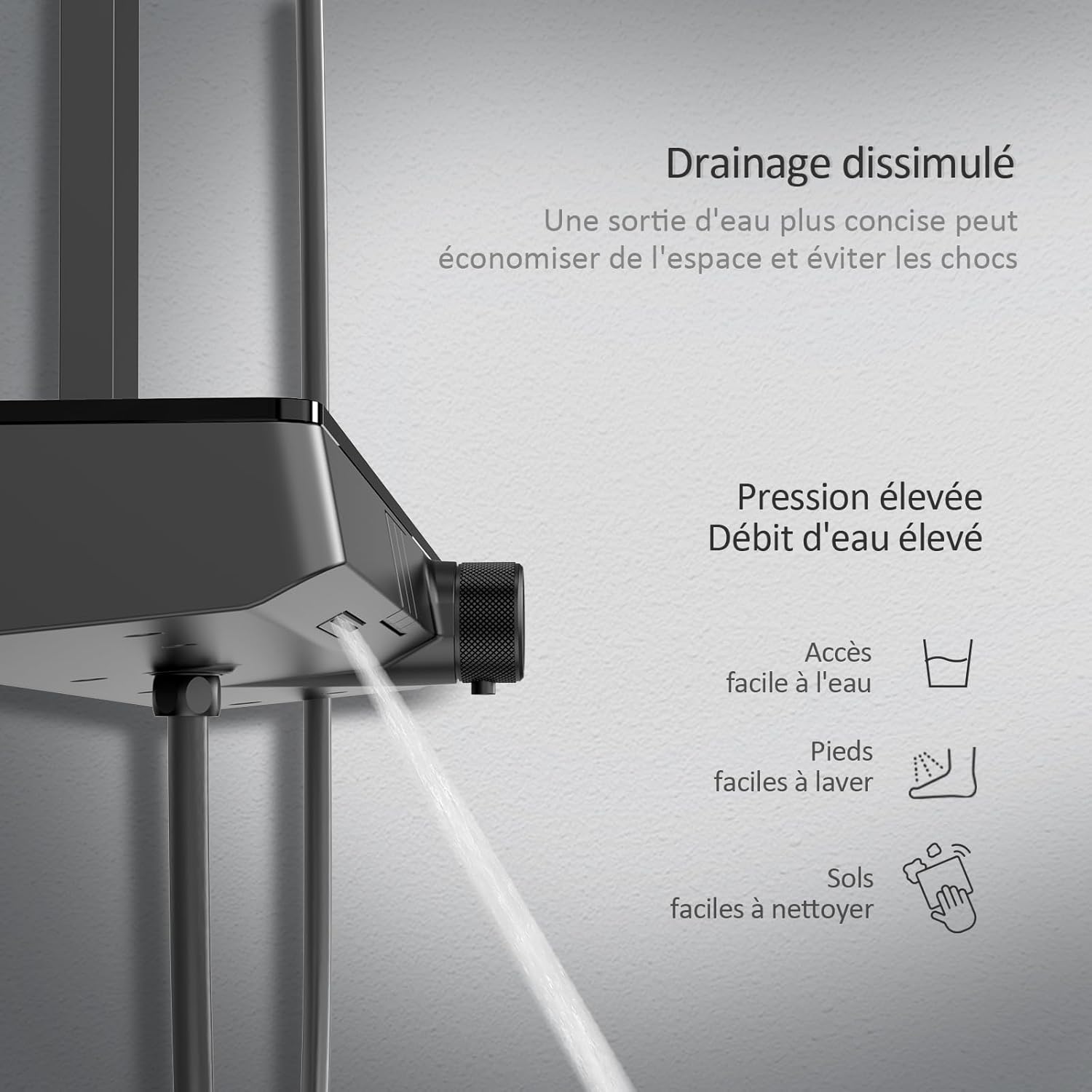

An illustration of the concealed bottom water outlet, designed for easy access to water, washing feet, and cleaning floors, emphasizing high pressure and flow.

4.2 താപനില നിയന്ത്രണം

The thermostatic mixer maintains a constant water temperature. The default safety temperature is 38°C.

• ക്രമീകരണ താപനില: Rotate the thermostatic dial to adjust the water temperature.
• സുരക്ഷാ ലോക്ക്: To increase the temperature above 38°C, press and hold the safety button on the dial while rotating it. This feature protects against accidental scalding, especially for children and the elderly.

A diagram illustrating the safety lock mechanism on the thermostatic dial, which prevents accidental scalding by requiring a press and turn action to increase temperature above 38°C.

4.3 Integrated Shelf

The shower system includes a large integrated shelf (710x130mm) for convenient storage of toiletries.

A close-up of the spacious 71cm thermostatic shelf, showing its dimensions (711mm length, 170mm depth) and capacity to hold toiletries.

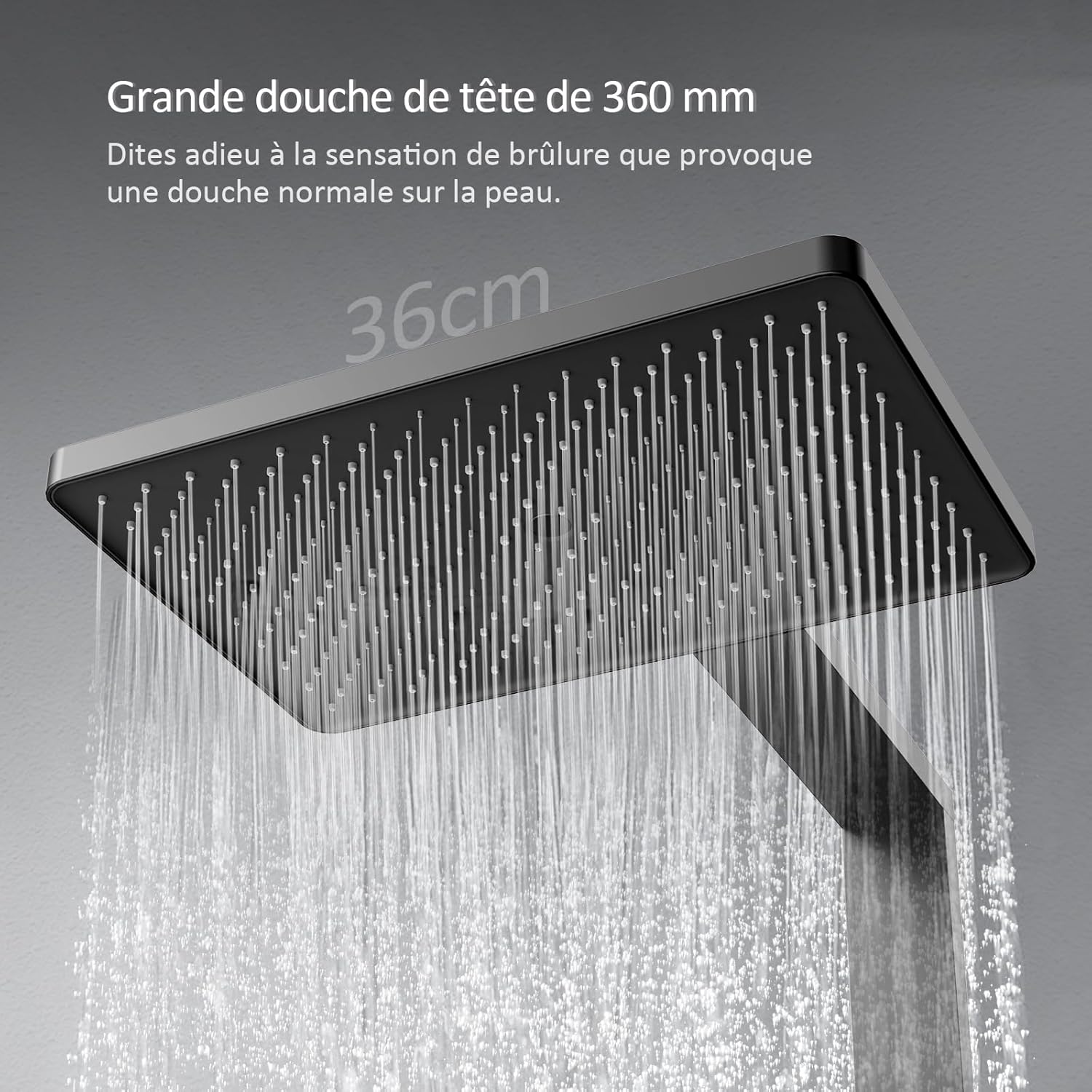

എ വിശദമായി view of the 36cm rain shower head, demonstrating its wide coverage and soft water flow, designed to provide a comfortable showering experience.

5. പരിപാലനം

Proper maintenance ensures the longevity and optimal performance of your EMKE shower system.

• വൃത്തിയാക്കൽ: Clean the shower system regularly with a soft cloth and mild soap. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the matte black finish.
• Silicone Nozzles: The hand shower and rain shower head feature easy-to-clean silicone nozzles. Gently rub the nozzles to remove any limescale buildup.
• Thermostatic Cartridge: If temperature control becomes inconsistent, the thermostatic cartridge may require cleaning or replacement. This should be performed by a qualified technician.
• ചോർച്ച പരിശോധിക്കുക: Periodically inspect all connections for any signs of water leakage. Tighten connections if necessary.

6. പ്രശ്‌നപരിഹാരം

നിങ്ങളുടെ ഷവർ സിസ്റ്റത്തിൽ നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങളെ ഈ വിഭാഗം അഭിസംബോധന ചെയ്യുന്നു.

• കുറഞ്ഞ ജല സമ്മർദ്ദം: Check if the main water supply is fully open. Inspect shower heads and nozzles for blockages or limescale buildup.
• പൊരുത്തപ്പെടാത്ത ജല താപനില: Ensure the hot and cold water supplies are correctly connected. If the issue persists, the thermostatic cartridge may need servicing.
• Leaks from Connections: Turn off the water supply and carefully tighten any leaking connections. If leaks persist, professional assistance may be required.
• Water Not Hot Enough (above 38°C): Ensure the safety button on the thermostatic dial is pressed while attempting to increase the temperature beyond 38°C.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

EMKE shower systems are quality-assured and conform to European KTW certification, ensuring safety, environmental friendliness, and non-toxicity.

For specific warranty details or technical support, please refer to the documentation provided with your purchase or contact EMKE customer service through their official channels. Information regarding spare parts availability is currently not provided.
