ആമുഖം
This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your 5 CORE Dual Z Style Heavy Duty 2 Tier Piano Keyboard Stand. Please read this manual thoroughly before assembly and use to ensure proper function and safety.
The 5 CORE KS Z1 BLK HD + 2T is designed to securely hold 54, 61, and 88-key keyboards, digital pianos, and synthesizers, offering robust support and adjustability for various musical setups.
Image: The 5 CORE Dual Z Style Heavy Duty 2 Tier Piano Keyboard Stand, fully assembled and ready for use. This image showcases the robust Z-frame design and the two adjustable tiers.
പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ
- Ensure all components are securely fastened before placing any instruments on the stand.
- Do not exceed the maximum weight capacity: 250 lbs for the first tier, 60 lbs for the second tier.
- സ്റ്റാൻഡ് വളയുന്നത് തടയാൻ സ്ഥിരതയുള്ളതും നിരപ്പായതുമായ ഒരു പ്രതലത്തിൽ വയ്ക്കുക.
- ക്രമീകരിക്കുമ്പോൾ കൈകളും വിരലുകളും ചലിക്കുന്ന ഭാഗങ്ങളിൽ നിന്ന് അകറ്റി നിർത്തുക.
- Regularly inspect the stand for any signs of wear, damage, or loose connections.
പാക്കേജ് ഉള്ളടക്കം
അസംബ്ലി ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:
- Main Z-frame components
- Adjustable second tier arms
- ഹെഡ്ഫോൺ ഹുക്ക്
- All necessary screws, knobs, and fasteners
- Rubberized non-slip feet
Note: Keyboards and other equipment are not included with the product.
സജ്ജീകരണവും അസംബ്ലിയും
Assembly of the 5 CORE keyboard stand is straightforward and does not require special tools.
Step 1: Assemble the Main Z-Frame
- Unfold the main Z-frame components.
- Connect the horizontal support bar between the two Z-shaped legs, securing it with the provided knobs. Ensure the frame is stable.
Image: Illustration showing the assembly process of the main Z-frame, highlighting the connection points for stability.
Step 2: Attach the First Tier Arms
- Slide the first tier support arms into the designated slots on the main Z-frame.
- Secure them using the locking mechanisms or knobs.
ചിത്രം: ക്ലോസ്-അപ്പ് view of the first tier arms being attached to the main stand, demonstrating the secure fitting.
Step 3: Install the Second Tier
- Attach the second tier arms to the upper part of the main frame.
- Adjust the height and tilt of the second tier as desired using the adjustment knobs. The second tier features 10-degree tilting increments.
Image: The second tier being installed, showing the adjustable arms and tilting mechanism for optimal positioning.
Step 4: Attach Headphone Hook and Secure Strap
- Locate the designated attachment point for the headphone hook and secure it.
- Utilize the secure strap and screw mechanism to prevent the keyboard from sliding or shifting during use.

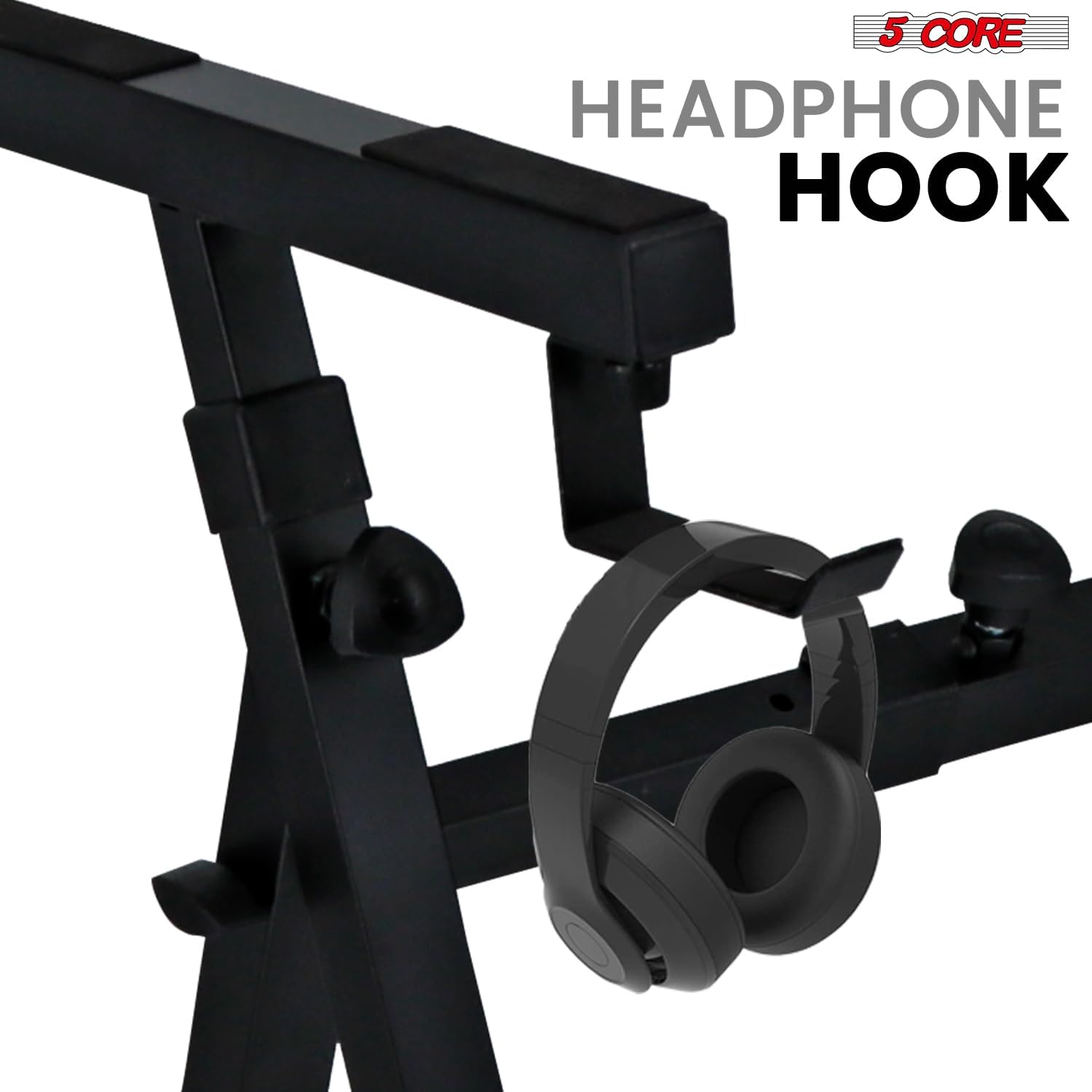

Image: A close-up of the integrated headphone hook, designed for convenient storage of headphones.
Image: Detail of the secure strap and screw, illustrating how it prevents keyboard movement on the stand.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
ഉയരവും വീതിയും ക്രമീകരിക്കുന്നു
The 5 CORE keyboard stand offers extensive adjustability to accommodate various keyboard sizes and user preferences.
- First Tier Height: Adjusts from 22.5 to 33.5 inches (57.15-85.09 cm). Loosen the adjustment knobs on the main Z-frame legs, set to desired height, and re-tighten securely.
- Second Tier Height: Adjusts from 14 to 22.5 inches (35.56-57.15 cm) above the first tier. Loosen the knobs on the second tier arms, set height, and re-tighten.
- Second Tier Width: Adjustable from 22.5 to 33.5 inches (57.15-85.09 cm). To accommodate smaller keyboards or mixers, move the arms closer together (0-29 inches). Loosen the knobs on the horizontal bar of the second tier, slide arms to desired width, and re-tighten.

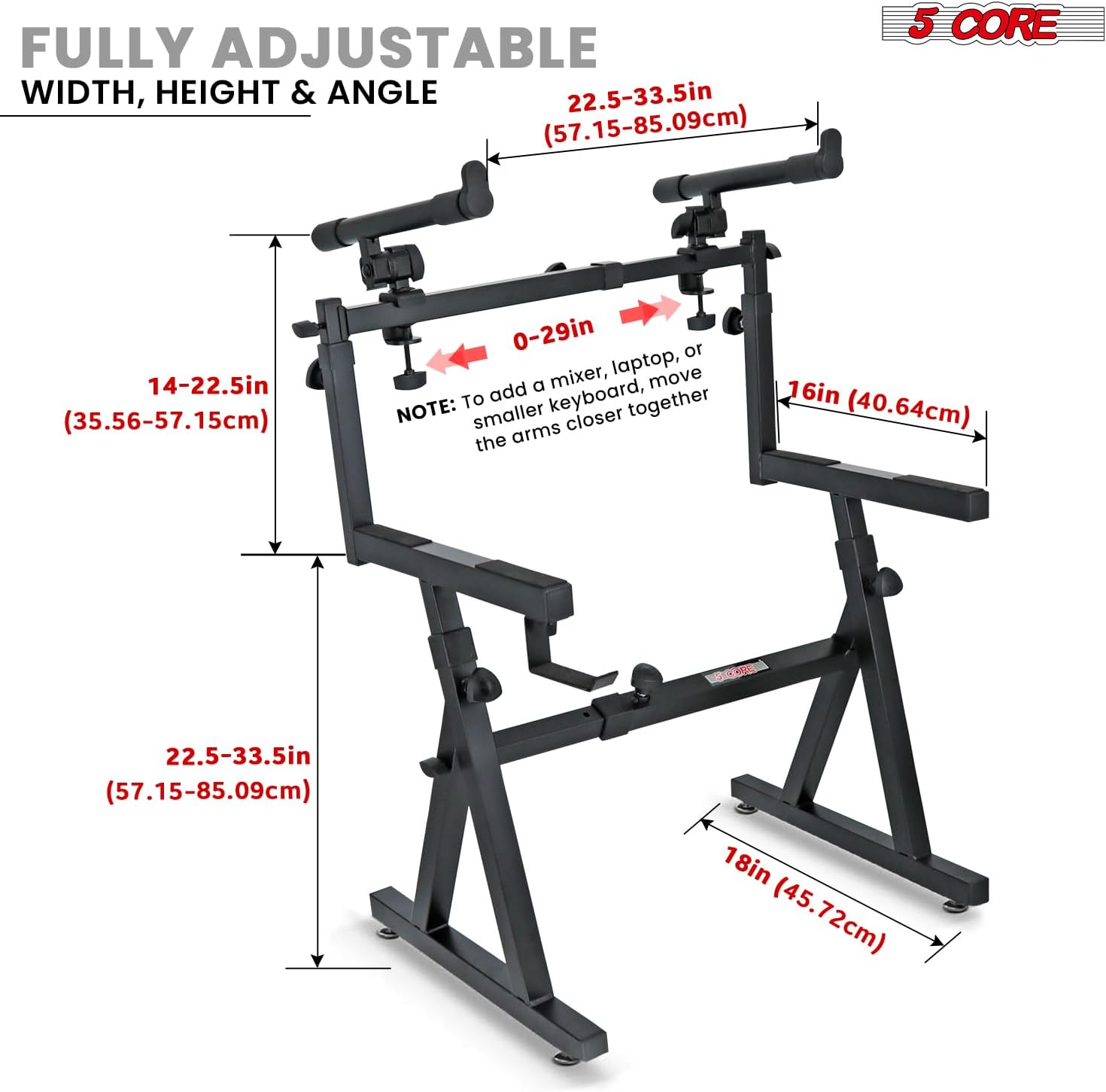

Image: Diagram illustrating the full range of height, width, and angle adjustments for both tiers of the keyboard stand, with measurements in inches and centimeters.
Image: The keyboard stand supporting a keyboard, with labels indicating the maximum weight capacities for the first tier (250 lbs) and second tier (60 lbs).
സ്ഥിരത ഉറപ്പാക്കുന്നു
The Z-frame design combined with rubberized, non-slip feet ensures superior stability.
- Always ensure the stand is placed on a flat, stable surface.
- Verify that all adjustment knobs are tightened firmly after making any changes to prevent wobbling.
- The non-slip padding on the feet prevents accidental movement during performance.
Image: Visual representation of the heavy-duty construction and stability features, including a close-up of the secure double-level keyboard stand mechanism.
ചിത്രം: വിശദമായത് view of the non-slip rubber feet, emphasizing their role in providing sturdy support and preventing movement.
മെയിൻ്റനൻസ്
- വൃത്തിയാക്കൽ: Wipe the stand with a soft, dry cloth to remove dust and debris. For stubborn marks, a slightly damp തുണി ഉപയോഗിക്കാം, തുടർന്ന് ഉടനടി ഉണക്കുക. ഉരച്ചിലുകൾ ഉണ്ടാക്കുന്ന ക്ലീനറുകളോ ലായകങ്ങളോ ഒഴിവാക്കുക.
- പരിശോധന: Periodically check all bolts, screws, and adjustment knobs to ensure they are tight. Re-tighten as necessary.
- സംഭരണം: When not in use, the stand can be disassembled into a compact shape for easy storage and transport. Store in a dry environment to prevent rust.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Stand wobbles or is unstable. | അയഞ്ഞ കണക്ഷനുകൾ; അസമമായ പ്രതലം. | Ensure all knobs and screws are tightened. Place stand on a level surface. |
| Difficulty adjusting height/width. | Knobs are too tight; mechanism is stiff. | Loosen knobs sufficiently. Apply a small amount of silicone lubricant to sliding parts if necessary (avoiding contact with rubber feet). |
| Keyboard slides on the stand. | Keyboard not properly secured; non-slip pads are dirty or worn. | Ensure the secure strap and screw are used. Clean non-slip pads. |
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ | KS Z1 BLK HD + 2T |
| ബ്രാൻഡ് | 5 കോർ |
| മെറ്റീരിയൽ | മെറ്റൽ അലോയ് |
| ഫിനിഷ് തരം | പൊടി പൂശി |
| അടിസ്ഥാന തരം | Leg (Z Style) |
| 1st Tier Load Capacity | 250 പൗണ്ട് (113.4 കി.ഗ്രാം) |
| 2nd Tier Load Capacity | 60 പൗണ്ട് (27.2 കി.ഗ്രാം) |
| 1st Tier Height Adjustment | 22.5 to 33.5 inches (57.15 - 85.09 cm) |
| 2nd Tier Height Adjustment | 14 to 22.5 inches (35.56 - 57.15 cm) |
| 2nd Tier Width Adjustment | 22.5 to 33.5 inches (57.15 - 85.09 cm) |
| പ്രത്യേക സവിശേഷതകൾ | Removable second tier, adjustable tilt (10° increments), Z-frame design, non-slip feet, headphone hook, secure strap. |
| അസംബ്ലി ആവശ്യമാണ് | അതെ |
| ഇനത്തിൻ്റെ ഭാരം | 24.7 പൗണ്ട് (11.2 കി.ഗ്രാം) |
| പാക്കേജ് അളവുകൾ | 22.8 x 22.5 x 3.5 ഇഞ്ച് (57.9 x 57.15 x 8.9 സെ.മീ) |
| യു.പി.സി | 810144131962 |
വാറൻ്റി വിവരങ്ങൾ
Specific warranty details for 5 CORE products are typically provided with the product packaging or available on the manufacturer's official website. Please refer to the documentation included with your purchase for precise warranty terms and conditions. Generally, products are covered against manufacturing defects for a specified period from the date of purchase.
For warranty claims, retain your proof of purchase (receipt or invoice).
ഉപഭോക്തൃ പിന്തുണ
For technical assistance, troubleshooting, or inquiries regarding your 5 CORE Piano Keyboard Stand, please contact 5 CORE customer support.
- നിർമ്മാതാവ്: 5 Core Inc.
- Webസൈറ്റ്: Visit the 5 CORE Store on Amazon (for general product information and contact options)
- Refer to your product packaging for direct contact information (phone number or email) if available.
When contacting support, please have your product model number (KS Z1 BLK HD + 2T) and purchase details ready.
