OLIGHT Perun 3 Rechargeable Headlamp ഫ്ലാഷ്‌ലൈറ്റ് ഉപയോക്തൃ മാനുവൽ

1. ആമുഖം

The OLIGHT Perun 3 is a high-performance rechargeable headlamp and right-angle flashlight designed for versatility and durability. It features a powerful LED with a maximum output of 3,000 lumens, a red light function, and a robust aluminum alloy construction. This manual provides essential information for the safe and effective use of your Perun 3.

Image 1: OLIGHT Perun 3 Headlamp Flashlight with Headband

2. ബോക്സിൽ എന്താണുള്ളത്?

• Perun 3 Flashlight
• ഹെഡ് ബാൻഡ്
• ലാനിയാർഡ്
• MCC3 Charging Cable
• ഉപയോക്തൃ മാനുവൽ

Image 2: Package contents of the OLIGHT Perun 3.

3. ഉൽപ്പന്ന സവിശേഷതകൾ

• ഉയർന്ന പ്രകടനം: Max output of 3,000 lumens with a runtime of up to 20 days.
• ഇരട്ട പ്രകാശ സ്രോതസ്സ്: Equipped with white light and two brightness levels of red light, plus a flashing mode for signaling.
• മെച്ചപ്പെടുത്തിയ വിശ്വാസ്യത: A proximity sensor automatically reduces output power when objects are detected within 0.5 seconds in Turbo mode.
• എളുപ്പമുള്ള പ്രവർത്തനം: Features a large, concave metal side button for glove-friendly use and to prevent accidental activation.
• ബഹുമുഖ ഡിസൈൻ: Detachable from the headband for use as a right-angle flashlight, with a magnetic tailcap for hands-free attachment to metal surfaces.
• നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Made from 6061-T6 Aluminum Alloy with an IP68 waterproof and dustproof rating.

Image 3: The OLIGHT Perun 3 offers versatile lighting options.

Image 4: Unmatched lighting for wide spaces with 3000 lumens.

Image 5: Enduring light for extended tasks with a 20-day runtime.

Image 6: The Perun 3 can be worn as a headlamp for hands-free illumination.

Image 7: The Perun 3 can also be used as a powerful handheld flashlight.

Image 8: Removable tail cap for easy battery replacement.

4. സജ്ജീകരണം

4.1 ബാറ്ററി ഇൻസ്റ്റാളേഷൻ

1. Unscrew the tailcap of the flashlight.
2. Remove the insulating film from within the battery compartment.
3. Ensure the negative end of the new battery faces the flashlight head when inserting it.
4. ടെയിൽക്യാപ്പ് വീണ്ടും ദൃഡമായി സ്ക്രൂ ചെയ്യുക.

4.2 പ്രാരംഭ ചാർജിംഗ്

Before first use, fully charge the flashlight. Connect the provided MCC3 magnetic charging cable to the magnetic tailcap of the Perun 3 and a USB power source. The indicator on the charging cable will show red while charging and turn green when fully charged.

4.3 Attaching to Headband

The Perun 3 can be easily attached to the included headband for hands-free use. Align the flashlight with the mount on the headband and push it firmly until it clicks into place. The mount allows for angle adjustment of the light.

Image 9: Multiple carrying options for the Perun 3.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 Basic Operation (White Light)

• ഓൺ/ഓഫ് ചെയ്യുക: Single press the side button.
• തെളിച്ചം മാറ്റുക: When the light is on, press and hold the side button to cycle through Moonlight, Low, Medium, and High modes. Release the button to select the desired brightness.
• ടർബോ മോഡ്: Double press the side button. The proximity sensor will automatically reduce output if an object is detected too close.
• മൂൺലൈറ്റ് മോഡ്: When the light is off, press and hold the side button for approximately one second.

5.2 Red Light Operation

• Activate Red Light: From the off state, quickly triple-press the side button to activate the red light.
• Change Red Light Modes: While red light is on, press and hold the side button to cycle between Low Red, High Red, and Red Flash modes.

5.3 SOS Mode

Quickly triple-press the side button from any mode (except locked mode) to activate the SOS mode. This will emit a flashing white light signal.

5.4 Lockout/Unlock

• ലോക്ക്outട്ട്: When the light is off, press and hold the side button for approximately two seconds until the light briefly flashes Moonlight mode and then turns off. The light is now locked.
• അൺലോക്ക്: Press and hold the side button for approximately two seconds until the light briefly flashes Moonlight mode. The light is now unlocked and will turn on in Moonlight mode.

Image 10: Ease in the dark with steady red light to preserve night vision.

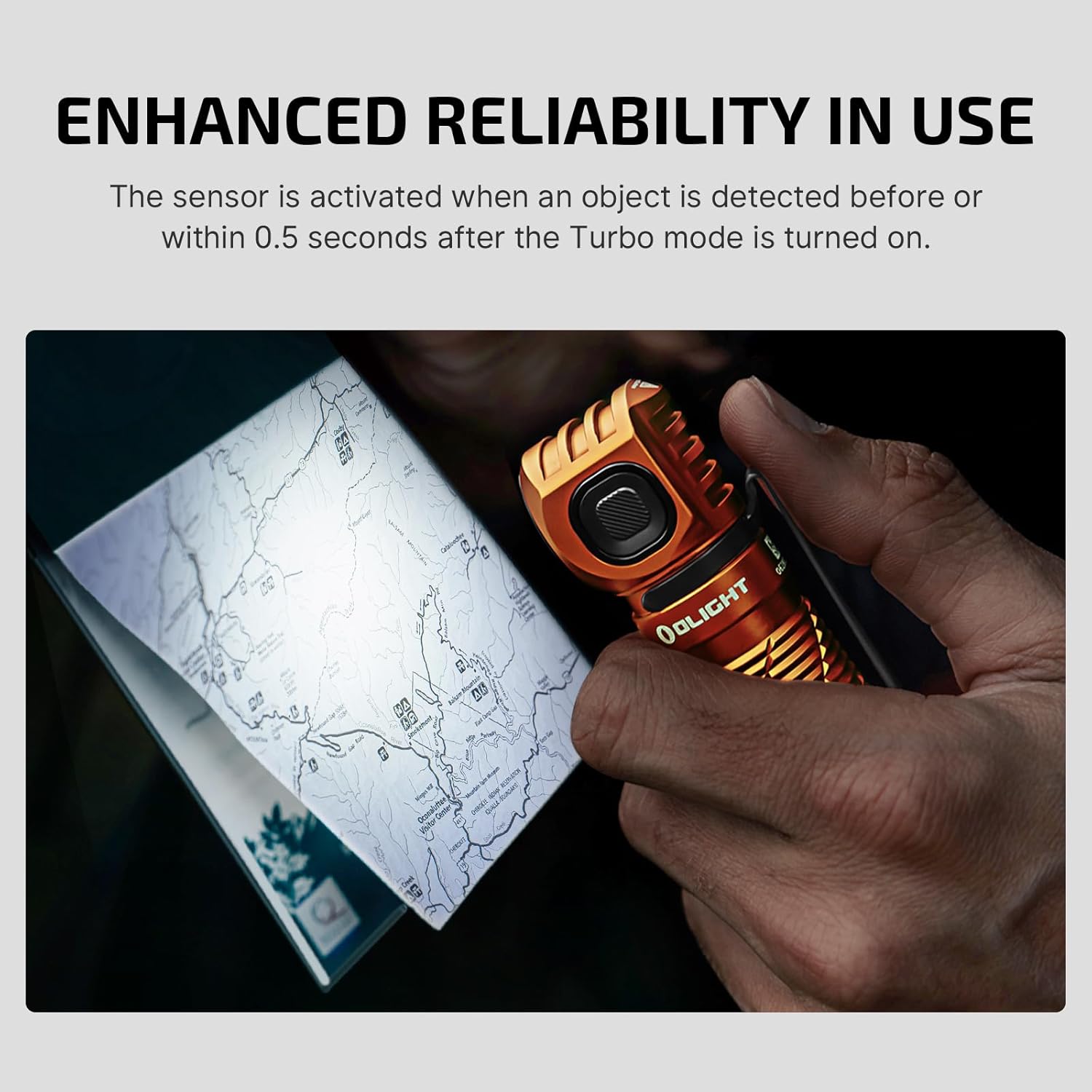

Image 11: Enhanced reliability in use with the proximity sensor.

Image 12: Ergonomic button design for easy and secure operation.

5.5 ഔദ്യോഗിക ഉൽപ്പന്ന വീഡിയോ

വീഡിയോ 1: ഔദ്യോഗിക ഉൽപ്പന്നം അവസാനിച്ചുview of the OLIGHT Perun 3 Rechargeable Headlamp, demonstrating its features and versatility.

6. ചാർജിംഗ്

The Perun 3 utilizes a magnetic charging system. Connect the MCC3 magnetic charging cable to the magnetic tailcap of the flashlight. The LED indicator on the charging cable will glow red during charging and turn green once the battery is fully charged. A full charge typically takes a few hours.

7. പരിപാലനം

• വൃത്തിയാക്കൽ: Keep the lens clean to ensure optimal light output. Use a soft, clean cloth to wipe the lens and body.
• വാട്ടർപ്രൂഫ്/ഡസ്റ്റ് പ്രൂഫ്: The Perun 3 has an IP68 rating, making it resistant to dust and submersion in water up to 2 meters. Ensure the tailcap is tightly screwed on before exposing to water.
• ബാറ്ററി കെയർ: Store the flashlight with a partially charged battery if not used for extended periods. Recharge regularly to maintain battery health.

Image 13: The Perun 3 is built to withstand the elements with IP68 rating.

8. പ്രശ്‌നപരിഹാരം

• ലൈറ്റ് ഓണാക്കുന്നില്ല: Ensure the battery's insulating film has been removed and the tailcap is screwed on tightly. Check if the battery is charged.
• Reduced Output in Turbo Mode: The proximity sensor may be active. Ensure there are no obstructions near the lens.
• ചാർജിംഗ് പ്രശ്നങ്ങൾ: Verify the MCC3 cable is properly connected to both the flashlight and a working USB power source. Check the charging cable indicator light.

9 സ്പെസിഫിക്കേഷനുകൾ

Image 14: White and Red Light Output and Runtime Chart.

10. വാറൻ്റിയും പിന്തുണയും

The OLIGHT Perun 3 comes with a ആജീവനാന്ത വാറൻ്റി. For any support or warranty claims, please contact OLIGHT customer service directly or visit their official webസൈറ്റ്.
