POOLIN EOC06 എംബ്രോയ്ഡറി മെഷീൻ യൂസർ മാനുവൽ

ആമുഖം

This manual provides essential information for the setup, operation, and maintenance of your POOLIN EOC06 Embroidery Machine. Please read this manual thoroughly before using the machine to ensure safe and efficient operation. The POOLIN EOC06 is a computerized embroidery machine designed for various fabric types, offering a large embroidery area and an intuitive touchscreen interface.

സജ്ജമാക്കുക

1. അൺപാക്ക് ചെയ്യലും ഘടക തിരിച്ചറിയലും

Carefully remove all components from the packaging. Verify that all parts listed in the packing list are present. The package includes the embroidery machine, multiple hoops, embroidery threads, stabilizer, and various tools.

ചിത്രം: കഴിഞ്ഞുview of the POOLIN EOC06 Embroidery Machine along with its comprehensive set of included accessories, such as various hoops, thread spools, and essential tools for embroidery.

2. Hoop Installation

The POOLIN EOC06 comes with multiple hoop sizes to accommodate different project needs: two 5.5x5.5 inch hoops, one 8x8 inch hoop, and one 7.9x11 inch hoop. Select the appropriate hoop for your design and securely attach it to the machine's embroidery arm.

Image: The embroidery machine showcasing three different embroidery hoop sizes (5.5"x5.5", 7.9"x7.9", and 7.9"x11") attached, demonstrating the machine's versatility for various project dimensions.

3. Thread Setup

The machine includes a RICHWORD 800M 60-color polyester embroidery thread set. Refer to the machine's threading guide for proper upper thread and bobbin installation. Ensure the thread is correctly tensioned for optimal stitch quality.

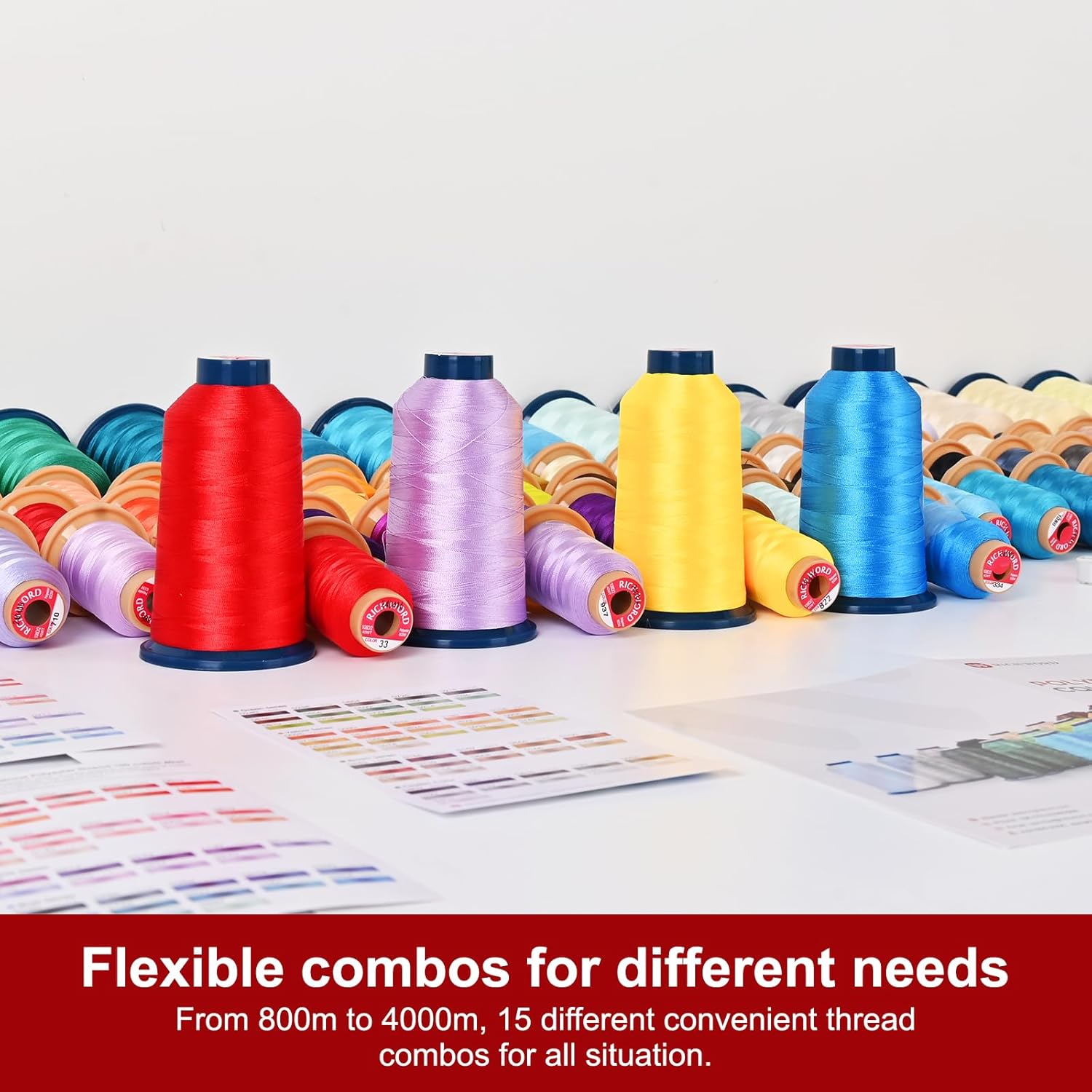

Image: A collection of colorful embroidery thread spools, illustrating the variety of thread options available for use with the machine.

4. പവർ കണക്ഷൻ

Connect the power cord to the machine and then to a suitable electrical outlet. Turn on the machine using the power switch, typically located on the side or back of the unit.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. Using the 7-inch LCD Touchscreen

The POOLIN EOC06 features a large 7-inch LCD touchscreen for easy navigation and control. You can drag, edit, and combine patterns directly on the screen, similar to operating a mobile phone.

ചിത്രം: വിശദമായ ഒരു ചിത്രം view of the 7-inch LCD touchscreen, showing a fox embroidery pattern being displayed and various control options for speed, needle position, and tension.

2. Pattern Selection and Editing

The machine comes with 156 built-in patterns. Navigate through the 'Pattern' menu to select a design. The touchscreen allows for various editing functions, including resizing, mirroring, rotating, and combining multiple patterns or letters. You can also save edited patterns for future use.

ചിത്രം: ഒന്നിലധികം views of the touchscreen interface, demonstrating the process of pattern selection, editing features like resizing and mirroring, and the ability to combine letters and patterns.

3. Importing Custom Designs

To use your own designs, you will need embroidery digital software to create patterns and export them in DST or DSB format. Once exported, plug a USB drive containing these files into the embroidery machine's USB port to import them.

4. Starting Embroidery

After selecting and positioning your design, ensure the fabric is properly hooped and the machine is threaded. Press the 'Ready' button on the touchscreen to begin the embroidery process. The machine will automatically stitch the design.

ചിത്രം: ഉദാamples of embroidered designs on clothing, showcasing the machine's capability to create detailed patterns on various garments.

മെയിൻ്റനൻസ്

Regular maintenance ensures the longevity and optimal performance of your embroidery machine. Keep the machine clean by regularly dusting its exterior and removing lint from the bobbin case and needle plate area. Refer to the detailed cleaning instructions in the full manual for specific procedures. Lubricate moving parts as recommended by the manufacturer to reduce friction and wear.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your POOLIN EOC06 Embroidery Machine, consider the following common troubleshooting steps:

• ഒഴിവാക്കിയ തുന്നലുകൾ: Check if the needle is bent or dull, replace if necessary. Ensure the needle is inserted correctly and fully. Verify that the thread is properly tensioned and threaded through all guides.
• ത്രെഡ് പൊട്ടൽ: Inspect the thread path for any snags or obstructions. Ensure the thread is not too old or brittle. Adjust thread tension if it is too tight. Check for burrs on the needle plate or bobbin case.
• മോശം തുന്നൽ നിലവാരം: This can often be resolved by re-threading the machine completely, both upper thread and bobbin. Ensure the correct needle type and size are used for your fabric and thread. Adjust tension settings as needed.
• മെഷീൻ പ്രതികരിക്കുന്നില്ല: Check power connections and ensure the machine is turned on. If the touchscreen is unresponsive, try restarting the machine.

For more complex issues, refer to the comprehensive troubleshooting guide in the complete product manual or contact customer support.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For product support, including one-on-one assistance and tips, you are encouraged to join the "Poolin Sewing Users Group" on Facebook. This community provides a platform for users to share experiences and receive direct support from Poolin representatives.

Image: A tablet screen showing the "Poolin Embroidery Machine Group" on Facebook, highlighting the available online community and support resources.

Information regarding specific warranty terms and conditions can be found in the full product manual included with your machine or by contacting Poolin customer service directly.
