1. ആമുഖം
Thank you for choosing the OUTDOORMASTER Electric Air Pump. This high-pressure 12V DC pump is designed for quick inflation and deflation of various inflatables, including Stand-Up Paddleboards (SUPs), air mattresses, and inflatable tents. Featuring a sunlight-readable LCD screen, automatic stop function, and overheat protection, this pump ensures a convenient and safe experience. Please read this manual thoroughly before use to ensure proper operation and maintenance.
2 സുരക്ഷാ വിവരങ്ങൾ
- Always connect the pump to a 12V DC power source, such as a car cigarette lighter socket. Do not use with other power sources.
- Ensure the power cable and hose are securely connected before operation.
- Do not operate the pump in wet conditions or submerge it in water.
- പമ്പ് പ്രവർത്തിപ്പിക്കുമ്പോൾ കുട്ടികളെയും വളർത്തുമൃഗങ്ങളെയും അതിൽ നിന്ന് അകറ്റി നിർത്തുക.
- The pump is equipped with overheat protection. If the unit becomes excessively hot, it will automatically shut off. Allow it to cool down before resuming use.
- പ്രവർത്തന സമയത്ത് എയർ ഇൻലെറ്റുകളോ ഔട്ട്ലെറ്റുകളോ തടയരുത്.
- Avoid directing the air stream towards eyes or body parts.
- Always set the correct pressure for your inflatable item. Over-inflation can cause damage.
3. പാക്കേജ് ഉള്ളടക്കം
നിങ്ങളുടെ പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:
- OUTDOORMASTER Electric Air Pump Unit
- എയർ ഹോസ്
- DC 12V Car Cigarette Lighter Plug (305cm long cable)
- 7 x Universal Nozzles (for various inflatables including SUP, air mattress, pool, tent, etc.)
- ഇൻസ്ട്രക്ഷൻ മാനുവൽ

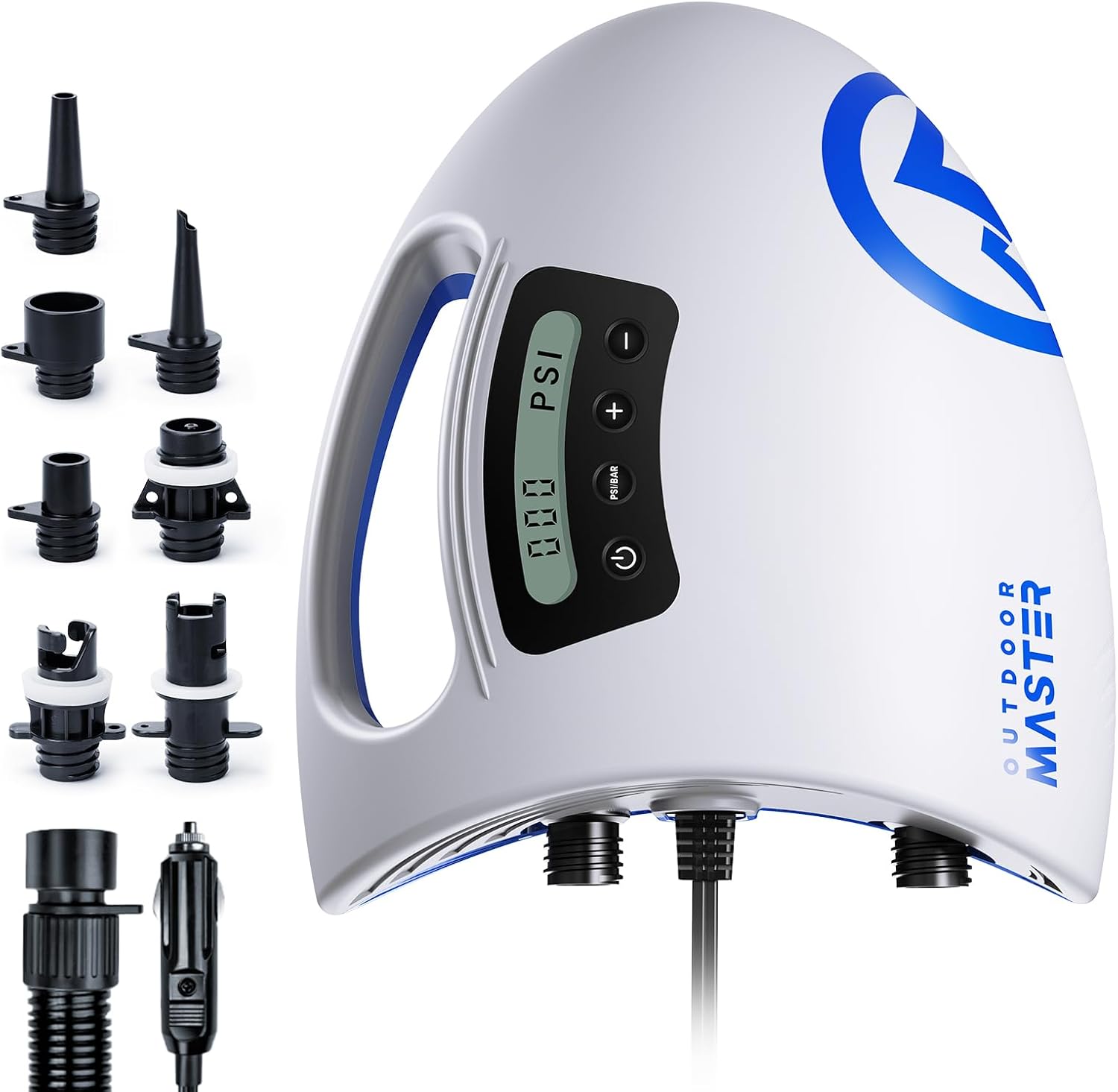

Image: The OUTDOORMASTER Electric Air Pump unit, accompanied by its air hose, DC car charger, and a selection of seven different nozzles for various inflatable types.
4. ഉൽപ്പന്ന സവിശേഷതകൾ
- Sunlight-Readable LCD Screen: High-brightness LCD for clear visibility of pressure values and units, even in direct sunlight.
- In-Operation Control: Adjust pressure settings, switch pressure units, and start/stop operation via the button panel while the pump is running.
- യാന്ത്രിക സ്റ്റോപ്പ് പ്രവർത്തനം: The pump automatically stops once the preset pressure value is reached, preventing over-inflation.
- അമിത ചൂടാക്കൽ സംരക്ഷണം: Internal sensors monitor temperature, automatically cutting power if the pump overheats to prevent damage.
- Efficient Ventilation System: Features dual air inlets and a thrust fan system with a built-in ball bearing DC fan for effective heat dissipation, even at high temperatures.
- Sand-Proof Design: Air inlets and outlets are designed to prevent sand ingress, enhancing safety and durability.
- പണപ്പെരുപ്പവും പണപ്പെരുപ്പവും: Supports both inflation and deflation functions for versatile use.
- വിശാലമായ ആപ്ലിക്കേഷൻ: Ideal for SUPs, air cushions, inflatable beds, inflatable tents, paddle boards, and other inflatable items.
ചിത്രം: ഒരു ക്ലോസ്-അപ്പ് view of the pump's control panel, highlighting the sunlight-readable LCD screen and intuitive buttons for pressure adjustment and operation.
Image: The pump's rear view, illustrating the distinct ports for inflation and deflation, enabling dual functionality.
5. സജ്ജീകരണം
- പവറിലേക്ക് ബന്ധിപ്പിക്കുക: Insert the DC 12V car cigarette lighter plug firmly into your vehicle's 12V accessory socket.
- എയർ ഹോസ് അറ്റാച്ചുചെയ്യുക: Screw one end of the air hose securely into the appropriate port on the pump. For inflation, use the 'INFLATE' port. For deflation, use the 'DEFLATE' port.
- നോസൽ തിരഞ്ഞെടുക്കുക: Choose the correct nozzle for your inflatable item and attach it to the other end of the air hose. Ensure a snug fit to prevent air leakage.
Image: A display of the seven included nozzles, demonstrating their compatibility with various inflatables such as paddle boards, air mattresses, and inflatable pools/tents.
6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
6.1. പണപ്പെരുപ്പം
- Ensure the pump is set up as described in Section 5.
- അമർത്തുക ശക്തി button to turn on the pump. The LCD screen will illuminate.
- അമർത്തുക PSI/BAR button to select your desired pressure unit (PSI or BAR).
- ഉപയോഗിക്കുക + ഒപ്പം - buttons to set the target pressure. Refer to your inflatable's manufacturer recommendations for the correct pressure.
- Connect the nozzle to the inflatable's valve.
- അമർത്തുക ശക്തി button again to start inflation. The pump will automatically stop once the preset pressure is reached.
- Disconnect the hose from the inflatable and the pump.
Image: The electric air pump actively inflating a Stand-Up Paddleboard (SUP) on a wooden dock, demonstrating its outdoor use.
Image: The pump inflating a SUP, highlighting its automatic shut-off feature which allows hands-free operation once the target pressure is reached.
6.2. പണപ്പെരുപ്പം
- Connect the air hose to the 'DEFLATE' port on the pump.
- Attach the appropriate nozzle to the inflatable's valve.
- അമർത്തുക ശക്തി button to start deflation. The pump will extract air from the inflatable.
- Once deflation is complete, press the ശക്തി button to turn off the pump.
- Disconnect the hose from the inflatable and the pump.
7. പരിപാലനം
- വൃത്തിയാക്കൽ: Wipe the pump's exterior with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- സംഭരണം: Store the pump and accessories in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the hose is neatly coiled and nozzles are stored securely.
- എയർ വെൻ്റുകൾ: Periodically check the air inlets and outlets for any obstructions (e.g., sand, debris) and clear them to maintain efficient operation and prevent overheating.
- കേബിൾ കെയർ: Avoid kinking or bending the power cable excessively.
8. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| പമ്പ് ഓണാക്കുന്നില്ല. | No power from 12V socket; loose connection; vehicle fuse blown. | Check 12V socket connection. Ensure vehicle ignition is on. Check and replace vehicle's cigarette lighter fuse if necessary. |
| പ്രവർത്തന സമയത്ത് പമ്പ് നിർത്തുന്നു. | Overheat protection activated; target pressure reached. | Allow pump to cool down for 15-20 minutes. If target pressure was reached, this is normal operation. |
| Slow inflation/deflation. | Hose or nozzle not securely attached; air leak; blocked air inlets/outlets. | Ensure all connections are tight. Check hose and inflatable valve for leaks. Clear any obstructions from air inlets/outlets. |
| Pump is very noisy. | Normal operation for high-pressure pumps. | This is typical for electric air pumps operating at high pressure. Ensure it is placed on a stable surface. |
9 സ്പെസിഫിക്കേഷനുകൾ
- മോഡൽ നമ്പർ: 805321-OMJP
- ബ്രാൻഡ്: OUTDOORMASTER
- ഊർജ്ജ സ്രോതസ്സ്: DC 12V
- പരമാവധി മർദ്ദം: 20 പി.എസ്.ഐ
- അളവുകൾ: 31.3 x 27.2 x 18.2 സെ.മീ
- ഭാരം: 2.41 കി.ഗ്രാം
- നിറം: വെള്ള/നീല
10. വാറൻ്റിയും പിന്തുണയും
OUTDOORMASTER is committed to providing high-quality products. If you encounter any issues or have questions regarding your electric air pump, please contact our customer support team. Refer to your purchase documentation for specific warranty details and contact information.
We are dedicated to resolving any concerns you may have and ensuring your satisfaction with our products.
