Blackburn Hybrid Bicycle Frame Pump with Gauge Instruction Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Blackburn Hybrid Frame Pump is designed to offer the efficiency of a floor pump with the portability of a frame pump. It features a pivoting footpeg for stability during use and a reversible pump head compatible with both Schrader and Presta valves. An integrated Pressure Zone Gauge assists in achieving optimal tire pressure. Inflation accessories and a mounting bracket are included for convenience.

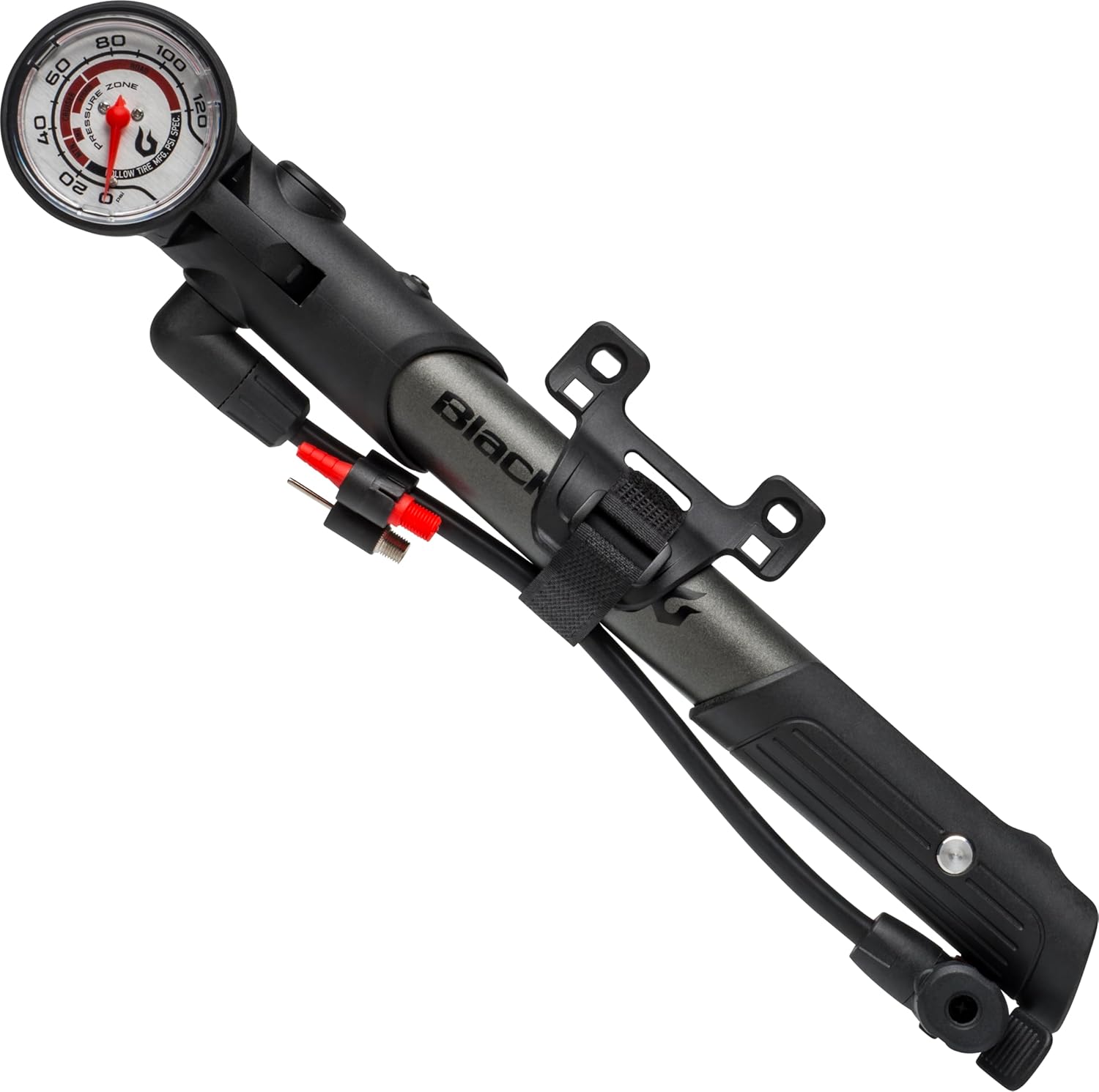

Figure 1: Blackburn Hybrid Bicycle Frame Pump with Gauge, showing its compact design and integrated pressure gauge.

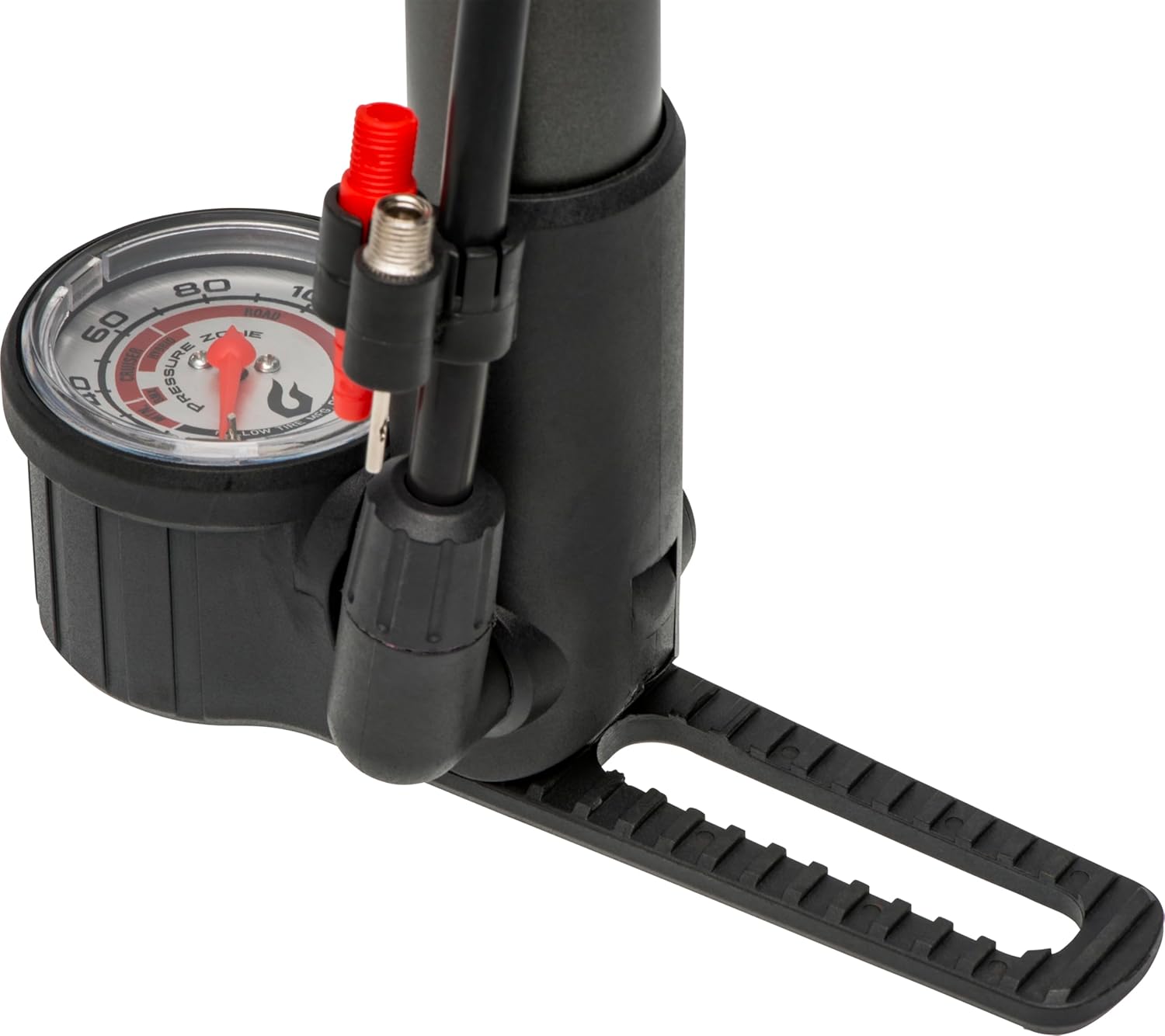

ചിത്രം 2: മുൻഭാഗം view of the pump, highlighting the valve connection and gauge.

2 പ്രധാന സവിശേഷതകൾ

• Reversible Pump Head: Features an exclusive Top Lock XL lever for easy use with both Presta and Schrader valves.
• Wide Barrel Design: Facilitates quick and efficient tire inflation, supporting pressures up to 120 PSI.
• Integrated 2" Pressure Zone Gauge: Provides clear pressure readings and includes target inflation ranges specific to various bicycle types (e.g., Mountain, Cruiser, Hybrid, Road).
• Pivoting T-Handle: Designed for a secure and comfortable grip during the pumping process.
• Pivoting Footpeg: Enhances stability by allowing the user to brace the pump with their foot during operation.
• ഉൾപ്പെടുത്തിയ ആക്സസറികൾ: Comes with a ball needle and inflation cone for diverse inflation needs, along with mounting hardware.

3. സജ്ജീകരണവും അസംബ്ലിയും

3.1 മൗണ്ടിംഗ് ബ്രാക്കറ്റ് ഘടിപ്പിക്കുന്നു

The pump includes a mounting bracket for convenient attachment to your bicycle frame. Use the provided screws to secure the bracket to the water bottle cage bosses on your frame. Once the bracket is attached, the pump can be secured with the integrated strap.

Figure 3: The pump secured to a bicycle frame using the included mounting bracket and strap.

3.2 Reversing the Valve Head (Presta/Schrader)

The pump head is reversible to accommodate both Presta and Schrader valves. To switch between valve types:

1. Unscrew the cap from the pump head.
2. Carefully remove the internal rubber grommet and plastic insert.
3. Flip the rubber grommet and plastic insert to expose the desired valve type (Presta or Schrader).
4. Reinsert the components into the pump head and screw the cap back on securely.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 Preparing for Inflation

1. Ensure the pump head is configured for your tire's valve type (Presta or Schrader).
2. If using a Presta valve, unscrew the valve core lock nut until it is loose, then press down briefly to release a small amount of air.
3. Extend the pump's hose and attach the pump head firmly onto the tire valve. Engage the Top Lock XL lever to secure the connection.
4. Unfold the pivoting footpeg and T-handle for stable and comfortable pumping.

Figure 4: Demonstrating the pump's T-handle and hose connection prior to inflation.

4.2 Inflating the Tire

1. Place your foot on the pivoting footpeg to stabilize the pump.
2. Hold the T-handle firmly and begin pumping with smooth, consistent strokes.
3. Monitor the Pressure Zone Gauge to reach the desired PSI for your bicycle type. Refer to your tire's sidewall for manufacturer recommended pressure.

Figure 5: User demonstrating the stable pumping action with the footpeg engaged.

Figure 6: Close-up of the Pressure Zone Gauge, showing pressure readings and recommended ranges for different bike types.

4.3 Finishing Inflation

1. Once the desired pressure is reached, disengage the Top Lock XL lever and carefully remove the pump head from the valve.
2. If using a Presta valve, tighten the valve core lock nut.
3. Retract the footpeg and T-handle, then secure the hose for storage.

5. പരിപാലനം

• വൃത്തിയാക്കൽ: Wipe the pump body with a damp അഴുക്കും അവശിഷ്ടങ്ങളും നീക്കം ചെയ്യാനുള്ള തുണി. കഠിനമായ രാസവസ്തുക്കൾ ഉപയോഗിക്കുന്നത് ഒഴിവാക്കുക.
• ലൂബ്രിക്കേഷൻ: Periodically apply a small amount of silicone-based lubricant to the pump shaft and O-rings to ensure smooth operation and prevent wear.
• സംഭരണം: Store the pump in a dry place, away from extreme temperatures and direct sunlight, to prolong its lifespan.
• Valve Head Inspection: Regularly check the rubber grommet and plastic insert in the pump head for signs of wear or damage. Replace if necessary to maintain an airtight seal.

6. പ്രശ്‌നപരിഹാരം

• Difficulty Pumping / No Air Flow:
  • Ensure the pump head is securely attached to the valve and the Top Lock XL lever is fully engaged.
  • Check if the valve core (especially Presta) is fully unscrewed before attaching the pump.
  • Inspect the pump head's internal components for correct orientation and wear.
• Inaccurate Gauge Reading:
  • Ensure the pump head is properly sealed to the valve. A poor seal can lead to inaccurate readings.
  • Verify that the gauge needle returns to zero when not in use. If not, the gauge may require service.
• Air Leakage from Pump Head:
  • Check the rubber grommet and plastic insert for damage or improper seating.
  • Ensure the cap on the pump head is tightly screwed on.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

This Blackburn Hybrid Bicycle Frame Pump with Gauge is covered by a ഒരു വർഷത്തെ പരിമിത വാറൻ്റി. For warranty claims, technical support, or additional product information, please refer to the official Blackburn webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവന വിഭാഗവുമായി ബന്ധപ്പെടുക.

നിങ്ങൾക്ക് സന്ദർശിക്കാനും കഴിയും Blackburn Store on Amazon കൂടുതൽ ഉൽപ്പന്നങ്ങൾക്കും വിവരങ്ങൾക്കും.

9. Related Information: Understanding Bicycle Pump Types

ഈ വീഡിയോ ഒരു ഓവർ നൽകുന്നുview of various Blackburn bicycle pumps, including frame pumps, floor pumps, and foot pumps, helping you understand the different options available for tire inflation.
