Arondson Electric Wet Dry Mopping Head Instruction Manual

ഉൽപ്പന്നം കഴിഞ്ഞുview

The Arondson Electric Wet Dry Mopping Head is a versatile attachment designed to enhance the cleaning capabilities of compatible Dyson vacuum cleaners. It allows for simultaneous dry suction and wet mopping, effectively tackling various types of floor messes on hard surfaces.

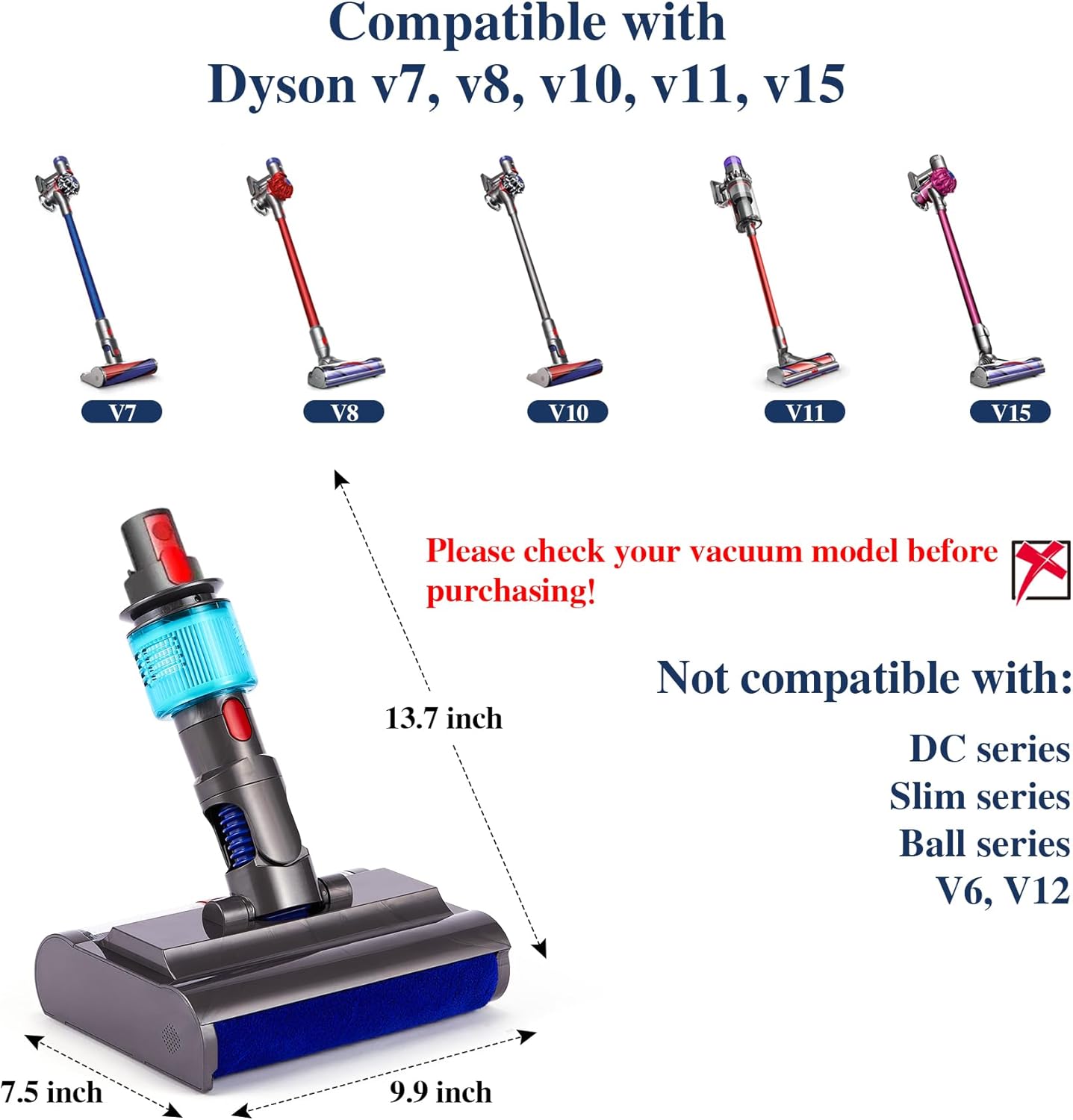

• തികഞ്ഞ അനുയോജ്യത: Designed for Dyson Submarine V7, V8, V10, V11, V15 models. Note: Not compatible with V7 Absolute, V6, V12, DC, Slim, or Ball series.
• Wet & Dry Mop Head: Combines dry vacuuming and wet mopping for efficient cleaning of dust, hair, water stains, and oil stains on marble, wood, and tile floors.
• Flexible & Convenient: Features 60° front/back and 120° side-to-side rotation for easy access to corners and narrow spaces. Built-in LED light illuminates hidden dust.
• Highly Efficient Cleaning: Equipped with two removable water tanks (390ml fresh water, 420ml sewage) and a 9.4-inch wide microfiber roller brush for thorough cleaning without residual water stains.
• High Quality & Customer Friendly: Constructed from wear-resistant ABS plastic, lightweight (2.98 lb), and operates at under 60 dB for quiet use.

പാക്കേജ് ഉള്ളടക്കം

Ensure all components are present before proceeding with assembly and operation.

• Electric Wet Dry Mopping Head
• Roller Brush (pre-installed)
• Fresh Water Tank (390ml)
• Sewage Tank (420ml)
• നീക്കം ചെയ്യാവുന്ന ഫിൽട്ടർ
• Additional Mop Pads (quantity may vary)

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these steps to correctly assemble and attach the mopping head to your Dyson vacuum.

1. Prepare the Water Tank:

   Open the clean water tank cover and fill the 390ml fresh water tank with clean water. A small amount of floor cleaner can be added if desired. Close the cover securely.



   Image: A person filling the clean water tank of the mopping head with water and cleaning solution.

2. Attach Mop Pads (Optional, for pre-wetting):

   If desired, wet the mop pads under a faucet and wring out excess water before attaching them to the bottom of the mopping head. This can facilitate initial cleaning.



   Image: A person attaching wet mop pads to the underside of the mopping head.

3. Connect to Dyson Vacuum:

   Align the brush joint of the mopping head with the straw joint of your Dyson vacuum. Push until you hear a "click" sound, indicating a secure connection. Ensure the filtered HEPA is inserted under the straw interface and the outer jacket is tightened at about 15 degrees.



   Image: Visual instructions for connecting the mopping head to the Dyson vacuum, highlighting the "click" sound for secure attachment.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The mopping head is designed for ease of use on various hard floor types.

1. പവർ ഓൺ:

   Once the mopping head is securely attached, turn on your Dyson vacuum. The mopping head will begin to operate simultaneously with the vacuum function.
2. Cleaning Motion:

   Guide the vacuum across your hard floors. The mop heads rotate in a circular motion to effectively pick up grime and dirt. The attachment's flexible rotation (60° front/back, 120° side-to-side) allows for easy maneuvering around furniture and into tight spaces.



   Image: A close-up of the mopping head showing its rotatable joint and the LED light illuminating the floor.

3. LED ലൈറ്റ് ഫീച്ചർ:

   Utilize the built-in LED light to illuminate dust and debris in dark areas, such as under sofas and beds, ensuring a thorough clean.
4. ബഹുമുഖ ശുചീകരണം:

   The mopping head is effective on various hard floors including living room wooden floors, bathroom tiles, and kitchen marble, tackling water stains, coffee stains, mud stains, greasy dirt, and hair.



   Image: The mopping head effectively cleaning different types of stains like water, coffee, mud, and greasy dirt from various floor types.

മെയിൻ്റനൻസ്

Regular maintenance ensures optimal performance and longevity of your mopping head.

1. Emptying the Sewage Tank:

   Press and hold the red button to pull out the clear waste water tank. Remove the lid and empty the collected dirty water. Clean the tank as needed.
2. റോളർ ബ്രഷ് വൃത്തിയാക്കൽ:

   Remove the side roller brush bracket, then remove the roller brush. Clean the microfiber roller brush with water and mild soap. Allow it to dry completely before re-installing.



   Image: Visual instructions for disassembling and cleaning the water tanks and roller brush of the mopping head.

3. ഫിൽട്ടർ മെയിന്റനൻസ്:

   The mopping head includes a removable filter for secondary filtration. Periodically remove and clean the filter under running water. Ensure it is completely dry before re-inserting to maintain optimal performance.

ട്രബിൾഷൂട്ടിംഗ്

• Water not dispensing to roller:

  Ensure the fresh water tank is correctly filled and securely closed. Check for any blockages in the water dispensing mechanism. Verify that the mop pads are adequately damp or pre-wet to facilitate initial water transfer.

• മോശം ക്ലീനിംഗ് പ്രകടനം:

  Check if the roller brush is clean and free from debris. Ensure the water tanks are properly installed and filled. The filter might need cleaning if suction is reduced.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or any inquiries regarding your Arondson Electric Wet Dry Mopping Head, please refer to the manufacturer's official webസൈറ്റിൽ ബന്ധപ്പെടുകയോ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുകയോ ചെയ്യുക. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
