1. ആമുഖം
The One For All HDTV Indoor Antenna Model 15520 is designed to receive free over-the-air television broadcasts in 1080P and 4K resolutions. This antenna offers a reception range of up to 30 miles and features multi-directional reception capabilities, along with 3G/4G/LTE signal filtering for clear picture quality. This manual provides instructions for proper setup, operation, and maintenance of your antenna.
Image 1.1: One For All HDTV Indoor Antenna (black side).
2. പാക്കേജ് ഉള്ളടക്കം
പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ദയവായി പരിശോധിക്കുക:
- One For All HDTV Indoor Antenna (Model 15520)
- 10ft Coaxial Cable (attached to antenna)
- External Signal Booster
Image 2.1: Antenna with attached coaxial cable.
3. സജ്ജീകരണം
3.1 Antenna Placement
Optimal antenna placement is crucial for best reception. Consider the following:
- High Location: Place the antenna as high as possible, ideally on a wall or near a window.
- വഴി മായ്ക്കുക: Ensure there are minimal obstructions between the antenna and broadcast towers. Large metal objects, concrete walls, and other electronic devices can interfere with the signal.
- Dual Color Design: The antenna features a dual-color (white/black) design, allowing you to choose the side that best blends with your home decor.
- നേർത്ത പ്രോfile: The antenna is ultra-thin (approximately 1mm thick), making it discreet and easy to mount.
Image 3.1: The antenna's ultra-thin profile.
3.2 ആൻ്റിന ബന്ധിപ്പിക്കുന്നു
- Locate the 'Antenna In' or 'RF In' port on the back of your television.
- Connect the coaxial cable from the One For All antenna to this port. Ensure the connection is secure.
- If using the external signal booster, connect it inline between the antenna's coaxial cable and the TV's 'Antenna In' port. The booster typically requires power via a USB connection (check booster instructions for details).
Image 3.2: Coaxial cable connection point on the antenna.
3.3 ചാനലുകൾക്കായി സ്കാൻ ചെയ്യുന്നു
After connecting the antenna, you must perform a channel scan on your television:
- Turn on your television and select the correct input source (usually 'TV' or 'Antenna').
- Access your TV's menu settings. Look for options like 'Channel Setup', 'Auto Program', 'Channel Scan', or 'Antenna Scan'.
- ചാനൽ സ്കാൻ ആരംഭിക്കുക. ഈ പ്രക്രിയയ്ക്ക് നിരവധി മിനിറ്റുകൾ എടുത്തേക്കാം.
- സ്കാൻ പൂർത്തിയായിക്കഴിഞ്ഞാൽ, നിങ്ങളുടെ ടിവി ലഭ്യമായ ചാനലുകൾ പ്രദർശിപ്പിക്കും.
3.4 Using the One For All Assistant App
For assistance with antenna placement and channel availability, you can use the One For All Assistant app. This app helps identify local broadcast towers and suggests optimal antenna positioning for your location.

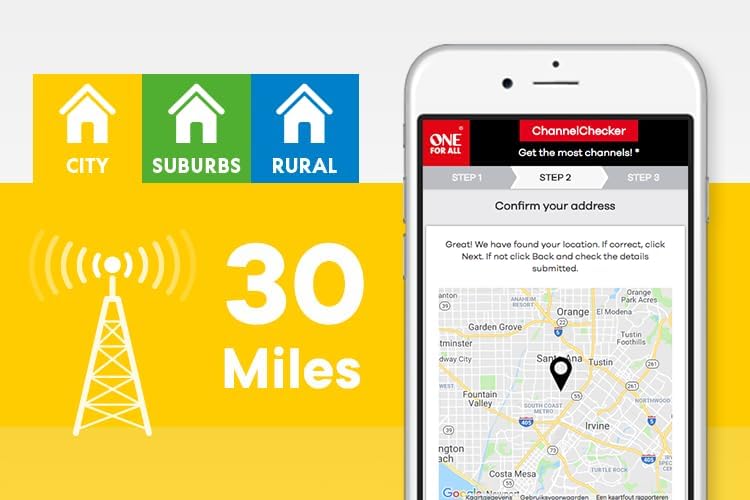

Image 3.3: One For All ChannelChecker app interface.
4. ആന്റിന പ്രവർത്തിപ്പിക്കൽ
4.1 Channel Reception
The One For All HDTV Indoor Antenna features multi-directional 360° reception, which means it does not need to be pointed in a specific direction to receive signals. This technology helps minimize blind spots and improves the reception of available channels.
Image 4.1: Illustration of 360-degree reception.
4.2 Signal Filtering
The antenna incorporates active noise reduction filters, including 3G/4G/LTE filters. These filters help to reduce interference from cellular signals, ensuring a clearer and more stable television signal.
5. പരിപാലനം
The One For All HDTV Indoor Antenna requires minimal maintenance:
- വൃത്തിയാക്കൽ: Wipe the antenna gently with a soft, dry cloth to remove dust. Do not use liquid cleaners or abrasive materials.
- പ്ലേസ്മെൻ്റ്: Avoid placing the antenna in direct sunlight, near heat sources, or in areas with high humidity.
- കേബിൾ കെയർ: Ensure the coaxial cable is not kinked or pinched, as this can affect signal quality.
6. പ്രശ്നപരിഹാരം
If you experience issues with your antenna, refer to the following troubleshooting steps:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| No channels or poor picture quality | Antenna not connected properly, poor placement, TV not scanned, signal interference. |
|
| Fewer channels than expected | Antenna placement, distance from broadcast towers, local terrain. |
|
| Intermittent signal loss | External interference, weather conditions. |
|
7 സ്പെസിഫിക്കേഷനുകൾ
- മോഡൽ നമ്പർ: 15520
- ഉൽപ്പന്ന അളവുകൾ: 10.24 x 0.58 x 4.8 ഇഞ്ച്
- ഇനത്തിൻ്റെ ഭാരം: 8.1 ഔൺസ്
- സ്വീകരണ ശ്രേണി: 30 മൈൽ വരെ
- Coaxial Cable Length: 10 അടി
- പിന്തുണയ്ക്കുന്ന മിഴിവുകൾ: 1080 പി, 4 കെ
- പ്രത്യേക സവിശേഷത: Lightweight, Multi-directional 360° reception, 3G/4G/LTE filter
- നിറം: Black/White (reversible)
- അനുയോജ്യമായ ഉപകരണങ്ങൾ: ടെലിവിഷൻ
- നിർമ്മാതാവ്: യുഇഐ
8. വാറൻ്റിയും പിന്തുണയും
For information regarding warranty coverage and technical support, please refer to the official One For All website or contact their customer service directly. Contact details are typically provided in the product packaging or on the manufacturer's webസൈറ്റ്.
ഓൺലൈൻ പിന്തുണ: സന്ദർശിക്കുക എല്ലാവർക്കും വേണ്ടി ഒന്ന് webസൈറ്റ് for FAQs, product registration, and further assistance.
